2014 Citroen C4 CACTUS RHD fuse box

196
Before changing a fuse:
F t he cause of the failure must be identified
and rectified,
F

a
ll electrical consumers must b
switched


off,
F

t
he vehicle must be immobilised with the
ignition off,
F

i
dentify the failed fuse using the tables and
layout drawings in the following pages.
Changing a fuse
Good Failed
The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a CITROËN dealer or a qualified
workshop. Tw e e z e r
Changing a fuse
The extraction tweezer is fitted to the back of
the cover of the dashboard fuseboxes.
Access to the tools
To replace a fuse, you must:
F
u se the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F

a
lways replace the failed fuse with a fuse
of the same rating (same colour); using
a different rating could cause faults (risk
of f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a CITROËN dealer or a qualified workshop.
F

U

nclip the cover by pulling at the top left,
then right.
F

D

isengage the cover completely and turn it
ove r,
F

R

emove the tweezer from the back of the
c ove r.
Practical information

198
Dashboard fuses
The two fuseboxes are placed in the lower
dashboard, at the glove box.Fuse
N° Rating
(A) Functions
F01 10Brake pedal (switch 2), Stop & Start.
F02 5Headlamp beam height adjuster, additional heater (Diesel),
parking sensors, diagnostic socket, door mirrors (electric
adjustment).
F03 10Diesel additive pump, electric power steering, clutch pedal
(sw i tc h).
F04 5Rain and sunshine sensor.
F06 10Brake pedal (switch 1), diagnostic socket.
F08 5Top of steering column contacts with steering mounted controls.
F10 10Emergency call / Assistance call.
F12 5Stop & Start, ABS, ESC.
F13 5Parking sensors, reversing camera
F14 15Electronic gearbox, switch panel (below the touch screen
tablet), air conditioning, touch screen tablet.
F16 1512 Volt socket.
F18 20Radio.
Access to the fuses
F Unclip the cover by pulling at top left, then
right.
Left hand fusebox
Practical information

200

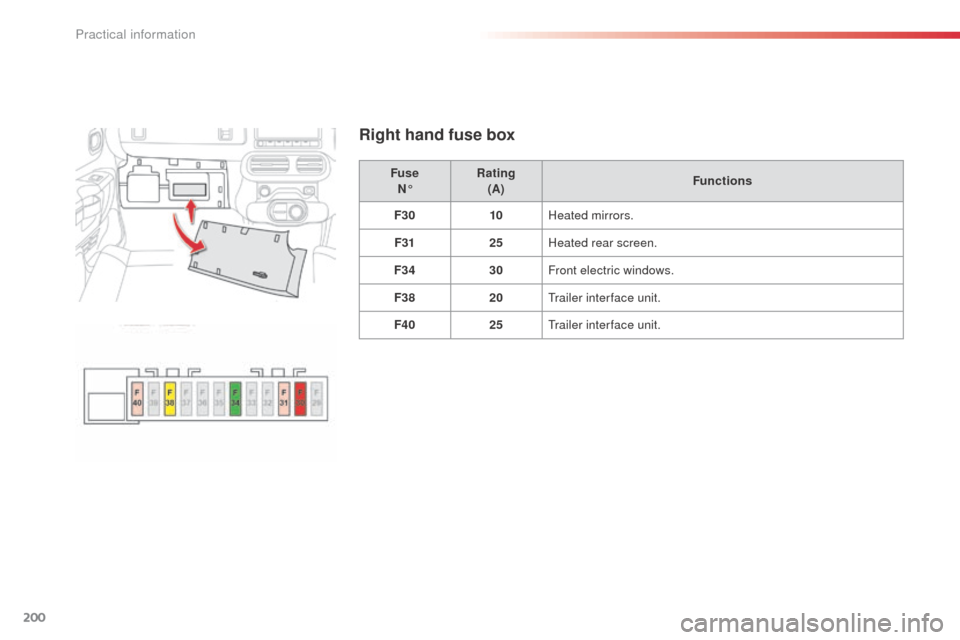

Right hand fuse box
FuseN° Rating
(A) Functions
F30 10Heated mirrors.
F31 25Heated rear screen.
F34 30Front electric windows.
F38 20Trailer inter face unit.
F40 25Trailer inter face unit.
Practical information

201
Engine compartment fuses
Access to the fuses
F Unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox. Fuse
N° Rating
(A) Functions
F1 40Air conditioning.
F2 30 / 40Stop & Start.
F3 30Passenger compartment fusebox.
F4 70Passenger compartment fusebox.
F5 70Built-in Systems Interface (BSI).
F6 60Cooling fan assembly.
F7 80Built-in Systems Interface (BSI).
F8 15Engine management, petrol pump.
F9 15Engine management.
F10 15Engine management.
F11 20Engine management.
F12 5Cooling fan assembly.
F13 5Built-in Systems Interface (BSI).
F14 5Battery charge unit (non Stop & Start engine).
F15 5Stop & Start.
F17 5Built-in Systems Interface (BSI).
F18 10Right hand main beam headlamp.
The fusebox is placed in the engine
compartment near the battery.
9
Practical information

202
FuseN° Rating
(A) Functions
F19 10Left hand main beam headlamp.
F20 30Engine management.
F21 30Starter motor.
F22 40Electronic gearbox.
F23 40ABS, ESC.
F24 20ABS, ESC.
F25 30Passenger compartment fusebox.
F26 15Electronic gearbox.
F27 25Built-in Systems Interface (BSI).
F28 30Diesel emissions control system (AdBlue).
F29 40Windscreen wipers.
F30 80Preheater control unit.
F31 100Additional heater (Diesel).
F32 80Electric power steering.
Practical information

217
Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts have been tested and approved for reliability and safety.
They are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort"
Door deflectors, side sun blinds, insulated
module, coat hanger fixed to head restraint,
mobile reading lamp, front and rear parking
sensors, portable ashtray, scented air
freshener, blind for sunroof...
"Transport systems"
Boot carpet, boot liner, boot net, boot spacers,
transverse roof bars, ski carrier, roof box,
towbar, towbar wiring harness, bicycle carrier...
"Styling"
Leather gear lever knob, aluminium foot rest,
alloy wheels, front spoiler, rear diffuser, exterior
expressive stickers...
"Security and safety":
Anti-intrusion alarm, vehicle tracking system,
first aid kit, fire extinguisher, warning triangle,
high visibility vest, wheel security bolts, snow
chains, non-slip covers, front foglamp kit, dog
guard, pet seat belt, seat belt cutter/glass
hammer...
"Protection"
Mats*, seat covers, mud flaps, vehicle cover,
boot...
If a towbar and wiring harness are
fitted outside the CITROËN dealer
network, the installation must be done
strictly in line with the manufacturer's
recommendations. *

T
o avoid any risk of jamming the pedals:
-

e
nsure that mats are correctly positioned
and secured,
-

n
ever fit one mat on top of another.
9
Practical information

221
1. Screenwash reservoir.
2. Coolant header tank.
3.
B

rake fluid reservoir.
4.
B

attery.
5.


Fusebox.
6.
A

i r f i l t e r.
7.
E

ngine oil dipstick.
8.
E

ngine oil filler cap.
Petrol engines
10
Checks

222
1. Screenwash wash reservoir.
2. Coolant header tank.
3.
B

rake fluid reservoir.
4.
B

attery.
5.


Fusebox.
6.
A

i r f i l t e r.
7.
E

ngine oil dipstick.
8.
E

ngine oil filler cap.
9.
P

riming pump*.
Diesel engines
* According to engine.
Checks
