2014 Citroen C4 CACTUS RHD headlamp

115
Foglamps selection ring
The foglamps operate with dipped and main beam headlamps.
Front foglamps and rear
foglamp
When the headlamps switch off with automatic
illumination of headlamps (AUTO model)
or when the dipped beam headlamps are
switched off manually, the foglamps and
sidelamps remain on.
F
T
urn the ring rear wards to switch off the
foglamps, the sidelamps will then switch
of f.
Rear foglamp only
F To switch it on, turn the ring for wards.
When the lighting is switched off automatically
(with AUTO model), the foglamp and the dipped
beam headlamps will remain on.
F

T
o switch it off, turn the ring rear wards. Rotate and release the ring:
F
f or wards a first time to switch on the front
foglamps,
F

f
or wards a second time to switch on the
rear foglamp,
F

r
ear wards a first time to switch off the rear
foglamp,
F

r
ear wards a second time to switch of the
front fog lamps.
6
Visibility

116
In good or rainy weather, both day
and night, the front foglamps and the
rear foglamp are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped beam headlamps manually
as the sunshine sensor may detect
sufficient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.Switching off the lamps
when the ignition is
switched off
On switching off the ignition, all of the lamps
turn off immediately, except for dipped beam
if guide-me-home lighting is activated.
Switching on the lamps
after the ignition is
switched off
To reactivate the lighting control, rotate
the ring to the "0" position - lamps off,
then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically after
a maximum duration of thirty minutes to
prevent discharging of the battery.
Visibility

117
Automatic illumination of
headlamps
Activation
F Turn the ring to the "AUTO" position. The
activation of the function is accompanied
by the display of a message.
When a low level of ambient light is detected
by a sunshine sensor, the number plate
lamps,
s

idelamps and dipped beam headlamps
are switched on automatically, without any
action on the part of the driver. They can also
come on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the brightness returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.
Deactivation
F Turn the ring to another position. Deactivation of the function is
accompanied by the display of a message.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lighting comes
on, this warning lamp is displayed
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
Contact a CITROËN dealer or a qualified
workshop. in the instrument panel accompanied by an
audible signal and/or a message.
6
Visibility

118

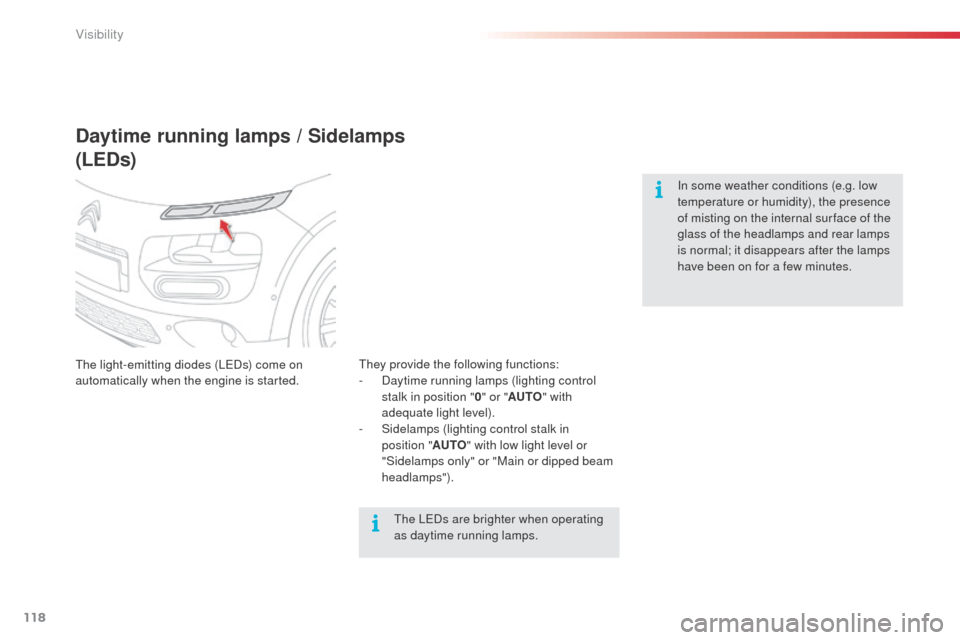

Daytime running lamps / Sidelamps
(LEDs)
The light-emitting diodes (LEDs) come on
automatically when the engine is started.In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
They provide the following functions:
- D aytime running lamps (lighting control
stalk in position " 0" or " AUTO " with
adequate light level).
-

S
idelamps (lighting control stalk in
position " AUTO" with low light level or
"Sidelamps only" or "Main or dipped beam
headlamps").
The LEDs are brighter when operating
as daytime running lamps.
Visibility

119
Parking lamps
Switching on
F W ith the ignition off, "flash" the headlamps
using the lighting stalk.
F

A f
urther "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time. The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F

W

ithin one minute of switching off the
ignition, operate the lighting control stalk
up or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the central position.
Guide-me-home lighting
Automatic
When the automatic illumination of headlamps
is activated, if the ambient light level is low,
dipped beam comes on automatically when
switching off the ignition.
Activation or deactivation of the system, as well
as the period for the guide-me-home lighting
are set in the touch screen tablet.
F

Sel
ect the "Driving assistance "
menu.
F

I
n the secondary page, press
" Vehicle settings ".
Manual
6
Visibility

120
Headlamp adjustment
To avoid causing a nuisance to other road
users, the height of the headlamps should be
adjusted in relation to the load in the vehicle.The initial setting is position "0" .
Travelling abroad
The design of the dipped beam
headlamps allows, without modification,
driving in a country that drives on the
other side of the road to the country in
which your vehicle was sold.
0.

D

river only
o

r driver + front passenger.
-.

D

river + front passenger + rear
passengers.
1.
D

river + front passenger + rear passengers
+ load in the boot.
-.

D

river + front passenger + rear passengers
+ load in the boot.
2.
D

river only + maximum authorised load in
the boot.
This position is sufficient to avoid causing dazzle.
Higher settings may limit the spread of light
from the headlamps.
Visibility

188
Changing a bulb
Front lamps
1. Daytime running lamps / Sidelamps (LEDs).
2.
D

ipped beam headlamps (H7).
3.
M

ain beam headlamps (H1).
4.
D

irection indicators (PY21W).
5.
F

ront foglamps (PS24W). In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Practical information

189
Daytime running lamps /
Sidelamps (LEDs)
For the replacement of the light-emitting
diodes (LEDs), contact a CITROËN dealer or a
qualified workshop.F
D isconnect the bulb connector.
F

R
emove the bulb and change it.
Dipped beam headlamps
F Remove the protective cover by pulling on the tab.
F

T
ake the connector and bulb holder, then
lift the assembly upwards to unclip it.
F

R
emove the assembly of connector and
bulb holder. To reassemble, carry out these operations in
reverse order, positioning the alignment lug
at the top
.
9
Practical information
