2014 Citroen C4 CACTUS boot

53
E3_en_Chap02_ouvertures_ed01-2014
Secondary control
Driver's door
(locking/unlocking)
Insert the key in the lock to lock or unlock the
d o o r. Procedure for mechanically locking and
unlocking the doors in the event of a fault with
the central locking system or a battery failure.
Front and rear passenger doors
Locking
In the event of a fault with the central
locking system, it is essential to
disconnect the battery to lock the boot
and so ensure complete locking of the
vehicle.
On the rear doors, check that the child
lock is not on.
F

R
emove the black cap located on the edge
of the door, using the key.
F

I
nsert the key into the aperture without
forcing, then without turning, move the
latch sideways towards the inside of
the door.
F

R
emove the key and refit the cap.
Unlocking
F

P
ull the interior door opening control lever.
2
Access

54
E3_en_Chap02_ouvertures_ed01-2014
Boot
Opening
F After unlocking the boot (see the "Remote control key" section), press the opening
control and raise the tailgate. F
L ower the tailgate using the interior grab
handle.
Closing Boot release
Unlocking
F Fold the rear seat backrest to gain access
to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.
If the tailgate is not fully closed:
-
e
ngine running
, a message appears in
the screen,
-

v

ehicle moving , a message appears in
the screen, accompanied by an audible
signal.
Access

66
E3_en_Chap03_confort_ed01-2014
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
T
o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O
perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T
o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F

I
f the system does not produce cold air, switch it off and contact a CITROËN dealer or a
qualified workshop.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Stop & Start
The heating and air conditioning
systems only work when the engine
is running. To maintain a comfortable
temperature in the passenger
compartment, you can temporarily
deactivate the Stop & Start system (see
the corresponding section).
Comfort

83
Boot fittings
1. Rear parcel shelf.
2. Hook.
3.

S
torage box.
4.
S

torage net (accessory).
5.

S
torage net fixing rings.
The storage net fixing rings are not
intended to secure loads or restrain
baggage.
4
Fittings

84
To remove the shelf:
F u nhook the two cords,
F

r
aise the shelf slightly, then remove it.
Rear parcel shelf
There are several options for storing the shelf:
- ei ther upright behind the front seats,
-

o
r flat at the base of the boot. It can be used to secure shopping bags.
Hook
Storage box
For versions with storage box: it must
be in place before loading the boot.
F

R

emove the boot carpet for access to the
storage box.
Depending on the configuration, it is laid out for
storing:
-

a t
owing eye,
-

a t
emporary puncture repair kit,
-

a w
arning triangle,
-


...
Fittings

85

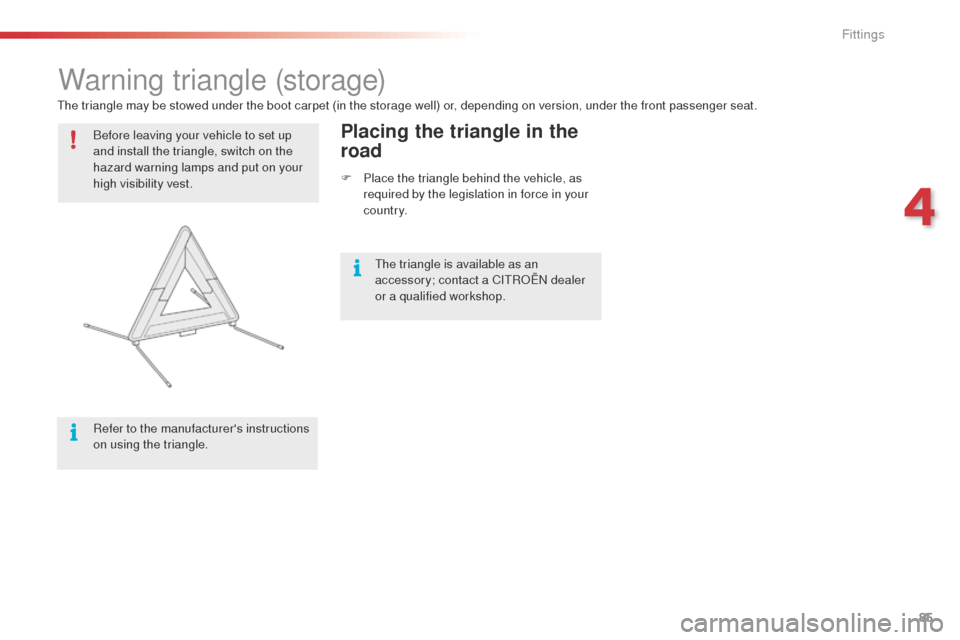

Warning triangle (storage)
Before leaving your vehicle to set up
and install the triangle, switch on the
hazard warning lamps and put on your
high visibility vest.
Refer to the manufacturer's instructions
on using the triangle.Placing the triangle in the
road
F Place the triangle behind the vehicle, as required by the legislation in force in your
c o unt r y.
The triangle may be stowed under the boot carpet (in the storage well) or, depending on version, under the front passenger seat.
The triangle is available as an
accessory; contact a CITROËN dealer
or a qualified workshop.
4
Fittings

120
E3_en_Chap06_visibilite_ed01-2014
Headlamp adjustment
To avoid causing a nuisance to other road
users, the height of the headlamps should be
adjusted in relation to the load in the vehicle.The initial setting is position "0" .
Travelling abroad
The design of the dipped beam
headlamps allows, without modification,
driving in a country that drives on the
other side of the road to the country in
which your vehicle was sold.
0.

D

river only
o

r driver + front passenger.
-.

D

river + front passenger + rear
passengers.
1.
D

river + front passenger + rear passengers
+ load in the boot.
-.

D

river + front passenger + rear passengers
+ load in the boot.
2.
D

river only + maximum authorised load in
the boot.
This position is sufficient to avoid causing dazzle.
Higher settings may limit the spread of light
from the headlamps.
Visibility

123
E3_en_Chap06_visibilite_ed01-2014
Rear wiper
Park.If a significant accumulation of snow or
ice is present, or when using a bicycle
carrier on the boot, deactivate the
automatic rear wiper.
Intermittent wipe.
Wash-wipe (set duration).
Rear wiper selection ring:
Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation automatically if the
windscreen wipers are operating.
Activation or deactivation of this automatic
function can be set in the touch screen tablet.
Windscreen wash
Pull the wiper stalk towards you.
The
windscreen wash, then the windscreen
wipers, operate for a pre-determined time.
Your vehicle is fitted with an innovative
windscreen wash system.
The screenwash fluid is sprayed all
along the length of the wiper blade, so
avoiding impairment of the driver's view
or that of the passengers.
F

Sel

ect the "
Driving assistance "
menu.
F

I

n the secondary page, press
" Vehicle settings ".
This function is activated by default.
6
Visibility
