[x] Cancel search: gearboxPage 124 of 368
122
Driving
Going into engine START mode
The "AS &G"
warning lamp goes off
and the engine starts automatically:
- with a manual gearbox
, when you fully
depress the clutch pedal.
For safety reasons or to ensure smooth
operation, START mode is invoked
automatically when:
Special cases: START invoked
automatically
- the speed of the vehicle exceeds 2 mph
(3 km/h),
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
If the system has been deactivated in
STOP mode, the engine will not start. At any time, press the "AS &G O FF "
switch to
deactivate the system.
Deactivation
In this case the "AS &G"
warning lamp
flashes for few seconds, then goes off.
This operation is per fectly normal.
This is confirmed by the "AS &G O FF "
warning lamp coming on in the instrument
panel or instrument panel screen.
Page 128 of 368
126
Driving
Cruise control
System which automatically maintains the vehicle speed at the value programmed by the driver, without any action on the accelerator pedal.
The cruise control is switched on
manually:
the vehicle speed must be at least 25 mph
(40 km/h) and second gear or higher must be
engaged in the case of a manual gearbox.
The cruise control is switched off
manually, by
an action on the brake or clutch pedal or if the
ASC system is triggered.
The programmed speed can be exceeded
temporarily by pressing the accelerator pedal.
The cruise control cannot, in any
circumstances, take the place of the
need to comply with speed limits or of the
vigilance and responsibility of the driver. The controls of this system are grouped
together on the steering wheel.
1.
"ON/OFF"
button: activation / deactivation
of the cruise control mode.
2.
"COAST SET"
button: store a driving
speed and decrease the cruising speed.
3.
"ACC R ES "
button: increase the cruising
speed and recall the stored speed.
4.
"CANCEL"
button: stop control of the
vehicle's speed.
Steering mounted controls
When you press button 1
, the "CRUISE"
indicator comes on in the instrument panel.
Display in the instrument panel
Programming
)
Press button 1
.
)
Set the programmed speed by
accelerating to the required speed, then
press button 2 "COAST SET"
.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
Page 133 of 368
131
4
Driving
Visual assistance
Front parking sensors
Deactivation / Activation of the
front and rear parking sensors
The function is deactivated by pressing this
button. The indicator lamp in the button
goes off.
Pressing this button again reactivates the
function. The indicator lamp in the button
comes on.
Operating fault
The front parking sensors are triggered when
an obstacle is detected in front, a gear is
engaged (position D for vehicles with a CVT
gearbox) and the speed of the vehicle remains
below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than five seconds
in for ward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
Remember to deactivate the system if
towing a trailer or caravan.
In bad weather or in winter, ensure that
the sensors are not covered with mud,
ice or snow.
When the vehicle is moving at a speed
below 6 mph (10 km/h), certain sound
sources (motorcycle, lorry, pneumatic
drill, etc.) may trigger the audible
signals of the parking sensor system.
In the event of an problem, when reverse gear
is engaged this lamp in the button flashes,
accompanied by an audible signal. This supplements the audible
signal by displaying bars in the
screen, in front of or behind the
vehicle. If one of the sensors is faulty, it
flashes in the instrument panel
screen.
Contact a CITROËN dealer or a qualified
workshop. These bars flash at the start of the manoeuvre
then become fixed from a certain distance
between the vehicle and the obstacle.
Page 180 of 368
178
Practical information

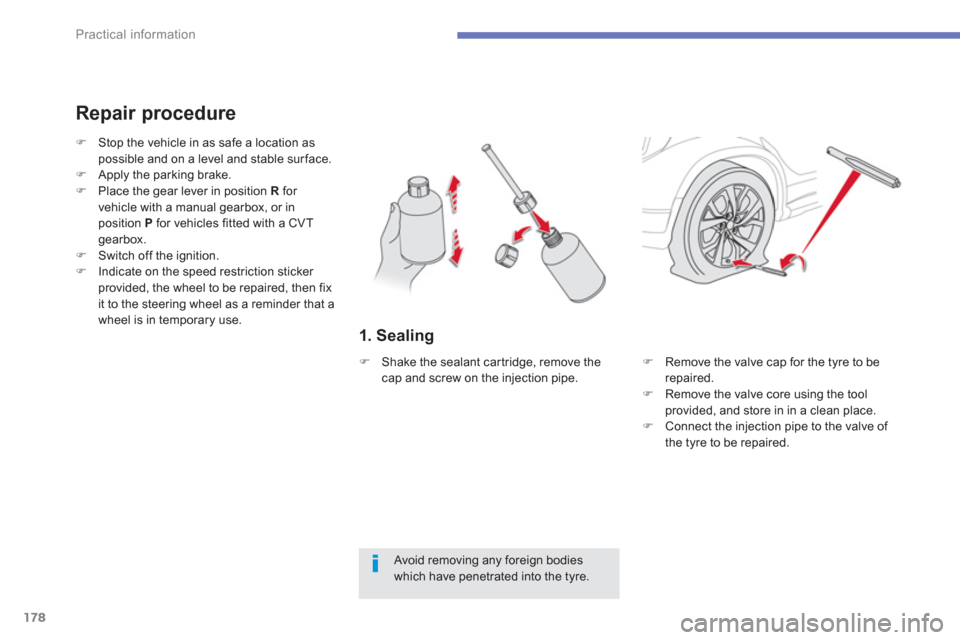

1. Sealing
Repair procedure
Avoid removing any foreign bodies
which have penetrated into the tyre.
)
Stop the vehicle in as safe a location as
possible and on a level and stable sur face.
)
Apply the parking brake.
)
Place the gear lever in position R
for
vehicle with a manual gearbox, or in
position P
for vehicles fitted with a CVT
gearbox.
)
Switch off the ignition.
)
Indicate on the speed restriction sticker
provided, the wheel to be repaired, then fix
it to the steering wheel as a reminder that a
wheel is in temporary use.
)
Remove the valve cap for the tyre to be
repaired.
)
Remove the valve core using the tool
provided, and store in in a clean place.
)
Connect the injection pipe to the valve of
the tyre to be repaired.
)
Shake the sealant cartridge, remove the
cap and screw on the injection pipe.
Page 204 of 368
202
Practical information
The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with
household waste.
Take used remote control batteries and
vehicle batteries to a special collection point.
Do not reverse the polarity and use only a 12 V charger.
Do not disconnect the terminals while the engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to start the engine if it is fitted with a CVT gearbox.
It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.
Before disconnecting
the battery
Wait 2 minutes after switching off the
ignition before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection
of the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of the
electronic systems. However, if problems
remain following this operation, contact a
CITROËN dealer or a qualified workshop.
)
Disconnect the battery from the vehicle,
if necessary.
)
Follow the instructions for use provided by
the manufacturer of the charger.
)
Reconnect starting with the negative
terminal (-).
)
Check that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.
Charging the battery using
a battery charger
Some functions are not available if the battery is not sufficiently charged.
Page 206 of 368
204
Practical information
Recovering the vehicle
Recover y of your vehicle
2 wheel drive (2WD) versions: towing
with the wheels on the ground
)
Put the gear lever into neutral (position N
for the CVT gearbox).
)
Unlock the steering by by turning the
ignition switch to the " ON
" position (or
to " ON
" mode for vehicle fitted with the
"Keyless Entry and Starting" system).
)
Release the parking brake.
)
Switch on the hazard warning lamps on
both vehicles.
)
Move off gently and travel slowly for a short
distance only.
General recommendations
Observe the legislation in force in your
country.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing bar; rope and straps
are prohibited.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always
call on a professional recovery ser vice:
- vehicle broken down on a motor way
or fast road,
- 4 wheel drive vehicle,
- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,
- towing with only two wheels on the
ground,
- where there is no approved towing
bar available...
Towing with the wheels on the ground
is only possible on 2 wheel drive (2WD)
versions.
)
Fit the towing bar to the towing eye on the
chassis, located under the front bumper.
Page 225 of 368
223
8
Checks
Manual gearbox
Refer to the maintenance and
warranty guide for ser vicing of the
gearbox.
"CVT" gearbox
Refer to the maintenance and
warranty guide for ser vicing of the
"CVT" gearbox.
Particle emissions filter (Diesel)
The start of saturation of the particle filter is
indicated by the temporary illumination of this
warning lamp accompanied by a message in
the instrument panel screen. As soon as the traffic conditions permit,
regenerate the filter by driving at a
speed of at least 25 mph (40 km/h) for
about 20 minutes (with the 1.6 litre HDi
engine the minimum speed is 36 mph
(60 km/h)).
If the warning lamp stays on, this
indicates a low additive level.
On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
Page 227 of 368
9
225
Te c h n i c a l d a t a
*
The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines and gearboxes
.../S
: model fitted with the Stop & Start (AS&G) function.
PETROL ENGINES
1.6 litre 115
2.0 litre 150
Model codes :
BU
...
NKZ7
NKZ7/S
NKZ0
NKZ0/S
AFYR
AFZ7
AFYV
AFZM
AFYT
AFZH
AFYW
AFZP
Tr a n s m i s s i o n m o d e
2WD
2WD
4WD
2WD
4WD
Cubic capacity (cc)
1 590
1 998
Bore x stroke (mm)
75 x 90
86 x 86
Max power * : EU standard (kW)
86
113
Max power engine speed (rpm)
6 000
6 000
Max torque: EU standard (Nm)
15 4
19 9
Max torque engine speed (rpm)
4 000
4 200
Fuel
Unleaded
Unleaded
Catalytic conver ter
Ye s
Ye s
GEARBOXES
Manual
(5-speed)
Manual
(5-speed)
CVT
(6-speed)
OIL CAPACITY (in litres)
Engine (with filter replacement)
4.2
4.3
