Direction indicators 102
Horn
10
2
Hazard warning lamps

1
03
Under-inflation detection
1

03
ESC system

1
07
Seat belts

1
10
Airbags
1

13
Safety
Child seats 118
Deactivating the passenger's front airbag
1
21
ISOFIX child seats

1
27
Child lock

1
33
Child safety Checks
Fuel tank 1
34
Temporary puncture repair kit
1
36
Changing a wheel

1
41
Snow chains

1
46
Changing a bulb

1
47
Changing a fuse

1
52
12 V battery

1
61
Electrical energy economy mode

1
64
Changing a wiper blade

1
64
Towing the vehicle

1
65
Fitting roof bars

1
66
Accessories
1

67
Practical information Technical data
7-inch touch screen tablet 181
Audio system
2
21
Audio and telematics
Visual search
Alphabetical index
B o n n et 17 0
Petrol engines
1
71
Checking levels

1
72
C h e c ks
17

5Engines
1

77
We i g ht s
17
8
Dimensions
1
79
Identification markings
1
80
Contents

4
Exterior
103
83
33
Electronic key: Keyless
Entry and Starting
This system allows the locking, unlocking and
starting the vehicle by keeping the key on your
person and in the recognition zone.
Stop & Start
This system puts the engine temporarily into
standby during stops in the traffic (red lights,
traffic jams, etc....). The engine restarts
automatically as soon as you want to move
off. The Stop & Start system reduces fuel
consumption, exhaust emissions and the noise
level when stationary.
Under-inflation detection
This system automatically checks the tyre
pressures when driving and alerts you in the
event of an under-inflated tyre.
B4_en_Chap00b_vue-ensemble_ed01-2014
Over view

9

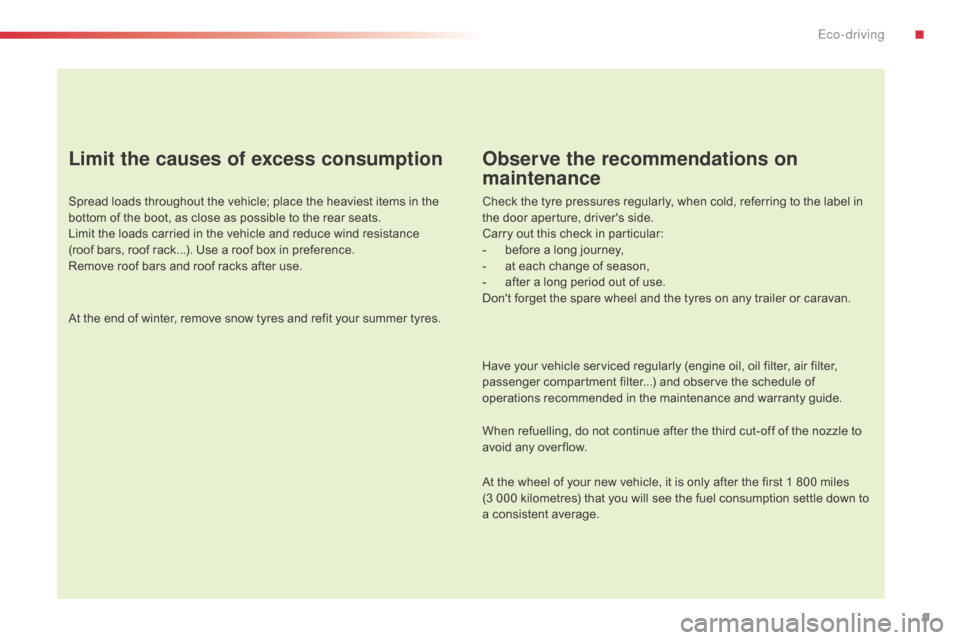

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the maintenance and warranty guide.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
B4_en_Chap00c_eco-conduite_ed01-2014
.
Eco-driving

19
Brakingfixed. The braking system fluid level has
dropped significantly. Top up with brake fluid recommended by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.
The braking system has a fault. Stop as soon as it is safe to do so. Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Warning / indicator lamp
StateCause Action / Observations
Warning lamps
STOPflashing, associated
with another warning
lamp. It is associated with the engine
oil pressure or the engine coolant
temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer or qualified workshop.
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further.
If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified workshop.
Engine oil
pressure fixed, associated with
the STOP warning
lamp. The engine oil pressure is too low. Stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
1
Monitoring

20
Emission control
systemfixed.
The emission control system has a
fault. Contact a CITROËN dealer or a qualified workshop
without delay.
Engine fault fixed. A major fault has been detected that
does not have a specific warning lamp. You must contact a CITROËN dealer or a qualified
workshop.
Anti-lock
Braking System
(ABS)
fixed.
The anti-lock braking system has a
fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
CITROËN dealer or a qualified workshop without
d e l ay.
Dynamic
stability control
and traction
control (DSC/
TRC) flashing.
The DSC/ TRC system is in action. The system optimises traction and improves the
directional stability of the vehicle.
fixed. The DSC/ TRC system has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.
Warning / indicator lamp
StateCause Action / Observations
Coolant
temperature flashing (VTi 68
engine only). The temperature of the engine
coolant is increasing. Drive gently.
fixed. The temperature of the engine
coolant is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
checking up the level; top up if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.
Monitoring

23
Stop & Star t
(e-VTi 68 engine) flashing.
The Stop & Start system has a fault. Have the system checked by a CITROËN dealer or a
qualified workshop.
Warning / indicator lamp
StateCause Action / Observations
Speed limiter fixed. The speed limiter has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.
Door(s) open /
Boot open fixed, accompanied by
an audible signal. A door or the boot is still open. Close the door or boot.
Keyless Entr y
and Starting
system flashing quickly.
The steering column has not been
unlocked. Change to "
OFF" mode, then " ON" mode and turn the
wheel slightly to unlock the steering column.
flashing, accompanied
by an audible signal. The battery in the electronic key is
discharged. Replace the battery.
Refer to the corresponding section.
You are leaving the vehicle without
activating " OFF" mode. With the electronic key on your person, press the
START/STOP button to change to "
OFF" mode.
The electronic key has not been
detected. Check that you have the electronic key with you.
The Keyless Entry and Starting
system has a fault. Have the system checked by a CITROËN dealer or a
qualified workshop.
1
Monitoring

48
Ensure that no person or object
prevents the seat slide from returning to
its initial position.
Check that the seat belt has reeled in
correctly so as to not impede access for
passengers to the rear seats.
Heated seat controlAccess to the rear seats
(3-door)
F Pull this control toward you to fold the seat
back and move the seat for ward.
When returning the seat to its initial position,
guide it back until the seat and backrest lock
into place.
Wit the engine running, the front seats can be
heated separately.
F

P

ress the control switch.
T

he indicator lamp comes on.
F

P

ressing the switch again stops the
heating.
The temperature is controlled automatically.
The seat heating function is deactivated about
two minutes after switching off the ignition. To
reactivate it, switch the ignition on and press
the control switch again. Switch the seat heating off as soon
as it is no longer needed, as reducing
the vehicle's electrical current demand
reduces fuel consumption.
Comfort

80
To engage reverse, the vehicle must be
stationary with your foot on the brake pedal.
F
Sel
ect position R .
Reverse
There is an audible signal on engaging reverse. The vehicle can be stopped whatever the
position of the gear lever (
N, E or R ).
However, there is an audible signal on opening
the driver's door if the gear lever is not in
position N .
Stopping the vehicle
In all cases, it is essential that you
apply the parking brake to immobilise
the vehicle.
When the vehicle is stopped with the
engine running, always put the gear
lever into neutral N .
Before doing anything under the
bonnet, check that the gear lever is
in neutral N and the parking brake is
applied. With the ignition on, illumination
of this warning lamp indicates a
gearbox fault.
Contact a CITROËN dealer or a
qualified workshop.
Operating fault
driving
