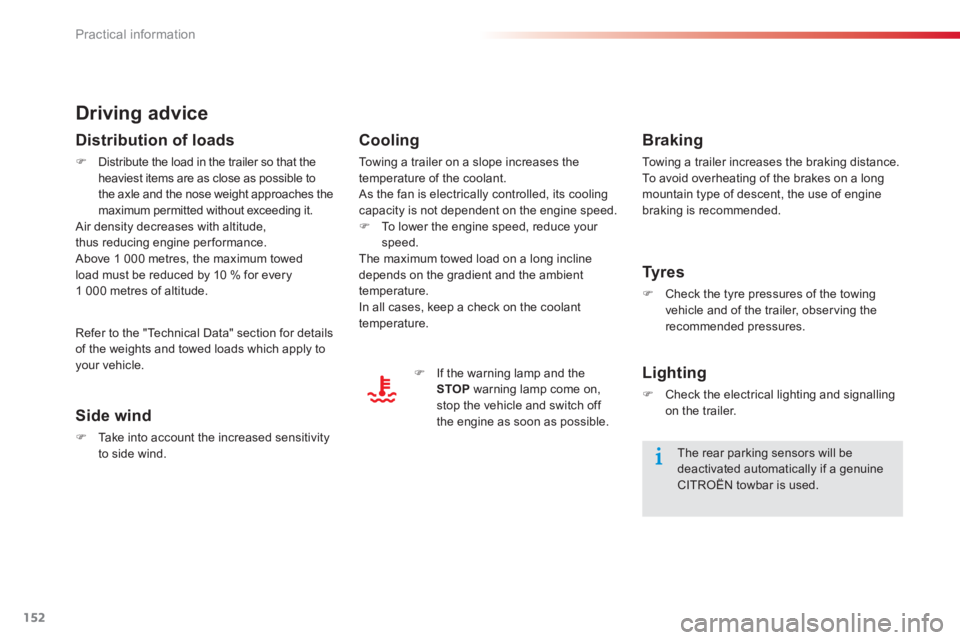

Driving advice
Distribution of loads
)Distribute the load in the trailer so that theheaviest items are as close as possible to
the axle and the nose weight approaches the maximum permitted without exceeding it.

Air density decreases with altitude,
thus reducing engine performance. Above 1 000 metres, the maximum towed
load must be reduced by 10 % for every
1 000 metres of altitude.
Side wind
)Take into account the increased sensitivity
to side wind.

Cooling

To w i ng a trailer on a slope increases the
temperature of the coolant.
As the fan is electricall
y controlled, its cooling capacity is not dependent on the engine speed.
)
To lower the engine speed, reduce your speed.
The maximum towed load on a long incline
depends on the
gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
)If the warning lamp and the
STOP warning lamp come on, stop the vehicle and switch off
the engine as soon as possible.



Braking

To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine braking is recommended.

Tyres
)Check the tyre pressures of the towingvehicle and of the trailer, obser ving the recommended pressures.



Lighting
)Check the electrical lighting and signalling on the trailer.


The rear parking sensors will be deactivated automatically if a genuine CITROËN towbar is used.
R
efer to the "Technical Data" section for details
of the weights and towed loads which apply to your vehicle.

168
Technical data
EnginesVTi72VTi 115
GearboxesManual (5-speed)

Electronic (5-speed)

Manual (5-speed)


Automatic
(4-speed)


Model codes : DD...

HMY0HMY0/P

NFP0


NFP9


Cubic capacity (cc)
1 199

1 587
Bore x stroke
(mm)

75 x 90.578.5 x 82
Max power: EU standard
(kW)
53
85
Max power engine speed
(rpm)
5 500
6 050
Max torque: EU standard
(Nm)
110

150

Max torque engine speed (rpm) 3 000

4 000

F
uel Unleaded 91 RON to 98 RON Unleaded 91 RON to 98 RON

Catalytic conver ter yesyes

OIL CAPACITIES
(in litres)
Engine (with filter replacement) 3.253.5















Petrol engines

169
11
Technical data
VTi 72VTi 115
Gearboxes Manual(5-speed)

Electronic(5-speed)Manual
(5-speed)
Automatic
(4-speed)
Model codes: DD...HMY0

HMY0/P NFP0


NFP9


- Unladen wei
ght 980
1 090



- Kerb weight * 1 055 1 165


- Gross vehicle wei
ght (GV W)
1 459

1 4671 524
1 559



- Gross train wei
ght (GTW)

on a 12 % gradient 1 909
1 917
2 274
2 309


- Braked trailer
(within GTW limit) on a 10 % or 12 % gradient
450750



- Braked trailer **
(with load transfer within the GTW limit)

720

1 010



- Unbraked trailer
450580
600



- Recommended nose wei
ght 55
55


*
The kerb wei
ght is equal to the unladen weight + driver (75 kg).
**

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit th
e towed load.














Petrol weights (in kg)

170
Technical data
EngineHDi 92
Gearbox
Manual(5-speed)

Model codes:DD...9HJC
9HP0
Cubic capacity (cc) 1 560

Bore x stroke
(mm)

75 x 88

Max power: EU standard (kW) 68

Max power engine speed (rpm)
4 000
Max torque: EU standard
(Nm)
230

Max torque engine speed (rpm)
1 750

F
uel Diesel

Catalytic conver ter yes
Particle emission filter no
yes

OIL CAPACITIES
(in litres)
Engine (with filter replacement) 3.75














Diesel engine

171
11
Technical data

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.

*
The kerb wei
ght is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
EngineHDi 92
Gearbox Manual(5-speed)

Model codes: DD...

9HJC
9HP0



- Unladen weight 1 090



- Kerb wei
ght *1 165


- Gross vehicle wei
ght (GV W)

1 549
1 548



- Gross train weight (GTW)
on a 12% gradient
2 299 2 298


- Braked trailer
(within GTW limit) on a 10% or 12% gradient
750



- Braked trailer **
(with load transfer with theGTW limit)

1 010



- Unbraked trailer
580



- Recommended nose weight 55
























Diesel weights (in kg)

172
Technical data





Dimensions (in mm)

173
11
Technical data

















Identifi cation markings
A.Vehicle identification number (VIN)under the bonnet.
This number is engraved on the bodyworknear the passenger compartment filter.

The tyre pressures must be checked when the tyres are cold, at least oncea month.

Low tyre pressures introduces the riskof a burst tyre and also increase fuel consumption.
B.Vehicle identification number on thedashboard. This number is indicated on a self-adhesive label which is visible through the
windscreen.
C.Manufacturer's label.The VIN is indicated on a self-destroying
label affixed to the lower right hand centre
pillar.
D.Tyre/paint label.This label is affixed to the driver's side centre pillar. It bears the
following information:


- the tyre pressures, for unladen and laden
conditions,

- the tyre sizes,

- the spare t
yre inflation pressure,

- the paint colour code.
Various visible markin
gs for the identification of your vehicle.
