2014 CHRYSLER 300 SRT instrument cluster

WARNING!
•When in “Partial Off” mode, the TCS functionality
of ESC, (except for the limited slip feature de-
scribed in the TCS section), has been disabled and
the “ESC Off Indicator Light” will be illuminated.
When in “Partial Off” mode, the engine power
reduction feature of TCS is disabled, and the
enhanced vehicle stability offered by the ESC sys-
tem is reduced.
Full Off
This mode is intended for off-highway or off-road use
only and should not be used on any public roadways. In
this mode, all TCS and ESC stability features are turned
OFF. To enter the “Full Off” mode, press and hold the
“ESC Off” switch for five seconds while the vehicle is
stopped with the engine running. After five seconds, a chime will sound, the “ESC Activation/Malfunction In-
dicator Light” will illuminate, and the
ESC OFFmes-
sage will display in the vehicle odometer. Press and
release the TRIP ODOMETER button located on the
instrument cluster to clear this message. The “ESC OFF”
message may appear in the Electronic Vehicle Informa-
tion Center (EVIC). Refer to “Electronic Vehicle Informa-
tion Center (EVIC)” in “Understanding Your Instrument
Panel” for further information. To turn ESC ON again,
momentarily press the “ESC Off” switch.
NOTE: TheESC OFF message will display and the
audible chime will sound when the shift lever is moved
into the PARK position from any position other than
PARK and then moved out of the PARK position. This
will occur when the message was previously cleared.
406 STARTING AND OPERATING

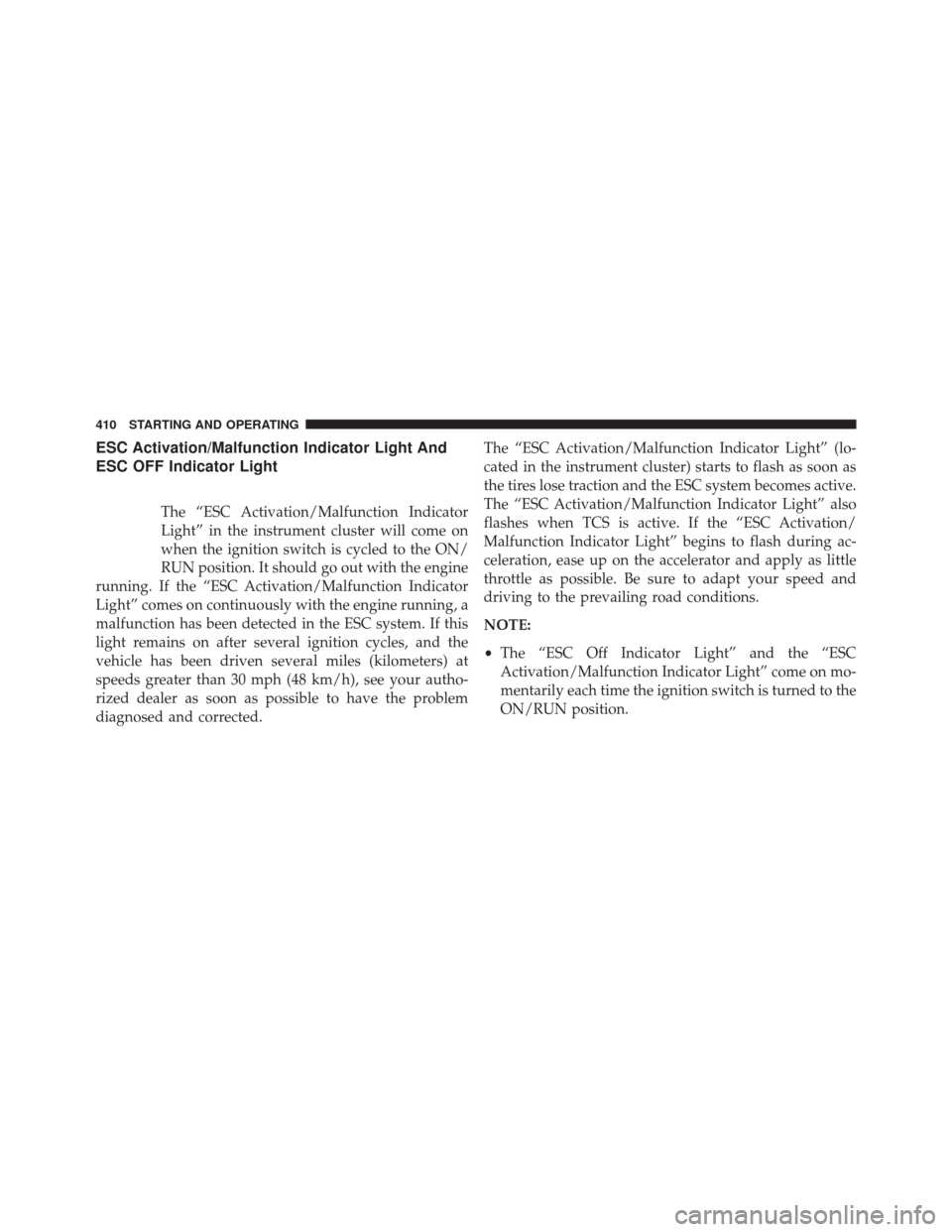

ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light
The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
when the ignition switch is cycled to the ON/
RUN position. It should go out with the engine
running. If the “ESC Activation/Malfunction Indicator
Light” comes on continuously with the engine running, a
malfunction has been detected in the ESC system. If this
light remains on after several ignition cycles, and the
vehicle has been driven several miles (kilometers) at
speeds greater than 30 mph (48 km/h), see your autho-
rized dealer as soon as possible to have the problem
diagnosed and corrected. The “ESC Activation/Malfunction Indicator Light” (lo-
cated in the instrument cluster) starts to flash as soon as
the tires lose traction and the ESC system becomes active.
The “ESC Activation/Malfunction Indicator Light” also
flashes when TCS is active. If the “ESC Activation/
Malfunction Indicator Light” begins to flash during ac-
celeration, ease up on the accelerator and apply as little
throttle as possible. Be sure to adapt your speed and
driving to the prevailing road conditions.
NOTE:
•
The “ESC Off Indicator Light” and the “ESC
Activation/Malfunction Indicator Light” come on mo-
mentarily each time the ignition switch is turned to the
ON/RUN position.
410 STARTING AND OPERATING

•Seasonal temperature changes will affect tire pressure,
and the TPMS will monitor the actual tire pressure in
the tire.
Premium System
The Tire Pressure Monitor System (TPMS) uses wireless
technology with wheel rim mounted electronic sensors to
monitor tire pressure levels. Sensors mounted to each
wheel as part of the valve stem transmit tire pressure
readings to the receiver module.
NOTE: It is particularly important for you to check the
tire pressure in all of the tires on your vehicle monthly
and to maintain the proper pressure.
The TPMS consists of the following components:
• Receiver module
• Four TPM sensors •
Various TPMS messages, which display in the Elec-
tronic Vehicle Information Center (EVIC)
• TPM Telltale Light
The matching full size spare wheel and tire assembly (if
equipped) has a TPM sensor. The matching full size spare
can be used in place of any of the four road tires. The
TPMS will only monitor the pressure in the full size spare
when it is used in place of a road tire. Otherwise, a spare
with a pressure below the low-pressure limit will not
cause the “Tire Pressure Monitoring Telltale Light” to
illuminate or the chime to sound.
Tire Pressure Monitoring Low Pressure Warnings
The TPM Telltale Light will illuminate in the
instrument cluster and a chime will sound when
tire pressure is low in one or more of the four active road
tires. In addition, the EVIC will display a LOW TIRE
message and a graphic showing the pressure values of
440 STARTING AND OPERATING

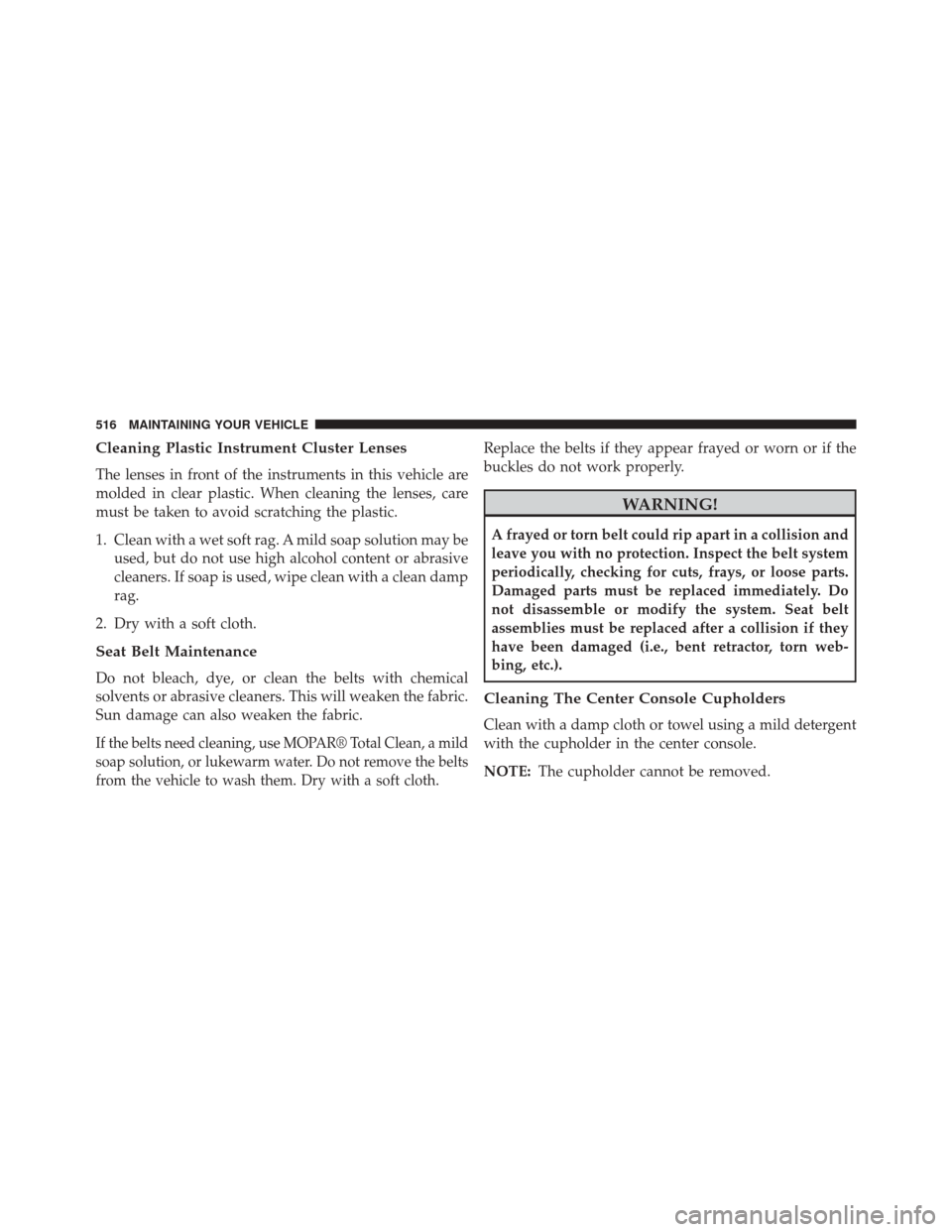

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may beused, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use MOPAR® Total Clean, a mild
soap solution, or lukewarm water. Do not remove the belts
from the vehicle to wash them. Dry with a soft cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).
Cleaning The Center Console Cupholders
Clean with a damp cloth or towel using a mild detergent
with the cupholder in the center console.
NOTE: The cupholder cannot be removed.
516 MAINTAINING YOUR VEHICLE

DipsticksOil (Engine) .......................... .487
Power Steering ........................ .396
Disposal Antifreeze (Engine Coolant) ................504
Door Locks Child-Protection Door Lock — Rear Doors ......33
Door Locks ............................23
KeyFob...............................29
Key Fob Emergency Key ...................24
Remote ...............................29
Remote Keyless Entry (RKE) ................29
Door Locks, Automatic ......................32
Driving Through Flowing, Rising, or Shallow Standing
Water ............................... .394
Driving to Achieve Maximum Fuel Economy ......324
Electrical Power Outlets .....................282 Electric Rear Window Defrost
.................297
Electric Remote Mirrors .....................115
Electronic Brake Control System ...............402
Anti-Lock Brake System ..................402
Brake Assist System .....................403
Traction Control System ...................402
Electronic Power Distribution Center (Fuses) ......517
Electronic Speed Control (Cruise Control) ........217
Electronic Stability Control (ESC) ..............404
Electronic Vehicle Information Center Instrument Cluster Display .................29
Electronic Vehicle Information Center (EVIC) ......313
Electronic Vehicle Information Center (EVIC) . . . .313
Electronic Vehicle Information Center (EVIC)
Setup Menu .......................... .313
EVIC Display ......................... .315
EVIC Messages ........................ .313
Remote Start ...........................29
Emergency Deck Lid Release ..................44
570 INDEX

On With Wipers....................... .196
Passing ............................. .202
Switch .............................. .195
Time Delay ........................... .196
Washers ............................. .496
Headlight Washers ....................... .496
Head Restraints ......................... .185
Head Rests ............................. .185
Heated Mirrors ...........................116
Heated Seats ............................ .182
Heater, Engine Block ...................... .376
High Beam/Low Beam Select (Dimmer) Switch . . . .202
Hill Start Assist .......................... .407
Holder, Coin ............................ .291
Hood Release ........................... .193
Ignition Key..................................12
Illuminated Entry ..........................21 Immobilizer (Sentry Key)
....................16
Infant Restraint ...........................75
Information Center, Vehicle ..................313
Instrument Cluster ....................... .303
Instrument Panel and Controls ................301
Instrument Panel Lens Cleaning ...............516
Interior Appearance Care ....................514
Interior Lights .......................... .204
Intermittent Wipers (Delay Wipers) .............207
Introduction ..............................4
iPod®/USB/MP3 Control ...................351
Bluetooth® Streaming Audio ...............135
Jump Starting ........................... .471
KeyFob.................................13 Lock The Doors .........................23
Panic Alarm ............................24
Programming Additional Key Fobs ...........18
574 INDEX

Brake Warning........................ .309
Bulb Replacement ...................... .529
Daytime Running ...................... .199
Dimmer Switch, Headlight .................201
Exterior ............................. .104
Fog ................................ .199
Hazard Warning Flasher ..................458
Headlights ........................... .195
Headlights On Reminder ..................199
Headlights On With Wipers ................196
Headlight Switch ...................... .195
High Beam ........................... .202
High Beam Indicator .....................303
High Beam/Low Beam Select ...............202
Illuminated Entry ........................21
Instrument Cluster ..................... .195
Intensity Control ....................... .204
Interior ............................. .204
License ............................. .532Lights On Reminder
.....................199
Low Fuel ............................ .318
Malfunction Indicator (Check Engine) .........306
Map Reading ......................... .202
Parade Mode (Daytime Brightness) ...........206
Passing ............................. .202
Reading ............................. .202
Seat Belt Reminder ..................... .312
Security Alarm ........................ .309
Service .............................. .528
Service Engine Soon (Malfunction Indicator) . . . .306
Tire Pressure Monitoring (TPMS) ............304
Traction Control ....................... .410
Turn Signal .......................... .104
Vanity Mirror ..........................116
Warning (Instrument Cluster Description) ......303
Loading Vehicle ......................... .453
Capacities ........................... .455
T

ires ............................... .418
576 INDEX

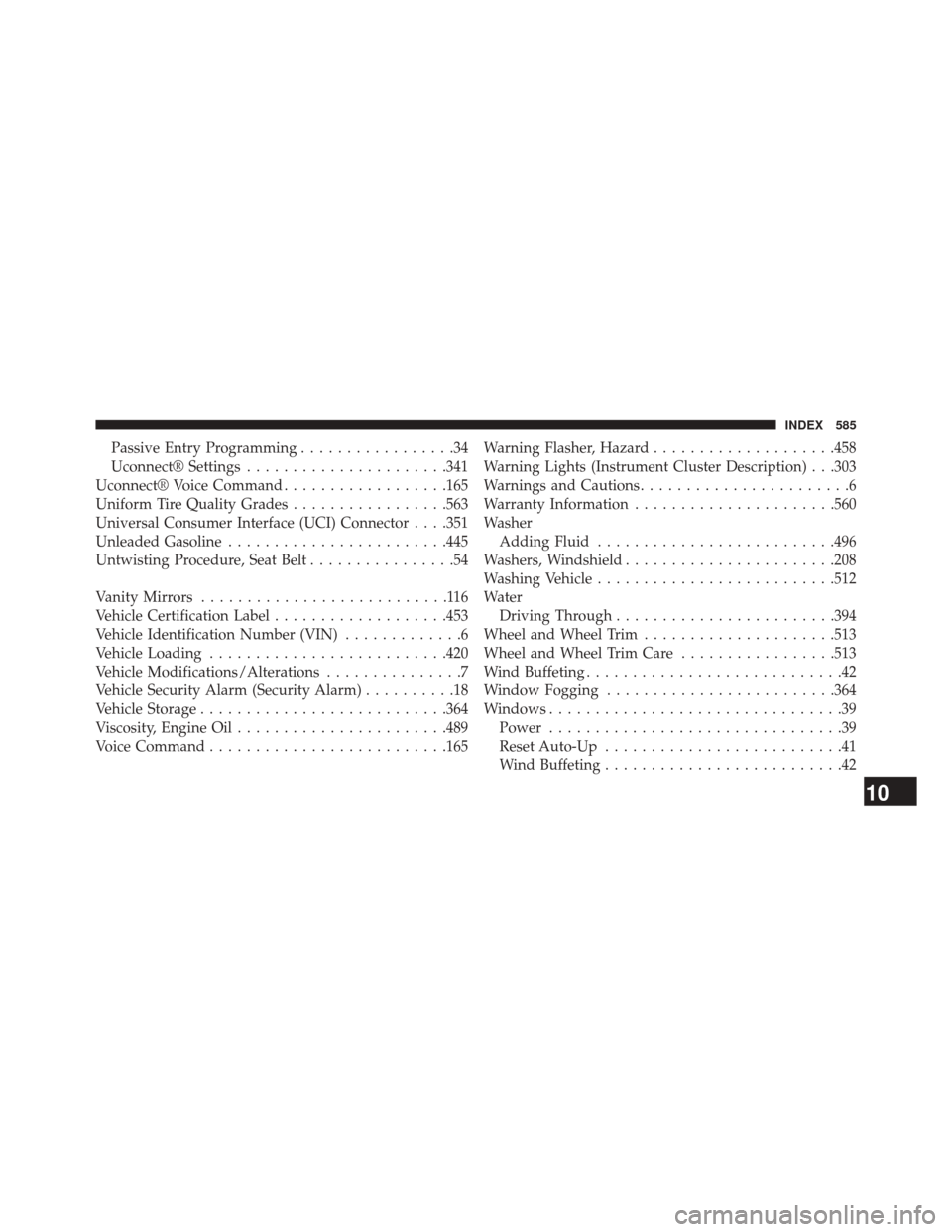

Passive Entry Programming.................34
Uconnect® Settings ..................... .341
Uconnect® Voice Command ..................165
Uniform Tire Quality Grades .................563
Universal Consumer Interface (UCI) Connector . . . .351
Unleaded Gasoline ....................... .445
Untwisting Procedure, Seat Belt ................54
Vanity Mirrors ...........................116
Vehicle Certification Label ...................453
Vehicle Identification Number (VIN) .............6
Vehicle Loading ......................... .420
Vehicle Modifications/Alterations ...............7
Vehicle Security Alarm (Security Alarm) ..........18
Vehicle Storage .......................... .364
Viscosity, Engine Oil ...................... .489
Voice Command ......................... .165Warning Flasher, Hazard
....................458
Warning Lights (Instrument Cluster Description) . . .303
Warnings and Cautions .......................6
Warranty Information ..................... .560
Washer Adding Fluid ......................... .496
Washers, Windshield ...................... .208
Washing Vehicle ......................... .512
Water Driving Through ....................... .394
Wheel and Wheel Trim .....................513
Wheel and Wheel Trim Care .................513
Wind Buffeting ............................42
Window Fogging ........................ .364
Windows ................................39
Power ................................39
Reset Auto-Up ..........................41
Wind Buffeting ..........................42
10
INDEX 585
