2014 CHEVROLET SS lumbar support

Black plate (7,1)Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-6014851) - 2014 -
1st Edition - 8/22/13

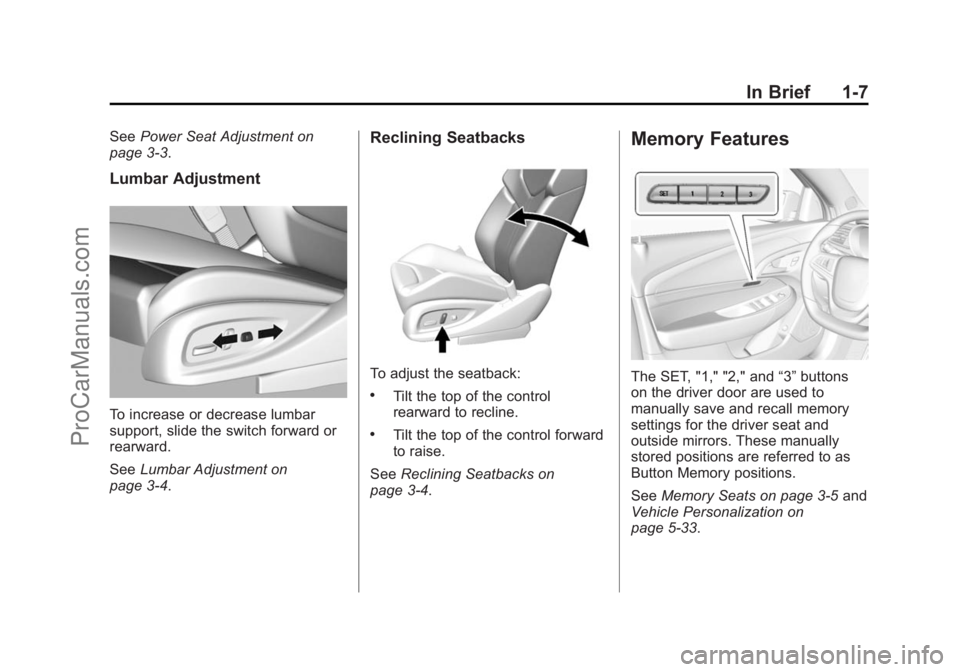

In Brief 1-7
SeePower Seat Adjustment on
page 3-3.
Lumbar Adjustment
To increase or decrease lumbar
support, slide the switch forward or
rearward.
See Lumbar Adjustment on
page 3-4.
Reclining Seatbacks
To adjust the seatback:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
See Reclining Seatbacks on
page 3-4.
Memory Features
The SET, "1," "2," and “3”buttons
on the driver door are used to
manually save and recall memory
settings for the driver seat and
outside mirrors. These manually
stored positions are referred to as
Button Memory positions.
See Memory Seats on page 3-5 and
Vehicle Personalization on
page 5-33.
ProCarManuals.com

Black plate (3,1)Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-6014851) - 2014 -
1st Edition - 8/22/13

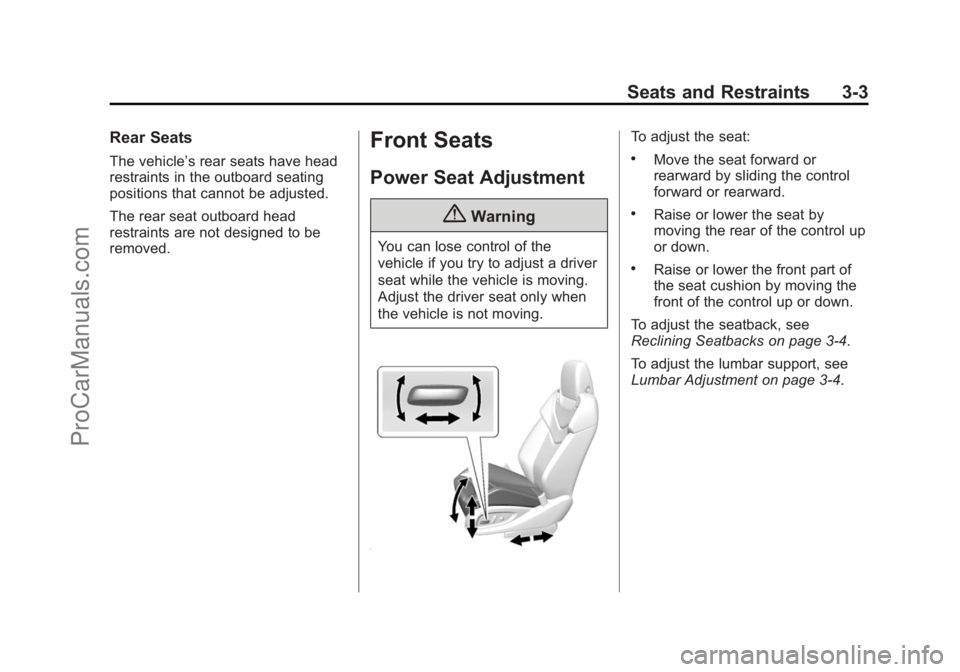

Seats and Restraints 3-3
Rear Seats
The vehicle’s rear seats have head
restraints in the outboard seating
positions that cannot be adjusted.
The rear seat outboard head
restraints are not designed to be
removed.
Front Seats
Power Seat Adjustment
{Warning
You can lose control of the
vehicle if you try to adjust a driver
seat while the vehicle is moving.
Adjust the driver seat only when
the vehicle is not moving.
To adjust the seat:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the seat by
moving the rear of the control up
or down.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
To adjust the seatback, see
Reclining Seatbacks on page 3-4.
To adjust the lumbar support, see
Lumbar Adjustment on page 3-4.
ProCarManuals.com

Black plate (4,1)Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-6014851) - 2014 -
1st Edition - 8/22/13

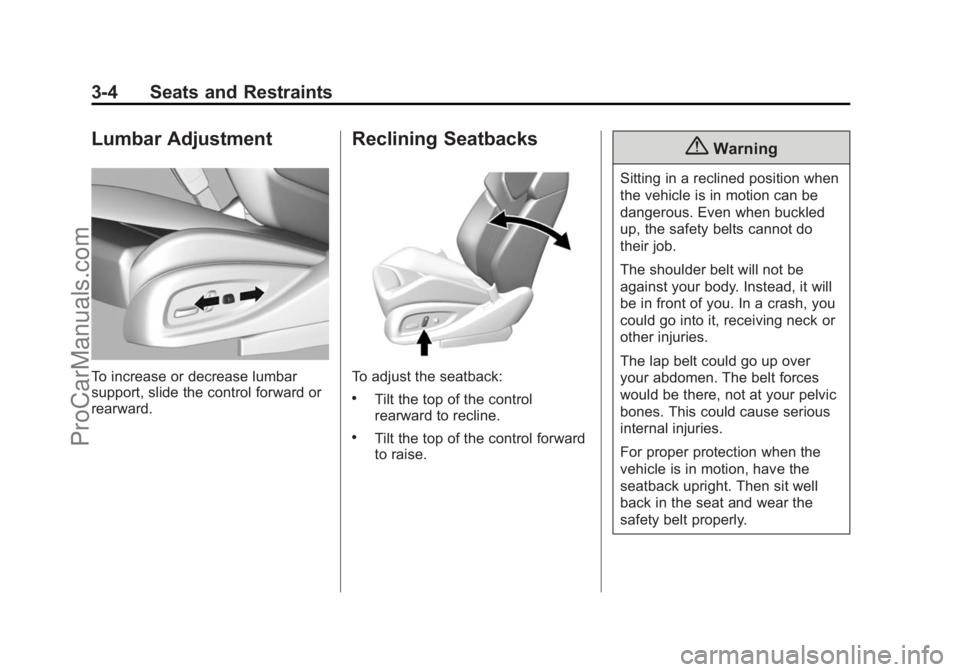

3-4 Seats and Restraints
Lumbar Adjustment
To increase or decrease lumbar
support, slide the control forward or
rearward.
Reclining Seatbacks
To adjust the seatback:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
{Warning
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job.
The shoulder belt will not be
against your body. Instead, it will
be in front of you. In a crash, you
could go into it, receiving neck or
other injuries.
The lap belt could go up over
your abdomen. The belt forces
would be there, not at your pelvic
bones. This could cause serious
internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.
