2014 BMW M6 CONVERTIBLE odometer

Engine oil temperature▷Cold engine: the pointer is at
the low temperature end.
Drive at moderate engine
and vehicle speeds.▷Normal operating tempera‐
ture: the pointer is in the
middle or in the left half of
the temperature display.▷Hot engine: the pointer is at the high end of
the temperature range. A Check Control
message is also displayed.
Coolant temperature
If the coolant along with the engine becomes
too hot, a Check Control message is displayed.
Check the coolant level, refer to page 190.
Odometer and trip odometer Display
▷Odometer, arrow 1.▷Trip odometer, arrow 2.
Show/reset kilometers Press the knob.
▷When the ignition is
switched off, the time, the
external temperature and
the odometer are displayed.▷When the ignition is switched on, the trip
odometer is reset.External temperature
If the indicator drops to
+37 ℉/+3 ℃ or lower, a signal
sounds.
A Check Control message is displayed.
There is an increased risk of ice on roads.
Ice on roads
Even at temperatures above
+37 ℉/+3 ℃, roads might be icy.
Therefore, drive carefully on bridges and
shaded roads, e.g., to avoid the increased risk
of an accident.◀
Time The time is displayed at the bot‐
tom of the instrument cluster.
Setting the time and time for‐
mat, refer to page 97.
Date The date is displayed in the
computer.
Setting the date and date for‐
mat, refer to page 97.
Digital tachometer
Display The current speed is displayed
in the instrument cluster.
Activate display1."Settings"Seite 89DisplaysControls89
Online Edition for Part no. 0140 2 956 361 - X/14

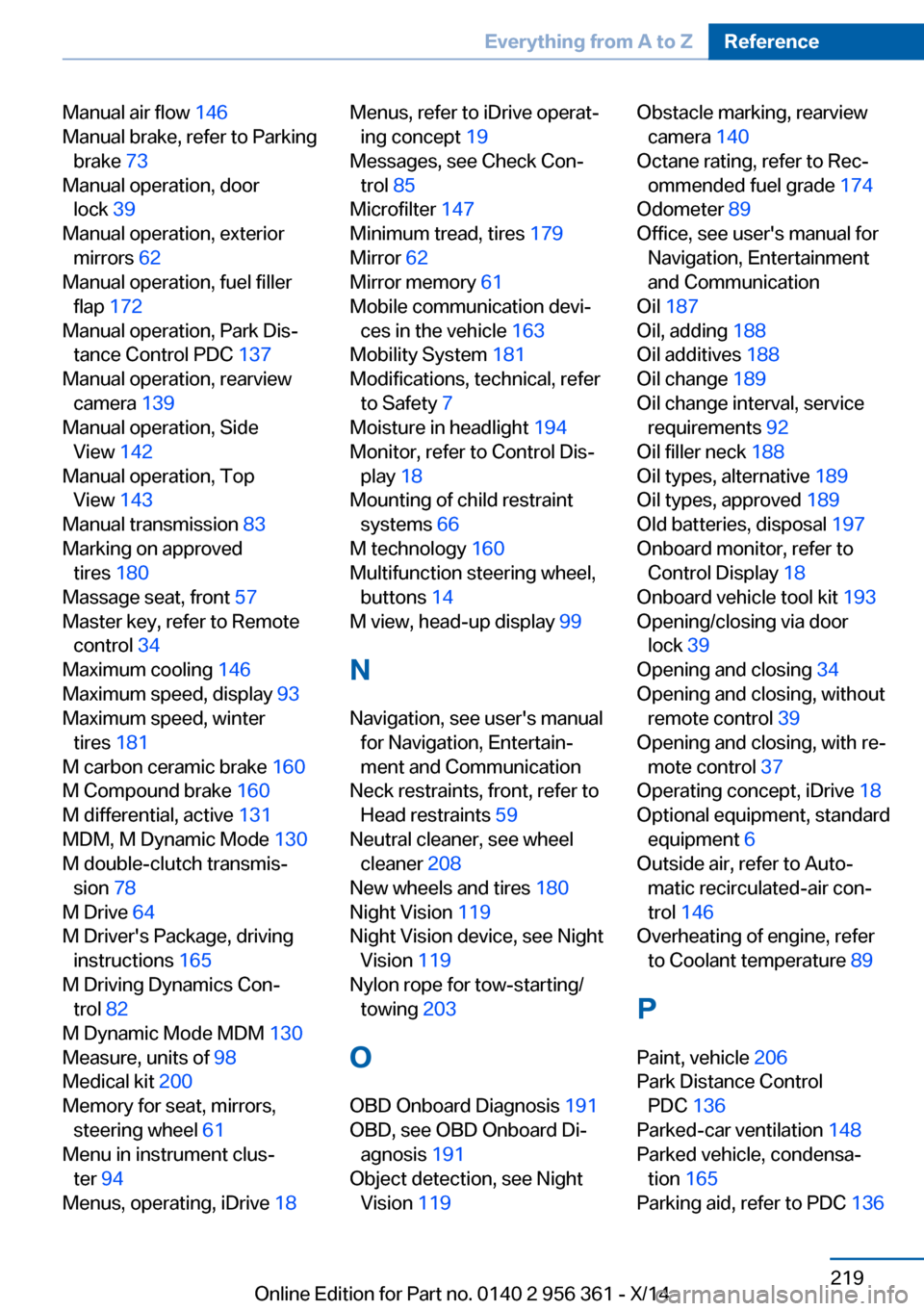

Manual air flow 146
Manual brake, refer to Parking brake 73
Manual operation, door lock 39
Manual operation, exterior mirrors 62
Manual operation, fuel filler flap 172
Manual operation, Park Dis‐ tance Control PDC 137
Manual operation, rearview camera 139
Manual operation, Side View 142
Manual operation, Top View 143
Manual transmission 83
Marking on approved tires 180
Massage seat, front 57
Master key, refer to Remote control 34
Maximum cooling 146
Maximum speed, display 93
Maximum speed, winter tires 181
M carbon ceramic brake 160
M Compound brake 160
M differential, active 131
MDM, M Dynamic Mode 130
M double-clutch transmis‐ sion 78
M Drive 64
M Driver's Package, driving instructions 165
M Driving Dynamics Con‐ trol 82
M Dynamic Mode MDM 130
Measure, units of 98
Medical kit 200
Memory for seat, mirrors, steering wheel 61
Menu in instrument clus‐ ter 94
Menus, operating, iDrive 18 Menus, refer to iDrive operat‐
ing concept 19
Messages, see Check Con‐ trol 85
Microfilter 147
Minimum tread, tires 179
Mirror 62
Mirror memory 61
Mobile communication devi‐ ces in the vehicle 163
Mobility System 181
Modifications, technical, refer to Safety 7
Moisture in headlight 194
Monitor, refer to Control Dis‐ play 18
Mounting of child restraint systems 66
M technology 160
Multifunction steering wheel, buttons 14
M view, head-up display 99
N Navigation, see user's manual for Navigation, Entertain‐
ment and Communication
Neck restraints, front, refer to Head restraints 59
Neutral cleaner, see wheel cleaner 208
New wheels and tires 180
Night Vision 119
Night Vision device, see Night Vision 119
Nylon rope for tow-starting/ towing 203
O OBD Onboard Diagnosis 191
OBD, see OBD Onboard Di‐ agnosis 191
Object detection, see Night Vision 119 Obstacle marking, rearview
camera 140
Octane rating, refer to Rec‐ ommended fuel grade 174
Odometer 89
Office, see user's manual for Navigation, Entertainment
and Communication
Oil 187
Oil, adding 188
Oil additives 188
Oil change 189
Oil change interval, service requirements 92
Oil filler neck 188
Oil types, alternative 189
Oil types, approved 189
Old batteries, disposal 197
Onboard monitor, refer to Control Display 18
Onboard vehicle tool kit 193
Opening/closing via door lock 39
Opening and closing 34
Opening and closing, without remote control 39
Opening and closing, with re‐ mote control 37
Operating concept, iDrive 18
Optional equipment, standard equipment 6
Outside air, refer to Auto‐ matic recirculated-air con‐
trol 146
Overheating of engine, refer to Coolant temperature 89
P Paint, vehicle 206
Park Distance Control PDC 136
Parked-car ventilation 148
Parked vehicle, condensa‐ tion 165
Parking aid, refer to PDC 136 Seite 219Everything from A to ZReference219
Online Edition for Part no. 0140 2 956 361 - X/14

Transmission, manual trans‐mission 83
Transporting children safely 66
Tread, tires 179
Trip computer 96
Triple turn signal activa‐ tion 75
Trip odometer 89
Truck for tow-starting/ towing 202
Trunk, cargo area partition 50
Trunk lid closing 41
Trunk lid, emergency unlock‐ ing 41
Trunk lid, hotel function 41
Trunk lid opening 40
Trunk lid via remote con‐ trol 38
Turning circle 212
Turning circle lines, rearview camera 140
Turn signals, operation 75
Turn signals, rear, bulb re‐ placement 195
U
Unintentional alarm 45
Units of measure 98
Universal remote control 149
Unlocking/locking via door lock 39
Unlocking/locking with re‐ mote control 37
Unlocking, settings 43
Updates made after the edito‐ rial deadline 6
Upholstery care 207
USB interface 155
V
V8 high-performance engine, High-performance engine
V8 160 Vanity mirror 151
Vehicle battery 197
Vehicle battery, replac‐ ing 197
Vehicle, break-in 162
Vehicle care 206
Vehicle features and op‐ tions 6
Vehicle identification num‐ ber 9
Vehicle jack 196
Vehicle paint 206
Vehicle storage 209
Vehicle wash 205
Ventilation 148
Ventilation, refer to Parked- car ventilation 148
Venting, see ventilation 148
Vent, see ventilation 148
VIN, see vehicle identification number 9
Voice activation system 26
W Warning and indicator lamps, see Check Control 85
Warning displays, see Check Control 85
Warning messages, see Check Control 85
Warning triangle 200
Washer fluid 77
Washer fluid reservoir, ca‐ pacity 213
Washer nozzles, wind‐ shield 77
Washer system 75
Washing, vehicle 205
Water on roads 164
Weights 212
Welcome lights 101
Wheel base, vehicle 212
Wheel cleaner 208
Wheels, changing 180 Wheels, everything on wheels
and tires 176
Wheels, Flat Tire Monitor FTM 112
Wheels, Tire Pressure Moni‐ tor TPM 110
Width, vehicle 212
Wind deflector 53
Window defroster, rear 147
Windows, powered 45
Windshield, climate con‐ trol 163
Windshield washer fluid 77
Windshield washer noz‐ zles 77
Windshield washer sys‐ tem 75
Windshield wiper 75
Winter storage, care 209
Winter tires, suitable tires 181
Winter tires, tread 179
Wiper 75
Wiper blades, replacing 193
Wiper fluid 77
Wiper, fold-out position 77
Wiper system 75
Wood, care 208
Word match concept, naviga‐ tion 24
Wrench, see Onboard vehicle tool kit 193
X
Xenon headlights, bulb re‐ placement 194 Seite 222ReferenceEverything from A to Z222
Online Edition for Part no. 0140 2 956 361 - X/14
