Jacking points for the vehicle jack
The jacking points for the vehicle jack are lo‐
cated at the positions shown.
Vehicle battery Maintenance
The battery is maintenance-free.
The added amount of acid is sufficient for the
service life of the battery.
Further information about the battery can be
obtained from your service center.
Battery replacement Use approved vehicle batteries only
Only use vehicle batteries that have been
approved for your vehicle by the manufacturer;
otherwise, the vehicle could be damaged and
systems or functions may not be fully availa‐
ble.◀
After a battery replacement, have the battery
registered on the vehicle by your service cen‐
ter to ensure that all comfort features are fully
available and that any Check Control mes‐
sages of these comfort features are no longer
displayed.
Charging the battery
Note Do not connect charging devices to the12 volt socket in the vehicle
Do not connect battery chargers to the fac‐
tory-installed 12 volt sockets in the vehicle as
this may damage the vehicle battery due to an
increased power consumption.◀
General information
Make sure that the battery is always suffi‐
ciently charged to guarantee that the battery
remains usable for its full service life.
The battery may need to be charged in the fol‐
lowing cases:▷When making frequent short-distance
drives.▷If the vehicle is not used for prolonged pe‐
riods, longer than a month.
Starting aid terminals
In the vehicle, only charge the battery via the
starting aid terminals, refer to page 210, in the
engine compartment with the engine off.
Power failure After a temporary power loss, some equipment
needs to be newly initialized or individual set‐
tings updated, e.g.:
▷Seat, mirror, and steering wheel memory:
store the positions again.▷Time: update.▷Date: update.▷Glass sunroof: initialize the system, refer to
page 51.
Disposing of old batteries
Have old batteries disposed of by your
service center or bring them to a recy‐
cling center.
Seite 206MobilityReplacing components206
Online Edition for Part no. 0140 2 956 245 - X/14

Breakdown assistanceVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.
Hazard warning flashers
The button is located in the center console.
Intelligent Emergency
Request
The concept In case of an emergency, an Emergency Re‐
quest can be made through this system.
General information
Only press the SOS button in an emergency.
Hints Emergency Request not guaranteed
For technical reasons, the Emergency
Request cannot be guaranteed under unfavor‐
able conditions.◀
At a glance
SOS button in the roofliner
Requirements
▷The SIM card integrated in the vehicle has
been activated.▷The radio-ready state is switched on.▷The Assist system is functional.
Initiating an Emergency Request
1.Press the cover briefly to open it.2.Press the SOS button until the LED at the
button lights up green.▷The LED lights up green: an Emergency
Request was initiated.
If a cancel prompt appears on the display,
the Emergency Request can be aborted.
If the situation allows, wait in your vehicle
until the voice connection has been estab‐
lished.▷The LED flashes green when a connection
to the BMW Response Center has been
established.
When the emergency request is received
at the BMW Response Center, the BMW
Response Center contacts you and takes
further steps to help you.
Even if you are unable to respond, the
BMW Response Center can take furtherSeite 208MobilityBreakdown assistance208
Online Edition for Part no. 0140 2 956 245 - X/14

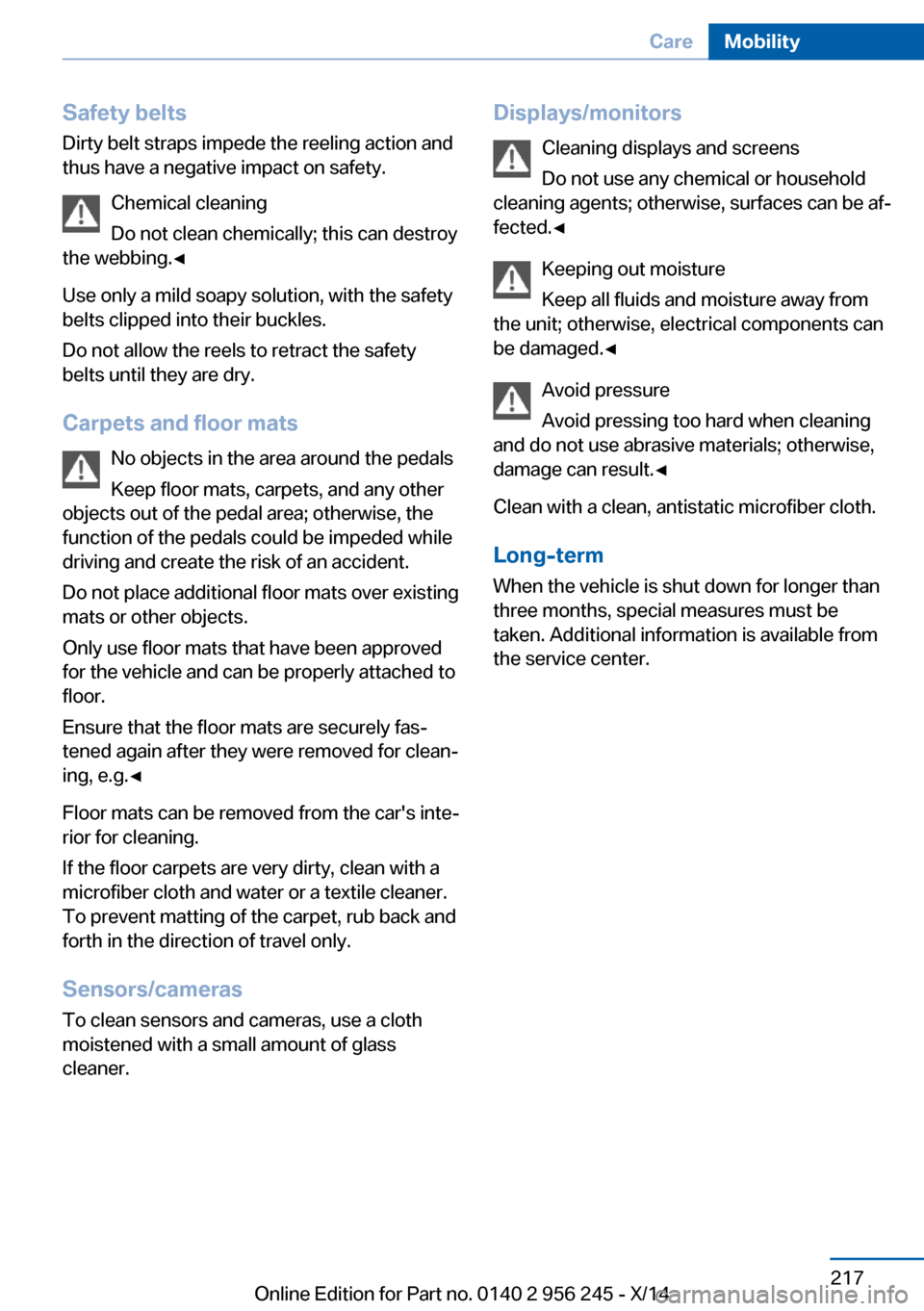

Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Chemical cleaning
Do not clean chemically; this can destroy
the webbing.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the reels to retract the safety
belts until they are dry.
Carpets and floor mats No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the pedal area; otherwise, the
function of the pedals could be impeded while
driving and create the risk of an accident.
Do not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved
for the vehicle and can be properly attached to
floor.
Ensure that the floor mats are securely fas‐
tened again after they were removed for clean‐
ing, e.g.◀
Floor mats can be removed from the car's inte‐
rior for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner.
To prevent matting of the carpet, rub back and
forth in the direction of travel only.
Sensors/cameras
To clean sensors and cameras, use a cloth
moistened with a small amount of glass
cleaner.Displays/monitors
Cleaning displays and screens
Do not use any chemical or household
cleaning agents; otherwise, surfaces can be af‐
fected.◀
Keeping out moisture
Keep all fluids and moisture away from
the unit; otherwise, electrical components can
be damaged.◀
Avoid pressure
Avoid pressing too hard when cleaning
and do not use abrasive materials; otherwise,
damage can result.◀
Clean with a clean, antistatic microfiber cloth.
Long-term
When the vehicle is shut down for longer than
three months, special measures must be
taken. Additional information is available from
the service center.Seite 217CareMobility217
Online Edition for Part no. 0140 2 956 245 - X/14

Everything from A to Z
IndexA ABS, Antilock Brake Sys‐ tem 127
Acceleration Assistant, refer to Launch Control 80
Activated-charcoal filter 146
Active Blind Spot Detec‐ tion 122
Active M differential 129
Active Protection 124
Active seat, front 54
Active seat ventilation, front 55
Adaptive brake lights, refer to Brake force display 124
Adaptive Light Control 101
Additives, oil 196
Adjustments, seats/head re‐ straints 52
After washing vehicle 215
Airbags 105
Airbags, indicator/warning light 106
Air circulation, refer to Recir‐ culated-air mode 145
Air, dehumidifying, refer to Cooling function 145
Air distribution, manual 144
Air flow, automatic climate control 144
Air outlets, see ventila‐ tion 146
Air pressure, tires 184
Alarm system 46
Alarm, unintentional 47
All around the center con‐ sole 16
All around the roofliner 17
All around the steering wheel 14 All-season tires, refer to Win‐
ter tires 189
Alternating-code hand-held transmitter 151
Alternative oil types 197
Ambient light 103
Animal detection, see Night Vision 118
Antifreeze, washer fluid 76
Antilock Brake System, ABS 127
Anti-slip control, refer to DSC 127
Approved axle load 220
Approved engine oils 197
Armrest, refer to Center arm‐ rest 160
Arrival time 95
Ashtray 152
Ashtray, front 152, 153
Ashtray, rear 153
Assistance, Roadside Assis‐ tance 209
Assistance when driving off 127
Attentiveness assistant 124
AUTO intensity 144
Automatic car wash 214
Automatic climate con‐ trol 143
Automatic Curb Monitor 60
Automatic deactivation, front- seat passenger airbags 107
Automatic headlight con‐ trol 101
Automatic locking 46
Automatic recirculated-air control 145
Automatic Soft Closing, doors 40
Automatic trunk lid 41 AUTO program, automatic cli‐
mate control 144
AUTO program, intensity 144
Auto Start/Stop function 70
Average fuel consumption 94
Average speed 94
Axle loads, weights 220
B Backrest curvature, refer to Lumbar support 53
Backrest, width 53
Band-aids, refer to First aid kit 209
Bar for tow-starting/ towing 212
Battery replacement, vehicle battery 206
Battery replacement, vehicle remote control 34
Battery, vehicle 206
Belts, safety belts 55
Beverage holder, cu‐ pholder 161
Blinds, sun protection 49
BMW Assist, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
BMW maintenance sys‐ tem 199
BMW M technology 166
Bottle holder, refer to Cu‐ pholder 161
Brake assistant 127
Brake discs, break-in 168
Brake force display 124
Brake lights, adaptive 124
Brake lights, brake force dis‐ play 124 Seite 222ReferenceEverything from A to Z222
Online Edition for Part no. 0140 2 956 245 - X/14

Brake lights, bulb replace‐ment 204
Brake pads, break-in 168
Braking, hints 170
Breakdown assis‐ tance 208, 209
Break-in 168
Brightness of Control Dis‐ play 97
Bulb replacement 201
Bulb replacement, front 202
Bulb replacement, rear 204
Bulbs and lights 201
Button, Start/Stop 68
Bypassing, refer to Jump- starting 209
C
California Proposition 65 Warning 7
Calling up mirror adjust‐ ment 46
Calling up seat adjust‐ ment 46
Calling up steering wheel ad‐ justment 46
Camera, care 217
Camera, rearview cam‐ era 137
Camera, Side View 139
Camera, Top View 141
Can holder, refer to Cu‐ pholder 161
Car battery 206
Carbon ceramic brake M 166
Car care products 215
Care, displays 217
Care, vehicle 215
Cargo 172
Cargo area, enlarging 155
Cargo area, storage compart‐ ments 162
Cargo, securing 173
Cargo straps, securing cargo 173 Car key, refer to Remote con‐
trol 34
Carpet, care 217
Car wash 214
Catalytic converter, refer to Hot exhaust system 169
CBS Condition Based Serv‐ ice 199
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center armrest 160
Center console 16
Central locking system 39
Central screen, refer to Con‐ trol Display 18
Ceramic brake 166
Changes, technical, refer to Safety 7
Changing parts 201
Changing wheels 205
Changing wheels/tires 188
Chassis number, see vehicle identification number 9
Check Control 84
Checking the engine oil level electronically 195
Checking the oil level elec‐ tronically 195
Children, seating position 64
Children, transporting safely 64
Child restraint fixing sys‐ tem 64
Child restraint fixing system LATCH 65
Child restraint fixing systems, mounting 64
Child safety locks 67
Child seat, mounting 64
Child seats 64
Chrome parts, care 216
Cigarette lighter 152
Cleaning displays 217
Climate control 143 Climate control laminated
tinted safety glass 169
Climate control wind‐ shield 169
Clock 88
Closing/opening via door lock 39
Closing/opening with remote control 37
Closing the trunk lid with no- touch activation 44
Clothes hooks 162
Combination reel, refer to Turn signals 74
Combination reel, refer to Wiper system 74
Comfort Access 42
Compound brake 166
Compressor 189
Computer 94
Condensation on win‐ dows 144
Condensation under the vehi‐ cle 171
Condition Based Service CBS 199
Confirmation signal 45
ConnectedDrive, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Control Display 18
Control Display, settings 96
Controller 18
Control systems, driving sta‐ bility 127
Convenient opening with the remote control 37
Coolant 198
Coolant level 198
Coolant temperature 88
Cooling function 145
Cooling, maximum 145
Cooling system 198
Corrosion on brake discs 171 Seite 223Everything from A to ZReference223
Online Edition for Part no. 0140 2 956 245 - X/14

Cosmetic mirror 152
Cruise control 132
Cruising range 89
Cupholder 161
Current fuel consumption 89
D
Damage, tires 187
Damping control 129
Damping control, dy‐ namic 129
Data, technical 220
Date 88
Daytime running lights 101
Defrosting, refer to Windows, defrosting 144
Dehumidifying, air 145
Deleting personal data 24
Deletion of personal data 24
Destination distance 95
Differential lock 129
Digital clock 88
Digital speed 88
Digital tachometer 88
Dimensions 220
Dimmable exterior mirrors 60
Dimmable interior rearview mirror 61
Direction indicator, refer to Turn signals 74
Display, electronic, instru‐ ment cluster 83
Display in windshield 97
Display lighting, refer to In‐ strument lighting 103
Displays, cleaning 217
Disposal, coolant 198
Disposal, vehicle battery 206
Distance control, refer to PDC 134
Distance to destination 95
Divided screen view, split screen 23
Door lock 39 Door lock, refer to Remote
control 34
Doors, Automatic Soft Clos‐ ing 40
Double-clutch transmis‐ sion 77
Drivelogic 79
Drive mode 78
Drive-off assistant 127
Drive-off assistant, refer to DSC 127
Driver assistance, refer to In‐ telligent Safety 112
Driving Assistant, refer to In‐ telligent Safety 112
Driving Dynamics Control 81
Driving instructions, break- in 168
Driving notes, general 169
Driving on racetracks 167
Driving program, refer to Drivelogic 79
Driving stability control sys‐ tems 127
Driving tips 169
DSC Dynamic Stability Con‐ trol 127
Dynamic Damping Con‐ trol 129
Dynamic driving systems 90
Dynamic driving, system states 90
Dynamic Stability Control DSC 127
E EfficientDynamics 90
EfficientDynamics display 90
EfficientDynamics menu 90
Electronic displays, instru‐ ment cluster 83
Electronic oil measure‐ ment 195
Electronic Stability Program ESP, refer to DSC 127 Emergency detection, remote
control 35
Emergency release, fuel filler flap 180
Emergency Request 208
Emergency service, refer to Roadside Assistance 209
Emergency start function, en‐ gine start 35
Emergency unlocking, trunk lid 42
Energy Control 89
Energy recovery 90
Engine, automatic reel-off 70
Engine, automatic Start/Stop function 70
Engine compartment 193
Engine compartment, work‐ ing in 193
Engine coolant 198
Engine oil 195
Engine oil, adding 196
Engine oil additives 196
Engine oil change 197
Engine oil filler neck 196
Engine oil temperature 88
Engine oil types, alterna‐ tive 197
Engine oil types, ap‐ proved 197
Engine start during malfunc‐ tion 35
Engine start, jump-start‐ ing 209
Engine start, refer to Starting the engine 69
Engine stop 69
Engine temperature 88
Entering a car wash 214
Equipment, interior 150
Error displays, see Check Control 84
ESP Electronic Stability Pro‐ gram, refer to DSC 127
Exchanging wheels/tires 188
Exhaust system 169 Seite 224ReferenceEverything from A to Z224
Online Edition for Part no. 0140 2 956 245 - X/14

Exterior mirror, automaticdimming feature 60
Exterior mirrors 59
External start 209
External temperature dis‐ play 88
External temperature warn‐ ing 88
Eyes for securing cargo 173
F
Failure message, see Check Control 84
False alarm, refer to Uninten‐ tional alarm 47
Fan, refer to Air flow 144
Filler neck for engine oil 196
Fine wood, care 216
First aid kit 209
Fitting for towing, see tow fit‐ ting 212
Flat tire, changing wheels 205
Flat Tire Monitor FTM 111
Flat tire, Tire Pressure Moni‐ tor TPM 108
Flat tire, warning lamp 109, 111
Flooding 170
Floor carpet, care 217
Floor mats, care 217
Fold down the rear seat back‐ rest, see Though-loading
system 155
Fold-out position, wiper 76
Foot brake 170
Front airbags 105
Front-end collision warning with City Braking func‐
tion 113
Front lights 202
front-seat passenger airbags, automatic deactivation 107
Front-seat passenger airbags, indicator lamp 107 FTM Flat Tire Monitor 111
Fuel 182
Fuel consumption, current 89
Fuel consumption, refer to Average fuel consump‐
tion 94
Fuel filler flap 180
Fuel gauge 87
Fuel lid 180
Fuel quality 182
Fuel recommendation 182
Fuel, tank capacity 221
Fuse 207
G
Garage door opener, refer to Universal Integrated Remote
Control 150
Gasoline 182
Gear change 79
Gear shift indicator 92
General driving notes 169
Glare shield 152
Glass sunroof, powered 49
Glove compartment 159
Gross vehicle weight, ap‐ proved 220
Ground clearance 171
H
Handbrake, refer to Parking brake 72
Hand-held transmitter, alter‐ nating code 151
Hazard warning flashers 208
Head airbags 105
Headlight control, auto‐ matic 101
Headlight courtesy delay fea‐ ture 100
Headlight courtesy delay fea‐ ture via remote control 38
Headlight flasher 74
Headlight glass 202 Headlights 202
Headlights, care 215
Headlight washer system 74
Head restraints 52
Head restraints, front 56
Head restraints, rear 57
Head-up Display 97
Head-up Display, care 217
Head-up display, M view 98
Head-up display, standard view 98
Heavy cargo, stowing 173
Height, vehicle 220
High-beam Assistant 102
High beams 74
High beams/low beams, refer to High-beam Assistant 102
Higher speed range 171
Hills 170
Hill start assistant, refer to Drive-off assistant 127
Hints 6
Holder for beverages 161
Hood 193
Horn 14
Hotel function, trunk lid 42
Hot exhaust system 169
HUD Head-up Display 97
Hydroplaning 169
I Ice warning, see External temperature warning 88
Icy roads, see External tem‐ perature warning 88
Identification marks, tires 185
Identification number, see ve‐ hicle identification num‐
ber 9
iDrive 18
Ignition key, refer to Remote control 34
Ignition off 68
Ignition on 68 Seite 225Everything from A to ZReference225
Online Edition for Part no. 0140 2 956 245 - X/14

Indication of a flattire 109 , 111
Indicator and alarm lamps, see Check Control 84
Indicator lamp, see Check Control 84
Individual air distribution 144
Individual settings, refer to M Drive 62
Individual settings, refer to Personal Profile 35
Inflation pressure, tires 184
Inflation pressure warning FTM, tires 111
Info display, refer to Com‐ puter 94
Initialize, Tire Pressure Moni‐ tor TPM 109
Initializing, Flat Tire Monitor FTM 111
Instrument cluster 83
Instrument cluster, electronic displays 83
Instrument lighting 103
Integrated key 34
Integrated Owner's Manual in the vehicle 29
Intelligent Emergency Re‐ quest 208
Intelligent Safety 112
Intensity, AUTO pro‐ gram 144
Interior equipment 150
Interior lights 103
Interior lights via remote con‐ trol 38
Interior motion sensor 47
Interior rearview mirror, auto‐ matic dimming feature 61
Interior rearview mirror, man‐ ually dimmable 61
Interval display, service re‐ quirements 91 J
Jacking points for the vehicle jack 206
Jump-starting 209
K
Key/remote control 34
Keyless Go, refer to Comfort Access 42
Key Memory, refer to Per‐ sonal Profile 35
Knee airbag 105
L Lamp replacement 201
Lamp replacement, front 202
Lamp replacement, rear 204
Lane departure warning 121
Lane margin, warning 121
Language on Control Dis‐ play 97
Lashing eyes, securing cargo 173
LATCH child restraint sys‐ tem 65
Launch Control 80
Leather, care 216
LED headlights, Bulb replace‐ ment 204
LED light 204
LEDs, light-emitting di‐ odes 202
Length, vehicle 220
Letters and numbers, enter‐ ing 24
License plate lamp, bulb re‐ placement 204
Light alloy wheels, care 216
Light control 101
Light-emitting diodes, LEDs 202
Lighter, front 152, 153
Lighter, rear 153 Lighting 100
Lighting, speaker 103
Lighting via remote con‐ trol 38
Light reel 100
Lights 100
Lights and bulbs 201
Load 173
Loading 172
Lock, door 39
Locking/unlocking via door lock 39
Locking/unlocking with re‐ mote control 37
Locking, automatic 46
Locking, settings 45
Locking via trunk lid 40
Lock, power window 48
Locks, doors, and win‐ dows 67
Low beams 100
Low beams, automatic, refer to High-beam Assistant 102
Lower back support 53
Low Speed Assistant 78
Luggage rack, see Roof- mounted luggage rack 173
Lumbar support 53
M
Maintenance 199
Maintenance require‐ ments 199
Maintenance, service require‐ ments 91
Maintenance system, BMW 199
Make-up mirror 152
Malfunction displays, see Check Control 84
Manual air distribution 144
Manual air flow 144
Manual brake, refer to Parking brake 72 Seite 226ReferenceEverything from A to Z226
Online Edition for Part no. 0140 2 956 245 - X/14
