Example: setting the clockSetting the clock1. Press the button. The main menu is
displayed.2.Turn the controller until "Settings" is high‐
lighted, and then press the controller.3.If necessary, move the controller to the left
to display "Time/Date".4.Turn the controller until "Time/Date" is
highlighted, and then press the controller.5.Turn the controller until "Time:" is high‐
lighted, and then press the controller.6.Turn the controller to set the hours and
press the controller.7.Turn the controller to set the minutes and
press the controller.
Status information
Status field The following information is displayed in the
status field at the top right:
▷Time.▷Current entertainment source.▷Sound output, on/off.▷Wireless network reception strength.▷Telephone status.▷Traffic bulletin reception.
Status field symbols
The symbols are grouped as follows.
Radio symbols
SymbolMeaning HD Radio™ is switched on. Satellite radio is switched on.
Telephone symbols
SymbolMeaning Incoming or outgoing call. Missed call. Wireless network reception
strength Symbol flashes: searching
for network. Wireless network is not available. Bluetooth is switched on. Roaming is active.Seite 19iDriveAt a glance19
Online Edition for Part no. 0140 2 910 771 - VI/13
Attentiveness assistant
The concept
The system can detect increasing lack of alert‐
ness or fatigue of the driver during long, mo‐
notonous journeys, for example, on highways.
In this situation, it is recommended that the
driver take a break.
Note
Personal responsibility
The system cannot act as a substitute for
the personal assessment of one's physical
state and may not detect an increasing lack of
alertness or fatigue or may not detect it cor‐
rectly. Therefore, make sure that the driver is
rested and alert; otherwise, risks may be de‐
tected too late and an accident be caused as a
result.◀
Function
The system is activated each time the engine
is started and cannot be switched off.
After travel has begun, the system is trained
about the driver, so that increasing lack of
alertness or fatigue can be detected.
This procedure takes the following criteria into
account:
▷Personal driving style, for example, steer‐
ing behavior.
▷Driving conditions, for example, length of
trip.
Starting at approximately 43 mph/70 km/h, the
system is active and can display a recommen‐
dation to take a break.
Break recommendation
If the driver becomes increasingly less alert or
fatigued, a message is displayed in the Control
Display with the recommendation to take a
break.
A recommendation to take a break is displayed
only once during an uninterrupted trip.
After a break, another recommendation to take
a break cannot be displayed until after approxi‐
mately 45 minutes.
System limits
The function may be limited in the following
situations, for instance, and will either output
an incorrect warning or no warning at all:
▷When the clock is set incorrectly.▷When the vehicle speed is mainly below
about 43 mph/70 km/h.
▷With a sporty driving style, such as during
rapid acceleration or when cornering
quickly.
▷In active driving situations, such as when
changing lanes frequently.
▷When the road surface is poor.▷In the event of strong side winds.
PreCrash
The concept
With this system critical driving situations that
might result in an accident can be detected
above a speed of approx. 20 mph/30 km/h. In
these situations, preventative protection
measures are automatically undertaken to
minimize the risk in the event of an accident as
much as possible.
Critical driving situations may include:
▷Full brake applications.
If the vehicle includes the collision warning or
collision warning with braking feature, impend‐
ing collisions with vehicles driving ahead or
stopped in front of you can also be detected
within the system's range.
Seite 114ControlsSafety114
Online Edition for Part no. 0140 2 910 771 - VI/13

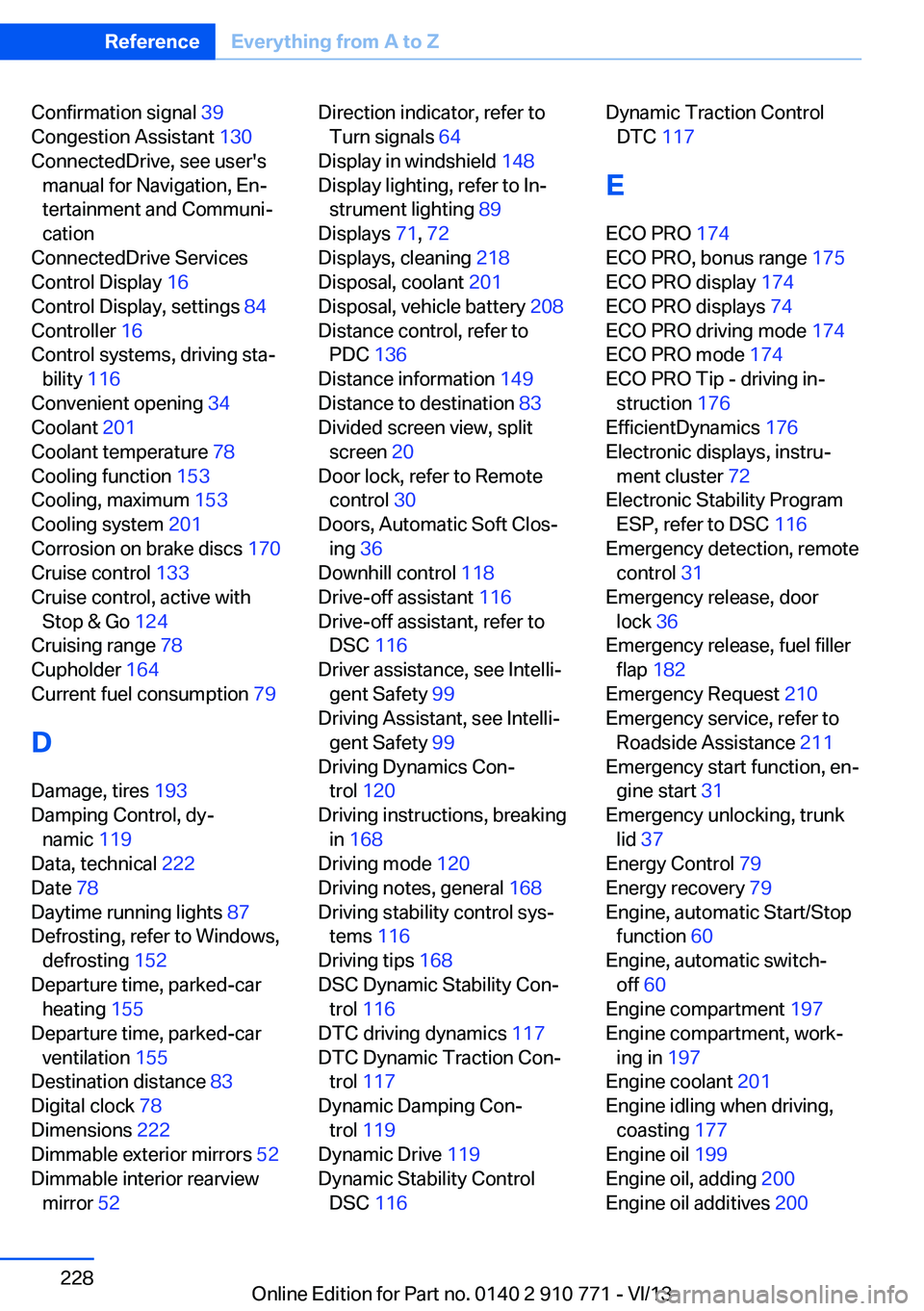

Confirmation signal 39
Congestion Assistant 130
ConnectedDrive, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Control Display 16
Control Display, settings 84
Controller 16
Control systems, driving sta‐ bility 116
Convenient opening 34
Coolant 201
Coolant temperature 78
Cooling function 153
Cooling, maximum 153
Cooling system 201
Corrosion on brake discs 170
Cruise control 133
Cruise control, active with Stop & Go 124
Cruising range 78
Cupholder 164
Current fuel consumption 79
D
Damage, tires 193
Damping Control, dy‐ namic 119
Data, technical 222
Date 78
Daytime running lights 87
Defrosting, refer to Windows, defrosting 152
Departure time, parked-car heating 155
Departure time, parked-car ventilation 155
Destination distance 83
Digital clock 78
Dimensions 222
Dimmable exterior mirrors 52
Dimmable interior rearview mirror 52 Direction indicator, refer to
Turn signals 64
Display in windshield 148
Display lighting, refer to In‐ strument lighting 89
Displays 71, 72
Displays, cleaning 218
Disposal, coolant 201
Disposal, vehicle battery 208
Distance control, refer to PDC 136
Distance information 149
Distance to destination 83
Divided screen view, split screen 20
Door lock, refer to Remote control 30
Doors, Automatic Soft Clos‐ ing 36
Downhill control 118
Drive-off assistant 116
Drive-off assistant, refer to DSC 116
Driver assistance, see Intelli‐ gent Safety 99
Driving Assistant, see Intelli‐ gent Safety 99
Driving Dynamics Con‐ trol 120
Driving instructions, breaking in 168
Driving mode 120
Driving notes, general 168
Driving stability control sys‐ tems 116
Driving tips 168
DSC Dynamic Stability Con‐ trol 116
DTC driving dynamics 117
DTC Dynamic Traction Con‐ trol 117
Dynamic Damping Con‐ trol 119
Dynamic Drive 119
Dynamic Stability Control DSC 116 Dynamic Traction Control
DTC 117
E ECO PRO 174
ECO PRO, bonus range 175
ECO PRO display 174
ECO PRO displays 74
ECO PRO driving mode 174
ECO PRO mode 174
ECO PRO Tip - driving in‐ struction 176
EfficientDynamics 176
Electronic displays, instru‐ ment cluster 72
Electronic Stability Program ESP, refer to DSC 116
Emergency detection, remote control 31
Emergency release, door lock 36
Emergency release, fuel filler flap 182
Emergency Request 210
Emergency service, refer to Roadside Assistance 211
Emergency start function, en‐ gine start 31
Emergency unlocking, trunk lid 37
Energy Control 79
Energy recovery 79
Engine, automatic Start/Stop function 60
Engine, automatic switch- off 60
Engine compartment 197
Engine compartment, work‐ ing in 197
Engine coolant 201
Engine idling when driving, coasting 177
Engine oil 199
Engine oil, adding 200
Engine oil additives 200 Seite 228ReferenceEverything from A to Z228
Online Edition for Part no. 0140 2 910 771 - VI/13
