2014 BMW 6 SERIES GRAN COUPE load capacity

4.The unlocked rear seat backrest moves
forward slightly.5.Fold backrest forward.
Closing
1.Return the rear seat backrest to the upright
seating position and engage it.
Ensure that the lock is securely en‐
gaged
Make sure that the lock engages properly
when folding back, otherwise transported
cargo could enter the car's interior during
braking or evasive maneuvers and endan‐
ger the vehicle's occupants.◀2.Release the belt tongue from the fixture on
the rear window shelf.3.Insert the belt tongue in the belt lock of the
center safety belt. Make sure you hear the
latch plate engage.
To secure cargo, refer to page 182, with nets
or draw straps, the cargo area is fitted with
lashing eyes.
Ski bag
Capacity
The ski bag can be used to transport up to four
pairs of skis with a length of up to 6 ft/2.10 m
or, depending on the binding, up to two snow‐
boards with a length of up to 5 ft/1.60 m.
Preparing and loading the ski bag1.Fold open the center armrest on the inside.2.Open the inside cover and cargo area by
pressing the button.3.Lay out the ski bag.4.Load the ski bag. If necessary, wrap the
sharp edges of the skis.5.Insert the tongue plate into the belt buckle.6.Tighten the retaining strap.
Securing the ski bag
Secure the ski bag by tightening the re‐
taining strap; otherwise, the contents could
present a source of danger to the passengers,
for example during braking or evasive maneu‐
vers.◀
Seite 170ControlsInterior equipment170
Online Edition for Part no. 01 40 2 956 110 - X/14

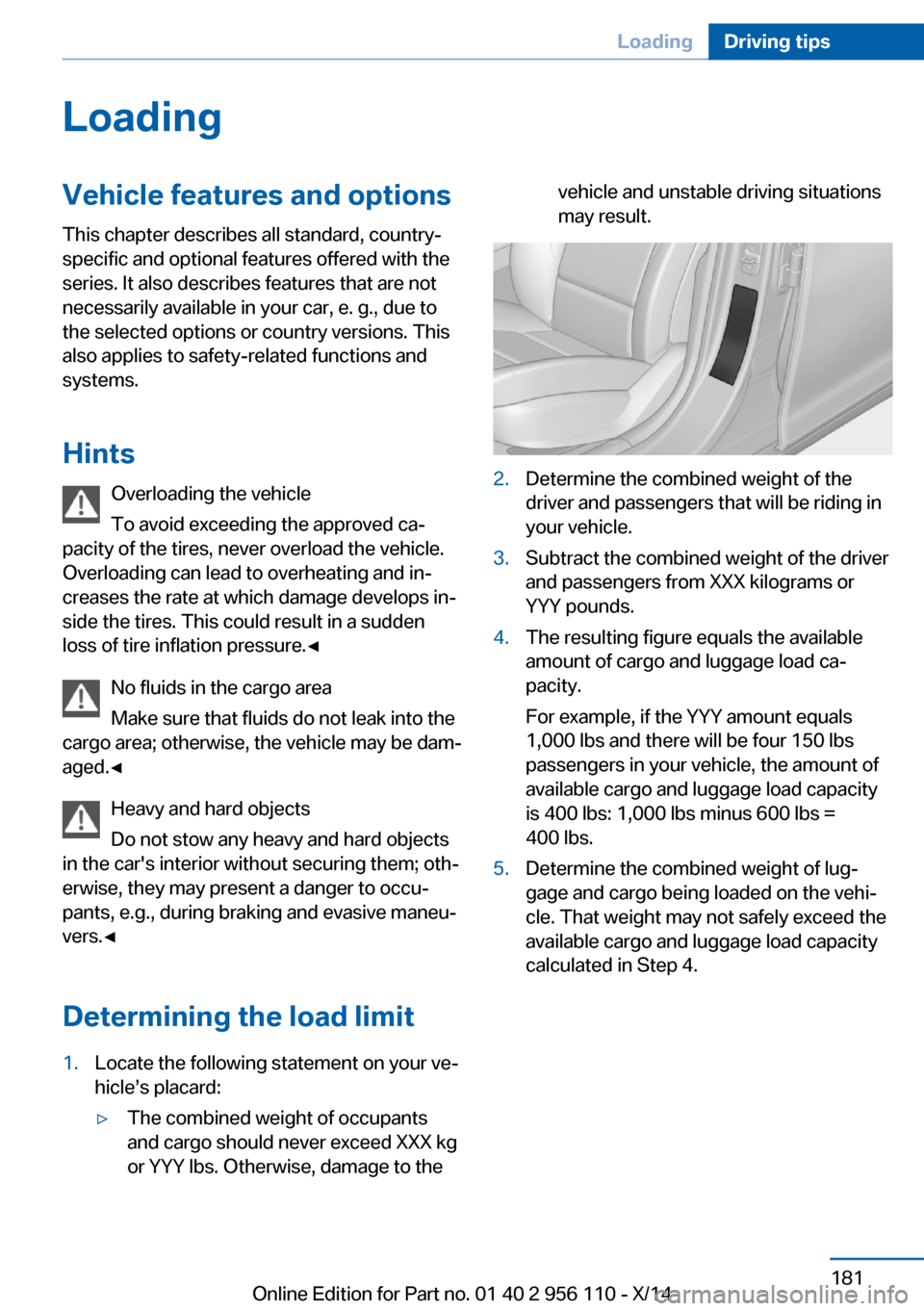

LoadingVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.
Hints Overloading the vehicle
To avoid exceeding the approved ca‐
pacity of the tires, never overload the vehicle.
Overloading can lead to overheating and in‐
creases the rate at which damage develops in‐
side the tires. This could result in a sudden
loss of tire inflation pressure.◀
No fluids in the cargo area
Make sure that fluids do not leak into the
cargo area; otherwise, the vehicle may be dam‐
aged.◀
Heavy and hard objects
Do not stow any heavy and hard objects
in the car's interior without securing them; oth‐
erwise, they may present a danger to occu‐
pants, e.g., during braking and evasive maneu‐
vers.◀
Determining the load limit1.Locate the following statement on your ve‐
hicle’s placard:▷The combined weight of occupants
and cargo should never exceed XXX kg
or YYY lbs. Otherwise, damage to thevehicle and unstable driving situations
may result.2.Determine the combined weight of the
driver and passengers that will be riding in
your vehicle.3.Subtract the combined weight of the driver
and passengers from XXX kilograms or
YYY pounds.4.The resulting figure equals the available
amount of cargo and luggage load ca‐
pacity.
For example, if the YYY amount equals
1,000 lbs and there will be four 150 lbs
passengers in your vehicle, the amount of
available cargo and luggage load capacity
is 400 lbs: 1,000 lbs minus 600 lbs =
400 lbs.5.Determine the combined weight of lug‐
gage and cargo being loaded on the vehi‐
cle. That weight may not safely exceed the
available cargo and luggage load capacity
calculated in Step 4.Seite 181LoadingDriving tips181
Online Edition for Part no. 01 40 2 956 110 - X/14

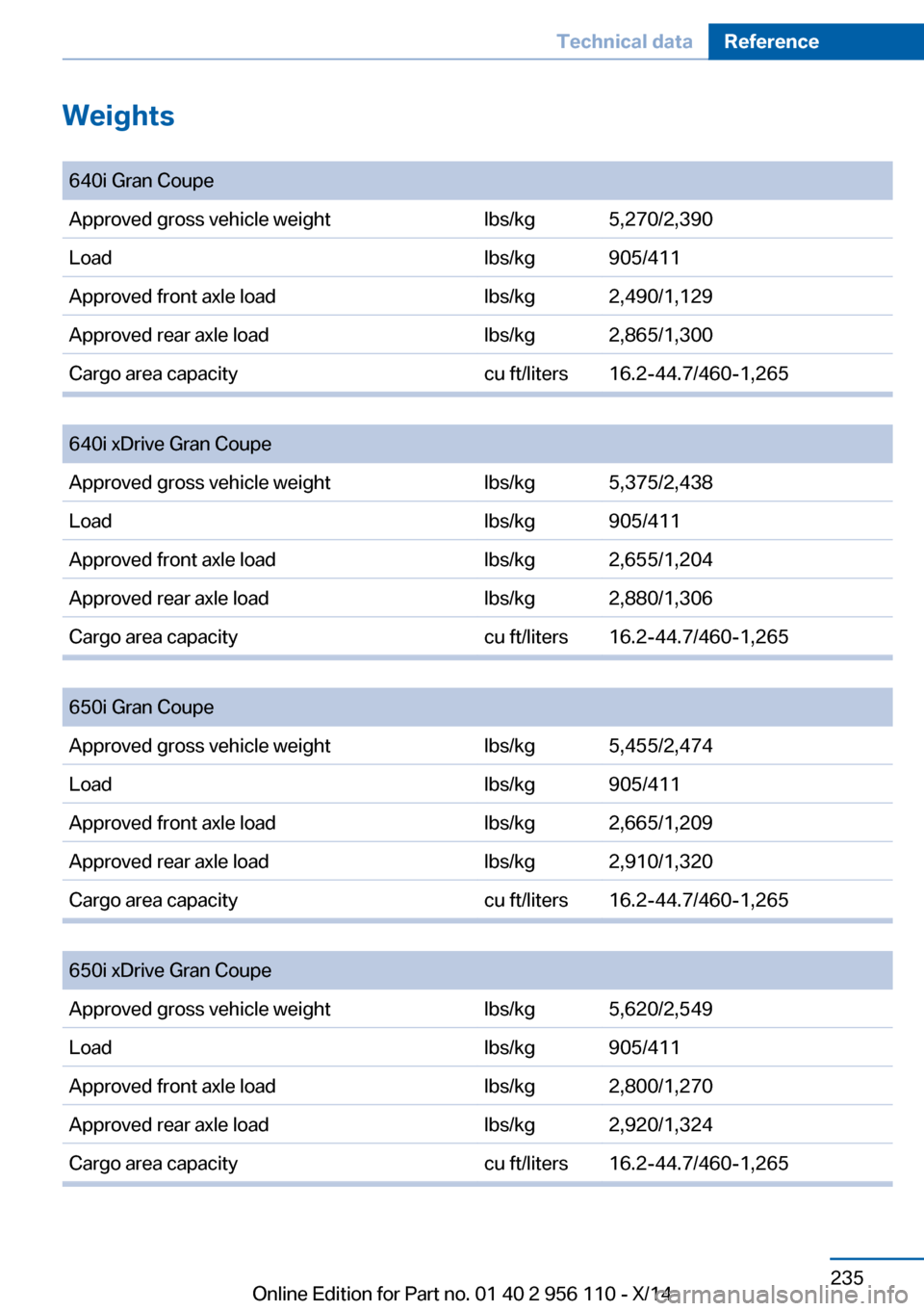

Weights
640i Gran CoupeApproved gross vehicle weightlbs/kg5,270/2,390Loadlbs/kg905/411Approved front axle loadlbs/kg2,490/1,129Approved rear axle loadlbs/kg2,865/1,300Cargo area capacitycu ft/liters16.2-44.7/460-1,265

640i xDrive Gran CoupeApproved gross vehicle weightlbs/kg5,375/2,438Loadlbs/kg905/411Approved front axle loadlbs/kg2,655/1,204Approved rear axle loadlbs/kg2,880/1,306Cargo area capacitycu ft/liters16.2-44.7/460-1,265

650i Gran CoupeApproved gross vehicle weightlbs/kg5,455/2,474Loadlbs/kg905/411Approved front axle loadlbs/kg2,665/1,209Approved rear axle loadlbs/kg2,910/1,320Cargo area capacitycu ft/liters16.2-44.7/460-1,265

650i xDrive Gran CoupeApproved gross vehicle weightlbs/kg5,620/2,549Loadlbs/kg905/411Approved front axle loadlbs/kg2,800/1,270Approved rear axle loadlbs/kg2,920/1,324Cargo area capacitycu ft/liters16.2-44.7/460-1,265Seite 235Technical dataReference235
Online Edition for Part no. 01 40 2 956 110 - X/14

Engine, automatic Start/Stopfunction 65
Engine compartment 208
Engine compartment, work‐ ing in 208
Engine coolant 213
Engine idling when driving, coasting 187
Engine oil 210
Engine oil, adding 211
Engine oil additives 211
Engine oil change 212
Engine oil filler neck 211
Engine oil temperature 85
Engine oil types, alterna‐ tive 212
Engine oil types, ap‐ proved 212
Engine start during malfunc‐ tion 35
Engine start, jump-start‐ ing 224
Engine start, refer to Starting the engine 64
Engine stop 64
Engine temperature 85
Entering/exiting vehicle, as‐ sistance, steering wheel 58
Entering a car wash 228
Equipment, interior 165
Error displays, see Check Control 81
ESP Electronic Stability Pro‐ gram, refer to DSC 128
Exchanging wheels/tires 204
Exhaust system 178
Exterior mirror, automatic dimming feature 57
Exterior mirrors 56
External start 224
External temperature dis‐ play 85
External temperature warn‐ ing 85
Eyes for securing cargo 182 F
Failure message, see Check Control 81
False alarm, refer to Uninten‐ tional alarm 45
Fan, refer to Air flow 158
Filler neck for engine oil 211
Fine wood, care 230
First aid kit 224
Fitting for towing, see tow fit‐ ting 227
Flat tire, changing wheels 220
Flat Tire Monitor FTM 108
Flat tire, Tire Pressure Moni‐ tor TPM 104
Flat tire, warning lamp 105, 108
Flooding 179
Floor carpet, care 231
Floor mats, care 231
Fold down the rear seat back‐ rest, see Though-loading
system 169
Fold-out position, wiper 71
Foot brake 179
For the roofliner, refer to All around the interior rearview
mirror 17
Front airbags 101
Front center armrest 173
Front-end collision warning with braking function 110
Front-end collision warning with City Braking func‐
tion 113
Front fog lights 99
Front lights 217
front-seat passenger airbags, automatic deactivation 103
Front-seat passenger airbags, indicator lamp 103
Front seats 49 Front turn signals, refer to
Light-emitting diodes,
LEDs 219
FTM Flat Tire Monitor 108
Fuel 194
Fuel consumption, current 86
Fuel consumption, refer to Average fuel consump‐
tion 90
Fuel filler flap 192
Fuel gauge 85
Fuel lid 192
Fuel quality 194
Fuel recommendation 194
Fuel, tank capacity 236
Fuse 221
G Garage door opener, refer to Universal Integrated Remote
Control 165
Gasoline 194
Gear change, Steptronic transmission 73
Gear shift indicator 88
General driving notes 178
Glare shield 167
Glass sunroof, powered with tilt function 47
Glove compartment 172
Gross vehicle weight, ap‐ proved 235
H Handbrake, refer to Parking brake 66
Hand-held transmitter, alter‐ nating code 166
Hazard warning flashers 223
HDC Hill Descent Con‐ trol 130
Head airbags 101
Headlight control, auto‐ matic 97 Seite 241Everything from A to ZReference241
Online Edition for Part no. 01 40 2 956 110 - X/14
