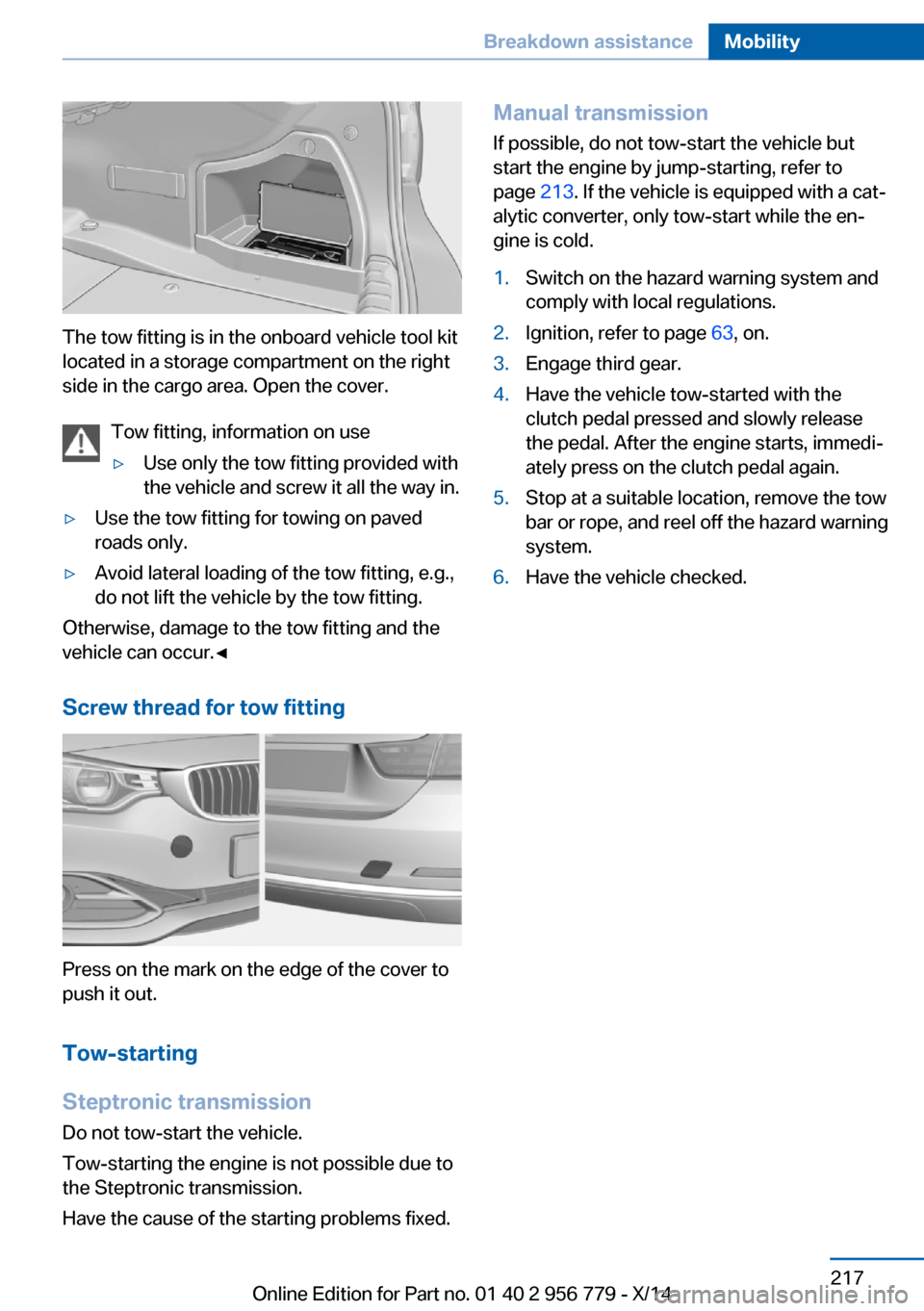

The tow fitting is in the onboard vehicle tool kit
located in a storage compartment on the right
side in the cargo area. Open the cover.
Tow fitting, information on use
▷Use only the tow fitting provided with
the vehicle and screw it all the way in.▷Use the tow fitting for towing on paved
roads only.▷Avoid lateral loading of the tow fitting, e.g.,
do not lift the vehicle by the tow fitting.
Otherwise, damage to the tow fitting and the
vehicle can occur.◀
Screw thread for tow fitting
Press on the mark on the edge of the cover to
push it out.
Tow-starting
Steptronic transmission
Do not tow-start the vehicle.
Tow-starting the engine is not possible due to
the Steptronic transmission.
Have the cause of the starting problems fixed.
Manual transmission If possible, do not tow-start the vehicle but
start the engine by jump-starting, refer to
page 213. If the vehicle is equipped with a cat‐
alytic converter, only tow-start while the en‐
gine is cold.1.Switch on the hazard warning system and
comply with local regulations.2.Ignition, refer to page 63, on.3.Engage third gear.4.Have the vehicle tow-started with the
clutch pedal pressed and slowly release
the pedal. After the engine starts, immedi‐
ately press on the clutch pedal again.5.Stop at a suitable location, remove the tow
bar or rope, and reel off the hazard warning
system.6.Have the vehicle checked.Seite 217Breakdown assistanceMobility217
Online Edition for Part no. 01 40 2 956 779 - X/14

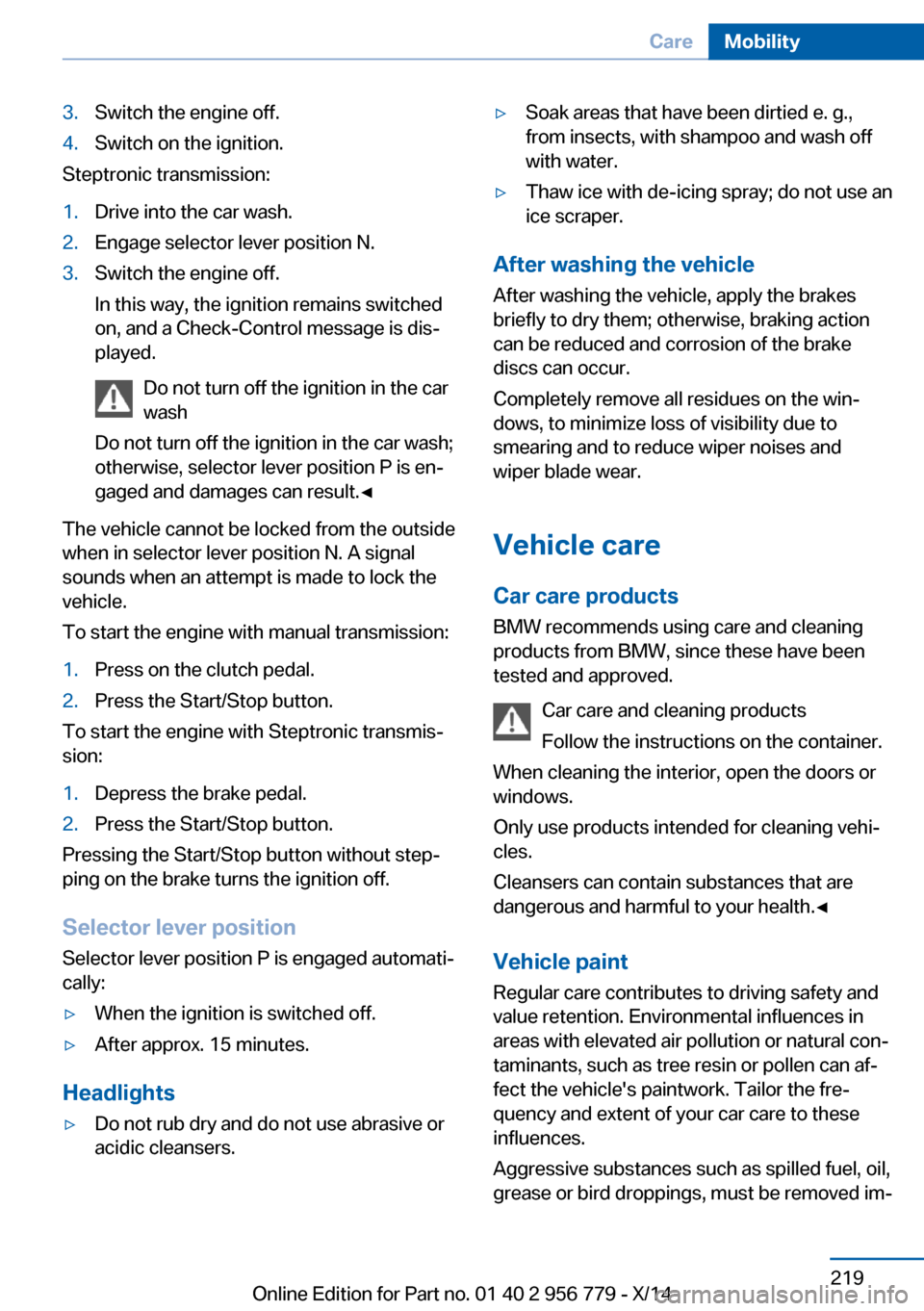

3.Switch the engine off.4.Switch on the ignition.
Steptronic transmission:
1.Drive into the car wash.2.Engage selector lever position N.3.Switch the engine off.
In this way, the ignition remains switched
on, and a Check-Control message is dis‐
played.
Do not turn off the ignition in the car
wash
Do not turn off the ignition in the car wash;
otherwise, selector lever position P is en‐
gaged and damages can result.◀
The vehicle cannot be locked from the outside
when in selector lever position N. A signal
sounds when an attempt is made to lock the
vehicle.
To start the engine with manual transmission:
1.Press on the clutch pedal.2.Press the Start/Stop button.
To start the engine with Steptronic transmis‐
sion:
1.Depress the brake pedal.2.Press the Start/Stop button.
Pressing the Start/Stop button without step‐
ping on the brake turns the ignition off.
Selector lever positionSelector lever position P is engaged automati‐
cally:
▷When the ignition is switched off.▷After approx. 15 minutes.
Headlights
▷Do not rub dry and do not use abrasive or
acidic cleansers.▷Soak areas that have been dirtied e. g.,
from insects, with shampoo and wash off
with water.▷Thaw ice with de-icing spray; do not use an
ice scraper.
After washing the vehicle
After washing the vehicle, apply the brakes
briefly to dry them; otherwise, braking action
can be reduced and corrosion of the brake
discs can occur.
Completely remove all residues on the win‐
dows, to minimize loss of visibility due to
smearing and to reduce wiper noises and
wiper blade wear.
Vehicle care
Car care products BMW recommends using care and cleaning
products from BMW, since these have been
tested and approved.
Car care and cleaning products
Follow the instructions on the container.
When cleaning the interior, open the doors or
windows.
Only use products intended for cleaning vehi‐
cles.
Cleansers can contain substances that are
dangerous and harmful to your health.◀
Vehicle paint
Regular care contributes to driving safety and
value retention. Environmental influences in
areas with elevated air pollution or natural con‐
taminants, such as tree resin or pollen can af‐
fect the vehicle's paintwork. Tailor the fre‐
quency and extent of your car care to these
influences.
Aggressive substances such as spilled fuel, oil,
grease or bird droppings, must be removed im‐
Seite 219CareMobility219
Online Edition for Part no. 01 40 2 956 779 - X/14

Everything from A to Z
IndexA ABS, Antilock Brake Sys‐ tem 118
ACC, Active Cruise Control with Stop & Go 123
Acceleration Assistant, refer to Launch Control 74
Activated-charcoal filter 149
Active Blind Spot Detec‐ tion 115
Active Cruise Control with Stop & Go, ACC 123
Adaptive brake lights, refer to Brake force display 116
Adaptive Light Control 92
Additives, oil 198
Adjustments, seats/head re‐ straints 49
After washing vehicle 219
Airbags 96
Airbags, indicator/warning light 97
Air circulation, refer to Recir‐ culated-air mode 145, 148
Air, dehumidifying, refer to Cooling function 145, 147
Air distribution, manual 145, 148
Air flow, air conditioner 145
Air flow, automatic climate control 148
Air pressure, tires 186
Air vents, refer to Ventila‐ tion 149
Alarm system 44
Alarm, unintentional 45
All around the center con‐ sole 16
All around the roofliner 17 All around the steering
wheel 14
All-season tires, refer to Win‐ ter tires 193
All-wheel-drive 119
Alternating-code hand-held transmitter 152
Alternative oil types 199
Antifreeze, washer fluid 70
Antilock Brake System, ABS 118
Anti-slip control, refer to DSC 118
Approved axle load 224
Approved engine oils 199
Arrival time 87
Ash tray 155
Assistance, Roadside Assis‐ tance 213
Assistance when driving off 122
Assist system information, on Control Display 89
Attentiveness assistant 116
AUTO intensity 147
Automatic car wash 218
Automatic climate con‐ trol 144
Automatic climate control with enhanced features 146
Automatic Cruise Control with Stop & Go 123
Automatic Curb Monitor 57
Automatic deactivation, front- seat passenger airbags 98
Automatic headlight con‐ trol 92
Automatic locking 43
Automatic recirculated-air control 148 Automatic transmission, see
Steptronic transmission 71
AUTO program, automatic cli‐ mate control 147
AUTO program, climate con‐ trol 145
AUTO program, intensity 147
Auto Start/Stop function 65
Average fuel consumption 86
Average speed 86
Axle loads, weights 224
B Backrest curvature, refer to Lumbar support 51
Backrest, width 51
Band-aids, refer to First aid kit 213
Bar for tow-starting/ towing 216
Battery replacement, vehicle battery 210
Battery replacement, vehicle remote control 35
Battery, vehicle 209
Belt carrier 54
Belts, safety belts 53
Beverage holder, cu‐ pholder 161
Blinds, sun protection 46
BMW Assist, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
BMW maintenance sys‐ tem 201
Bonus range, ECO PRO 174
Bottle holder, refer to Cu‐ pholders 161
Brake assistant 118 Seite 228ReferenceEverything from A to Z228
Online Edition for Part no. 01 40 2 956 779 - X/14

Brake discs, break-in 166
Brake force display 116
Brake lights, adaptive 116
Brake lights, brake force dis‐ play 116
Brake pads, break-in 166
Braking, hints 167
Breakdown assis‐ tance 212, 213
Break-in 166
Brightness of Control Dis‐ play 89
Bulb replacement 203
Bulb replacement, front 204
Bulb replacement, LED head‐ lights 205
Bulb replacement, rear 206
Bulb replacement, xenon headlights 204
Bulbs and lights 203
Button, RES 126
Button, Start/Stop 63
Bypassing, refer to Jump- starting 213
C
California Proposition 65 Warning 7
Camera, care 221
Camera, rearview cam‐ era 134
Camera, Side View 137
Camera, Top View 138
Can holder, refer to Cuphold‐ ers 161
Car battery 209
Car care products 219
Care, displays 221
Care, vehicle 219
Cargo 169
Cargo area, enlarging 157
Cargo area, storage compart‐ ments 162
Cargo, securing 170 Cargo straps, securing
cargo 170
Car key, refer to Remote con‐ trol 34
Carpet, care 221
Car wash 218
Catalytic converter, refer to Hot exhaust system 167
CBS Condition Based Serv‐ ice 201
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center armrest 160
Center console 16
Central locking system 39
Central screen, refer to Con‐ trol Display 18
Changes, technical, refer to Safety 7
Changing parts 203
Changing wheels 209
Changing wheels/tires 192
Chassis number, see vehicle identification number 9
Check Control 77
Checking the engine oil level electronically 197
Checking the oil level elec‐ tronically 197
Children, seating position 59
Children, transporting safely 59
Child restraint fixing sys‐ tem 59
Child restraint fixing system LATCH 61
Child restraint fixing systems, mounting 59
Child seat, mounting 59
Child seats 59
Chrome parts, care 220
Cigarette lighter 155
Cleaning displays 221
Climate control 144, 146 Clock 81
Closing/opening via door lock 39
Closing/opening with remote control 37
Clothes hooks 161
Coasting 176
Coasting with engine decou‐ pled, coasting 176
Coasting with idling en‐ gine 176
Cockpit 14
Combination reel, refer to Turn signals 67
Combination reel, refer to Wiper system 68
Comfort Access 41
COMFORT program, Dy‐ namic Driving Control 121
Compartments in the doors 160
Compass 153
Computer 85
Condensation on win‐ dows 148
Condensation under the vehi‐ cle 168
Condition Based Service CBS 201
Configuring driving pro‐ gram 122
Confirmation signal 43
ConnectedDrive, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Connecting electrical devi‐ ces 155
Continued driving with a flat tire 101 , 104
Control Display 18
Control Display, settings 88
Controller 18, 19
Control systems, driving sta‐ bility 118 Seite 229Everything from A to ZReference229
Online Edition for Part no. 01 40 2 956 779 - X/14

Convenient opening with theremote control 37
Coolant 200
Coolant level 200
Coolant temperature 81
Cooling function 145, 147
Cooling, maximum 147
Cooling system 200
Corrosion on brake discs 168
Cosmetic mirror 155
Cruise control 129
Cruise control, active with Stop & Go 123
Cruising range 81
Cupholders 161
Current fuel consumption 82
D
Damage, tires 191
Damping control, dy‐ namic 120
Data, technical 224
Date 81
Daytime running lights 92
Defrosting, refer to defrosting the windows 145
Defrosting, refer to Windows, defrosting 148
Defrosting the windows 145
Dehumidifying, air 145, 147
Deleting personal data 24
Deletion of personal data 24
Destination distance 86
Digital clock 81
Digital compass 153
Dimensions 224
Dimmable exterior mirrors 58
Dimmable interior rearview mirror 58
Direction indicator, refer to Turn signals 67
Display, electronic, instru‐ ment cluster 76
Display in windshield 89 Display lighting, refer to In‐
strument lighting 94
Displays, cleaning 221
Disposal, coolant 200
Disposal, vehicle battery 210
Distance control, refer to PDC 131
Distance to destination 86
Divided screen view, split screen 23
Door lock 39
Door lock, refer to Remote control 34
Drive-off assistant 122
Drive-off assistant, refer to DSC 118
Driver assistance, refer to In‐ telligent Safety 104
Driving Assistant, refer to In‐ telligent Safety 104
Driving Dynamics Con‐ trol 120
Driving instructions, break- in 166
Driving mode 120
Driving notes, general 166
Driving stability control sys‐ tems 118
Driving style analysis 177
Driving tips 166
DSC Dynamic Stability Con‐ trol 118
DTC Dynamic Traction Con‐ trol 119
Dynamic Damping Con‐ trol 120
Dynamic Stability Control DSC 118
Dynamic Traction Control DTC 119
E ECO PRO 173
ECO PRO, bonus range 174
ECO PRO display 173 ECO PRO driving mode 173
ECO PRO driving style analy‐ sis 177
ECO PRO mode 173
ECO PRO Tip - driving in‐ struction 175
EfficientDynamics 176
Electronic displays, instru‐ ment cluster 76
Electronic oil measure‐ ment 197
Electronic Stability Program ESP, refer to DSC 118
Emergency detection, remote control 35
Emergency release, fuel filler flap 182
Emergency Request 212
Emergency service, refer to Roadside Assistance 213
Emergency start function, en‐ gine start 35
Emergency unlocking, trans‐ mission lock 74
Emergency unlocking, trunk lid 41
Energy Control 82
Energy recovery 82
Engine, automatic reel-off 65
Engine, automatic Start/Stop function 65
Engine compartment 195
Engine compartment, work‐ ing in 196
Engine coolant 200
Engine idling when driving, coasting 176
Engine oil 197
Engine oil, adding 198
Engine oil additives 198
Engine oil change 199
Engine oil filler neck 198
Engine oil temperature 80
Engine oil types, alterna‐ tive 199 Seite 230ReferenceEverything from A to Z230
Online Edition for Part no. 01 40 2 956 779 - X/14

Engine oil types, ap‐proved 199
Engine start during malfunc‐ tion 35
Engine start, jump-start‐ ing 213
Engine start, refer to Starting the engine 64
Engine stop 64
Engine temperature 80
Entering a car wash 218
Equipment, interior 151
Error displays, see Check Control 77
ESP Electronic Stability Pro‐ gram, refer to DSC 118
Exchanging wheels/tires 192
Exhaust system 167
Exterior mirror, automatic dimming feature 58
Exterior mirrors 56
External start 213
External temperature dis‐ play 81
External temperature warn‐ ing 81
Eyes for securing cargo 170
F
Failure message, see Check Control 77
False alarm, refer to Uninten‐ tional alarm 45
Fan, refer to Air flow 145, 148
Filler neck for engine oil 198
Fine wood, care 220
First aid kit 213
Fitting for towing, see tow fit‐ ting 216
Flat tire, changing wheels 209
Flat Tire Monitor FTM 103
Flat tire, Tire Pressure Moni‐ tor TPM 99 Flat tire, warning
lamp 100, 103
Flooding 167
Floor carpet, care 221
Floor mats, care 221
Fogged up windows 145
Fold down the rear seat back‐ rest, see Though-loading
system 157
Fold-out position, wiper 70
Foot brake 167
Front airbags 96
Front-end collision warning with braking function 108
Front-end collision warning with City Braking func‐
tion 105
Front fog lights 94
Front fog lights, front, bulb re‐ placement 206
Front lights 204
front-seat passenger airbags, automatic deactivation 98
Front-seat passenger airbags, indicator lamp 98
FTM Flat Tire Monitor 103
Fuel 184
Fuel consumption, current 82
Fuel consumption, refer to Average fuel consump‐
tion 86
Fuel filler flap 182
Fuel gauge 80
Fuel lid 182
Fuel quality 184
Fuel recommendation 184
Fuel, tank capacity 227
Fuse 210
G
Garage door opener, refer to Universal Integrated Remote
Control 151
Gasoline 184 Gear change, Steptronic
transmission 72
Gear shift indicator 83
General driving notes 166
Glare shield 155
Glass sunroof, powered 47
Glove compartment 159
Gross vehicle weight, ap‐ proved 224
H
Handbrake, refer to parking brake 67
Hand-held transmitter, alter‐ nating code 152
Hazard warning flashers 212
Head airbags 96
Headlight control, auto‐ matic 92
Headlight courtesy delay fea‐ ture 91
Headlight flasher 68
Headlight glass 204
Headlights 204
Headlights, care 219
Headlight washer system 68
Head restraints 49
Head restraints, front 55
Head-up Display 89
Head-up Display, care 221
Heavy cargo, stowing 170
Height, vehicle 224
High-beam Assistant 93
High beams 68
High beams/low beams, refer to High-beam Assistant 93
Hills 168
Hill start assistant, refer to Drive-off assistant 122
Hints 6
Holder for beverages 161
Hood 196
Horn 14
Hotel function, trunk lid 40
Hot exhaust system 167 Seite 231Everything from A to ZReference231
Online Edition for Part no. 01 40 2 956 779 - X/14

Servotronic 122
SET button, see Active Cruise Control, ACC 123
SET button, see Cruise con‐ trol 129
Settings, locking/unlock‐ ing 43
Settings on Control Dis‐ play 88
Settings, storing for seat, mir‐ ror 56
Shift paddles on steering wheel 73
Side airbags 96
Side View 136
Signaling, horn 14
Signals when unlocking 43
Sitting safely 49
Size 224
Slide/tilt glass roof 47
Smallest turning radius 224
Snow chains 194
Socket 155
Socket, OBD Onboard Diag‐ nostics 201
SOS button 212
Spare fuse 210
Specified engine oil types 199
Speed, average 86
Speed limit detection, com‐ puter 87
Speed limiter, display 84
Speed Limit Information 84
Speed warning 87
Split screen 23
SPORT+ - program, Dynamic Driving Control 121
Sport displays, torque dis‐ play, performance dis‐
play 87
SPORT program, Dynamic Driving Control 121
Sport program, transmis‐ sion 73
Sport steering, variable 120 Stability control systems 118
Start/stop, automatic func‐ tion 65
Start/Stop button 63
Start function during malfunc‐ tion 35
Starting the engine 64
Status control display, tires 100
Status information, iDrive 23
Status of Owner's Manual 6
Steering assistance 122
Steering wheel, adjusting 58
Steering wheel heating 58
Steptronic Sport transmis‐ sion 73
Steptronic transmission 71
Stopping the engine 64
Storage compartment in the rear 161
Storage compartments 159
Storage compartments, loca‐ tions 159
Storage, tires 193
Storing the vehicle 221
Summer tires, tread 191
Sun visor 155
Supplementary text mes‐ sage 80
Surround View 134
Switch for Dynamic Driv‐ ing 120
Switch-on times, parked-car ventilation 150
Switch, refer to Cockpit 14
Symbols 6
Symbols in the status field 23
T Tachometer 80
Tail lights 206
Technical changes, refer to Safety 7
Technical data 224 Telephone, see user's manual
for Navigation, Entertain‐
ment and Communication
Temperature, automatic cli‐ mate control 145, 147
Temperature display for ex‐ ternal temperature 81
Temperature, engine oil 80
Tempomat, refer to Active Cruise Control 123
Terminal, starting aid 214
Text message, supplemen‐ tary 80
Theft alarm system, refer to Alarm system 44
Thigh support 51
Through-loading system 157
Tilt alarm sensor 45
Time of arrival 87
Tire damage 191
Tire identification marks 190
Tire inflation pressure 186
Tire inflation pressure moni‐ tor, refer to FTM 103
Tire Pressure Monitor TPM 99
Tires, changing 192
Tires, everything on wheels and tires 186
Tires, run-flat tires 193
Tire tread 191
Tone, see user's manual for Navigation, Entertainment
and Communication
Tool 203
Top View 137
Total vehicle weight 224
Touchpad 21
Tow fitting 216
Towing 215
Tow lug, see tow fitting 216
Tow-starting 215
Tow truck 215
TPM Tire Pressure Moni‐ tor 99
Traction control 119 Seite 235Everything from A to ZReference235
Online Edition for Part no. 01 40 2 956 779 - X/14
