178 S afet y belt s
damaged, have belts replaced by an au­
thorized Aud i dealer or qualified
workshop.
- Safety belts that have been worn and
loaded in an accident must be replaced
with the correct rep lacement safety be lt
by an authorized Audi dea le r. Replace­
ment may be necessary even if damage
c anno t be clear ly seen. Anchorages that
we re loaded m ust also be inspected.
- Never remove, modify, disass emble, or
t ry to repa ir t he safety be lts yourself.
- Always keep the belts clean . Dirty belts
may not wo rk p roperly and can impa ir
the funct io n of t he in ertia reel¢
ta­
ble Cleaning in terior on page 246.
Safety belts
Fastening safety belts
Safety first -everybody buckle up!
Fig. 2 02 Belt buckle and tongue o n th e dr iver 's seat
To provide maximum protection, safety belts
must always be posit ioned correctly on the
wearer 's body .
.. Adjust the front seat and head restra int
properly¢
page 72, General recommenda­
tions .
.. Make sure the seatback of the rear seat
bench is in a n upright pos ition and securely
l atched in place before using the belt ¢&_ .
.. Hold the belt by the to ngue and pull it even­
l y across the chest and pelvis
c:::> &, .
.. Inse rt the tongue into the correct buckle of
your seat until you hea r it latc h securely
¢ fig . 202.
.. Pull on the belt to ma ke sure t hat it is se -
curely latched in the buck le .
Automatic safety belt retractors
Eve ry safety belt is equipped with an automat­
ic be lt r etractor on t he shou lde r belt. This fea­
tu re locks the belt when the be lt is pulled out
fast, during hard braking and in an accident .
The be lt may a lso lock when you drive up or
down a steep hi ll or thro ugh a sharp curve.
D uring normal driving the belt lets you move
freely .
Safety belt pretensioners
The safety belts are equipped with a belt pre­
tensioner that he lps to tighten the safety belt
and remove slack when the pretensioner is ac ­
t ivated. The function of the pretensioner is
monitored by a war ning light¢
page 16.
Switchable locking feature
Every safety belt except the one on the d river
seat is equipped with a sw itchab le locking fea­
ture that
must be used when the safety be lt is
used to attach a c hild safety seat. Be sure to
read the important information about this
feature
c:::> page 214.
A WARNING
Imp roperly posit ioned safety be lts can
cause ser ious injury in an accide nt
c:::> page 179, Safe ty belt posi tion.
-
- Safety b elts offer opt imum protect ion
only whe n the sea tbac k is u prigh t an d
be lts a re pr operly posit ioned on the
body .
- Always m ake sure that the rear sea t
b a ckrest to wh ich the center rear s afety
be lt is at tached is secure ly latched when ­
ever the rear center safety belt is being
used . If the backrest is not secure ly
latched, the passenger w ill move for­
ward with the backrest dur ing sudden
brak ing, in a sudden maneuver and espe­
cially in a c rash.
- Never attach the safety belt to the buck-
le for another seat . Attaching the belt to .,_

Improperly worn safety belts
Incorrectly positioned safety belts can cause
severe injuries .
Wearing safety belts improperly can cause se­
rious injury or death. Safety belts can only
work when they are correctly positioned on the body . Improper seating positions reduce
the effectiveness of safety belts and will even increase the risk of injury and death by mov­
ing the safety belt to critical areas of the
body . Improper seating positions also in­
crease the risk of serious injury and death
when an airbag deploys and strikes an occu­
pant who is not in the correct seating posi­
tion . A driver is responsible for the safety of
all vehicle occupants and especially for chil­
dren . Therefore:
... Never permit anyone to assume an incorrect
sitting position in the vehicle while traveling
¢ ,& .
A WARNING
Improperly worn safety belts increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- Always make sure that all vehicle occu­
pants are correctly restrained and stay in
a correct seating posit ion whenever the
vehicle is be ing used.
- Always read and heed all WARNINGS and
other important information
c:>page 177.
Safety belt preten­
sioners
How safety belt pretensioners work
In front, side and rear -end collisions above a
particular severity and in a rollover, safety
belts are tensioned automatically.
The safety belts are equipped with safety belt
pretensioners . The system is activated by sen­
sors in front, side and rear-end collisions of
great severity and in a rollover. This tightens
the belt and takes up be lt sla ck
c:> .& in Service
Safety belts 181
and disposal of safety belt pretensioner on
page 182.
Taking up the slack helps to reduce
forward occupant movement dur ing a colli­
sion.
@ Note
Never let the belt remain over a rear seat­
back that has been fo lded forward.
(D Tips
The safety belt pretensioner can only be
activated once.
- In minor frontal and side collisions, in
rear-end collisions and in accidents in­
volving very little impact force, the safe­
ty belt pretensioner are not activated.
- When the safety belt pretensioners are
activated, a fine dust is re leased. This is
normal and is not caused by a fire in the
vehicle.
- The re levant safety requirements must
be observed when the vehicle or compo­
nents of the system are scrapped. An au­
thorized Audi dealer or qualified work­
shop is familiar w ith these regulations
and w ill be pleased to pass on the infor­
mation to you.
- Be sure to observe all safety, env iron­
menta l and other regulations if the veh i­
cle or ind ividual parts of the system, par­
ticularly the safety belt or airbag, are to
be disposed. We recommend you have
your authorized Audi dealer perform this
service for you.
Service and disposal of safety belt
pretensioner
The safety belt pretens ioners are parts of the
safety belts on your Audi. Insta lling, remov­
ing, servic ing or repair ing of belt pretension­
ers can damage the safety belt system and
prevent it from working correctly in a colli­
s ion .
T he re are some impo rtant things you have to
know to make sure that the effectiveness of .,. •
•

Airbag system Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For
airbags to do their job , occupants must al­
ways properly wear their safety belts and be
in a proper seating position.
For your safety and the safety of your passen­
gers, before driving off, always:
"" Adjust the driver's seat and steering wheel
properly
¢ page 165,
"" Adjust the front passenger's seat properly
¢ page 73 ,
""Wear safety be lts properly r::::> page 177,
""Always properly use the proper child re-
straint to protect chi ldren
r::::> page 204.
In a collision, airbags must inflate within the
blink of an eye and with considerable force .
The supplemental airbags can cause injuries if
the driver or the front seat passenger is not
seated properly . T herefore in order to help the
a irbag to do its job, it is important, both as a
driver and as a passenge r to s it properly at all
times.
By keeping room between your body and the
steer ing whee l and the front of the passenger
compartment, the airbag can inflate fully and
comp lete ly and provide supp lemental protec­
tion in certain frontal collisions
r::::> page 165,
Proper occupant seating positions.
F or detai ls
on the operation of the seat adjustment con­
trols ¢
page 73.
It's especially important that children a re
properly restrained
r::::> page 204.
There is a lot that the driver and the passen­
gers can and must do to help the individual
safety features installed in your Aud i work to­
gether as a system.
Prope r seat ing pos ition is important so that
the front airbag on the driver side ca n do its
job. If you have a physical impa irment or con-
A irbag system 183
dition that prevents you from sitting properly
on the driver seat with the safety belt properly
fastened and reaching the pedals, or if you
have concerns with regard to the function or
operation o f the Advanced Airbag System,
please contact your author ized Audi dealer or
qualified workshop, or call Audi Customer Re­
l ations at 1-800-822-2834 for poss ible modi­
ficat io ns to your veh icle.
When the airbag system dep loys, a gas gener ­
ator will fill the a irbags, break open the pad­
ded covers, and inflate between the steer ing
whee l and the dr iver and between the instru­
ment panel and the front passenger. The a ir­
bags will deflate immediately after dep loy­
ment so that the front occupants can see
through the windshield again witho ut inter­
ruption .
A ll of th is takes place in the blink o f an eye, so
fast that many people don't even realize that
the airbags have deployed. The airbags a lso
inflate with a great dea l of force and nothing
should be in their way when they deploy.
Front a irbags in combinat ion with properly
worn safety belts slow down and lim it the oc ­
cupant's forward movement . Together they
help to prevent the driver and front seat pas­
senger from h itti ng pa rts of the inside of the
vehicle while reducing the forces acting on the
occupant during the crash . In this way they
help to reduce the risk of injury to the head
and upper body in the crash. Airbags do not
protect the arms or the lower parts of the
body.
Both front airbags will not inflate in all fronta l
collisions . The triggering of the airbag system
depends on the vehicle de ce lerat ion rate
caused by the collision and regis te red by the
elec tron ic control unit. If th is rate is below
the reference value programmed into the con ­
trol unit, the airbags will not be trigge red,
even though the car may be bad ly damaged as
a res ult of the co llision . Ve hicl e damage, re­
pair costs or even the lack of ve hicle damage
is not necessarily an indication of whether an
airbag should inflate or not . •
•

Child restraints on the front seat - some
important things to know
.. Be sure to read the important informat ion
and heed the WARNINGS for important de­
tai ls about chi ldren and Advanced Airbags
c> page 204.
Even though your vehicle is equipped with an
Advanced Airbag System, make certain that
a ll chi ldren, especially those 12 years and
younger, a lways ride in the back seat properly
restra ined for their age and size. The airbag
on the passenger side makes the front seat a potentially dangerous place for a child to r ide .
The front seat is not the safest place fo r a
chi ld in a fo rward-facing chi ld safety seat. It
can be a very dangerous place for an infan t or
a child in a rea rward -facing seat.
The Advanced Airbag System i n your veh icle
h as been cert ified to comp ly with the require­
men ts of Uni ted States Federa l Mo to r Veh icle
Safety Standard 208 as applicable at the time
your ve hicle was manufactured.
The Standard requires the fron t air bag on the
passenger side to be turne d off ("sup­
p ressed") if a chi ld up to about one year of
age restrained in one of the rear -facing or for­
ward -facing infant restraints listed i n Federal
Motor Vehicle Safety Standard 208 with wh ich
the Advanced Airbag System in your vehicle
was certified has been installed o n the front
passenger seat. For a listing of the child re­
straints that we re used to certify compliance
with the US Safety Sta ndard
c> page 206.
The PASS ENGER AIR BAG OFF light in the in­
strument panel te lls you when the front Ad­
vanced A irbag on the passenger side has been
turned off by the e lectronic control u nit.
Each t ime you tur n on the ignition, the
PAS­
SENGER AIR BAG OFF
l ight w ill come on for a
few seconds a nd:
- will stay on if the front passenger seat is not
occup ied
- will stay on if there is a small child or child
restraint on the front passenger seat
A irbag sys tem 185
- will go off if the front passenger seat is oc ­
cupied by an adult as registered by the
weight -sensing mat
c> page 194, Monitor­
ing the Advanced Airbag System.
T he PASSENGER AIR BAG OFF light comes on
whe n the contro l unit detects a tota l weight
on the front passenger seat that req uires the
front a irbag to be turned off.
If the total weight on the front passenge r
seat is more than that of a typical 1 year-o ld
c h ild but less than the weight of a small
adult, the front airbag on the passenger side
can deploy (the
PASSENGER AIR BAG OFF
li ght does not come on). If the PASSENGER
AIR BAG OFF
light does not come on, the
front a irbag on t he passeng er side has not
been turned off by the elec troni c con trol unit
and can deploy if the control unit senses an
impact that meets the cond it ions stored i n its
memory .
For example, th e airb ag may deploy if :
-a small ch ild that is heav ie r than a typical 1
year-old ch ild is o n the front passenger seat
(regard less of whether the child is in one of
the ch ild safety seats listed
c> page 206), or
- a child who has outgrown chi ld restraints is
on the front passenge r seat.
If the front passenger airbag is turned off, the
PASSENGER AIR BAG OFF light comes on in
the instr ument cluster and stays on .
The front airbag on the passenger side may
not deploy (the PASSENGER AIR BAG OFF
l ight does not illum inate and stay lit) even if a
small ad ult o r teenager, or a passenger who is
not sitti ng uprig ht w ith their back against a
non -recli ned back rest w it h thei r feet on t he
vehicle floor i n front of the sea t is on t he front
passenger seat
c> page 165, Proper seating
position for the driver.
If the fron t passenger ai rbag dep loy s, the
Feder al Standard req uires the airbag to meet
the "low risk" dep loyment criteria to reduce
the ris k of injury t hro ugh interact ion w ith the
airbag. "Low risk" dep loyment occ urs in those
crashes that take place at lower dece lerat ions ..,_ •
•

prevent them from providing any
protection.
- An improperly installed child restraint
can interfere with the airbag as it de­
ploys and seriously injure or even kill the
child -even with an Advanced Airbag
System.
- Always carefully follow the manufactur­
er's instructions provided with the child
safety seat or carrier.
- Never place additional items on the seat
that can increase the total weight regis­
tered by the weight-sensing mat and can cause injury in a crash.
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat
occupants.
Fig. 207 Location of driver ai rb ag : in stee ring whee l
Fig. 208 Location of front passenger 's a irbag: in the in ­
strume nt panel
Your vehicle is equipped with an "Advanced
Airbag System " in compliance with United
States Federal Motor Vehicle Safety Standard
(FMVSS) 208 as applicable at the time your
ve hicle was manufactured. The safety belts
Airbag system 187
for the seats have "pret ens ioners " that help
to take slack out of the belt system. The pre­
tensioners are also activated by the electronic
control unit for the airbag system.
Th e front safety belts also have load limiters
to help reduce the forces applied to the body
in a crash .
Th e airbag for the driver is in the steering
wheel hub
q fig. 207 and the airbag for the
front passenger is in the instrument panel
~ fig. 208. The general location of the airbags
is marked "AIRBAG" .
There is a lot you need to know about the air­
bags in your vehicle. We urge you to read the
detailed information about airbags, safety
belts and child safety in this and the other
chapters that make up the owner's literature.
Please be sure to heed the WARNINGS -they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small children.
_&. WARNING
Never rely on airbags alone for protection.
- Even when they deploy, airbags provide
only supplemental protection.
-Airbag work most effectively when used
with properly worn safety belts.
- Therefore, always wear your safety belts
and make sure that everybody in your ve­
hicle is properly restrained.
_&. WARNING
A person on the front passenger seat, es­
pecially infants and small children, will re­
ceive serious injuries and can even be kil­
led by being too close to the airbag when
it inflates.
- Although the Advanced Airbag System in
your vehicle is designed to turn off the
front passenger airbag if an infant or a
small child is on the front passenger
seat, nobody can absolutely guarantee
that deployment under these special
11>-

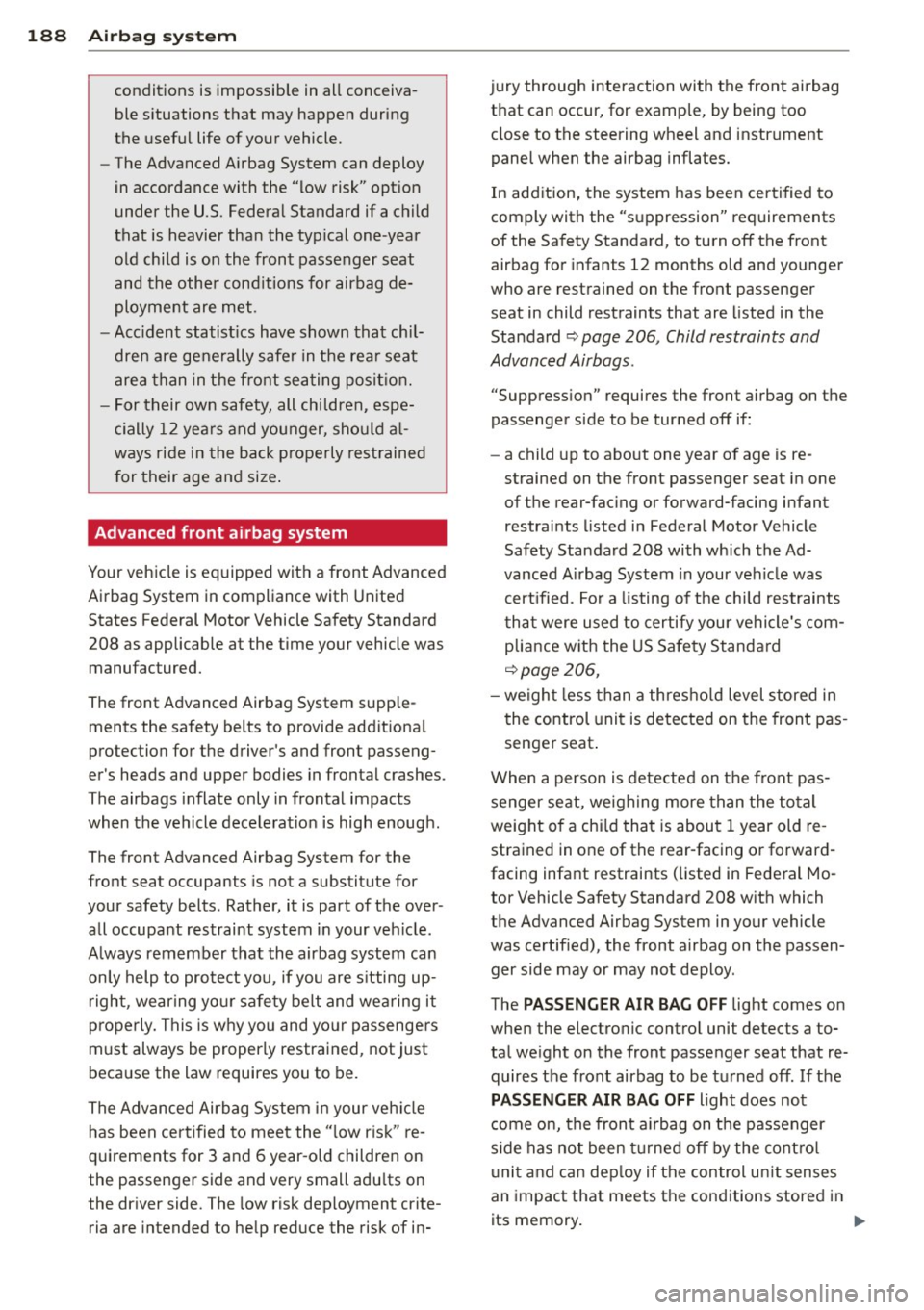

188 Airbag system
conditions is impossible in all conceiva­
ble situations that may happen during
the useful life of your vehicle.
- The Advanced Airbag System can deploy
in accordance with the "low risk" option
under the U.S. Federal Standard if a child
that is heavier than the typical one-year
old child is on the front passenger seat
and the other conditions for airbag de­
ployment are met.
-Accident statistics have shown that chil­
dren are generally safer in the rear seat
area than in the front seating position.
- For their own safety, all children, espe­
cially 12 years and younger, should al­
ways ride in the back properly restrained
for their age and size.
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with United
States Federal Motor Vehicle Safety Standard
208 as applicable at the time your vehicle was
manufactured.
The front Advanced Airbag System supple­ ments the safety belts to provide additional
protection for the driver's and front passeng­
er's heads and upper bodies in frontal crashes .
The airbags inflate only in frontal impacts
when the vehicle deceleration is high enough.
The front Advanced Airbag System for the
front seat occupants is not a substitute for
your safety belts. Rather, it is part of the over­
all occupant restraint system in your vehicle.
Always remember that the airbag system can
only help to protect you, if you are sitting up­
right , wearing your safety belt and wearing it
properly. This is why you and your passengers
must always be properly restrained, not just
because the law requires you to be.
The Advanced Airbag System in your vehicle has been certified to meet the "low risk" re­
quirements for 3 and 6 year-old children on
the passenger side and very small adults on
the driver side. The low risk deployment crite­
ria are intended to help reduce the risk of in- jury through interaction with the front airbag
that can occur, for example, by being too close to the steering wheel and instrument
panel when the airbag inflates.
In addition, the system has been certified to
comply with the "suppression" requirements
of the Safety Standard, to turn off the front
airbag for infants 12 months old and younger
who are restrained on the front passenger
seat in child restraints that are listed in the Standard
~ page 206, Child restraints and
Advanced Airbags .
"Suppression" requires the front airbag on the
passenger side to be turned off if:
- a child up to about one year of age is re­
strained on the front passenger seat in one
of the rear-facing or forward-facing infant
restraints listed in Federal Motor Vehicle
Safety Standard 208 with which the Ad­
vanced Airbag System in your vehicle was
certified. For a listing of the child restraints
that were used to certify your vehicle's com­
pliance with the US Safety Standard
~page 206,
-weight less than a threshold level stored in
the control unit is detected on the front pas­
senger seat.
When a person is detected on the front pas­ senger seat, weighing more than the total
weight of a child that is about 1 year old re­
strained in one of the rear-facing or forward­
facing infant restraints (listed in Federal Mo­
tor Vehicle Safety Standard 208 with which
the Advanced Airbag System in your vehicle
was certified), the front airbag on the passen­ ger side may or may not deploy.
The
PASSENGER AIR BAG OFF light comes on
when the electronic control unit detects a to­
tal weight on the front passenger seat that re­ quires the front airbag to be turned off. If the
PASSENGER AIR BAG OFF light does not
come on, the front airbag on the passenger
side has not been turned off by the control
unit and can deploy if the control unit senses
an impact that meets the conditions stored in
its memory.
ll-

-when the weight on the front passenger
seat as sensed by the Advanced Airbag Sys­
tem indicates that the front airbag on the
passenger side has to be turned off by the
electronic control unit (the
PASSENGER AIR
BAG OFF
light comes on and stays on)
A WARNING
Sitting in the wrong position can increase
the risk of serious injury in crashes.
- To reduce the risk of injury when the air­
bags inflate, the driver and passengers
must always sit in an upright position,
must not lean against or place any part
of their body too close to the area where
the airbags are located.
- Occupants who are unbelted, out of posi­
tion or too close to the airbag can be se­
riously injured by an airbag as it unfolds
with great force in the blink of an eye
c> page 185.
A WARNING -
A child in a rearward-facing child safety
seat installed on the front passenger seat
will be seriously injured and can be killed if
the front airbag inflates -even with an Ad­
vanced Airbag System.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof.
- Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward-facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately install the rear-facing child
safety seat in a rear seating position and
have the airbag system inspected by your
authorized Audi dealer .
Airbag system 193
A WARNING
Objects between you and the airbag will
increase the risk of injury in a crash by in­
terfering with the way the airbag unfolds
or by being pushed into you as the airbag inflates .
- Never hold things in your hands or on
your lap when the vehicle is in use.
- Never transport items on or in the area
of the front passenger seat . Objects
could move into the area of the front air­
bags during braking or other sudden ma­
neuvers and become dangerous projec­
tiles that can cause serious personal in­
jury if the airbags inflate.
- Never place or attach accessories or oth­
er objects (such as cupholders, tele­
phone brackets, large, heavy or bulky ob­
jects) on the doors, over or near the area marked "AIRBAG" on the steering wheel,
instrument panel, seat backrests or be­
tween those areas and yourself . These
objects could cause injury in a crash, es­
pecially when the airbags inflate.
- Never recline the front passenger's seat
to transport objects. Items can also
move into the area of the side airbag or
the front airbag during braking or in a sudden maneuver. Objects near the air­
bags can become projectiles and cause
injury, particularly when the seat is re­
clined.
- Never tilt the front passenger seat back­
rest forward when the vehicle is moving.
An inflating airbag will force the back­
rest backward and can injure rear seat oc­
cupants.
A WARNING
The fine dust created when airbags deploy
can cause breathing problems for people
with a history of asthma or other breath­ ing conditions.
-
- To reduce the risk of breathing problems,
those with asthma or other respiratory
.___ c_ o_ n_ d_ it_ i_o _ ns_ sh_o_ u_ l_ d _:g:_ e_ t _f_re _s_ h_ a_ i_r _ri ..:::g :....h _t __
_J ~
•
•

196 Airbag sys te m
- accessory seat covers or cushions or other
things that may cause an incorrect reading
or impress ion on the weight-sens ing mat
under the upholstery of the seat have been
removed from the front passenger seat,
- a safety belt extender has not been left in
the safety belt latch for the front passenger
seat.
In addition to the
PA SSENGER AIR B AG OFF
light in the center of the instrument panel,
the message
PASS ENGER AIR B AG O FF or
PASS ENGER AIR B AG O N will briefly appear
in the instrument cluster display . T his is to in­
form the driver of the current front passenger
a irbag status .
Important safety instructions on
monitoring the Advanced Airbag System
_&. WARNING
An airbag system that is not functioning
prope rly cannot provide supplemental pro­
tect ion in a frontal crash.
- If the airbag indicator light
c::> page 16
comes when the vehicle is be ing used,
have the system inspected immediately
by you r authorized Aud i dea ler.
It is pos­
sible that the airbag will inflate when it
is not supposed to, or w ill not inflate
when it should .
_&. WARNING
If the front airbag inflates, a child witho ut
a child restraint, or in a rearward-facing
child safety seat, or in a forward-facing
child restraint that has not been properly
installed will be seriously injured and can
be killed .
- Even though your veh icle is equipped
with an Advanced Airbag System, make certain that all children, especially 12
years and younger, a lways ride on the
back seat properly restrained for their
age and size.
- Always install forwa rd or rear-facing
child safety seats on the rear seat -even
with an Advanced Airbag System. -
If you must install a rearward-facing
child safety seat on the front passenger
seat because of exceptional c ircumstan­
ces and the
PA SS ENGER AIR BA G OFF
light does not appear and stay on, imme­
diate ly install the rear-facing child safety
seat in a rear seat ing pos ition and have
the airbag system inspected by your au­
thorized A udi dealer.
- A tight tether or other strap on a rear­ ward-facing child restraint attached to the front passenger seat can p ut too
m uch pressure on the weight-sensing
mat in the seat and register more weight
than is actually on the seat. The heavier
weight registered can make the system
work as though an adult were on the seat
and deploy the Advanced Airbag when it
must be suppressed causing ser ious or
even fata l injury to the ch ild.
- If, in exceptional circumstances, you
must install a forward-fac ing ch ild re­
straint on the front passenger seat, al ­
ways move the seat into its rearmos t po­
sition in the seat's fore and aft adjust­
ment range, as far away from the airbag
as possible. The backrest must be adjust­
ed to an upright position. Make sure that
the
PASSEN GER AIR BAG OFF light
comes on and stays on all the time when­
ever the ignit ion is switched on .
_&. WARNING
r-
- If the PASSENGER AIR BAG OFF light
does not go out when an adult is sitting
on the front passenger seat after taking
the steps described above, make sure the
adu lt is properly seated and restra ined at
one of the rea r seat ing pos itions.
- Have the airbag system inspected by
your author ized Audi dealer befo re trans­
port ing anyone on the front passenger
seat.
('D Tips
If t he weight-sensing mat in the front pas­
senger seat de tects an empty seat, the
front airbag on the passenger side wi ll be
jll,,
