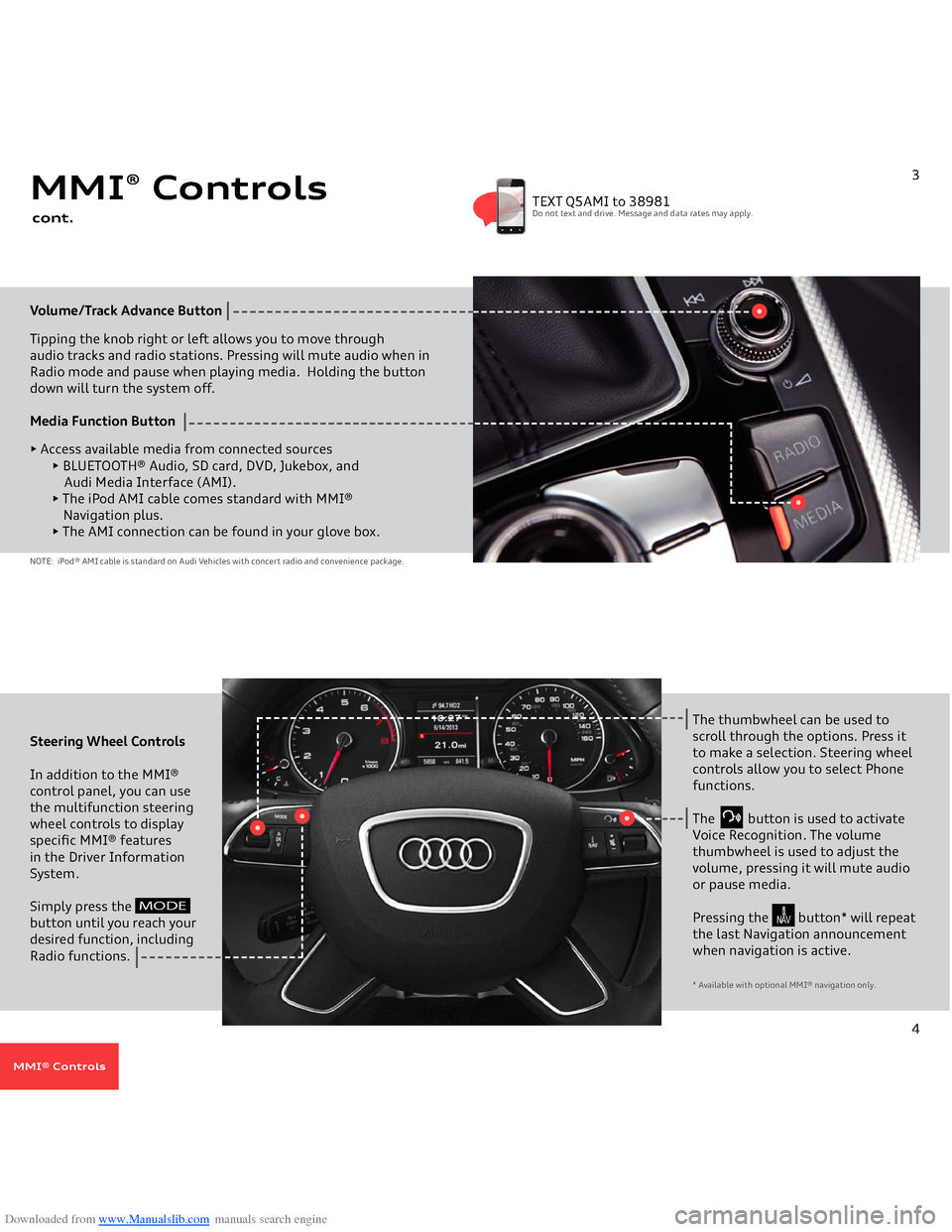

Downloaded from www.Manualslib.com manuals search engine Volume/Track Advance
Button
Tipping the knob right or left allows you to move through
audio tracks and radio stations. Pressing will mute audio when in Radio mode and pause when playing media. Holding the buttondown will turn the system off. Media Function Button
• Access available media from connected sources
• BLUETOOTH® Audio, SD card, DVD, Jukebox, and Audi Media Interface (AMI).• The iPod AMI cable comes standard with MMI® Navigation plus. • The AMI connection can be found in your glove box.
MMI
® Controls
cont.
3
TEXT Q5AMI to 38981Do not text and drive. Message and data rates may apply.
NOTE: iPod® AMI cable is standard on Audi Vehicles with concert radio and convenience package.Steering Wheel Controls In addition to the MMI® control panel, you can use the multifunction steering wheel controls to display specific MMI® features in the Driver Information System. Simply press the
button until you reach your desired function, including Radio functions.
The thumbwheel can be used to scroll through the options. Press it to make a selection. Steering wheel controls allow you to select Phone functions.The button is used to activate Voice Recognition. The volume thumbwheel is used to adjust the volume, pressing it will mute audio or pause media.Pressing the button* will repeat the last Navigation announcement when navigation is active.* Available with optional MMI
® navigation only.
4
MODE
N AV
MMI® Controls
Downloaded from www.Manualslib.com manuals search engine MMI
® Controls

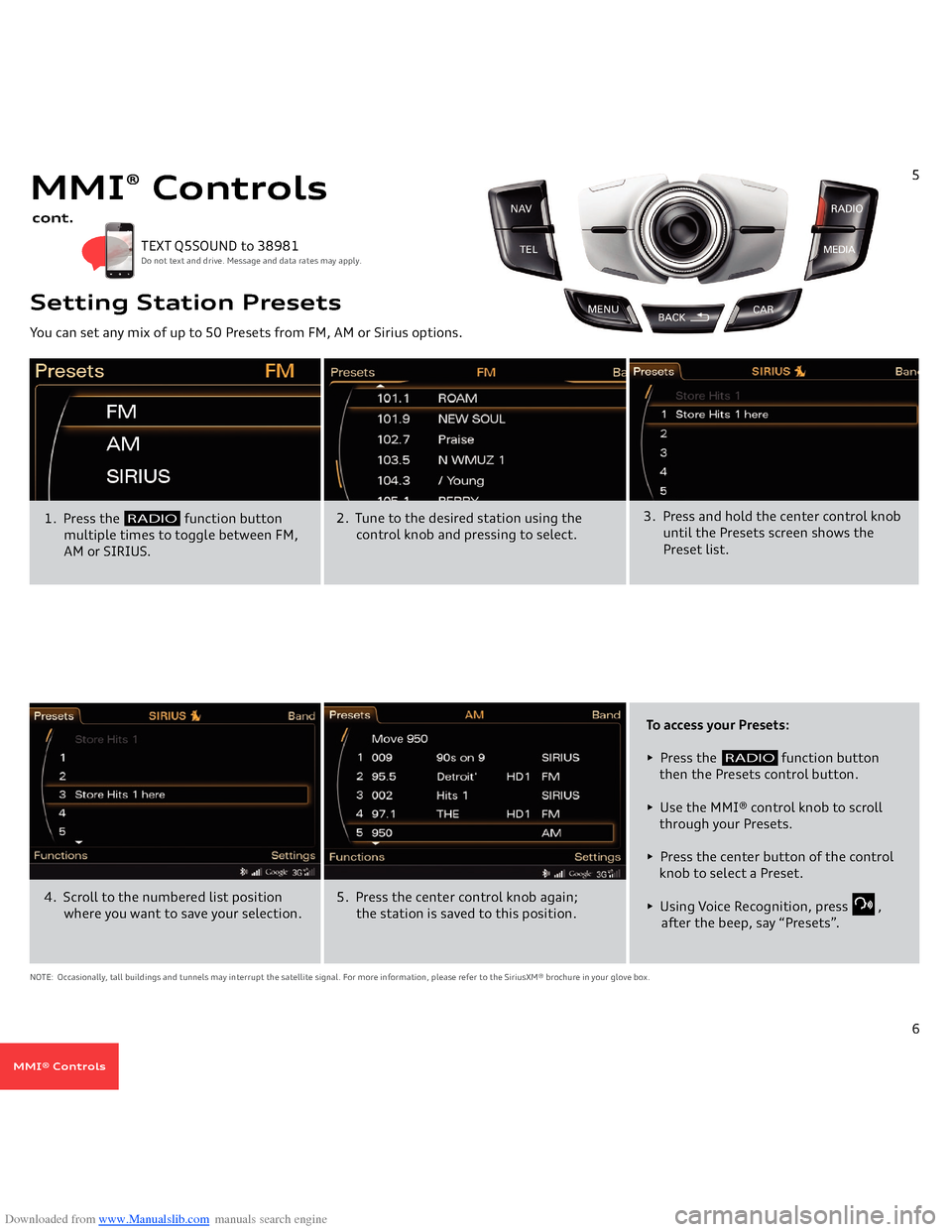

cont.You can set any mix of up to 50 Presets from FM, AM or Sirius options. Setting Station Presets1. Press the
function button
multiple times to toggle between FM,
AM or SIRIUS.
TEXT Q5SOUND to 38981 Do not text and drive. Message and data rates may apply.
2. Tune to the desired station using the
control knob and pressing to select.
3. Press and hold the center control knob
until the Presets screen shows the
Preset list.
5
RADIO
6
To access your Presets:• Press the
function button
then the Presets control button.• Use the MMI® control knob to scroll
through your Presets.• Press the center button of the control
knob to select a Preset.• Using Voice Recognition, press ,after the beep, say “Presets”.
NOTE: Occasionally, tall buildings and tunnels may interrupt the satellite signal. For more information, please refer to the SiriusXM® brochure in your glove box.4. Scroll to the numbered list position
where you want to save your selection.
5. Press the center control knob again; the station is saved to this position.
RADIO
MMI® Controls
