18 Instrum ent s and w arn ing /indic ato r light s
the safety belt. Additionally, an acoustic warn­
ing (gong) will a lso sound.
For more Information
~ page 140, ~ Safety
belt warning light.
The red engine oil pressure warning symbol
requires immediate service or repair. Driving
with a low-oil-pr essur e indication is likely to
inflict severe damage to the engine.
• Swit ch off engine and ch ec k oil l evel
If the indicator light turns on and the mes­
sage appears, the oil pressure is too low .
., Pull off the road.
., Stop the vehicle.
., Turn off the engine .
., Check the engin e oil level ¢ page 232 .
., If the engine oil level is too low, add engine
oil ¢
page 232 . Make sure that the oil p res­
s u re warning symbol. appears no longe r
in the disp lay before you start dr iving again.
• If the engine oil level is correct and the indi­
cato r light sti ll turns on, turn the engine off
and do not continue driving. Seek professio­
nal assistance.
(D Tips
- The engine oil pressu re symbol. is
not an indicator for a low eng ine oil lev ­
el. Do not rel y on it. Inst ead , che ck the
oil l evel in your engin e at regular int er­
val s, pref erably each tim e you refu el,
and alwa ys bef ore going on a long trip .
- The yell ow oil le vel warning indication
I'll requires oil refill or wo rkshop serv ·
ic e without del ay . Do n ot wait unti l the
red oil p re ss ur e w arning. start s to
fla sh before you re spond t o the low oil
le vel warning
II. By then, your engine
may al ready have suffered serious dam­
age .
~ .. Engine oil level
• WARNING: P lease add oil immediately
If the indicator light and the driver message
appear, add engine oi l immediate ly
¢ page 229 .
II Add oil, m ax. x q t (l). Yo u m ay contin ue
driving
When the symbol and the driver message ap­
pear, add the amount of oil appearing in the
display at the nex t oppor tunity ~
page 229.
@-Steering column lock
• Do not dr ive veh icle : Stee ring defecti ve
If the indicator l igh t turns on and the mes­
sage appears, there is an e lectronic stee ring
column lock malfunction . You cannot switch
the ignition on .
Do
not tow your vehicle because it cannot be
steered . See k professiona l assistance .
1;11 Steering lo ck : s ystem fault . Plea se con­
tact de ale r
If the indica tor light turns on and the mes­
sage appears, there is an electronic steering
column lock malfunct io n.
Drive to your authori zed Audi dealer immedi­
ately to have the mal function corrected .
A WARNING
Your vehicle must not be towed in the
event of a malfunction in the electronic
steering co lumn lock because it cannot be
steered due to the loc ked steering. If it is
towed with the steering locked, there is
the r isk o f an accident .
©-Engine start system
• Engine st art syste m fault. Plea se con­
tact deale r
If the indicator l ight turns on and the mes­
sage appears, do
n ot switch the ignition off
because you may not be ab le to switch it on
again.
Drive to your authorized A udi dealer immed i-
a tely to have the ma lfunction corrected. ..,.

Instruments and warning/indicator lights 19
II! Engine start system fault. Please con­
tact dealer
If the indicator light turns on and the mes­
sage appears, there is a ma lfunction in the en­
gine start system.
Drive to your authorized Aud i dea le r immedi­
ately to have the malfunction corrected.
~ Air suspension
Appl ies to vehicles: with air suspension
• Air suspension: system fault. Can contin­
ue slowly with max. 35 mph .
There is a malfunct ion that can result in re­
stricted dr iv ing stab ility.
Carefully drive at a maximum speed of 35
mph (60 km/h) to your authorized Audi dealer
or qua lified workshop to have the malfunction
cor rected.
• Air suspension: service mode. Vehicle
can only be moved with restrictions
Carefully drive to your authorized Audi dealer
or qualified workshop immediately to have
the service mode deactivated .
II Air suspension fault
There is a system ma lfunction that can result
in restricted driving stability or reduced
ground clearance.
Dr ive to your a uthorized Audi dealer immedi­
ately to have the malfunction corrected .
II Air suspension: vehicle too low. Ground
clearance reduced
The ground clearance is very low due to a sys­
tem malfunct ion . Wait until the air suspen­
sion system has restored normal ground clear­
ance. Otherwise, conditions such as an uneven
road surface can lead to vehicle damage.
G:;/ !f Safety systems
The fl (USA models) ;EI (Canada models) in­
dicator light monitors the safety systems (e.g .
airbags, pretensioners) and illuminates for a few
seconds each time you switch the ignition
on .
If the fl (USA models);EI (Canada models)
indicator light does not go out, or if it illumi­
nates while you are driving, or if it starts to
blink, then there is a malfunction somewhere
in the system.
If the light does not illum inate
when you switch the ign ition on, th is also
means there is a malfunct ion.
A WARNING
If you have a malfunction in the safety sys­
tems, contact your authorized Audi dealer immediately. Otherwise the safety sys­
tems may not work properly in an acc i­
dent.
& Central indicator light
If the indicator light. or n turns on, check
the message in the instrument cluster .
nlft Electronic Stabilization Control
(ESC)
If the JjJ indicator light blinks while driving,
the ESC or ASR (Anti-Slip Regulation) is active ­
ly regulating.
If the
$.J indicator light turns on, the system
has switched the ESC off. In this case, you can
switch the ign ition off and then on to switch
the ESC on aga in. The indicator light turns off
when the system is functioning fu lly.
If the
1B indicator light turns on, ESC was re­
stricted using the
1 .$ OFF I button c> page 196.
Stabilization control (ESC/ABS): Fault! See
owner's manual
If the G) indicator light and the ABS indicator
light
fJ] (USA mode ls) ;flJ (Canada models)
turn on and the message appears, the ABS or electronic differential lock is malfunctioning.
This also causes the ESC to malfunction . The
brakes still function with their normal power,
but ABS is not active .
liJI,

Instrument s and warnin g/indic ator ligh ts 23
!§!10 $ Defective light bulb warning
II -If the indicator light turns on, a bulb has
fa iled. The message indicates the location of
the bulb .
[!ll-if a rear fog lamp has fa iled, the indicator
l ight tu rns on to indicate the location on the
veh icle.
Vehicle light s: malfunc tion
If the message appears, there is a malfunc­
tion in the headlights or light switch .
Drive to your authorized Audi dea ler immedi­
ately to have the malfunction corrected .
A WARNING
-Light bu lbs are pressurized and could ex­
plode while they are being changed caus­
ing serious persona l injury.
- Work w ith due care when handling the
high-voltage section of gas discharge
(xenon) lights. Fa ilure to do so could re­
sult in death or se rious inj ury.
(D Tips
Have the bulb replaced or the connection
repaired by you r aut horized Aud i Service
department.
~(D Headlight range control
II H eadl ight range c ontr ol: d efective!
If the symbol illuminates, the headlight range
control is no longer working properly . Have
the system checked and repa ired at your Aud i
dealer .
~O Adaptive Light
Appl ies to vehicles: with Ada ptive Light
m;J Audi adaptiv e ligh t: sy stem fault
If the indicator light turns on and th is mes­
sage appears, the re is a malfunction in the
adapt ive l ight system. The headlights still
function. Go to an authorized dealersh
ip to have the
headlights or the control unit for the Adaptive
Light repaired.
@) Light/rain sensor
II A utomatic headlights /automatic wipers :
s y ste m fault
If the indicator light turns on and this mes­
sage appears, the light/rain sensor is not
funct ioning correct ly.
Fo r safety reasons the low beams are t urned
on pe rmanently with the switch in
AUTO.
However, you can continue to turn the lights
on and off us ing the light switch. You can st ill
control all functions that are independent of
the ra in sensor through the w indshield wiper
lever .
Contact your authorized Audi dealer as soon
as possible to have the problem corrected .
rI Sport differential
App lies to vehicles: wit h sport differential
(II Sport differential: sy stem f ault
There is a malfunction with the sport d ifferen­
tial.
Drive to your authorized A udi dealer immedi­
ate ly to have the malfunction corrected.
(II Sport differ ential: o verhea ting
The transm iss ion tempe rature has increased
s ignifica ntly due to the sporty d riving manner.
D rive in a less sporty ma nner un til the tem­
perature re turns to the normal range and the
indicator light switches of.
A WARNING
Contact your author ized Audi dealer or a
q ualified workshop if the spo rt differential
is faulty or malfunct ioning. The repair
must be performed by trained personnel
using the correct oil in order to ensure
safety .
-

24 Instr uments and warning/indicator lights
¢¢Turn signals
The indicator light blinks when you use either
turn signal .
Whenever you use the left II or the rig ht a
turn signal, the indicator light blinks. When
you use the emergency flashers, both indica­
tor lights flash.
If one of the turn signal light bulbs burn out,
the turn signal will blink twice as fast as nor­
mal. Carefully drive to your authorized Audi
dealer immediately to have the malfunction
corrected. The indicator light does not indi­
cate a malfunction if a turn signal on the trail­
er or on the vehicle fails in trailer towing
mode.
@ Tips
For more informat ion on the turn signals,
refer to
c::> page 46.
CRUISE/" (') Cruise control
The warning/indicator light (ij;(l)~i~ (USA mod­
e ls)/ il (Canada mode ls) illuminates when
the cruise contro l is activated
c::> page 84.
Driver information
display
Overview
Fig. 4 Driver information system in the instrument
cluster
Fig. 5 Disp lay: example of the informat ion line
The driver information system contains infor­
mation ® that is disp layed on tabs@
c::> fig. 4. The following content is possible de­
pending on veh icle equipment:
@ ®
Tab Content
1 Vehicle functions :
On-board computer c::> page 26
Efficiency program* c::> page 26
Digital speedometer
Cruise control*
c::> page 84
Adaptive c ruise control and braking
guard*
c::> page 86
Audi active lane assist* c::> page 95
Display darkened
2 Indicator lights and messages
Warning when a door, the hood or
the rea r lid is not closed
Service interval display
c::> page 28
Speed warning system c::> page 84
3 Night vision assistant* c::> page 105
4 Audio/video
s Telephone*
6 Navigation*
The second and third tabs a re only vis ible if at
least one indicator lig ht or message is shown
or if that system is switched on.
T he status line © is located in the bottom
part of the display
c::> fig. 4. It displays the ex­
terior temperature , time, se lector lever posi-
tion, trip odometer and odometer. ..,.

28 Instruments and warning/indicator lights

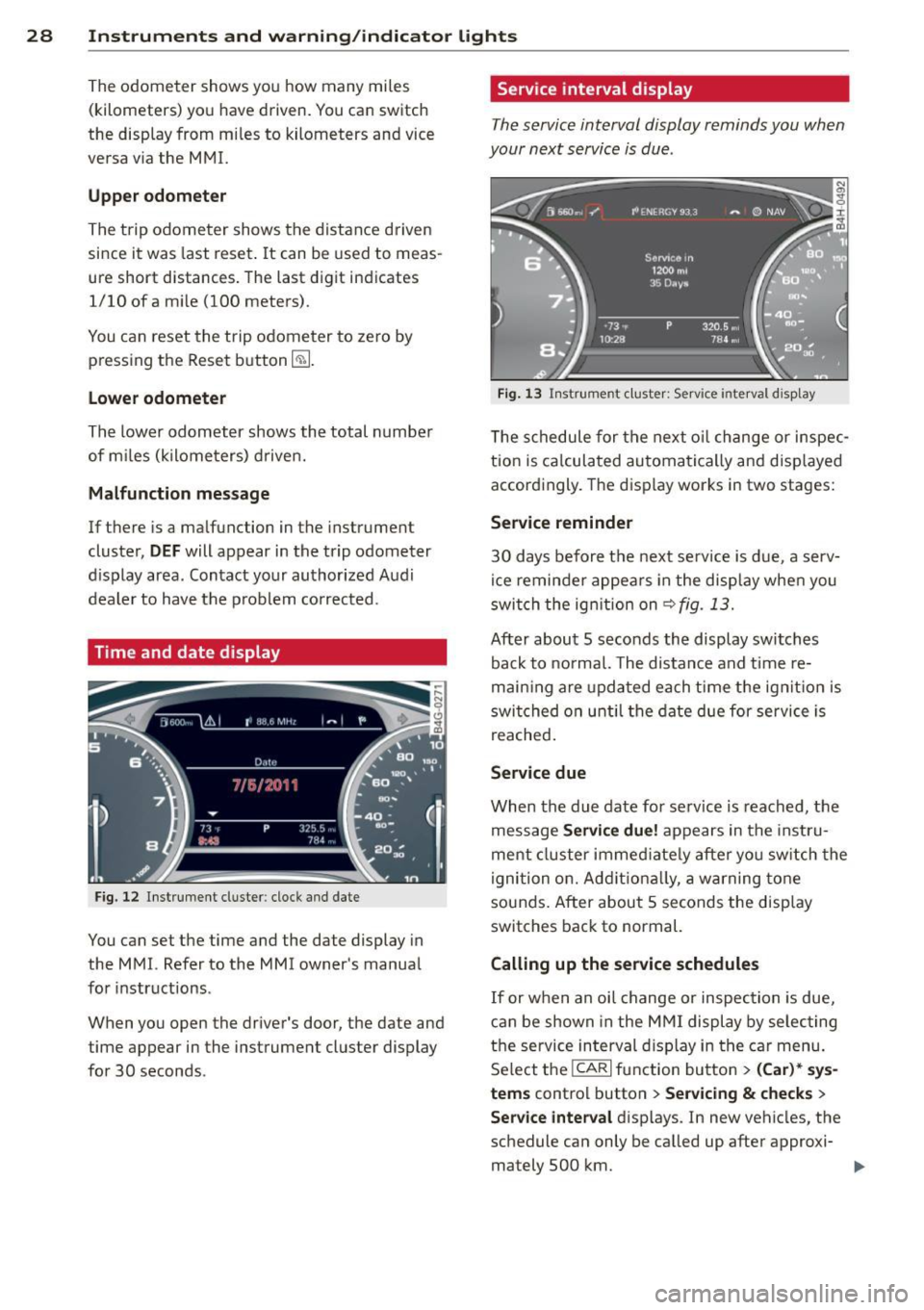

The odometer shows you how many miles
(kilometers) you have driven. You can switch
the display from miles to kilometers and vice
versa via the MMI.
Upper odometer
The trip odometer shows the distance driven
since it was last reset. It can be used to meas­
ure short distances. The last digit indicates
1/10 of a mile (100 meters).
You can reset the trip odometer to zero by
pressing the Reset button~-
Lower odometer
The lower odometer shows the total number
of miles (kilometers) driven.
Malfunction message
If there is a malfunction in the instrument
cluster,
DEF will appear in the trip odometer
display area. Contact your authorized Audi
dealer to have the problem corrected .
Time and date display
Fig. 12 Instrument cluster : cloc k and date
You can set the time and the date display in
the MMI. Refer to the MMI owner's manual
for instructions .
When you open the driver's door, the date and
time appear in the instrument cluster display
for 30 seconds .
Service interval display
The service interval display reminds you when
your next service is due .
Fig. 13 Instrument cluster: Serv ice interval display
The schedule for the next oil change or inspec­
tion is calculated automatically and displayed
accordingly. The display works in two stages:
Service reminder
30 days before the next service is due, a serv­
ice reminder appears in the display when you
switch the ignition on~
fig. 13.
After about 5 seconds the display switches
back to normal. The distance and time re­
maining are updated each time the ignition is
switched on until the date due for service is
reached.
Service due
When the due date for service is reached, the
message
Service due! appears in the instru­
ment cluster immediately after you switch the
ignition on. Additionally, a warning tone
sounds. After about 5 seconds the display
switches back to normal.
Calling up the service schedules
If or when an oil change or inspection is due,
can be shown in the MMI display by selecting
the service interval display in the car menu.
Select the
ICARI function button > (Car)* sys­
tems
control button > Servicing & checks >
Service interval displays. In new vehicles, the
schedule can only be called up after approxi- mately 500 km. ..,.

Instrument s and warning /indicator lights 29
Resetting the service interval display
Your authorized A udi dealer w ill rese t the cor­
respo nding service sche dule after per forming
the approp riate service on yo ur vehicle. Yo u
also have the possibility to reset the oil
change schedu le after having performed an
oil change according to Audi specifications.
Select the
I CAR ! function button > ( Car) * sy s­
tems
control bu tton > Servicing & checks >
Service Int ervals > Re set oil change interval.
(D Note
If you disconnect the battery termina ls, no
calc ulations can be made for the serv ice
interval display d uring this time and no
s ervice re min der w ill appea r. Remembe r
t ha t obse rv in g the pr ope r se rv ice in tervals
is v itally impo rtant to ex ten ding the life o f
your vehicle, part icu larly the eng ine , and
maintaining its va lue . Even if t he mileage
driven is low, the maxim um period o f one
year from one se rvice to the next must not
be exceeded.
{!) Tips
- Do not reset the display between o il
c hanges, otherw ise the display will be i n­
cor rect.
- The information in the Service Reminder
r ema ins stored even when the veh icle
battery is discon nected .
Head-up Display
Applies to vehicles: with Head -up Display
F ig. 14 Examp le: indicators in the Hea d-up Disp la y
Fig . 15 In strumen t pa nel: k nob fo r th e Head -up D is ­
p lay
The Head -up D is p lay projec ts cer tain warnings
or se lected information from the ass istance
systems* o r navigation * on the windshie ld.
The display appears within the driver 's fie ld of
vision.
Switching on/off
.,. Press the knob~ to switch t he Head -up
Display on/off ¢
fig. 15 .
Adjusting the height
The heig ht of t he di s p lay can be adju sted to
the individua l driver .
.,. Ma ke sur e you are seated correc tly
i::o page 131 .
.,. Tur n t he kn ob~ to adjus t th e disp lay.
Settings in the MMI
.,. Select: !CAR !function button> ( Car) * sys ­
tems
control button > Driver Assist > Head­
up Display
> Head-up Display content or
Display brightness .
Display content
In the MMI, you can spec ify w hich information
sho uld be disp layed:
- Cr uise control system*
- Navigation information *
- Aud i adapt ive cr uise con trol *
- Aud i act ive lane ass ist*
- Night vision assistant* (pe destrian warning)
The speed d isp lay and some of the red indica-
tor lig hts cannot be hidden in the MMI. .,..

_& WARNING
-Automatic headlights are only intended
to assist the driver . They do not relieve
the driver of his responsibility to check
the headlights and to turn them on man­
ually according to the current light and
visibility conditions. For example, fog
cannot be detected by the light sensors.
So always switch on the headlights
io
under these weather conditions and
when driving in the dark.
- Crashes can happen when you cannot see
the road ahead and when you cannot be
seen by other motorists. Always turn on
the headlights so that you can see ahead
and so that others can see your car from
the back.
- Please observe legal regulations when
using the lighting systems described.
(D Note
The rear fog lights should only be turned
on in accordance with traffic regulation, as
the lights are bright for following traffic.
(D Tips
- The light sensor* for automatic head­
light range control* is located in the rear
view mirror mount. You should therefore not apply any stickers to the windshield
in this area in order to prevent malfunc­
tions or failures.
- In the event of a light sensor malfunc­
tion, the driver is notified in the instru­
ment cluster display ~
page 23 .
-You will hear a warning tone if you open
the driver door when the exterior lights
are switched on.
- In cool or damp weather, the inside of
the headlights, turn signals and tail
lights can fog over due to the tempera­
ture difference between the inside and
outside. They will clear shortly after
switching them on. This does not affect
the service life of the lighting.
Clear vision 45
Emergency flasher
The emergency flasher makes other motorists
aware that you or your vehicle are in an emer­
gency situation .
Fig. 35 Center consol e: eme rge ncy flash er sw itc h
.,. Press the switch & ~ fig. 35 to turn the
emergency flashers on or off.
When the emergency flasher is on, all four
turn signals blink at the same time. The turn
signal indicator lights
II Nin the instrument
cluster, as well as the light in the emergency
flasher switch
& blink likewise. The emergen­
cy flashers also work when the ignition is
turned off.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag has deployed.
@ Tips
You should turn on the emergency flashers
when:
- you a re the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
- your vehicle has broken down or you are
in an emergency situation, or when
- your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you.
Adjusting the exterior lighting
The settings ore adjusted in the MMI.
.,. Select: !CAR ! function button> (Car)* sys­
tems control button > Vehicle settings > Ex-
terior lighting. ..,.

6. If your vehicle will be towing
a trailer, load from your trail­
er will be transfe rred to your
vehicle. Consult this manual
to determine how this re­
duces the available cargo
and luggage load capacity of
your vehicle.
... check the tire sidewall
(q page 254, fig. 204) to de­
termine the de signated load
rating for a specific tire.
Tire service life
The service life of tires depends on a lot of
different things including proper installation
and balancing, correct tire pressure and driv­
ing style.
Fig. 202 Tir e tread: tread wea r indi cators (TWI)
Fig. 203 Rotat ing t ires for more even wear
Tread Wear Indicator (TWI)
The original tires on your vehicle have
1/16 inch (1.6 mm) high "wear indicators"
Tires and wheels 253
¢ fig. 202 ru nning across the tread. Depend­
ing on the make, t here will be six to eight of
them evenly placed around the tire. Marks on
the tire sidewall (for examp le "TWI" or other
symbols) indicate the positions of the tread
wear indicato rs . Worn tires must be rep laced .
D iffere nt figures may apply in othe r countr ies
~ A .
Tire pressure
Incorrect t ire pressure causes premature wear
and can cause sudden tire blow-out. For this reason, tire pressure must be checked at least
once a month ¢
page 249.
Driving style
Driving fast around curves, heavy acce lerat ion
and hard braking increase tire wear .
Rotating tires for more even wear
For all four tires on your vehicle to have the
same service life, we recommend that the
front and rear tires a re rotated according to
the tire manufacturer's suggested tire rota­
tion intervals. Please remember the follow­ ing:
- Tire rotation intervals may differ from the
veh icle service interva ls outlined in your
Warra nty
& Maintenance booklet.
- The longer one tire is used in one location
on the vehicle, the more it wears at certain
points ; therefore, we recommend t hat you
follow t he tire manufacturer's suggested
tire rotation intervals.
- Veh icles w ith front-wheel dr ive experience
more tread wear on the front wheels com­
pared to all-wheel drive (quattro).
- Please rotate tires as shown ¢
fig. 203.
- Extra care must be taken when rotating di-
rection-specific tires¢
page 2 71 .
Wheel balancing
The wheels on new veh icles are balanced.
However, various situations during everyday
driv ing can cause them to become unbal­
anced, resulting in vibrations you can usually
feel through the steer ing wheel. ..,.
