250 Tire s and wheel s
used today are underinflated just by looking
at them.
Therefore, be sure to check tire pressures at least once a month and always before going
on a long tr ip. Make sure to take the number
of people and the amount of luggage into ac­
count when adjusting tire pressure for a trip -
even one that you would not consider to be
"long." See
c> page 251, Tires and vehicle
load limits
for more important information .
Always use an accurate tire pressure gauge
when checking and adjusting inflation pres­
sures . Check all of the t ires and be sure not to
forget the spare tire . If the pressure in any tire
i s too high when the tire is "cold," let air out
of the tire slowly with the edge of the tire
gauge and keep checking the pressure unt il
you reach the pressu re that is correct for the
l oad (passengers and luggage) and kind of
driving you plan to do.
I f the p ress ure in any tire is too low, note the
d ifference between the pressure in the cold
tire and the pressure you need and add the a ir
that you need to reach the correct pressure for
the vehicle load (passengers and luggage) for
the tires on your veh icle as listed on the on
you r veh icle and in this manual and the k ind
of dr iving you plan to do.
Ne ver e xceed the m aximum inflation pre s­
su re li sted on the ti re sidewall for an y rea ­
son.
Remember that the vehicle manufacturer, not
the tire manufacturer, determines the correct
tire p ressure fo r the t ires on your vehicle .
It is important to check the tire pressu re when
the tires are cold.
- Read the requ ired t ire p ress ure from the tire
pressure label. The ti re pressu re labe l is lo ­
cated on the drive r's side 8-pi llar.
- T urn the valve stem cap counter- clockwise
to remove i t from the tire valve.
- Place the air pressu re gauge on the valve .
- The tire pressures should only be checked
and adjusted when the tires a re cold . The slightly raised pressures of warm tires must
not be reduced.
- Adjust the tire pressure to the load you are
carrying.
- Reins tall the valve stem cap on the va lve.
When sh ould I check the tire pressure?
The correct tire pressure is especially impor­
tant at h igh speeds. The pressure should
the refore be checked at least once a mo nth
and always before starting a jo urney. Do not
f orget to c heck the ti re p ress ure fo r the spare
whee l
i=;,poge 265.
When should I adjust the tire pressures?
Adjust the tire pressure to the load you are
ca rrying. After changing a whee l
or replaci ng
whee ls yo u have to adj ust the ti re press ures
on all whee ls. In addition, you m ust then
store the new tire pressures in the tire pres­
s u re monito ring system*
c> page 261.
A WARNING ~
Incorrect tire pressures and/or underinfla-
tion can lead sudden tire fa ilure, loss of
control, collision, serious personal injury
or even death.
- When the warn ing symbol
RI] appears in
the instrument cluster, stop and inspect
the t ires.
- Incorrect tire pressure and/or underinfla­
tion can cause increased tire wear and can affect the handling of the vehicle and
stopping ability .
- Inco rrect tire pressures and/or underin­
flation can a lso lead to sudden t ire fail­
ure, including a blowou t and sudden de­
flation, ca us ing loss of veh icle cont ro l.
- The drive r is responsible for the co rrect
tire pressures for all tires on the veh icle.
T he applicable pressure values are loca t­
ed on a sticke r on the dr iver's s ide 8-pil­
lar .
- On ly when all tires on the vehicle are fil­
led to the correct pressu re, the t ire pres ­
sure monitoring* system can work cor­ rectly.

254 Tires and wheels
Unbalanced wheels must be rebalanced to
avoid excessive wear on steering, suspension
and tires. A wheel must also be rebalanced
when a new tire is installed .
Incorrect wheel alignment
Incorrect wheel alignment can cause exces­
sive tire wear, impairing the safety of the vehi­
cle. If tires show excessive wear, have the
wheel alignment checked by an authorized Audi dealer or qualified workshop.
All-wheel drive
Vehicles with quattro must always have tires
of the same size, construction and tread type .
For details see
~page 201.
A WARNING
Sudden tire failure can lead to loss of con­
trol, a crash and serious personal injury!
- Never drive a vehicle when the tread on
any tire is worn down to the wear indica­
tors.
- Worn tires are a safety hazard, they do
not grip well on wet roads and increase
your risk of"hydroplaning" and loss of control.
- Always keep chemicals that can cause
tire damage, such as grease, oil, gasoline
and brake fluid away from t ires.
- Tires age even if they are not being used
and can fail suddenly, especially at high
speeds . Tires that are more than 6 years
old can only be used in an emergency
and then with special care and at lower
speeds.
- Never mount used tires on your vehicle if
yo u are not sure of their "previous histo­
ry." Old used tires may have been dam­
aged even though the damage cannot be
seen that can lead to sudden tire failure
and loss of vehicle control.
New tires and replacing tires and wheels
New tires and wheels have to be broken in .

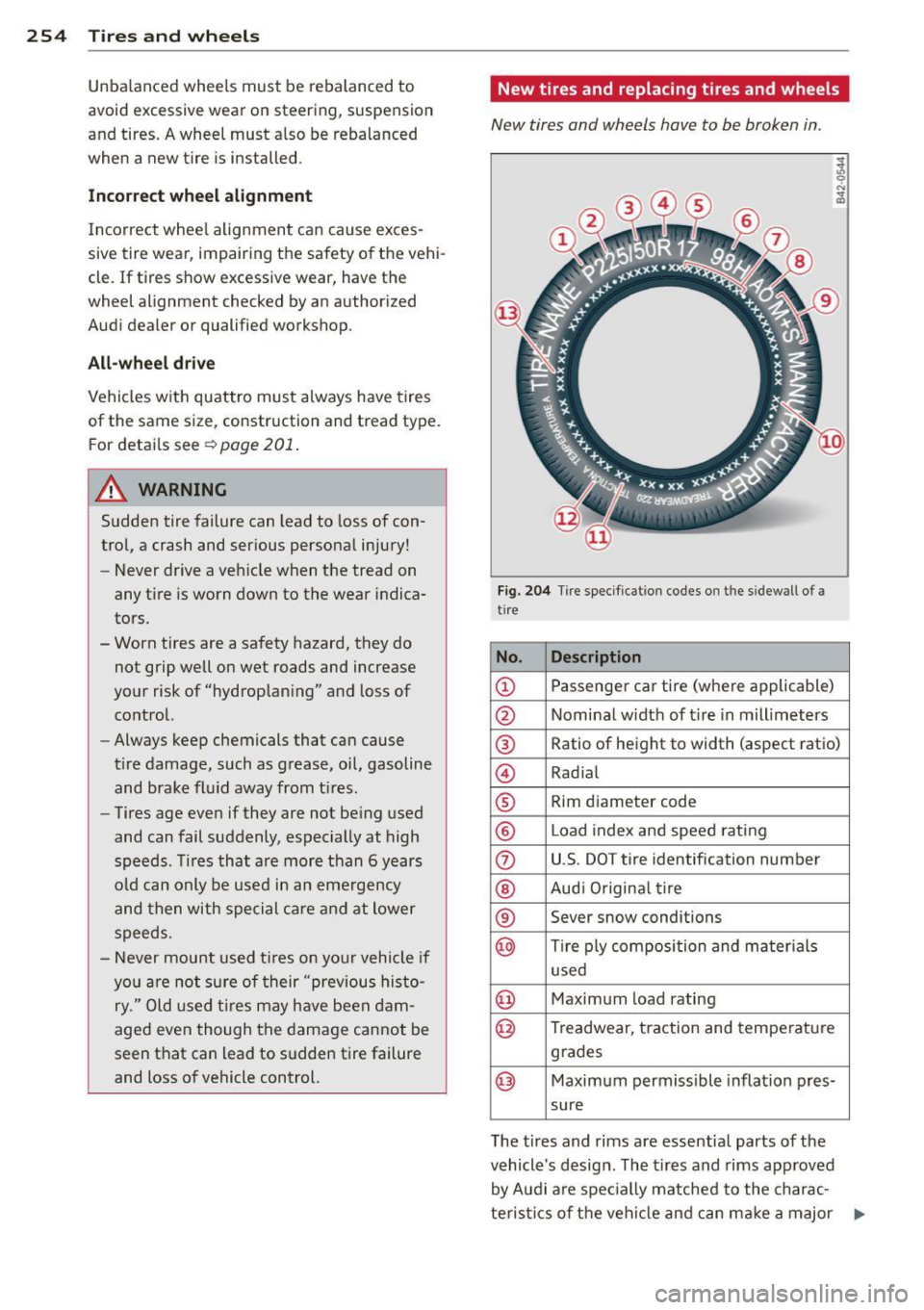

Fig. 204 Tire specificat ion codes on the s idewall of a
tire
No. Description
@ Nominal w idth of tire in millimeters
® Ratio of height to width (aspect ratio)
© Radial
® Rim diameter code
® L oad index and speed rating
(J) U.S . DOT tire identification number
® Audi Original tire
® Sever snow conditions
@ Tire ply composition and materials
used
@ Maximum load rating
@ Treadwear, traction and temperature
grades
@ Maximum permissible inflation pres-
sure
The tires and rims are essential parts of the
vehicle 's design . The tires and rims approved
by Audi are spec ially matched to the charac­
teristics of the vehicle and can make a major .,..

256 Tire s and wheel s
T up to 118 mph (190 km/h)
U up to 124 mph (200 km/h)
H up to 130 mph (210 km/ h)
V up to 149 mph (240 km/h)
1l
Z over 149 mph (240 km/h)ll
W up to 168 mph (270 km/h)ll
Y up to 186 mph (298 km/h)l)
Your veh icle is norma lly fac to ry equipped with
tires , which possess excellent driving charac­
teristics and give yo ur Audi opt imum driving
comfort . An e lectronic speed limit er
c:> page 31 wi ll normally prevent your vehicle
from go ing faster th an the tire speed rating
c:> & .
U.S . DOT Tire Identification Numb er (TIN )
a nd tire manufacture d ate
This is the t ire's "serial number". It begins
with the letters "DOT" and indicates that the
tire meets all federal standards . The next two
numbers or letters indicate the p lant whe re it
was manufactured, and the last four numbers r epresent the week and year of manufacture.
F or example, the numbers 2213 mean the ti re
was p roduced in the 22nd week of 2013. The
other numbers are marketing codes that may
or may not be used by the ti re manufacturer .
T his informat ion is used to contact consumers
if a tire defect requires a recall.
Aud i Original tire
Tires wi th the ident ification "AO" or "RO" have
been specially matched with your Audi . We
recommend using only these tires because
they meet the highest standards regard ing
safety and driving character istics when used
correctly . Your authorized Audi dealer will
gladly prov ide you with more information .
Tire ply composition and materials u sed
The number of p lies ind icates the number of
layers of rubber-coated fabric in the t ire. In
general, the greater the number of plies, the mo re weight a tire can support . Tire ma nufac -
ll F t· "t h . or ires w 1 a m ax im um s pee d ca pabil ity ove r
1 4 9 mp h (240 k m/h) , t ir e m anufa ctur ers somet imes
use the letters " ZR."
turers also must indicate the mate rials in the
tire, which incl ude stee l, nylon, po lyester, and
others .
Maximum Load Rating
Th is number ind icates the maximum load in
k ilog rams and po unds that can be carr ied by
the tire .
Tire quality grading for treadwear,
traction , and temperature resistance
Tre ad wear, traction and tempera ture grades
c:>page 257 .
Maximum Permissible Inflation Pressure
This number is the greatest amount of a ir
pressure tha t should ever be put in the tire
u nder norm al driv ing cond it ions .
_& WARNING
= -
-Using incorrect or unmatched tires and/
or wheels or improper tire and wheel
combinations can lead to loss of control
coll is ion and serio us personal in jury.
'
- Always use ti res, rims and whee l bolts
that meet the specifications of original factory-insta lled tires or other comb ina­
tions that have been specifically ap­ proved by the vehicle manufacturer.
- Tires age even if they are not being used
and can fai l sudden ly, especially at hig h
speeds . Tires that are more than 6 years
old can only be used in an emergency
and then w ith specia l care and at lower
speeds.
- Ne ver mo unt used tir es on your veh icle if
you are not sure of the ir "p revio us histo­
ry." O ld used tires may have been dam­
aged even thoug h the damage cannot be
seen that can lead to sudden tire fa ilure
and loss of vehicle control.
- All fo ur whee ls must be fitted with radial
tires of the same type, size (rolling cir­ cumference) an d the same tread pattern . ..,_

258 Tire s and whee ls
Tra ction
The traction grades, from highest to lowest,
are AA, A, Band
C. T hose grades represent the
tire's ability to stop on wet pavement as measured under controlled conditions on
specified government test surfaces of asphalt
and concrete. A tire marked C may have poor
traction performance
c:> .&. .
Te mp eratu re
The temperature grades are A (the highest),
B, and
C, representing the t ire's resistance to
the generation of heat and its ability to dissi­
pate heat when tested under con trolled condi­
tions on a specified i ndoor laboratory test
wheel.
Sustained high temperature can cause the
material of the tire to degenerate and reduce
tire life, and excessive temperature can lead
to sudden tire failure
c:> ,& .
The grade C corresponds to a level of perform­
ance which all passenger car tires must meet under the Federal Motor Veh icle Safety Stand­
ard No .
109 . Grades Band A represent h igher
l eve ls of performance on the laboratory test
wheel than the m inimum required by law.
.&_ WARNING
T he traction grade assigned to this t ire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydrop laning o r peak traction
characteristics.
A WARNING
The temperature grade for this tire is es­
tablished for a t ire that is properly inflated
and not overloaded. Excessive speed, un­
derinflation, or excessive loading, either
separately or in combination, can cause
heat buildup and possible tire fa ilu re.
-
Winter tires
Winter tires can improve vehicle handling on
snow and ice . At temperatures below 45 °F
(7 °C) we recommend changing to winter
tires.
In some heavy snow areas, local governments
may require true w inter o r "snow" t ires, those
with very deeply cut tread . T hese tires should
o n ly be used in pairs and be installed on a ll
f o ur wheels . Make sure you purchase snow
ti res that are the same size and construction
type as the othe r tires on yo ur vehicle.
If your vehicle is equ ipped w ith all-whee l
drive*, t his w ill improve traction during win ter
driv ing, even with the standard tires . Howev ­
er, we strongly recommend that you always
equip all four wheels on your vehicle w ith cor­
rect ly fitted winter tires or all-season t ires,
when winter road condit ions are expected.
This also improves the veh icle 's brak ing per­
formance and reduces stopping d istances .
Summer tires provide less grip on ice and
snow.
Winter tires (snow tires) must always be fitted on all fo ur whee ls .
Ask your au thorized A udi dealer or qualified
workshop for permit ted
winter ti re size s. Use
only radial winter tires .
Winter tires lose their effec tivenes s whe n the
tread is wo rn down to a depth o f
0.157 inch
(4 mm) .
Only d rive w ith w inter t ires under w inte r co n­
ditions. S umme r tir es handle bette r whe n
there is no snow o r ice on the roads and the
temperature is above 45 °F (7 °C) .
If you have a flat ti re, see notes on spare
whee l
c:> page 254 .
Please always remember that winter tires may
have a lowe r speed rating than the tires o rigi­
nally i nstalled on your vehi cle at the time it
was ma nufactu red. P lease see
c:> page 255,
Speed rating (Letter code)
for a lis ting o f the
speed rating lette r codes and the max imum
speed at which the tires can be driven . ..,.

or ridges on the road, particularly if the tire is underinflated .
I n o rder to m inim ize the occu rrence of impact
damage to the t ires of your veh icle, we recom ­
mend that you observe the following precau­
tions :
- Always maintain recommended inflat ion
pressures. Chec k your tire pressure every
2,000 miles (3 ,000
km) and add air if neces­
sary.
- Drive carefu lly on roads with potholes, deep
gullies or ridges. The impact from driving
through or over such obstacles can damage
your tires. Impact with a curb may a lso
cause damage to your tires.
- After any impact, immediately inspect your
tires or have them inspected by the nearest
authorized Aud i dealer. Replace a damaged
t ire as soon as possible .
- Inspect your t ires every 2,000 miles (3,000
km) for damage and wear . Damage is not al­
ways easy to see. Damage can lead to loss of
air and underinflation, wh ich could eventu­
ally cause tire failure . If you be lieve that a
t ir e may have been damaged , replace the
t ire as soon as possible.
- T hese tires may wea r mo re qui ck ly than ot h­
ers.
- Please a lso remember that, whi le these tires
deliver respons ive handling, they may ride
l ess comfortably and make mo re noise than
othe r choices.
Reduced performance in winter /cold
season condition s
All tires are des igned for certa in pu rposes.
The low aspect ratio, ultra high performance
tires originally installed on your veh icle are in­
tended for maximum dry and wet road per­
formance and handling . They are not suitable
for cold , snowy or icy weather condit ions .
If
you dr ive under those circums tances, you
should equip your veh icle with all -season or
winter tires, which offer better traction under
those cond itions . We suggest you use the rec­
ommended snow or all-season tires specified
for your ve hicle, or their equ ivalent.
Tire s an d wheel s 261
Refer to q page 258 for more detailed infor­
mation regard ing winter tires.
Tire pressure
monitoring system
ill General notes
Applies to veh icles: w ith t ire pressure monitoring system
Each tire, incl uding the spare (i f provided),
shou ld be checked monthly when co ld and in­
flated to the inf lation pressure recommended
by the veh icle manufacturer on the veh icle
placard or tire inflation pressure label. (If your
vehicle ha s tires of a different size than the
s ize indicated on the vehicle placard or tire i n­
flat ion pressu re labe l, you shou ld dete rm ine
the p roper t ire inflation p ress ure fo r th ose
t ir es).
As an added safety feature , your ve hicle has
been equipped with a tire pressure mon ito ring
system ( TPMS) that illum inates a low ti re
pressure te lltale when one or more of your
tires is significant ly under -inflated . Acco rding­
ly, when the low tire pressure te lltale i llumi­
nates, you shou ld stop and check your tires as
soon as possib le, and inflate them to the
proper pressure. Driving on a sign ificantly un­
der- inflated t ire causes the tire to overheat
and can lead to tire fa ilure. Under -inflation al ­
so reduces fuel effic iency and tire tread life,
and may affect the vehicle 's hand ling and
stopp ing ability.
Please note that the TPMS is not a substitute
for proper tire ma intenance, and it is the driv­
er's respons ibility to maintain co rrect tire
pressure, even if under-inflation has not
rea ched the leve l to tr igger illum inat ion of the
T PMS low tire p ressure tellta le .
Your vehicle has also been equipped with a
T PMS ma lfunction indicator to ind icate when
the system is not operating prope rly . T he
T PMS ma lfunction indicator is combined w ith
the low tire pressure te lltale. When the sys­
tem detects a malfunction , the telltale wi ll
flash for approximate ly one min ute and then ..,_
•
•

A WARNING 1= •
-If the tire pressure indicator appears in
the instrument cluster d isplay, one or
more of your tires is s ignificantly under­
inflated. Reduce your speed immediately
and avoid any hard steering or braking
maneuvers. Stop as soon as possible and
check the tires and their pressures . In­
flate the tire pressure to the proper pres ­
sure as indicated on the vehicle's tire
pressure label¢
page 247. Driving on a
signif icantly under-inflated tire causes
the tire to overheat and can lead to tire
failure. Under-inflation also is likely to impair the vehicle's handling and stop­
ping abi lity .
- The driver is responsible for ma inta ining
the cor rect t ire pressures. You must
check the t ire pressures regularly.
- Under certain cond itions (such as a spor­
ty driving style, w inter condit ions or un­
paved roads), the pressure monitor ind i­
c ator may be de layed.
- Ask your author ized Audi dealer if run­
flat tires may be used on your veh icle.
You r vehicle registrat ion becomes inva lid
i f you use these tires when not permit ­
ted. Damage to your vehicle o r acc idents
cou ld also resu lt.
@ Tips
- The t ire pressure monitoring system
stops working when there is an ES C/A BS
malfunction.
- Using snow chains may resul t in a system
malfunction.
- The t ire pressure moni toring sys tem on
you r A udi was developed using t ires with
the "AO" or "RO" identification on the
tire sidewall ¢
page 254. We recom­
mend using these t ires.
Tire s an d wheel s 263
Reset tire pressure monitoring system
Applies to veh icles : w ith tire p ress ure mo nito rin g syste m
If the tire pressure is adjusted, wheels are ro­
tated or changed, the TPMS must be reset via
MMI .
.,. Switch o n the ignition.
.,. Select in the MMI:
ICA RI function button >
(Car )* syste m s control button > Servicing &
ch eck s > Tire pr essure monitoring > Store
tire pre ssur es> Yes, stor e now .
(D Tips
Do not s to re the tire pressure if there are
snow cha ins on t he tire.
•
•

No. Equipment Amps
5 Parking system 5
6 Rear Seat Entertainment 5
7 Start-Stop-System 5
8 side ass ist 5
9
Gateway, Vehicle electrical sys-
5 tern control module 1
10 Sport differential
5
Fuse panel © (black)
No. Equipment
Amps
1 Not used
Fuse panel ® (black)
No. Equipment
Amps
1 Movement-activated luggage 1
compartment lid opening
Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace burned
out bulbs for you.
It is becoming increasingly more and more
difficult to replace vehicle light bulbs since in
many cases, other parts of the car must first
be removed before you are able to get to the
bulb. This appl ies especially to the light bulbs
in the front of your car which you can only
reach through the engine compartment .
Sheet metal and bulb ho lders can have sharp
edges that can cause ser ious cuts, and parts
must be correctly taken apart and then prop­
erly put back together to help prevent break­
age of parts and long term damage from wa­
ter that can enter housings that have not been properly resealed.
F or your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for you, since your dealer has the proper tools,
the correct bu lbs and the expertise .
Gas discharge lamps (Xenon lights):
Fuses and bulbs
Due to the high e lectr ica l voltage, have the
bulbs replaced by a qualified technician.
Head lights w ith Xenon light can be identified
by the high voltage sticker.
LED headlights* require no maintenance.
Please contact your authorized Audi dealer if a
bulb needs to be replaced.
_& WARNING
Contact with high-voltage components of
the electrical system and improper re­
placement of gas discharge (Xenon) head­
light bulbs can cause ser ious personal in­
jury and death .
- Xenon bulbs are pressur ized and can ex­
plode when being changed .
- Changing Xenon lamps requ ires the spe­
cial tra ining, instructions and equip­
ment.
- Only an authorized Audi dealer or other
qualified workshop should change the
bulbs in gas discharge lamps.
&_ WARNING
There are parts with sharp edges on the
openings and on the bulb holders that can
cause serious cuts.
- If you are uncertain about what to do,
have the work performed by an author­
ized Audi dealer or other qualified work­
shop . Serious personal injury may result
from improperly performed work.
(D Tips
-If you still prefer to replace the light
bulbs yourself, be aware that the engine
compartment is a hazardous area to
work in
¢page 227¢ &.
- It is best to ask your authorized Audi
dealer whenever yo u need to change a
bulb .
275
•
•

heavy components such as the engi ne
b lock or transmiss ion are removed.
- W hen removing heavy components like
these, ancho r vehicle to hoist o r add cor­
respond ing weig hts to ma inta in the cen ­
ter of g ravity . Otherwise, the vehicle
m ight tilt o r sli p off the hoist, causi ng
ser ious p erso na l in ju ry.
([) Note
-Be awa re of the fo llowing points befo re
li fting t he vehicle:
- The vehicle should never be lifted or
jacked up from underneath the engine oil pan, the transmission housing, the
front or rear axle or the body side
members. This could lead to serious
damage.
- To avoid damage to the underbody or
chassis frame , a rubber pad must be
i nserted between the floor jack and
the lift points.
- Before driving over a workshop hoist,
check that the veh icle weight does not
exceed the permissible lifting capacity
of the hoist.
- Before driving over a workshop hoist,
ensure that there is sufficient clear­
ance between the hoist and low parts
of the vehicle.
Emergency situations 281
•
•
