ÎÎThe odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.
With the ignition switch in the ON
(II) position, the lower part of the
multi-inf ormation display changes as
shown in the illustration, each time
you press the SEL/RESET button.
Models equipped with the
keyless access system have an
engine start/stop button instead
of an ignition switch. ON Mode
is the equivalent of ON (II). For
more inf ormation, see pages
and .
:
184 187
Multi-Inf ormation Display
Odometer
82
Canada
U.S.
ODOMETER
U.S. model is shown. : Press the SEL/RESET button.
12/07/20 10:40:07 31TK4640_087

Î
Î
This shows the estimated distance
you can travel on the fuel remaining
in the f uel tank. This distance is
estimated f rom the f uel economy
you received over the last several
miles (U.S.) or kilometers (Canada),
so it will vary with changes in speed,
traf f ic, etc. This shows the accumulated
traveling time since you last reset it.
When you turn the ignition switch
to the ON (II) position, ELAPSED
TIME is reset.
Models equipped with the
keyless access system have an
engine start/stop button instead
of an ignition switch. ON Mode
is the equivalent of ON (II). For
more inf ormation, see pagesand .
You can customize the ELAPSED
TIME reset conditions on the multi-
inf ormation display (see page ). This shows the average speed you
are traveling in miles per hour (mph)
forU.S.modelsorkilometersper
hour (km/h) f or Canadian models.
:
187
184
106
Multi-Inf ormation Display
RA NGE EL A PSED T IMEA VG. SPEED
Inst rument s and Cont rols
85
12/08/03 20:55:17 31TK4640_090

CONT INUED
See page70
Seepage488
Seepage490 See pages
75 and 526
See pages
75 and 526
See page
77
See page 142
See page 516 See page
517
See page 516
See page 517
See page
515
See page494
See page
577
See page73
See page 505
See page 505
On models without
keyless accesssystem
On models withkeyless accesssystem
A/T model
Multi-Inf ormation Display
Inst rument s and Cont rols
91
U.S. model shown U.S. model shown
U.S.
Canada
SH-AWD model only
SH-AWD model only
12/08/03 20:55:52 31TK4640_096

See page196
See page 196
See page 193
See page 194
See page 198
See page
471
See page 548 See page
151
See page
532
See page 533
See page 534
Multi-Inf ormation Display
On models wit h keyless access
syst em
92
On models without
keyless access system
Canadian models only
12/08/03 20:56:01 31TK4640_097

ÎÎ
Î
You can customize some vehicle
control settings. To change the
settings, the ignition switch must be
in the ON (II) position, and the
vehicle must be stopped with the
transmission in Park (automatic) or
with the parking brake set (manual). If you try to enter the customizing
mode while the vehicle is moving,
you will see a ‘‘MUST STOP AND
SHIFTTOPARKTOCHANGE
SETTINGS’’ (automatic) or ‘‘MUST
STOP AND SET PARK BRAKE TO
CHANGE SETTINGS’’ (manual)
message and you cannot change the
settings.
You can customize some vehicle
control settings f or ‘‘DRIVER 1’’ and
‘‘DRIVER 2’’ separately.
To have the driver’s ID detected,
make sure the driver’s door is
unlocked with a corresponding
remote transmitter/keyless access
remote.
Models equipped with the
keyless access system have an
engine start/stop button instead
of an ignition switch. VEHICLE
OFF (LOCK) Mode is the
equivalent of LOCK (0),
ACCESSORY Mode is the
equivalent of ACCESSORY (I),
and ON Mode is the equivalent
of ON (II). For more
information, see pages and
.
If you turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position, move the shif t lever out of
Park (automatic) or release the
parking brake (manual), the display
will change to the normal screen. :
187 184
Multi-Inf ormation Display
Customized Settings
94
12/07/20 10:41:58 31TK4640_099

ÛÝRef er to the table on the f ollowing
pages about the settings you want to
customize.
If you use the key to unlock the
driver’s door, the system cannot
recognize either ‘‘DRIVER 1’’ or
‘‘DRIVER 2.’’

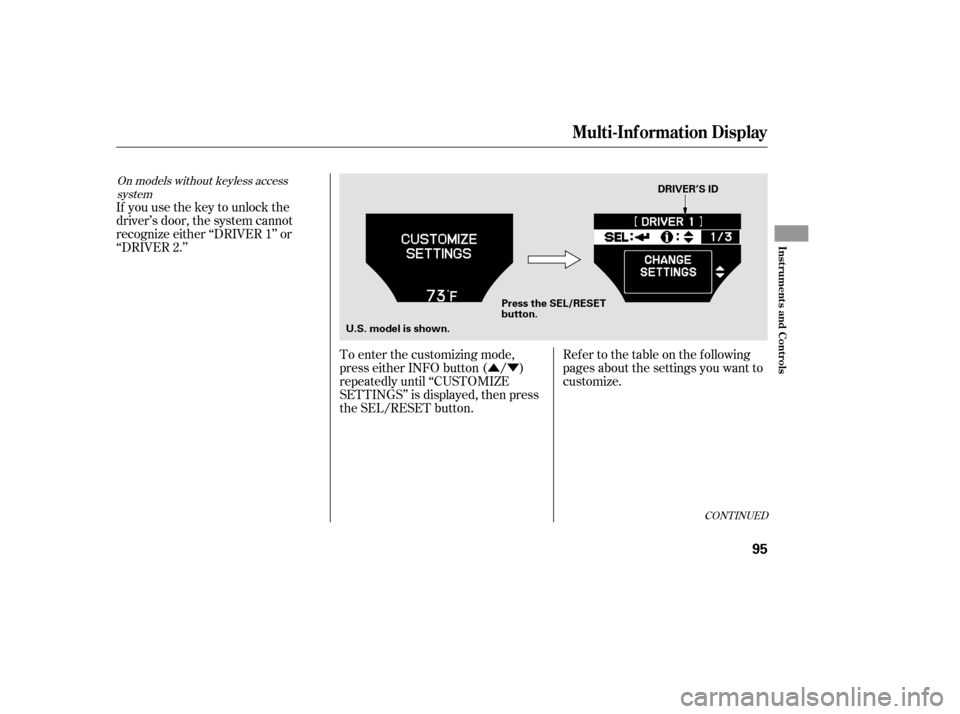

To enter the customizing mode,
press either INFO button ( / )
repeatedly until ‘‘CUSTOMIZE
SETTINGS’’ is displayed, then press
the SEL/RESET button.
CONT INUED
On models without keyless accesssystem
Multi-Inf ormation Display
Inst rument s and Cont rols
95
DRIVER’S ID
Press the SEL/RESET
button.
U.S. model is shown.
12/07/20 10:42:03 31TK4640_100

ÎÎ
ÎÎ
Î Î
Î
Î
Î
Î
µ™¶ ™
µ™¶ ™
Î
Î LOW
MIN
OFF
MET ER SET UP
(P.101)
POSITION SETUP
(P.112) LANGUAGE SELECT ION
ADJUST OUTSIDE
TEMP. DISPLAY
TRIP A RESET
WITH REFUEL
ELAPSED TIME
RESET
ADJUST
ALARM VOLUME
AUTO INTERIOR
ILLUMINATION
KEYLESS START
GUIDANCE SCREENS
MEMORY POSIT ION LINK
Changes the language used in the display.
Changes the outside temperature reading above or
below its current reading.
Causes trip meter A and the average fuel economy
to reset when you refuel.
Resets the elapsed time of your current trip.
Changes the indicator alarm volumes into three
levels.
Changes the interior light sensitivity to your liking.
Changes the display of the keyless start guidance
screens.
Changes the driver’s seat and the outside mirror
positions to a stored setting. 103
104
105
106
108
109
110
113
ENGLISH
FRENCH
SPANISH
5°F 0°F 5°F
(U.S.) 3°C 0°C 3°C
(Canada)
ON
OFF
IGN OFF
TRIP A
TRIP B
HIGH
MID
LOW
MAX
HIGH
MID
ON
OFF
ON
OFF
1:
2: Default setting
Only on models with keyless access system
Group Setup
Menu Item Description Page
Setting Option
2 1
11
1 1
1
1
1
1
Multi-Inf ormation Display
96
12/07/20 10:42:13 31TK4640_101

ÎÎ
Î
Î
Î
Î
Î
Î
Î
Description
Menu Item
CONT INUED
Group Setup Page
Setting Option
Changes which doors unlock when you use the
remote or grab the driver’s door handle.
Causes some exterior lights to blink when you
unlock/lock the doors by grabbing or touching the
sensor/pushing the button on the driver’s door
handle.
Causes the beeper to sound when you unlock/lock
the doors by grabbing or touching the sensor/
pushing the button on the driver’s door handle.
Changes how long (in seconds) the interior lights
stay on after you close the doors.
Changes how long (in seconds) the exterior lights
stay on after you close the driver’s door.
Changes the timing of when the headlights come
on. The headlight switch needs to be in the AUTO
position.
DOOR UNLOCK MODE
KEYLESS ACCESS LIGHT
FLASH
KEYLESS ACCESS BEEP
INTERIOR LIGHT
DIMMING T IME
HEADLIGHT
AUTO OFF TIMER
AUTO LIGHT
SENSITIVITY
KEYLESS ACCESS
SETUP
(P.115)
LIGHTING SETUP
(P.120)
116
117
118
121
122
123
60 sec
0sec
LOW
MIN
DRIVER DOOR
ALL DOORS
ON
OFF
ON
OFF
15 sec
30 sec
60 sec
30 sec
15 sec
MAX
HIGH
MID
1:
2: Default setting
Only on models with keyless access system2 1
1
1
1
1
1
Multi-Inf ormation Display
Inst rument s and Cont rols
97
