Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............19
Seats, restraints ........................... 35
Storage ........................................ 62
Instruments and controls .............93
Lighting ...................................... 132
Climate control ........................... 144
Driving and operating .................153
Vehicle care ............................... 217
Service and maintenance ..........263
Technical data ........................... 266
Customer information ................282
Index .......................................... 286Contents

In brief11
1Power windows .....................30
2 Exterior mirrors .....................28
3 Cruise control .....................173
Speed limiter ....................... 175
Adaptive cruise control .......176
Forward collision alert .........183
4 Side air vents ...................... 150
5 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ......................95
6 Instruments ........................ 101
7 Steering wheel controls .......93
8 Driver Information Centre .... 114
9 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................139
Exit lighting ......................... 142
Parking lights ...................... 140
Buttons for Driver
Information Centre ..............11410Central locking system ..........21
Hazard warning flashers ....139
Sport mode ........................ 171
Tour mode .......................... 171
Fuel selector ....................... 102
Control indicator for airbag deactivation ........................ 108
Control indicator for front
passenger seat belt ...........107
11 Info-Display ........................ 118
12 Centre air vents .................. 150
13 Anti-theft alarm system
status LED ........................... 25
14 Glovebox .............................. 62
Fuse box ............................. 238
15 Climate control system ........ 144
16 AUX input, USB input, SD
card slot ................................ 10
Power outlet .......................... 9917Selector lever, manual
transmission ....................... 166
Automatic transmission ......163
18 Traction Control system .....170
Electronic Stability Control . 171
Lane departure warning .....201
19 Electric parking brake .........168
20 Parking assist ..................... 189
Advanced parking assist .....191
Stop-start button .................156
21 Ignition switch with
steering wheel lock ............154
22 Horn ..................................... 94
Driver airbag ........................ 53
23 Bonnet release lever ..........219
24 Storage compartment ..........64
25 Steering wheel adjustment ..93
26 Light switch ........................ 132
Headlight range
adjustment ......................... 134
Front fog lights ...................139

In brief15
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper
switch=continuous
operationlower switch=intermittent
operationmiddle posi‐
tion=offRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 97.
Climate control
Heated rear window, heatedexterior mirrors
The heating is operated by pressing
the Ü button.
Heated rear window 3 32.

16In brief

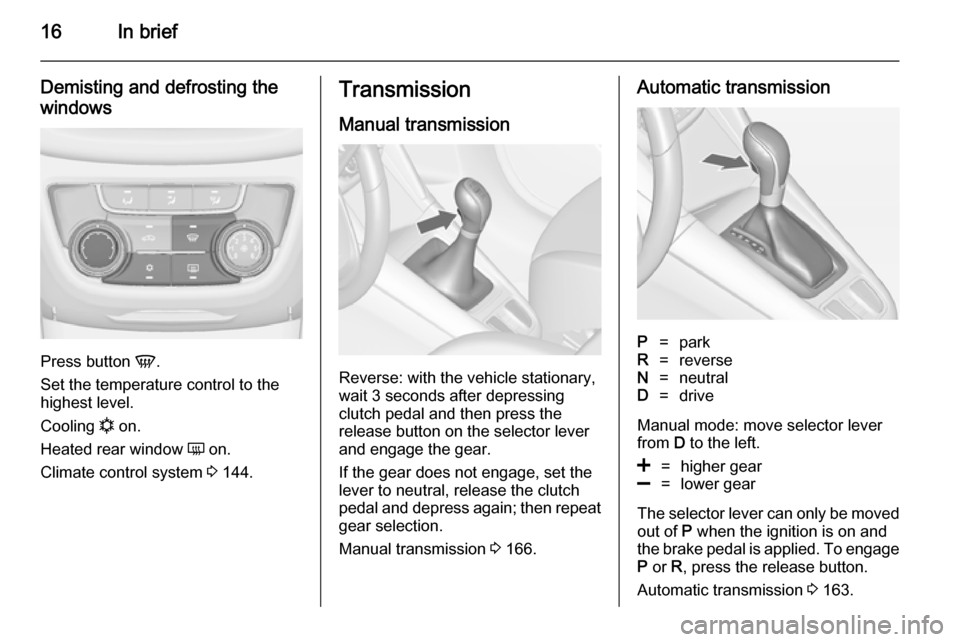

Demisting and defrosting the
windows
Press button V.
Set the temperature control to the
highest level.
Cooling n on.
Heated rear window Ü on.
Climate control system 3 144.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
wait 3 seconds after depressing
clutch pedal and then press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 166.
Automatic transmissionP=parkR=reverseN=neutralD=drive
Manual mode: move selector lever
from D to the left.
<=higher gear]=lower gear
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 163.

In brief17Starting offCheck before starting off ■ Tyre pressure and condition 3 242,
3 279.
■ Engine oil level and fluid levels 3 219.
■ All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats, and seat belts 3 28, 3 37,
3 50.
■ Brake function at low speed, particularly if the brakes are wet.Starting the engine
■ Turn key to position 1
■ move the steering wheel slightly to release the steering wheel lock
■ operate clutch and brake
■ automatic transmission in P or N
■ do not operate accelerator pedal
■ diesel engines: turn the key to position 2 for preheating and wait
until control indicator !
extinguishes
■ turn key to position 3 and release
Starting the engine 3 154.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
■ Depress the clutch pedal
■ shift the selector lever to N
■ release the clutch pedal
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 156.

18In briefParking■ Always apply the parking brake. Activate the manual parking brake
without pressing the release button. Apply as firmly as possible on a
downhill slope or uphill slope.
Depress foot brake at the same
time to reduce operating force.
For vehicles with electric parking
brake, pull switch m for approx.
one second.
■ Switch off the engine. Turn the ignition key to position 0 and
remove it. Turn the steering wheel
until the steering wheel lock is felt
to engage.
For vehicles with automatic
transmission, the key can only be
removed when the selector lever is in the P position.
■ If the vehicle is on a level surface or
uphill slope, engage first gear or set the selector lever to P before
switching off the ignition. On an
uphill slope, turn the front wheels
away from the kerb.If the vehicle is on a downhill slope, engage reverse gear or set theselector lever to P before switching
off the ignition. Turn the front
wheels towards the kerb.
■ Lock the vehicle with button e on
the radio remote control.
Activate the anti-theft alarm system
3 25.
■ Do not park the vehicle on an easily
ignitable surface. The high
temperature of the exhaust system
could ignite the surface.
■ Close the windows.
■ The engine cooling fans may run after the engine has been switchedoff 3 218.
■ After running at high engine speeds
or with high engine loads, operate the engine briefly at a low load or
run in neutral for
approx. 30 seconds before
switching off, in order to protect the
turbocharger.
Keys, locks 3 19, Laying the vehicle
up for a long period of time 3 217.

Keys, doors and windows19Keys, doors and
windowsKeys, locks ................................... 19
Doors ........................................... 24
Vehicle security ............................ 25
Exterior mirrors ............................ 28
Interior mirrors ............................. 29
Windows ...................................... 30
Roof ............................................. 33Keys, locks
Keys Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 259.
The code number of the key adapter
for the locking wheel nuts is specified on a card. It must be quoted when
ordering a replacement key adapter.
Wheel changing 3 249.
Lock cylinders
Designed to free-wheel if they are
forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical,
remove key and then re-insert it. If the
cylinder still free-wheels, turn the key through 180° and repeat operation.Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Car Pass The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.

20Keys, doors and windowsRadio remote control
Used to operate:■ Central locking system
■ Anti-theft locking system
■ Anti-theft alarm system
■ Power windows
The radio remote control has an
approximate range of up to
20 metres. It can be restricted by
external influences. The hazard
warning flashers confirm operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot
be operated with the radio remote
control, it may be due to the following:
■ Range exceeded
■ Battery voltage too low
■ Frequent, repeated operation of the
radio remote control while not in
range, which will require re-
synchronisation
■ Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time
■ Interference from higher-power radio waves from other sources
Unlocking 3 21.
Basic settings Some settings can be changed in the
menu Settings in the Info-Display.
Vehicle personalisation 3 127.
Radio remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Key with foldaway key section
