Page 6 of 219
4IntroductionDanger, Warnings and
Cautions9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
Thank you for choosing a Vauxhall
We wish you many hours of
pleasurable driving.
Your Vauxhall Team
Page 13 of 219

In brief11
1Light switch ........................ 109
Instrument illumination .......114
Rear fog light ....................... 113
Front fog lights ...................112
Headlight range
adjustment ......................... 110
2 Side air vents ...................... 123
3 Turn and lane-change
signals, headlight flash,
low beam and high beam ...112
Exit lighting .......................... 115
Parking lights ...................... 113
Cruise control ....................... 93
4 Steering wheel controls ........78
5 Horn ...................................... 79
Driver airbag ......................... 60
6 Instruments .......................... 84
7 Windscreen wiper,
windscreen washer
system, headlight washer
system .................................. 79
8 Centre air vents ................... 1239Left heated seat ....................48
Tyre pressure monitoring
system ................................. 176
Ultrasonic parking assist ......90
Hazard warning flashers .....112
Central locking system ..........30
Sport mode ........................... 90
Right heated seat ..................48
10 Info-Display ........................... 94
Trip computer ...................... 103
Electronic climate control
system ................................. 120
11 Front passenger airbag .........60
12 Glovebox .............................. 68
13 Infotainment system ..............10
14 Climate control system ........ 117
15 Selector lever, manual
transmission ....................... 134
Manual transmission
automated ........................... 135
Automatic transmission .......12916Ashtray .................................. 83
17 Start/Stop button .................. 27
18 Accelerator pedal ................125
19 Ignition switch with
steering wheel lock .............126
Sensor panel for
emergency operation of
Open&Start system ..............27
20 Brake pedal ......................... 139
21 Clutch pedal ........................ 125
22 Steering wheel adjustment ...78
23 Bonnet release lever ...........154
Page 14 of 219
12In briefExterior lighting
Turn light switch
7=Off8=sidelights9=low beamAUTO=Automatic light control
Press light switch
>=Front fog lightsr=Rear fog light
Lighting 3 109, Headlight warning
device 3 101.
Headlight flash, high beam and
low beamHeadlight flash=Pull leverHigh beam=Push leverLow beam=Push or pull lever
High beam 3 110, Headlight flash
3 110.
Turn and lane-change signalsTo the right=Lever upTo the left=Lever down
Turn and lane-change signals
3 112.
Page 15 of 219
In brief13
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 112.
Horn
Press j.
Washer and wiper systems
Windscreen wiper&=fast%=slow$=timed interval wipe or
automatic wiping with rain
sensor§=off
For a single swipe when the
windscreen wiper is off, press the
lever down.
Windscreen wiper 3 79, Wiper
blade replacement 3 158.
Page 21 of 219

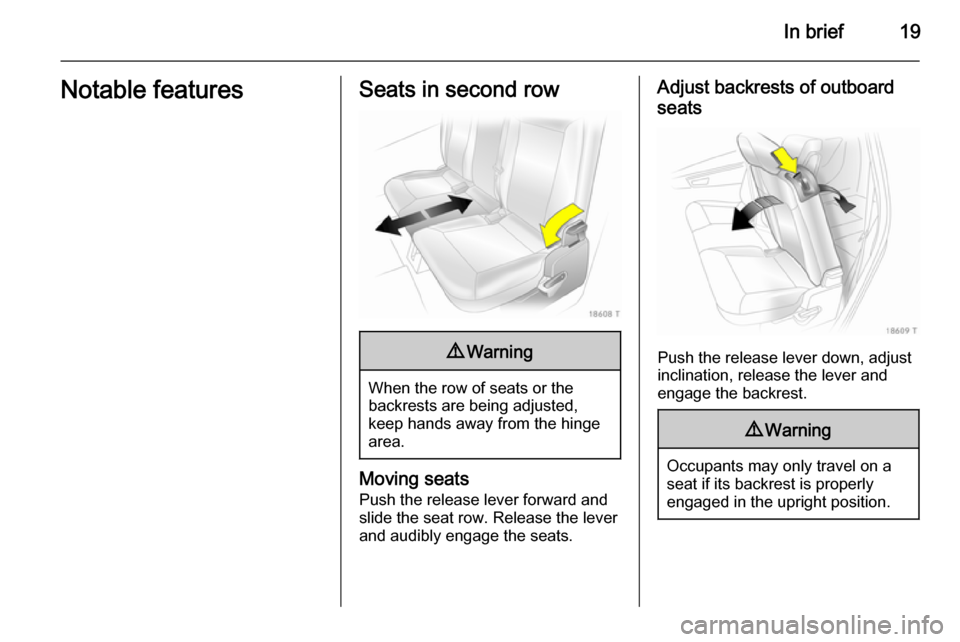

In brief19Notable featuresSeats in second row9Warning
When the row of seats or the
backrests are being adjusted,
keep hands away from the hinge
area.
Moving seats
Push the release lever forward and
slide the seat row. Release the lever
and audibly engage the seats.
Adjust backrests of outboard
seats
Push the release lever down, adjust
inclination, release the lever and
engage the backrest.
9 Warning
Occupants may only travel on a
seat if its backrest is properly
engaged in the upright position.
Page 22 of 219

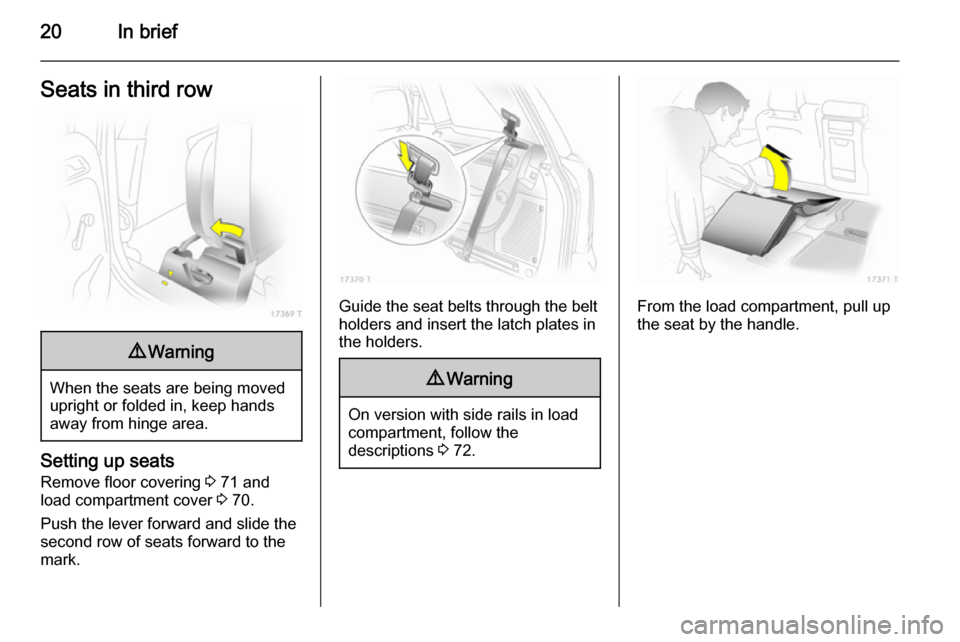

20In briefSeats in third row9Warning
When the seats are being moved
upright or folded in, keep hands
away from hinge area.
Setting up seats
Remove floor covering 3 71 and
load compartment cover 3 70.
Push the lever forward and slide the
second row of seats forward to the
mark.
Guide the seat belts through the belt
holders and insert the latch plates in the holders.
9 Warning
On version with side rails in load
compartment, follow the
descriptions 3 72.
From the load compartment, pull up
the seat by the handle.
Page 23 of 219

In brief21

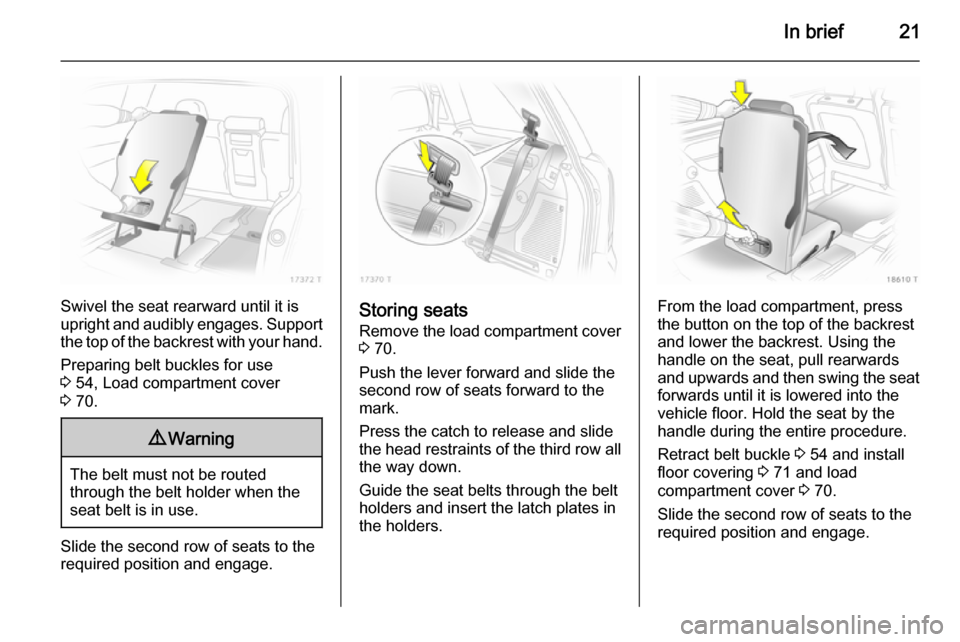

Swivel the seat rearward until it is
upright and audibly engages. Support the top of the backrest with your hand.
Preparing belt buckles for use
3 54, Load compartment cover
3 70.
9 Warning
The belt must not be routed
through the belt holder when the seat belt is in use.
Slide the second row of seats to the
required position and engage.
Storing seats
Remove the load compartment cover 3 70.
Push the lever forward and slide the
second row of seats forward to the
mark.
Press the catch to release and slide
the head restraints of the third row all
the way down.
Guide the seat belts through the belt
holders and insert the latch plates in the holders.From the load compartment, press
the button on the top of the backrest
and lower the backrest. Using the
handle on the seat, pull rearwards
and upwards and then swing the seat forwards until it is lowered into the
vehicle floor. Hold the seat by the
handle during the entire procedure.
Retract belt buckle 3 54 and install
floor covering 3 71 and load
compartment cover 3 70.
Slide the second row of seats to the
required position and engage.
Page 25 of 219
In brief23Sport mode
Activate by pressing the SPORT
button.
The Sport mode is used to make
suspension and steering more direct.
The engine is more responsive to
throttle application. With manual
transmission automated and
automatic transmission, gear
changing is altered.
Sport mode 3 141.
FlexOrganizer
The side walls contain retaining
strips, where various components can be attached to divide the load
compartment or fasten loads.
The system consists of: ■ adapters
■ variable partition net
■ mesh pockets for the side walls
■ hooks in the load compartment
FlexOrganizer 3 72.
Tyre pressure monitoring
system
A pressure sensor is integrated in
each wheel to monitor tyre pressure.
Low tyre pressure will be indicated
with a yellow control indicator A. The
current tyre pressure and warning messages may be displayed in the
Info-display.
Tyre pressure monitoring system
3 91, 3 176.
