2014.5 VAUXHALL MERIVA reset infotainment system

6IntroductionIntroductionGeneral information.......................6
Theft-deterrent feature ...................7
Control elements overview ............8
Usage .......................................... 14General information
The Infotainment system provides
you with state-of-the-art in-car
infotainment.
The radio can easily be used by
registering a large number of FM, AM
and DAB (Digital Audio Broadcasting) radio stations with the 1...6 preset
buttons.
You can connect external data
storage devices, e.g. iPod, USB
devices, or other auxiliary devices to
the Infotainment system as further
audio sources; either via cable or via
Bluetooth.
Using the controls and menus of the Infotainment system, you can operate
approved smartphone applications.
In addition, the Infotainment system is equipped with a phone application
that allows for comfortable and safe
use of your mobile phone in the
vehicle.Optionally, the Infotainment system
can be operated using the instrument panel controls, the controls on thesteering wheel or the speech
recognition function.
The well-thought-out design of the
control elements and the clear
displays enable you to control the
system easily and intuitively.
Notice
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those for display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Important information on operation and traffic safety9 Warning
The Infotainment system must be
used so that the vehicle can be
driven safely at all times. If in

22Basic operation
Set time
To adjust the time settings, select the Set Time menu item. Adjust the
settings as desired.
Set date
To adjust the date settings, select the
Set Date menu item. Adjust the
settings as desired.
Time format
To choose the desired time format, select the 12 hr / 24 hr Format menu
item. A submenu is displayed.
Activate 12 Hour or the 24 Hour .
Software information Press the CONFIG button and then
select the Radio Settings menu item.
Scroll through the list and select
Software Versions Menu to display
the respective submenu.
Software version information
To display a list of all software
versions installed, select Software
Version Information .
By default, all versions are activated.Software update
To update your system software, contact your Vauxhall Authorised
Repairer.
Log file
To generate a log file of your current
software version, select the Create
Log File menu item.
Licensing information
To display information on the
manufacturer of the Infotainment
system, select Licensing Information .
Factory defaults
To reset all Infotainment settings to
their factory defaults, select Clear and
Reset Radio .
Display settings
Press the CONFIG button and then
select the Display Settings menu item
to display the respective submenu.
Home Page
Select Home Page Menu to display
the home page settings menu.To access the menu from the Home
Page , select the Menu screen button
at the bottom of the screen.
The Home Page may be adjusted
according to your personal
preferences.Customise
The application icons displayed on
the first home page may be chosen as
desired.
Select the Customise menu item to
display a list of all applications
installed in the system. Activate the
menu items of those applications you wish to be displayed on the first home
page.
The other applications are then
arranged on the following pages.Sort
Up to eight application icons may be
arranged on each home page.
The positions of the icons can be
changed as desired.
Select the Sort menu item to display
the home pages in edit mode.
Select the icon you wish to move.

76IntroductionIntroductionGeneral information.....................76
Theft-deterrent feature .................77
Control elements overview ..........78
Usage .......................................... 84
Basic operation ............................ 85
Tone settings ............................... 89
Volume settings ........................... 91
Personalisation ............................ 92General information
The Infotainment system provides
you with state-of-the-art in-car
infotainment.
For the AM, FM and DAB wavebands the radio is equipped with twelve
automatically assignable channel presets. Furthermore, various
channels can be allocated manually
(waveband-independent).
The integrated audio player will
entertain you with audio CDs and MP3/WMA CDs.
Furthermore, you can connect
external data storage devices, e.g.
iPod, MP3 player or USB stick, or a
portable CD player to the
Infotainment system as further audio
sources.
The digital sound processor provides
you with several preset equalizer
modes for sound optimisation.
Optionally, the Infotainment system
can be operated using controls on the steering wheel or via the speech
recognition system.In addition the Infotainment system
can be equipped with a mobile phone portal.
The well-thought-out design of the
control elements, the clear displays
and a large multifunction knob enable
you to control the system easily and
intuitively.
Notice
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those for display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Important information on operation and traffic safety9 Warning
The Infotainment system must be
used so that the vehicle can be
driven safely at all times. If in

Introduction79
1RADIO (BAND) .....................93
Activate radio or change
waveband .............................. 93
2 CD....................................... 106
Start CD/MP3/WMA replay . 106
3 Search backwards ................93
Radio: search backwards .....93
CD/MP3/WMA: skip track
backwards ........................... 103
4 Radio station buttons 1...6 ....94
Long press: save station .......94
Short press: select station ....94
5 m knob .................................. 84
Press: switch on/off ..............84
Infotainment system .............84
Turn: adjust volume ..............84
6 Search forwards ....................93
Radio: search forwards .........93
CD/MP3/WMA: skip track
forwards .............................. 1037AS (1/2) ................................. 94
Automatic memory levels
(preset radio stations) ...........94
Short press: select
autostore list .......................... 94
Long press: save stations
automatically ......................... 94
8 FAV (1/2/3) ............................ 94
Lists of favourites (preset
radio stations) ....................... 94
9 TP......................................... 98
Activate or deactivate
radio traffic service ................98
If Infotainment system is
switched off: display time
and date ................................ 98
10 CD ejection ......................... 103
11 CONFIG ................................ 91
Open settings menu ..............9112INFO ..................................... 78
Radio: information on the
currently played station .........93
CD/MP3/WMA:
information on the
currently inserted CD ..........103
13 Multifunction knob .................85
Turn: mark menu options
or set numeric values ...........85
Press: select/activate the
marked option; confirm set
value; switch function on/off ..85
14 CD slot ................................ 103
15 BACK .................................... 85
Menu: one level back ............85
Input: delete last character
or entire entry ........................ 85
16 TONE .................................... 89
Tone settings ........................ 89
17 PHONE ............................... 114
Open telephone main menu 120
Activate mute ........................ 84

82Introduction
1RADIO (BAND) .....................93
Activate radio or change
waveband .............................. 93
2 CD....................................... 106
Start CD/MP3/WMA replay . 106
3 Search backwards ................93
Radio: search backwards .....93
CD/MP3/WMA: skip track
backwards ........................... 103
4 Radio station buttons 1...6 ....94
Long press: save station .......94
Short press: select station ....94
5 m knob .................................. 84
Press: switch on/off the
Infotainment system ..............84
Turn: adjust volume ..............84
6 Search forwards ....................93
Radio: search forwards .........93
CD/MP3/WMA: skip track
forwards .............................. 1037AS (1/2) ................................. 94
Automatic memory levels
(preset radio stations) ...........94
Short press: select
autostore list .......................... 94
Long press: save stations
automatically ......................... 94
8 FAV (1/2/3) ............................ 94
Lists of favourites (preset
radio stations) ....................... 94
9 TP......................................... 98
Activate or deactivate
radio traffic service ................98
If Infotainment system is
switched off: display time
and date ................................ 98
10 CD ejection ......................... 103
11 CONFIG ................................ 91
Open settings menu ..............91
12 MP3: folder level lower ........ 10313INFO ..................................... 78
Radio: information on the
currently played station .........93
CD/MP3/WMA:
information on the
currently inserted CD ..........103
14 Multifunction knob .................85
Turn: mark menu options
or set numeric values ...........85
Press: select/activate the
marked option; confirm set value; switch function on/off ..85
15 CD slot ................................ 103
16 BACK .................................... 85
Menu: one level back ............85
Input: delete last character or entire entry ........................ 85
17 MP3: folder level higher ......103
18 TONE .................................... 89
Tone settings ........................ 89

92IntroductionPersonalisation(only with CD 400plus)
Various Infotainment system settings
can be separately memorised for
each vehicle key (driver) of the car.
Memorised settings
By removing the vehicle key from the
ignition switch the following settings
are automatically saved for the key being used:
■ last volume settings; one volume level for all non-phone audio
sources (radio, CD player, AUX,
USB) and one for phone audio
■ all radio station presets
■ all tone settings; each of these settings are separately saved foreach of the following audio
sources: AM, FM, DAB, CD player,
AUX, USB
■ last active audio source
■ last active radio station (separately for each waveband)
■ last active display mode■ last position in Audio/MP3 CD including track number and folder
■ state of shuffle songs setting (CD player)
■ state of TP (Traffic Programme) setting
■ cursor position for each menu on the display
Activating/deactivating
personalization
Press the CONFIG button to open the
system settings menu.
Select Vehicle settings and then
Comfort settings .
Set Personalization by driver to On or
Off .

98Radio
Activate the desired announcement
categories.
Several announcement categories
can be selected at the same time.
Notice
DAB announcements can only be
received if the DAB waveband is
activated.
Radio data system (RDS) RDS is a service of FM stations that
considerably facilitates the finding of
the desired station and its fault-free
reception.Advantages of RDS
■ On the display the programme name of the set station appears
instead of its frequency.
■ During a station search the Infotainment system tunes in to
RDS stations only.
■ The Infotainment system always tunes into the best receivable
broadcasting frequency of the set
station by means of AF (Alternative Frequency).
■ Depending on the station that is received the Infotainment systemdisplays radio text that can contain,
for example, information about the
current programme.

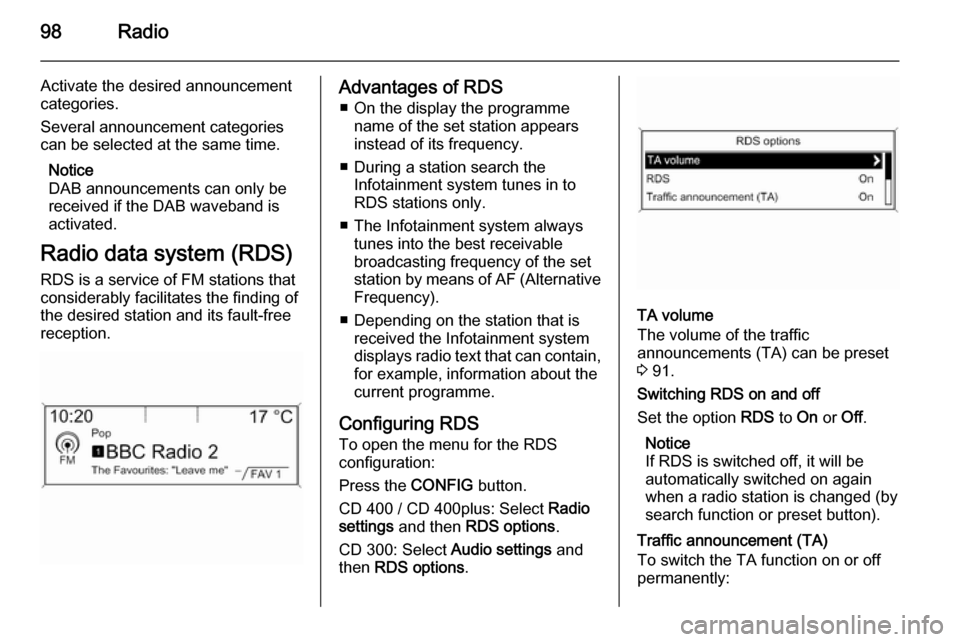

Configuring RDS To open the menu for the RDS
configuration:
Press the CONFIG button.
CD 400 / CD 400plus: Select Radio
settings and then RDS options .
CD 300: Select Audio settings and
then RDS options .
TA volume
The volume of the traffic
announcements (TA) can be preset
3 91.
Switching RDS on and off
Set the option RDS to On or Off.
Notice
If RDS is switched off, it will be
automatically switched on again
when a radio station is changed (by
search function or preset button).
Traffic announcement (TA)
To switch the TA function on or off
permanently:

Radio99
Set the option Traffic announcement
(TA) to On or Off.
Switching regionalization on and off (RDS must be activated for
regionalization.)
At certain times some RDS stations
broadcast regionally different
programmes on different frequencies.
Set the option Regional (REG) to On
or Off .
If regionalization is switched on, only
alternative frequencies (AF) with the
same regional programmes are
selected.
If regionalization is switched off,
alternative frequencies of the stations
are selected without regard to
regional programmes.
RDS-scrolling text
Some RDS stations hide the programme name in the display line
in order to display additional
information.
To prevent additional information
being displayed:
Set RDS- Text scroll freeze to On.Radio text:
If RDS and reception of an RDS
station are activated, information
about the programme that is currently
receivable and about the music track
currently playing are displayed below
the programme name.
To show or hide the information:
Set the option Radio text: to On or Off .
Radio traffic service (TP = Traffic Programme)
Radio traffic service stations are RDS
stations that broadcast traffic news.
Switching the radio traffic service on
and off
To switch the traffic announcement
standby facility of the Infotainment
system on and off:
Press the TP button.
■ If the radio traffic service is switched on, [ ] is displayed in the
radio main menu.
■ Only radio traffic service stations are received.■ If the current station is not a radiotraffic service station, a search is
started automatically for the next
radio traffic service station.
■ If a radio traffic service station has been found, [TP] is displayed in the
radio main menu.
■ Traffic announcements are played at the preset TA volume 3 91.
■ If the radio traffic service is switched on, CD/MP3 replay is
interrupted for the duration of the
traffic announcement.
Listening to traffic announcements only
Switch on the radio traffic service and completely turn down the volume of
the Infotainment system.
Blocking out traffic announcements
To block out a traffic announcement,
e.g. during CD/MP3 replay:
Press TP button or the multifunction
knob to confirm the cancel message
on the display.
