48
Audio-telematic system touch screen
General operationuse the buttons on either side of the screen,
or touch the virtual buttons appearing in the
screen to operate the system.1.
P

WR / VOL: audio system on/off, volume
adjustment.
2.
AU

DIO: display of the last audio source
used.
3.
S

EEK TR ACK: change of audio source,
fast for ward / back, automatic frequency
search.
4.
M

ODE: selection of an audio source.
5.
O

PEN: access to the CD/DVD player.
6.
S

ETTINGS: access to system settings.
7.
I

NFO: access to information (calendar,
voice commands...). 8.
N

AV I M E NU: access to navigation settings.
9.
F

OLDER / TUNE SOUND: selection of a
folder or search for a radio station.
10.
M

AP: display the map with the location of
the vehicle.
11.
Z

OOM: zoom (in or out) on the map.
12 .
A

ccess to the navigation settings and the
selection of destination.
13.
D

ay / night mode.
Associated with the touch screen Audio-
te

lematic system, the screen can display:
-
t
he time,
-
i
nformation related to the audio and
satellite navigation systems.
(
See the "Audio equipment and telematics"
section).
Monitoring

126
Reversing camera
Linked with the navigation option, the reversing
camera complements the parking sensor
system and is activated automatically when
reverse gear is engaged.the image from the camera is displayed in the
navigation screen.
th

e zone (A)

represents the upper part of the
rear bumper.
th

e red line represents the distance of 50 cm
from the edge of the rear bumper.
th

e green lines represent the width of the
vehicle increased by 20 cm on each side.
th

e marks on the green lines correspond to the
edges of the rear bumper (B), then the distance
of 1 metre from the edge of the rear bumper (C)
and 2 metres (D) . In no circumstances can the reversing
camera replace the need for vigilance
on the part of the driver.
Clean the reversing camera from time
to time using a soft dry cloth.
High pressure jet wash
When washing your vehicle, do not
direct the lance to within 30 cm of the
camera lens.
Driving

205
the fitting of electrical equipment
or accessories which are not
recommended by P
e
uge
Ot
may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Contact a P
e

uge
Ot
dealer
for information on the range of
recommended equipment and
accessories.
Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a P
e

uge
Ot
dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
el

ectromagnetic Compatibility
Directive (2004/104/
eC

). Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
"Multimedia":
semi-integral satellite navigation systems,
portable satellite navigation systems, audio
systems, speakers, hands-free kit, DVD player,
mapping update DVD, driving assistant,
Wi-Fi on board, 230V socket, head-up display
system, iPhone charger, telephone carrier, rear
multimedia carrier...
7
Practical information

249
TOUCH SCREEN AUDIO-TELEMATIC
System
the system is protected in such a way that it will only
operate in your vehicle.01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
03

General
operation
04
Navigation
05
Media
06
Settings
07
Information p.
p.
p.
p.
p.
p.
p. 250
251
253
254
270
282
284
02

Steering mounted
controls p.
288
08
BLUETOOTH
® streaming - telephone

01

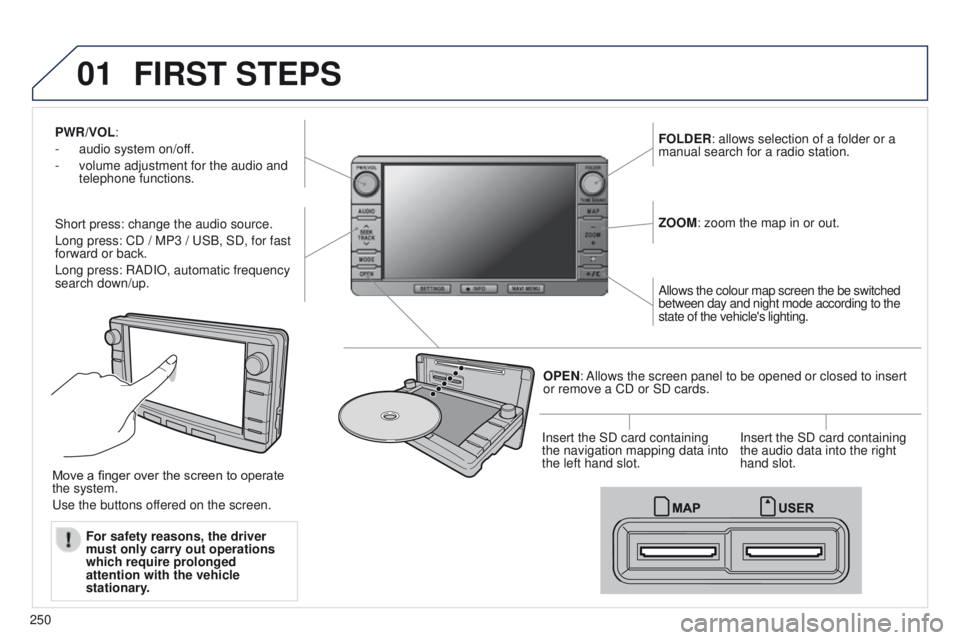

250PWR/VOL
:
-
audio system on/of
f.
-
volume adjustment for the audio and
telephone functions.
Short press: change the audio source.
Long press: CD / MP3 /
u SB, SD, for fast
forward or back.
Long press: RADIO, automatic frequency
search down/up. FOLDER: allows selection of a folder or a
manual search for a radio station.
OPEN: Allows the screen panel to be opened or closed to insert
or remove a CD or SD cards. ZOOM: zoom the map in or out.
Allows the colour map screen the be switched
between day and night mode according to the
state of the vehicle's lighting.
Move a finger over the screen to operate
the system.
u
se the buttons offered on the screen.
For safety reasons, the driver
must only carry out operations
which require prolonged
attention with the vehicle
stationary. Insert the SD card containing
the navigation mapping data into
the left hand slot.
Insert the SD card containing
the audio data into the right
hand slot.
FIRST STEPS

03
253
Description of the controls - Menus
SETTINGS: used to manage the
different adjustments. DESTINATION: used to set
navigation options and select the
destination.
NAVI MENU: used for adjustments
to the navigation system.
MODE: used to select the audio
source.
INFO: used to check information.
AUDIO: display the screen for the
last audio source used.
MAP: used to display the current
position of your vehicle on the map.
GENERAL
OPERATION

04
254

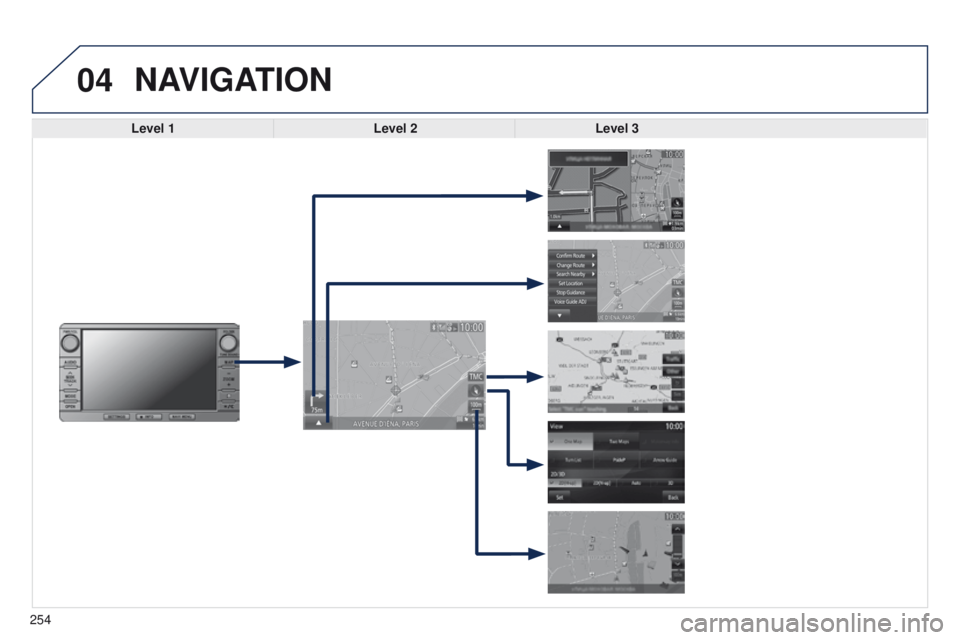

NAVIGATION
Level 1Level 2Level 3

255
Level 1

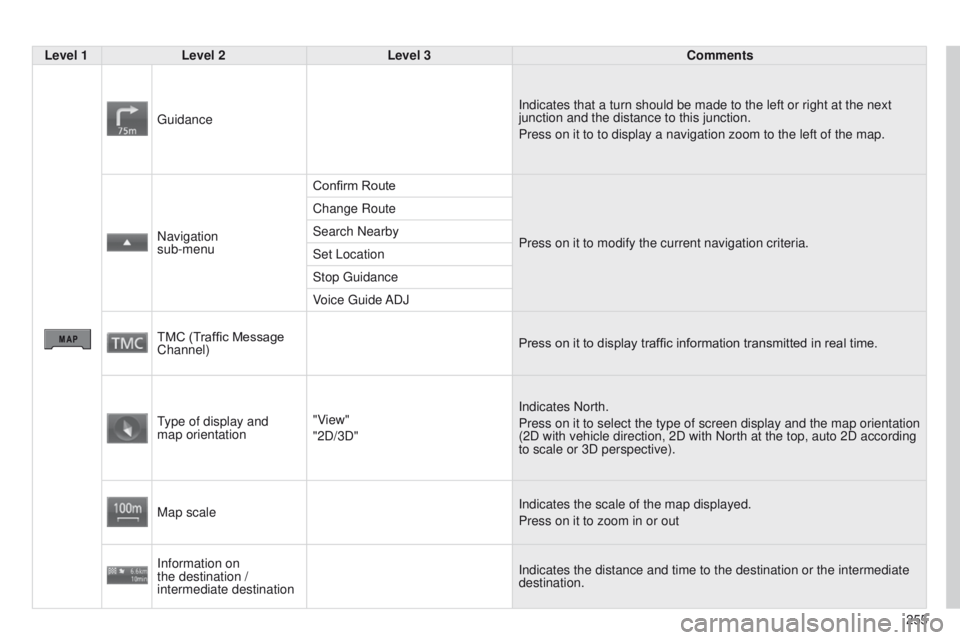

Level 2 Level 3 Comments
g

uidance
Indicates that a turn should be made to the left or right at the next
junction and the distance to this junction.
Press on it to to display a navigation zoom to the left of the map.
Navigation
sub-menu Confirm Route
Press on it to modify the current navigation criteria.
Change Route
Search Nearby
Set Location
Stop
g
uidance
Voice
g

uide ADJ
TMC (Traffic Message
Channel) Press on it to display traffic information transmitted in real time.
type of display and
map orientation "V

iew"
"2D/3D" Indicates North.
Press on it to select the type of screen display and the map orientation\

(2D with vehicle direction, 2D with North at the top, auto 2D according\

to scale or 3D perspective).
Map scale Indicates the scale of the map displayed.
Press on it to zoom in or out
Information on
the destination /
intermediate destination Indicates the distance and time to the destination or the intermediate
destination.
