2014.5 PEUGEOT 4008 headlamp

135
Manual controls
Windscreen wipers
B. intermittent operation or rain sensor
sensitivity adjustment ring.
Windscreen wash
Pull the wiper stalk towards you. th e
windscreen wash then the wipers operate for a
set time.
th

e headlamp wash is also activated if the
dipped beam headlamps are on .
Headlamp wash
Press the end of the lighting stalk to activate
the headlamp wash, when the dipped beam
headlamps are on.
single wipe.
park.
intermittent (the speed can be set
manually).
or
automatic rain sensitive wipers
(the speed can be set manually).
slow.
fast.
A.


w

iping speed selection stalk:
You can increase or decrease:
-
t

he wiping frequency when the intermittent
mode is active,
- t
he sensitivity of the rain sensor when the
automatic mode is active.
-

"

+": high sensitivity.
-
"

-": low sensitivity.
to r

educe the consumption of
screenwash fluid, the headlamp
washers only operate with the first
operation of the screenwash.
5
Visibility

182

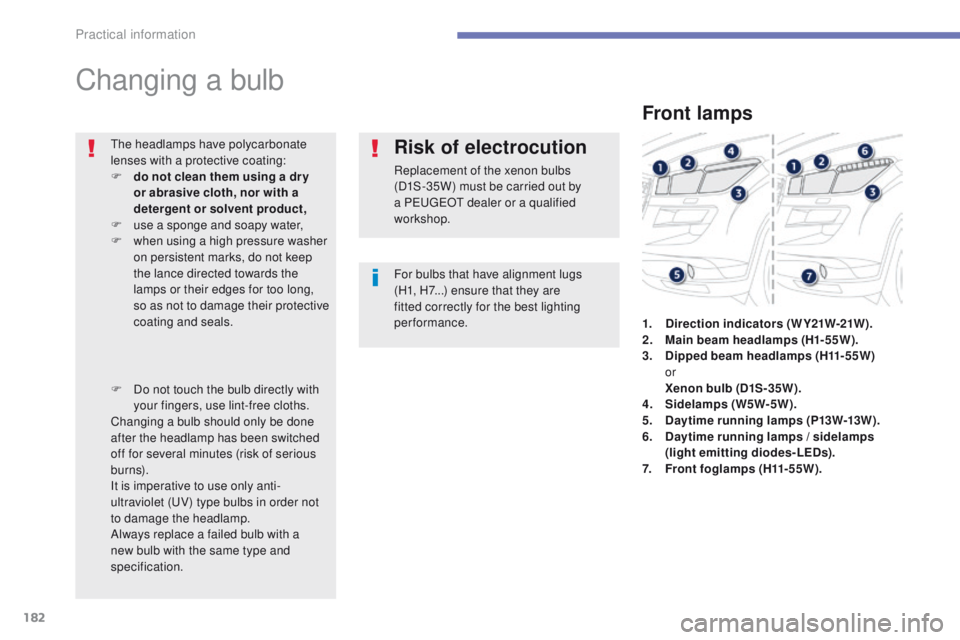

Changing a bulb
For bulbs that have alignment lugs
(H1, H7...) ensure that they are
fitted correctly for the best lighting
performance.
th

e headlamps have polycarbonate
lenses with a protective coating:
F

d

o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u

se a sponge and soapy water,
F

w

hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
F

D

o not touch the bulb directly with
your fingers, use lint-free cloths.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
It is imperative to use only anti-
ultraviolet (
uV

) type bulbs in order not
to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Risk of electrocution
Replacement of the xenon bulbs
(D1S-35W) must be carried out by
a P
e

uge
Ot
dealer or a qualified
workshop.
Front lamps
1. Direction indicators ( W Y21W-21W ).
2. M ain beam headlamps (H1-55W).
3.
D

ipped beam headlamps (H11-55W)


or
X

enon bulb (D1S-35W).
4.
S

idelamps (W5W-5W).
5.
D

aytime running lamps (P13W-13W).
6.
D

aytime running lamps / sidelamps
(light emitting diodes-LEDs).
7.
F

ront foglamps (H11-55W).
Practical information

184

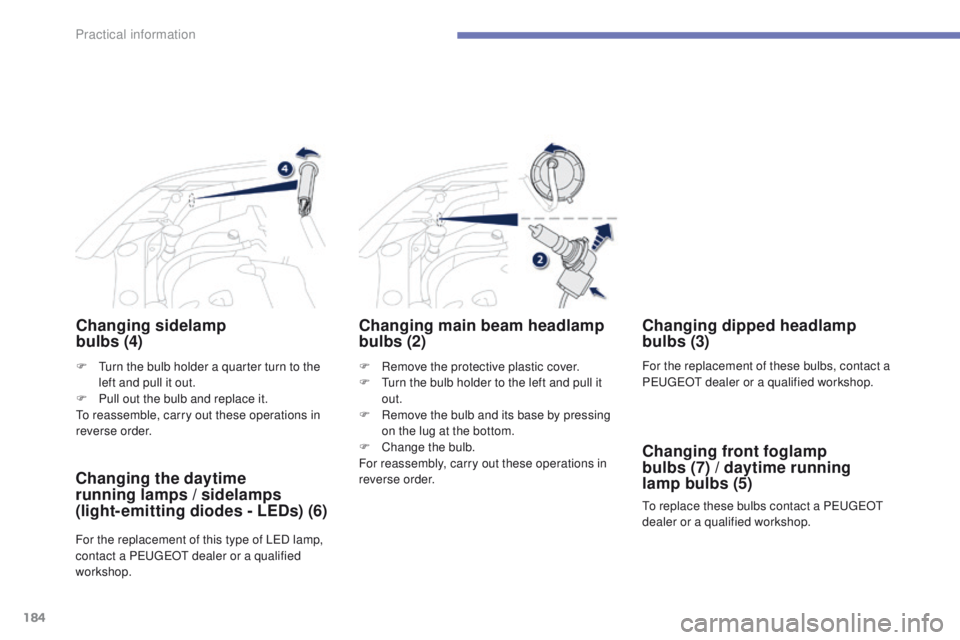

Changing sidelamp
bulbs (4)
F Remove the protective plastic cover.
F
tu rn the bulb holder to the left and pull it
out.
F

R
emove the bulb and its base by pressing
on the lug at the bottom.
F

C
hange the bulb.
For reassembly, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs (2)
F turn the bulb holder a quarter turn to the left and pull it out.
F

P
ull out the bulb and replace it.
to r

eassemble, carry out these operations in
reverse order.
Changing the daytime
running lamps / sidelamps
(light- emitting diodes - LEDs) (6)
For the replacement of this type of LeD l amp,
contact a Pe ugeOt dealer or a qualified
workshop.
Changing dipped headlamp
bulbs (3)
For the replacement of these bulbs, contact a
Pe ugeOt dealer or a qualified workshop.
to r

eplace these bulbs contact a P
e
uge
Ot

dealer or a qualified workshop.
Changing front foglamp
bulbs (7) / daytime running
lamp bulbs (5)
Practical information

189
Dashboard fuses
the fuses are located in the lower dashboard
behind the glove box.
Access to the fuses
F Open the glove box.
F P ush the two opening guides towards the
middle to by-pass the first catch.
F

H
old the glove box lid and tilt it downwards. Fuse N°
Rating Functions
1* 30 ACabin fan.
2 15 ABrake lamps, third brake lamp.
3 10 ARear foglamp.
4 30 AWindscreen wiper, screenwash.
6 20 ACentral locking, electric door mirrors.
7 15 AAudio equipment, telematics, u
S
B unit, Bluetooth system.
8 7. 5 ARemote control key, air conditioning control unit, instrument
panel, electric windows, rain and sunshine sensors, alarm,
switch panel, steering mounted controls.
9 15 AInstrument panel and cabin lighting.
10 15 AHazard warning lamps
11 15 ARear wiper.
12 7. 5 AInstrument panel, multifunction screen, parking sensors,
heated seats, heated rear screen, electric blind, automatic
headlamp adjustment.
13 15 ACigarette lighter, accessory socket.
15 20 A
ele

ctric blind.
16 10 ADoor mirrors, audio equipment.
7
Practical information

191

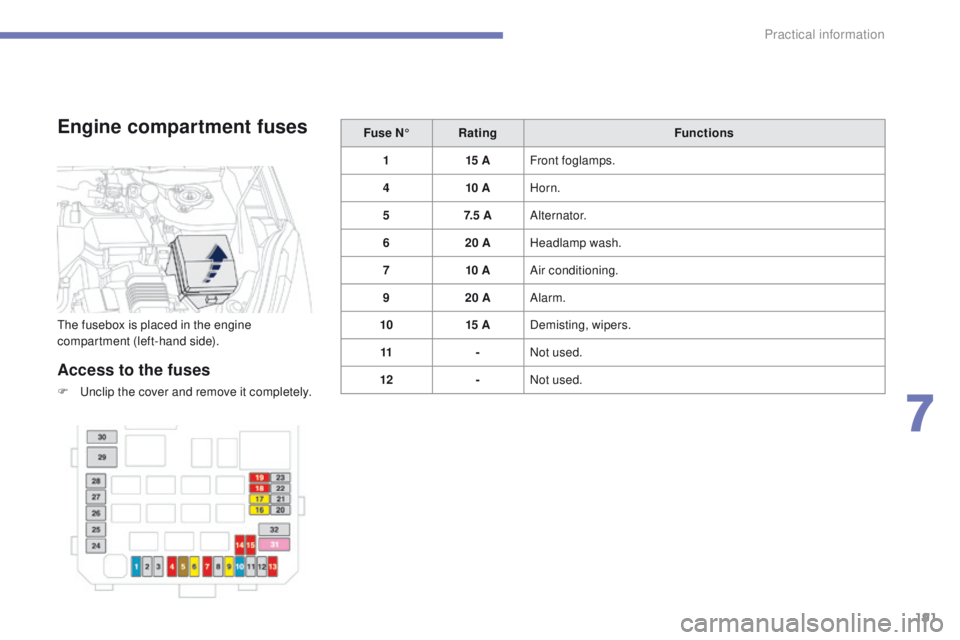

Engine compartment fuses
Access to the fuses
F unclip the cover and remove it completely.Fuse N°
Rating Functions
1 15 AFront foglamps.
4 10 AHorn.
5 7. 5 AAlternator.
6 20 AHeadlamp wash.
7 10 AAir conditioning.
9 20 AAlarm.
10 15 ADemisting, wipers.
11 -Not used.
12 -Not used.
th
e fusebox is placed in the engine
compartment (left-hand side).
7
Practical information

192

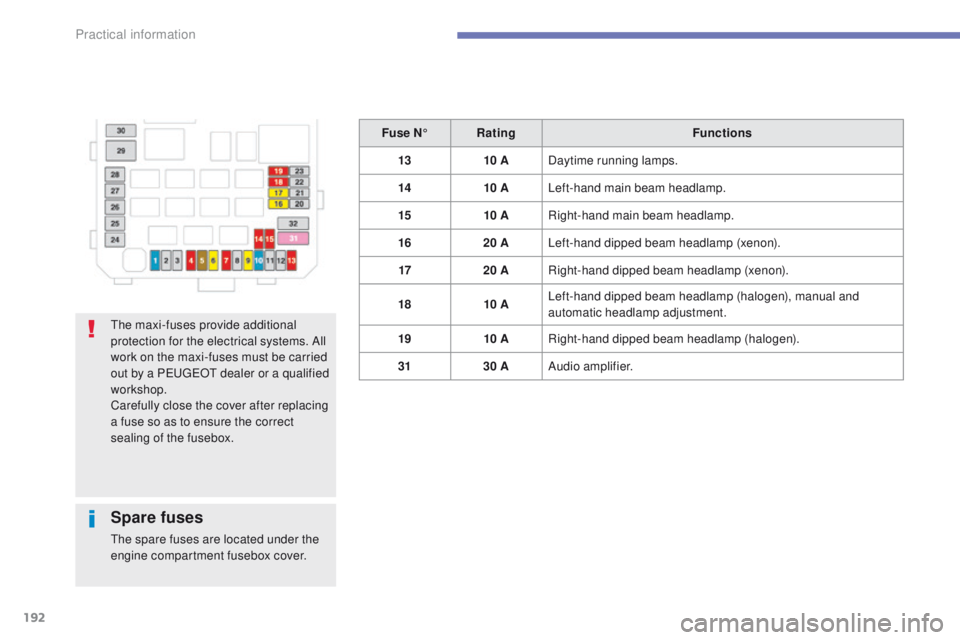

Fuse N°Rating Functions
13 10 ADaytime running lamps.
14 10 ALeft-hand main beam headlamp.
15 10 ARight-hand main beam headlamp.
16 20 ALeft-hand dipped beam headlamp (xenon).
17 20 ARight-hand dipped beam headlamp (xenon).
18 10 ALeft-hand dipped beam headlamp (halogen), manual and
automatic headlamp adjustment.
19 10 ARight-hand dipped beam headlamp (halogen).
31 30 AAudio amplifier.
th

e maxi-fuses provide additional
protection for the electrical systems. All
work on the maxi-fuses must be carried
out by a P
e

uge
Ot

dealer or a qualified
workshop.
Carefully close the cover after replacing
a fuse so as to ensure the correct
sealing of the fusebox.
Spare fuses
the spare fuses are located under the
engine compartment fusebox cover.
Practical information

197

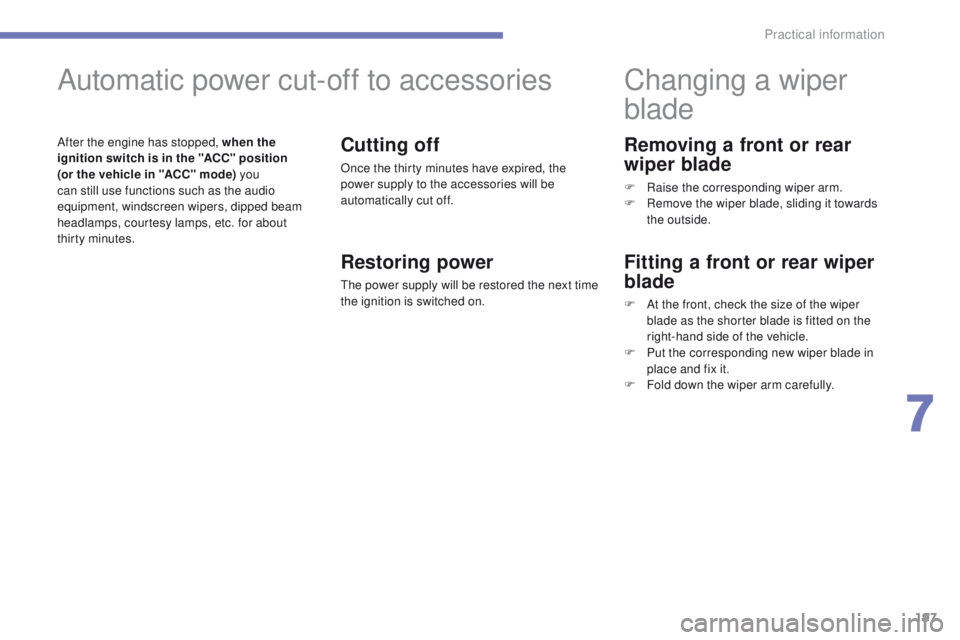

Removing a front or rear
wiper blade
F Raise the corresponding wiper arm.
F R emove the wiper blade, sliding it towards
the outside.
Changing a wiper
blade
Fitting a front or rear wiper
blade
F At the front, check the size of the wiper blade as the shorter blade is fitted on the
right-hand side of the vehicle.
F

P
ut the corresponding new wiper blade in
place and fix it.
F

F
old down the wiper arm carefully.
Automatic power cut-off to accessories
After the engine has stopped, when the
ignition switch is in the "ACC" position
(or the vehicle in "ACC" mode) you
can still use functions such as the audio
equipment, windscreen wipers, dipped beam
headlamps,
courtesy lamps, etc. for about
thirty


minutes.Cutting off
Once the thirty minutes have expired, the
power supply to the accessories will be
automatically cut off.
Restoring power
the power supply will be restored the next time
the ignition is switched on.
7
Practical information

208
Access for checking the levels of the various
fluids and the replacement of certain
components.
Petrol engines
1. Screenwash and headlamp wash fluid reservoir.
2.
C

oolant header tank.
3.
B

rake fluid reservoir.
4.
B

attery.
5.


Fusebox.
6.
A

i r f i l t e r.
7.


e
n
gine oil dipstick.
8.


e
n
gine oil filler cap. 1.6 litre 115
2.0 litre 150
Checks
