Cancelling the
memorisation
With the tailgate in the intermediate position,
you can cancel the stored position:
F
M
ake a long press on push-button D .
The system emits a long audible beep.
F

R
elease the push-button D . The tailgate
will return to the fully open position at the
next use.
Electrical protection of the
motor
If the tailgate is repeatedly opened and closed
in quick succession, the motor can start to
overheat and then cut out, preventing opening
and closing of the tailgate.
Allow the motor to cool down for ten minutes
without opening or closing the tailgate.
Closing in manual back-up mode remains
possible.
To avoid risk of injury, make sure that
no one is in the vicinity of the boot while
opening and closing.
If the tailgate is carrying extra weight
(snow, bicycle carrier, etc.) there is a
risk of it closing under this load. Support
the tailgate or first unload the bicycle
carrier or clear the snow.
When using an automatic car wash,
don’t forget to lock the vehicle so as to
avoid any risk of motorised opening of
the tailgate.
Memorisation of an
intermediate position
You can store an opening angle for the tailgate:
F M anually or automatically move the tailgate
to the required position.
F

M
ake a long press on push-button D .
The system emits a short audible beep.
F

R
elease the push-button D .
Interrupting the opening /
closing of the tailgate
When the tailgate is being opened or closed
electrically, you can interrupt its movement
at any point by pressing push-button D , the
control A or button B .
You can then open or close the tailgate
electrically or manually, if necessary moving it
in the opposite direction to release it.
Locking/unlocking
With the vehicle stationary, this is carried out
using:
-

T
he remote control.
-

T
he key in a door lock.
-

T
he interior central locking/ unlocking control.
The boot automatically locks when the vehicle
is moving at a speed of over 6 mph (10 km/h),
even if automatic central locking is deactivated. It
is unlocked when a door is opened or when the
central locking button is pressed (at a speed of
less than 6 mph (10 km/h)).
Access

63
Mirrors
Each fitted with an adjustable mirror glasses
providing the lateral rear ward vision necessary
for overtaking or parking. They can also be
folded.
Adjustment
With the ignition on:
F m ove control A to the right or to the left to
select the corresponding mirror,
F

m
ove control B in all four directions to
adjust,
F

r
eturn control A to the central position.
Folding
F from outside; lock the vehicle using the remote control or the key.
F

f
rom inside; with the ignition on, pull
control A rearwards.
If the mirrors are folded using control A , they
will not unfold when the vehicle is unlocked.
Control A must be pulled again.
Unfolding
F from outside; unlock the vehicle using the remote control or the key.
F

f
rom inside; with the ignition on, pull
control A rearwards.
If the position is changed manually, a long
press on control A re-engages the mirror.
The folding and unfolding of the door mirrors
using the remote control can be deactivated by
a CITROËN dealer or a qualified workshop.
Door mirrors
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Demisting/defrosting of the door mirrors
is associated with that of the rear
screen.
3
Ease of use and comfort

77
Programmable heating
The programmable heating operates
independently of the engine.
When the engine is off, it pre-heats the coolant
circuit in order to benefit from an optimum
engine operating temperature from the time the
engine is switched on.
The programmable heating system is switched
on using the long range remote control.
Activation can be immediate or deferred by
means of a programming function.The heating system programming remote
control consists of the following buttons and
displays:
1.
S

crolling functions menu buttons.
2.
F

unction indicators: clock, temperature,
operating time, programmed time, heater
operation, heating management symbols.
3.
D

igital displays: time, temperature, duration
of operation, programmed time or level of
heating.
4.
O

ff button.
5.
O

n button.Displays on the remote
control screen
If a malfunction of the programmable
heating system occurs, contact a CITROËN
dealer or a qualified workshop .
Programming remote
control
3
Ease of use and comfort

81

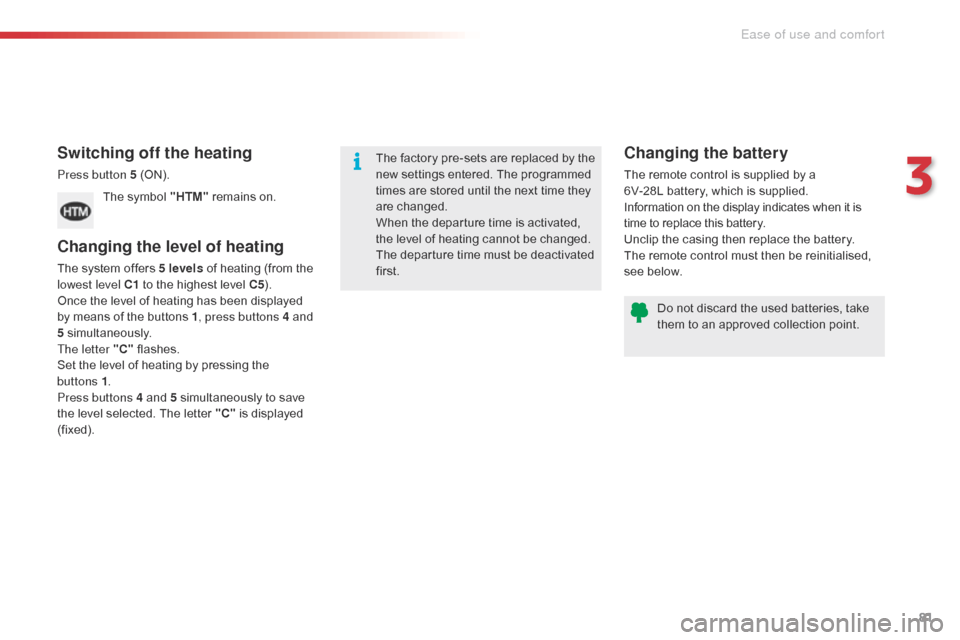

Switching off the heating
Press button 5 (ON).The symbol "HTM" remains on.
Changing the level of heating
The system offers 5 levels of heating (from the
lowest level C1 to the highest level C5 ).
Once the level of heating has been displayed
by means of the buttons
1, press buttons 4 and
5 simultaneously.
The letter "C" flashes.
Set the level of heating by pressing the
buttons 1 .
Press buttons 4 and 5 simultaneously to save
the level selected. The letter "C" is displayed
(fixed). The factory pre-sets are replaced by the
new settings entered. The programmed
times are stored until the next time they
are changed.
When the departure time is activated,
the level of heating cannot be changed.
The departure time must be deactivated
first.
Changing the battery
The remote control is supplied by a
6V-28L battery, which is supplied.
Information on the display indicates when it is
time to replace this battery.
Unclip the casing then replace the battery.
The remote control must then be reinitialised,
see below.
Do not discard the used batteries, take
them to an approved collection point.
3
Ease of use and comfort

82
Reinitialising the remote control
If the vehicle's battery is disconnected or the
remote control's battery is replaced, the remote
control must be reinitialised.
After switching on the power, press button 4
(OFF) for 1 second within the next 5 seconds.
If the operation has taken place correctly the
message "OK" is displayed on the remote
control screen.
If a problem occurs, the message " F A I L"
appears. Repeat the operation. Always switch off the programmable
heating while filling with fuel to avoid
any risk of fire or explosion.
To avoid any risk of poisoning and
asphyxiation, the programmable
heating must not be used, even for
short periods, in an enclosed space
such as a garage or workshop which
is not equipped with an exhaust gas
extraction system.
Do not park the vehicle on an
inflammable sur face (dry grass, dead
leaves, paper…), there is a risk of fire.
The programmable heating system
is supplied by the vehicle's fuel tank.
Before use, ensure that the quantity
of fuel remaining is sufficient. If the
fuel tank is at the reserve, we strongly
advise that you do not programme the
heating.
The interior volumetric protection alarm
movement sensor may be disturbed by
the flow of air from the programmable
heating when it is in operation.
To avoid any unexpected triggering
of the alarm during use of the
programmable heating, it is advisable
to deactivate the interior volumetric
protection.
An adaptation of your programmable
heating allows you to pre-heat your
vehicle's passenger compartment.
Contact a CITROËN dealer or a
qualified workshop.
Ease of use and comfort

83
Map reading lamps
F With the ignition on, press the corresponding switch.
Panoramic sunroof rear
reading lamps (Tourer)
With the key in position or with the ignition on:
F P ress the corresponding switch 1 .
The reading lamp concerned comes on for
ten
m

inutes.
The rear reading lamps come on:
-

w
hen the key is removed from the ignition,
-

w
hen the vehicle is unlocked.
They switch off gradually:
-

w
hen the vehicle is locked,
-

w
hen the ignition is switched on.
Courtesy lamps
1. Front courtesy lamp
2. M ap reading lamp s
Front courtesy lamp
Rear courtesy lamp
1. Rear courtesy lamp
2. M
ap reading lamps In this position, the courtesy lamp
comes on gradually:
Lighting off.
Lighting on.
-
w
hen the vehicle is unlocked,
-
w
hen a door is opened,
-
w
hen the key is removed from the ignition,
-
w
hen the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
-
w
hen the vehicle is locked,
-
w
hen the ignition is switched on,
-
3
0 seconds after the last door is closed.
In lighting on mode, different lighting
times are available:
-
w
ith the ignition off, approximately
ten minutes,
- i n energy economy mode,
approximately thirty seconds,
-

w
ith the engine running, unlimited.
3
Ease of use and comfort

182
Electric child lock
Activation
F Press button A.
The indicator lamp in button A comes on,
accompanied by a message in the instrument
panel screen. Remote control system to prevent opening of the rear doors using their interior controls and use of
the rear electric windows.
The control is located on the driver's door, with the electric window controls.
Deactivation
F Press button A again.
The indicator lamp in button A goes off,
accompanied by a message in the instrument
panel screen.
This indicator lamp remains off until the child
lock is activated. This system is independent and in no
circumstances does it take the place of
the central locking control.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
In the event of a serious impact,
the electric child lock is deactivated
automatically to permit the exit of the
rear passengers. Any other status of the indicator lamp
indicates a fault with the electric child
lock. Have it checked by a CITROËN
dealer or a qualified workshop.
Child safety

217
Following reconnection of
the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation
of the electronic systems. However, if
slight malfunctions remain following this
operation, contact a CITROËN dealer
or a qualified workshop.
Referring to the corresponding section,
you must yourself reinitialise:
-
t
he remote control key,
-

t
he glass panoramic roof blind,
-

t
he GPS satellite navigation
system.
Starting using another
battery
F Connect the red cable to the positive terminal (+) of the flat battery A , then to the
positive terminal (+) of the slave battery B.
F

C
onnect one end of the green or black
cable to the negative terminal (-) of the
slave battery B .
F

C
onnect the other end of the green or black
cable to the earth point C on the broken
down vehicle.
F

O
perate the starter, let the engine run.
F

W
ait until the engine returns to idle and
disconnect the cables.
Charging the battery using
a battery charger
F Disconnect the battery from the vehicle.
F F ollow the instructions for use provided by
the manufacturer of the charger.
F

R
econnect starting with the negative
terminal (-).
F

C
heck that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them. With Stop & Start, the battery does not
have to be disconnected for charging.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting the
battery.
Close the windows and the doors
before disconnecting the battery.
8
Practical information
