132
General points relating to child seats
Although one of CITROËN main criteria when designing your vehicle, the safety of your children also   depends   on   you.
*

T
he   regulations   on   carrying   children   are
s

pecific   to   each   country.   Refer   to   the
l

egislation   in   force   in   your   country.
For
  maximum   safety,   please   observe   the
f

ollowing
 r
ecommendations:
-

i
n   accordance   with   European   regulations,
a

ll children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight ,
  on   seats   fitted   with   a   seat
b

elt   or   ISOFIX   mountings*,
-

s
tatistically, the safest seats in your
vehicle for carr ying children are the
rear seats,
-

a c
hild weighing less than 9 kg must
travel in the rear ward facing position
both in the front and in the rear. CITROËN recommends


that   children
s

hould   travel   on   the   rear seats of your
vehicle:
-

r
earward facing


up   to   the   age   of   3,
-

fo
rward facing


over   the   age   of   3.
Child safety

138
Child seats recommended by CITROËN
Group 0+: from bir th to 13 kgL1
"RÖMER
  Baby-Safe   Plus"
I

nstalled   in   the   rear ward   facing   position.
Groups 2 and 3: from 15 to 36 kg L4
"KLIPPAN
  Optima"
From
  22   kg   (approximately   6   years),
the
  booster   is   used   on   its   own.
L5
"RÖMER
k I d FIX"
Can
  be   fitted   to   the   vehicle's   ISOFIX   mountings.
The
  child   is   restrained   by   the   seat   belt.
CITROËN

offers

a

range

of

recommended   child   seats   which   are   secured   using   a   three point seat
belt .
Child safety

141
"ISOFIX" mountings
There are three rings for each seat:
-
t
wo   rings   A,
  located   between   the   vehicle
s

eat   back   and   cushion,   indicated   by   a
m

arking, This
  ISOFIX   mounting   system   provides   fast,
r

eliable   and   safe   fitting   of   the   child   seat   in
y

our vehicle.
The ISOFIX child seats
  are   fitted   with
t

wo latches   which   are   secured   on   the
t

wo rings A.
Some
  seats   also   have   an   upper strap,
which
  is   attached   to   ring   B.
Your
  vehicle   has   been   approved   in   accordance   with   the   latest
IS
oFI
X regulation
.
The   seats,   represented   below,   are   fitted   with   regulation   ISOFIX   mountings:
To   secure   the   child   seat   to   the   TOP TETHER
:
-
r
emove   and   stow   the   head   restraint   before
i

nstalling   the   child   seat   on   the   seat   (refit   it
o

nce   the   child   seat   has   been   removed),
-
r
aise   the   carpet   cover   on   the   TOP
T

ETHER,
-
p
ass   the   upper   strap   of   the   child   seat
b

ehind   the   seat   backrest,   between   the  a
pertures   for   the   head   restraint   rods,
-  f ix   the   hook   of   the   upper   strap   to   the   ring   B,
-

t
ighten   the   upper   strap.
-

a
  ring   B,
  behind   the   seat   and   identified   by
a

  marking,   referred   to   as   the   TOP TETHER
for
  fixing   the   upper   strap.
The
  incorrect   installation   of   a   child   seat
i

n   a   vehicle   compromises   the   child's
p

rotection   in   the   event   of   an   accident.
Follow
  strictly   the   fitting   instructions
p

rovided   by   with   the   child   seat.
When
  fitting   an   ISOFIX   child   seat   to
t

he   left   hand   rear   seat,   before   fitting   the
s

eat,   first   move   the   centre   rear   seat   belt
t

owards   the   middle   of   the   vehicle,   so
a

s   to   avoid   the   seat   inter fering   with   the
o

peration   of   the   seat   belt.
For
  information   on   the   possibilities   for
i

nstalling   ISOFIX   child   seats   in   your
v

ehicle,   refer   to   the   summary   table.
7
Child safety

142

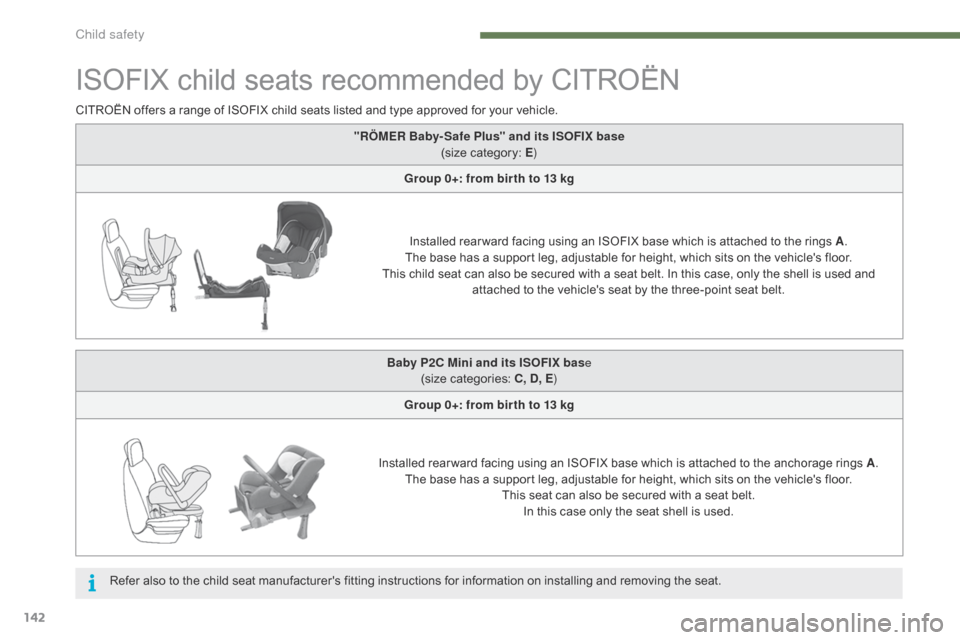

ISOFIX child seats recommended by CITROËN
CITROËN offers a range of ISOFIX child seats listed and type approved for your vehicle.
R efer   also   to   the   child   seat   manufacturer's   fitting   instructions   for   information   on   installing   and   removing   the   seat.
"RÖMER Baby- Safe Plus" and its ISOFIX base
(size
  category:   E)
Group 0+: from bir th to 13 kg
Installed
  rear ward   facing   using   an   ISOFIX   base   which   is   attached   to   the   rings   A.
The
  base   has   a   support   leg,   adjustable   for   height,   which   sits   on   the   vehicle's   floor.
This
  child   seat   can   also   be   secured   with   a   seat   belt.   In   this   case,   only   the   shell   is   used   and
a

ttached   to   the   vehicle's   seat   by   the   three-point   seat   belt.
Baby P2C Mini and its ISOFIX bas e
(size
 c

ategories:
 C
, D, E)
Group 0+: from bir th to 13 kg
Installed
  rear ward   facing   using   an   ISOFIX   base   which   is   attached   to   the   anchorage   rings   A.
The
  base   has   a   support   leg,   adjustable   for   height,   which   sits   on   the   vehicle's   floor.
This
  seat   can   also   be   secured   with   a   seat   belt.
In
  this   case   only   the   seat   shell   is   used.
Child safety

143

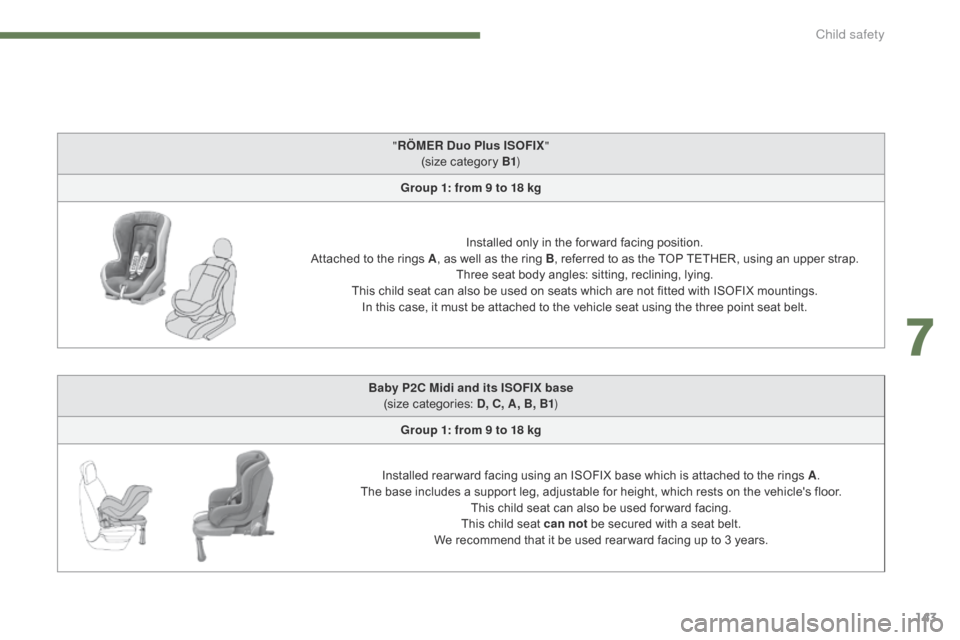

"RÖMER Duo Plus ISOFIX "
(size   category   B1)
Group 1: from 9 to 18 kg
Installed
  only   in   the   for ward   facing   position.
Attached

to

the   rings   A,
  as   well   as   the   ring   B,
  referred   to   as   the   TOP   TETHER,   using   an   upper   strap.
Three
  seat   body   angles:   sitting,   reclining,   lying.
This

child   seat   can   also   be   used   on   seats   which   are   not   fitted   with   ISOFIX   mountings.
In

this   case,   it   must   be   attached   to   the   vehicle   seat   using   the   three   point   seat   belt.
Baby P2C Midi and its ISOFIX base (size
 c

ategories:
 D
, C, A, B, B1)
Group 1: from 9 to 18 kg
Installed
  rear ward   facing   using   an   ISOFIX   base   which   is   attached   to   the   rings   A.
The

base   includes   a   support   leg,   adjustable   for   height,   which   rests   on   the   vehicle's   floor.
This
  child   seat   can   also   be   used   for ward   facing.
This
  child   seat   can not


be   secured   with   a   seat   belt.
We
  recommend   that   it   be   used   rear ward   facing   up   to   3   years.
7
Child safety

144
* Infant car seats and "car cots" cannot be installed on the front passenger seat.
* *   The   ISOFIX   infant   car   seat,   secured   on   the   lower   rings   of   a   vehicle   ISOFIX   seat,   occupies   two   rear   seats.
Locations for ISOFIX child seatsIn accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings.
In
  the   case   of   universal   and   semi-universal   ISOFIX   child   seats,   the   ISOFIX   size   category,   determined   by   a   letter   from   A to G ,
  is   indicated   on   the   child   seat
 n

ext   to   the   ISOFIX   logo.
I UF:

s
eat suitable for the installation of an I sofix
  Universal seat, " For ward
  facing"   secured   using   the
u

pper   strap.
IL- SU: seat suitable for the installation of an I sofix
  Semi- Universal
 sea

t
 ei
ther:
-

r
ear ward   facing   fitted   with   an   upper   strap   or   a   support   leg,
-

f
or ward   facing   fitted   with   a   support   leg,
-

a
n   infant   car   seat   fitted   with   an   upper   strap   or   a   support   leg.
For
  advice   on   securing   of   the   upper   strap,   refer   to   the   "ISOFIX   mountings"   section.Weight of the child
/indicative
  age
Less than 10
kg
(group 0)
Up
  to   approx.
6

  monthsLess than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up
  to   approx.   1   yearFrom 9 to 18 kg (group 1)
From
  approx.   1   to   3   years
Type of ISOFIX child seat Infant car seat*rearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
ISOFIX child seats universal and
semi-universal which can be installed
on the rear outer seats IL- SU
** IL- SU IL- SU IUF
IL- SU
Remove
  and   stow   the   head   restraint
b

efore   installing   a   child   seat   with   a
b

ackrest   on   a   passenger   seat.   Refit   the
h

ead   restraint   once   the   child   seat   has
b

een   removed.
Child safety
