Parking brake
Applying
F Pull the parking brake lever fully up to immobilise your vehicle.
When parking on a slope, direct your
wheels against the kerb, apply the
parking brake, place the drive selector
in position P and switch off the ignition.
Releasing
F Pull the parking brake lever up slightly, press the release button then lower the
lever fully.
When the vehicle is being driven,
if the parking brake is still on or has
not been fully released, this warning
lamp comes on.
driving

56
Direction indicators
Selection of the left or right direction indicators
to signal a change of direction of the vehicle.
F
L
eft: lower the lighting stalk beyond the
point of resistance.
F

R
ight: raise the lighting stalk beyond the
point of resistance.
Automatic operation
of brake lamps
The brake lamps come on automatically when
you release the accelerator pedal.
This does not happen in all cases and depends
on the rate of deceleration.
Hazard warning lamps
A visual warning by means of the direction
indicators to alert other road users to a vehicle
breakdown, towing or accident.
F

P
ress this button, the direction indicators
flash.
They can operate with the ignition off.
S

59
Under-inflation alert
The alert is given by the fixed
illumination of this warning lamp.
F

R

educe speed, avoid sudden steering
movements or harsh brake applications.
F

S

top as soon as it is safe to do so.
Before reinitialising the system, ensure
that the pressures in the four tyres are
suitable for the conditions of use of the
vehicle and as specified on the tyre
pressure label.
The under-inflation detection system
cannot warn of an incorrect pressure at
the time of reinitialisation.
The loss of pressure detected does not
always lead to visible deformation of the
tyre. Do not rely on just a visual check.
The alert is maintained until the
reference pressure is reinitialised after
the inflation, repair or replacement of
the tyres concerned. In the event of
the repair or replacement of tyres, the
sensor identifiers must be registered in
the system by a CITROËN dealer or a
qualified workshop.
F
C heck the four tyre pressures when cold,
using the compressor from the temporary
puncture repair kit.
I

f it is not possible to check the tyre
pressures at the time, drive carefully at
reduced speed.


or
F

I
n the event of a puncture, use the
temporary puncture repair kit.
Reinitialising the reference
pressure
The system must be reinitialised after any
adjustment of tyre pressures and after
changing one or more wheels.
6
Safety

60
The under-inflation alert is only reliable
if the system has been reinitialised
with the four tyre pressures correctly
adjusted.Go to a CITROËN dealer or a qualified
workshop
to have the system checked
or, following the repair of a puncture, to
have the original wheel, equipped with
a sensor, refitted.
The reinitialisation instruction is entered in
the instrument panel screen screen, with the
ignition on and the vehicle stationary.
F

P

ress button A select the function
F

P

ress and hold button A for at least
3


seconds
to reinitialise the under-inflation
detection system.
Reinitialisation of the system is confirmed
by the flashing of the warning lamp in the
instrument panel.
You then have to drive about 100 metres before
the warning lamp goes off.
Operating fault
The flashing and then fixed illumination
of the under-inflation warning lamp
indicates a fault with the system.
In this case, monitoring of the tyre pressures is
not assured.
This alert is also displayed if:
-

o

ne or more wheels is not fitted with a
sensor,
-

a w

ireless device operating on the same
frequency is close to the vehicle,
-

t

here are accumulations of snow or ice in
the wings or wheels,
-

t

he state of charge of the tyre pressure
monitoring system battery is too low,
-

t

he wheel sensor identifiers have not been
memorised in the system by a CITROËN
dealer or a qualified workshop. Any tyre repair or replacement on a
wheel fitted with this system must be
carried out by a CITROËN dealer or a
qualified workshop.
If you fit the second set of tyres
memorised in the system, a fault will
be signalled until the second set is
selected in the configuration menu.
Safety

61

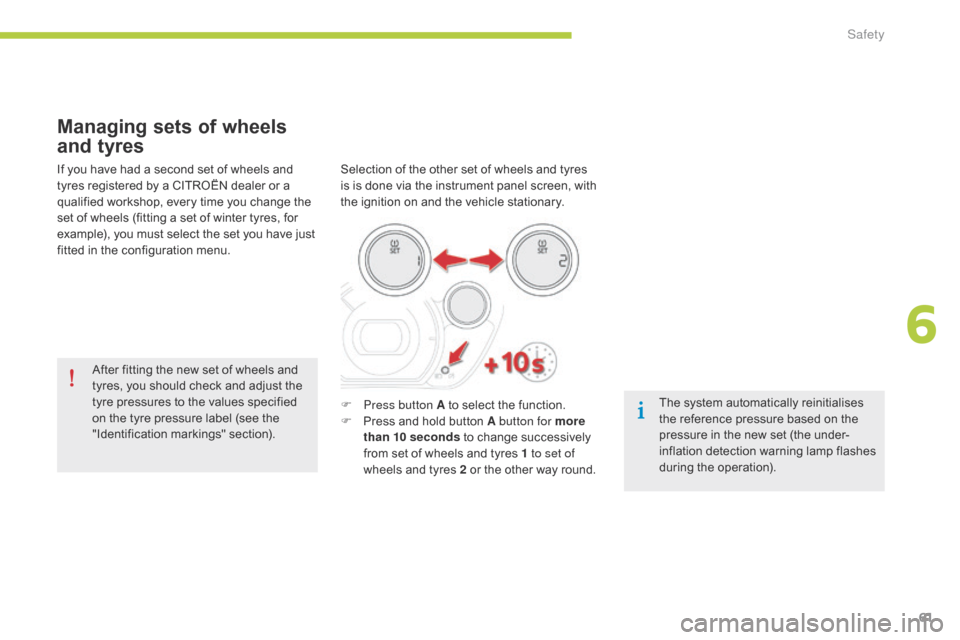

Managing sets of wheels
and tyres
Selection of the other set of wheels and tyres
is is done via the instrument panel screen, with
the ignition on and the vehicle stationary.
After fitting the new set of wheels and
tyres, you should check and adjust the
tyre pressures to the values specified
on the tyre pressure label (see the
"Identification markings" section). The system automatically reinitialises
the reference pressure based on the
pressure in the new set (the under-
inflation detection warning lamp flashes
during the operation).
If you have had a second set of wheels and
tyres registered by a CITROËN dealer or a
qualified workshop, every time you change the
set of wheels (fitting a set of winter tyres, for
example), you must select the set you have just
fitted in the configuration menu.
F

P
ress button A to select the function.
F

P
ress and hold button A button for more
than 10 seconds to change successively
from set of wheels and tyres 1 to set of
wheels and tyres 2 or the other way round.
6
Safety

63
Fixed illumination of this warning
lamp indicates a malfunction of
the anti-lock braking system which
could result in a loss of control of the
vehicle on braking.
You must stop as soon as it is safe to do so.
Contact a CITROËN dealer or a qualified
workshop. Vehicle moving
Illumination of these two
warning lamps indicates a
malfunction of the electronic
brake force distribution
which could result in a loss of control of the
vehicle on braking.
You MUST stop as soon as it is safe to do so.
Contact a CITROËN dealer or a qualified
workshop.
When replacing wheels (tyres and rims),
ensure that they conform to the manufacturer's
recommendations.
Emergency braking assistance
System which, in an emergency, enables you
to obtain the optimum braking pressure more
quickly, thus reducing the stopping distance.
Activation
It is triggered by the speed at which the brake
pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase in
braking efficiency.
When braking in an emergency, press
firmly without releasing the pressure.
Operating fault
Vehicle stationary
The warning lamp comes on for a few
seconds when the ignition is switched
on (ON position). If it does not go off or
does not come on, contact a CITROËN
dealer or a qualified workshop.Illumination of this warning lamp
indicates a malfunction of the anti-
lock braking system, which could
result in a loss of control of the
vehicle when braking.
Contact a CITROËN dealer or a qualified
workshop.
6
Safety

65
Seat belts
Front seat belts
Fastening
F Pull the strap, then insert the tongue in the buckle A.
F

C
heck that the seat belt is fastened
correctly by pulling the strap.
Front seat belt not fastened /
unfastened warning lamp
If the driver does not fasten their seat belt
within one minute after switching on the
ignition, the warning lamp flashes accompanied
by an intermittent audible signal.
After about 90 seconds, the warning lamp, the
audible signal and the display stop, and then
return until the driver fastens their seat belt.
If the seat belt is unfastened while the vehicle
is moving , you are warned by the same alerts.
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact,
the pretensioning system instantly tightens the
seat belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant,
so improving their protection.
Unfastening
F Press the red button on the buckle A
.When the ignition is switched on, this
warning lamp comes on accompanied
by an audible signal for a few seconds
if the driver and/or passenger has not
fastened their seat belt.
6
Safety

66
Rear seat belts
Each rear seat is fitted with a three-point inertia
reel seat belt.
Fastening
F Pull the strap, then insert the tongue in the buckle.
F

C
heck that the seat belt is fastened
correctly by pulling the strap.
Unfastening
F Press the red button in the buckle.
Seat belt unfastened warning
lamps
Right hand rear seat belt warning lamp.
Left hand rear seat belt warning lamp.
Illumination of one of these warning lamps in
the instrument panel indicates that one of the
rear passengers has unbuckled their seat belt.
