DESCRIPTION
2-1
2
EAU10410
Left view
1,2
3
4,5,6
13
12
11
10
7,8
9
1. Front fork spring preload adjusting bolt (page 3-30)
2. Front fork compression damping force adjusting screw (page 3-30)
3. Coolant reservoir (page 6-14)
4. Fuel injection system fuse (page 6-33)
5. Main fuse (page 6-33)
6. Fuse box (page 6-33)
7. Shock absorber assembly compression damping force adjusting bolt (for fast compression damping) (page 3-32) 8. Shock absorber assembly compression damping force adjusting bolt
(for slow compression damping) (page 3-32)
9. Shock absorber assembly spring preload adjusting screw (page 3-32)
10.Shock absorber assembly rebou nd damping force adjusting screw
(page 3-32)
11.Engine oil drain bolt (page 6-11)
12.Coolant drain bolt (page 6-15)
13.Engine oil filter cartridge (page 6-11)
U1KBE1E0.book Page 1 Monday, July 9, 2012 1:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
nect the positive lead before
connecting the negative lead.
[ECA16840]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU49823

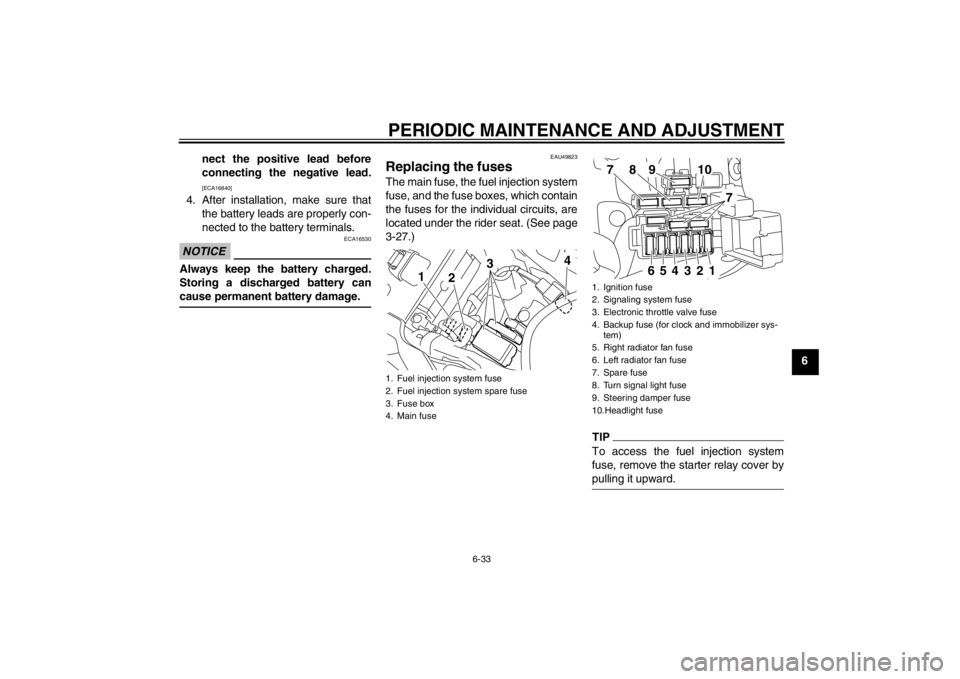

Replacing the fuses The main fuse, the fuel injection system
fuse, and the fuse boxes, which contain
the fuses for the individual circuits, are
located under the rider seat. (See page
3-27.)
TIPTo access the fuel injection system
fuse, remove the starter relay cover by
pulling it upward.
1. Fuel injection system fuse
2. Fuel injection system spare fuse
3. Fuse box
4. Main fuse
1
2 3
4
1. Ignition fuse
2. Signaling system fuse
3. Electronic throttle valve fuse
4. Backup fuse (for clock and immobilizer sys-
tem)
5. Right radiator fan fuse
6. Left radiator fan fuse
7. Spare fuse
8. Turn signal light fuse
9. Steering damper fuse
10.Headlight fuse
6
5
4
3
2
1
9
10
8
7
7
