2013 YAMAHA XT1200Z stop start

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
Try to reset the traction control system
and the lights by following the proce-
dures under “Resetting” on page 3-22.
EAU38624
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off. If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits. (See page 3-14 for an explana-
tion of the self-diagnosis device.)
EAU49606
Multi-function meter unit
WARNING
EWA12422
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
1. Traction control system switch
2. Traction control system indicator/warning
light “TCS”
3. Engine trouble warning light “ ”
4. Traction control system mode display
4
3
2
1
1. Tachometer
2. Traction control system mode display
3. Coolant temperature display/air intake tem- perature display/instantaneous fuel con-
sumption display/average fuel consumption
display
4. Speedometer
5. Fuel meter
6. Drive mode display
7. Clock
8. Right set button
9. Left set button
10.Odometer/tripmeter/fuel reserve tripmeter
11.Traction control system switch
1
2
3
5
6
78
9
10
4
11
U23PE3E0.book Page 8 Monday, July 30, 2012 8:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
Touring mode “T”
The touring mode “T” is suitable for var-
ious riding conditions.
This mode allows the rider to enjoy
smooth drivability from the low-speed
range to the high-speed range.
Sports mode “S”
This mode offers a sportier engine re-
sponse in the low- to mid-speed range
compared to the touring mode.
EAU1234B
Handlebar switches Left
Right
EAU12370
Pass switch “PASS”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
1. Pass switch “PASS”
2. Dimmer switch “ / ”
3. Hazard switch “ ”
4. Turn signal switch “ / ”
5. Horn switch “ ”
12
345
1. Engine stop switch “ / ”
2. Drive mode switch “MODE”
3. Start switch “ ”
1
2
3
U23PE3E0.book Page 16 Monday, July 30, 2012 8:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12660
Engine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU42341
The engine trouble warning light and
ABS warning light may come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU12733
Hazard switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU49571
Drive mode switch “MODE”
WARNING
EWA15340
Do not change the D-mode while the
vehicle is moving.Using this switch changes the drive
mode to touring mode “T” or sports
mode “S”.
The throttle grip must be completely
closed in order to change the drive
mode. The selected mode is shown on the
drive mode display. (See page 3-13.)
U23PE3E0.book Page 17 Monday, July 30, 2012 8:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
EAU49517
Brake lever The brake lever is located on the right
side of the handlebar. To apply the front
brake, pull the lever toward the throttle
grip.
This model is equipped with a unified
brake system.
When pulling the brake lever, the front
brake and a portion of the rear brake
are applied. For full braking perfor-
mance, apply both the brake lever and
the brake pedal simultaneously.
The unified brake system is monitored
by an ECU, which disables unified
braking and resumes conventional
braking if a malfunction occurs.TIP●
Resistance and vibration may be
felt in the brake pedal while the
front brake is being applied and
the unified brake system is en-
abled, but this does not indicate a
malfunction.
●
The unified brake system does not
function until the vehicle starts
moving.
●
After coming to a stop while apply-
ing the brake lever, the unified
brake system is still enabled. As
further squeezing of the brake le-
ver will not increase the braking
power of the rear brake, apply the
rear brake should further braking
power be necessary (such as
when parking on a slope).
The unified brake system disables
after the brake lever is released.
The brake system then reverts to
the conventional type.
When the vehicle starts moving,
the unified brake system is re-en-
abled.
●
The unified brake system does not
function when the brake pedal is
applied alone or before the brake
lever is applied.

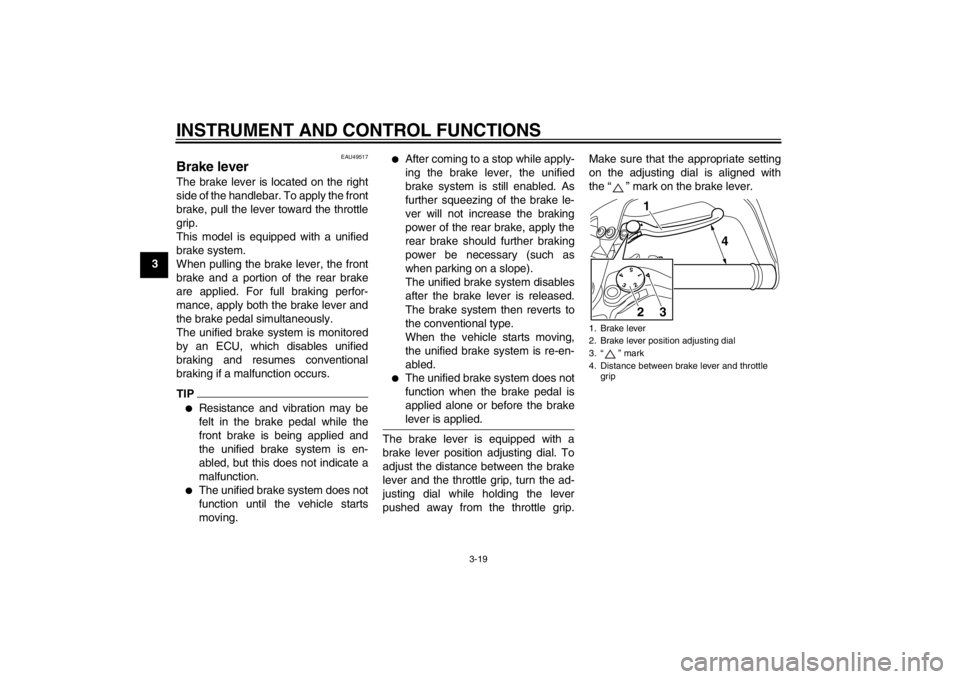

The brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the brake
lever and the throttle grip, turn the ad-
justing dial while holding the lever
pushed away from the throttle grip.Make sure that the appropriate setting
on the adjusting dial is aligned with
the “ ” mark on the brake lever.
1. Brake lever
2. Brake lever position adjusting dial
3. “ ” mark
4. Distance between brake lever and throttle
grip
5
43
211
4
3
2
U23PE3E0.book Page 19 Monday, July 30, 2012 8:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-34
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
YES NO YES NO YES NO
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.• The vehicle must be placed on the center-
stand during this inspection.• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U23PE3E0.book Page 34 Monday, July 30, 2012 8:44 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU48710
TIPThis model is equipped with:●
a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.
●
an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start switch
to restart the engine.
EAU54520
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:●
The transmission is in the neutral
position.
●
The transmission is in gear with
the clutch lever pulled and the
sidestand up.
See page 3-33 for more informa-
tion.
1. Turn the key to “ON” and make sure that the engine stop switch is
set to “ ”.
The following warning lights and
indicator lights should come on for
a few seconds, then go off.●
Oil level warning light
●
Engine trouble warning light
●
Coolant temperature warning
light
●
Traction control system indi-
cator/warning light
●
Immobilizer system indicator
light
U23PE3E0.book Page 1 Monday, July 30, 2012 8:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
6Engine overheating
WARNING
EWAT1040
●
Do not remove the radiator cap when the engine and
radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
●
Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the cap
while turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U23PE3E0.book Page 38 Monday, July 30, 2012 8:44 AM

INDEXAABS ....................................................... 3-20
ABS warning light.................................... 3-7
Air filter element .................................... 6-16
Auxiliary DC jack ................................... 3-35
Auxiliary light bulb, replacing ................ 6-34BBattery................................................... 6-28
Brake and clutch fluids, changing ......... 6-24
Brake and clutch levers, checking and lubricating ........................................... 6-25
Brake and shift pedals, checking and
lubricating ........................................... 6-24
Brake fluid level, checking .................... 6-22
Brake lever ............................................ 3-19
Brake lever free play, checking ............. 6-21
Brake light switches .............................. 6-21
Brake pedal ........................................... 3-20CCare ........................................................ 7-1
Carriers ................................................. 3-31
Catalytic converter ................................ 3-25
Centerstand and sidestand, checking
and lubricating .................................... 6-26
Clutch lever .................................. 3-18, 6-20
Coolant.................................................. 6-15
Coolant temperature warning light .......... 3-4
Cowlings, removing and installing........... 6-8DDimmer switch ...................................... 3-16
D-mode (drive mode) ............................ 3-15EEngine break-in ....................................... 5-3
Engine idling speed, checking .............. 6-17 Engine oil and oil filter cartridge ........... 6-11
Engine stop switch................................ 3-17
Engine trouble warning light ................... 3-7
FFinal gear oil ......................................... 6-14
Front and rear brake pads, checking .... 6-22
Front fork, adjusting .............................. 3-28
Front fork, checking .............................. 6-27
Fuel....................................................... 3-23
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose and overflow
hose ................................................... 3-24
Fuel tank cap ........................................ 3-23
Fuses, replacing ................................... 6-29HHandlebar switches .............................. 3-16
Hazard switch ....................................... 3-17
Headlight bulb, replacing ...................... 6-31
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-17IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-33
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-8
Indicator lights and warning lights .......... 3-4LLicense plate light bulb, replacing ........ 6-33
Luggage strap holders .......................... 3-32MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-4
Maintenance, emission control
system .................................................. 6-3 Matte color, caution ................................. 7-1
Model label .............................................. 9-1
Multi-function meter unit .......................... 3-8
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-16RRider seat .............................................. 3-25
Rider seat height, adjusting................... 3-26SSafety information ................................... 1-1
Shifting .................................................... 5-2
Shift pedal ............................................. 3-18
Shock absorber assembly, adjusting .... 3-30
Sidestand .............................................. 3-32
Spark plugs, checking ........................... 6-10
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-17
Steering, checking................................. 6-27
Storage.................................................... 7-4
Swingarm pivots, lubricating ................. 6-26TTail/brake light ....................................... 6-32
Throttle grip and cable, checking and
lubricating ........................................... 6-24
Throttle grip free play, checking ............ 6-17
Tires ...................................................... 6-18
Tool kit..................................................... 6-2
U23PE3E0.book Page 1 Monday, July 30, 2012 8:44 AM
