PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
19*Front fork Check operation and for oil leak-
age. √√√√
20 *Shock absorber as-
sembly Check operation and shock ab-
sorber for oil leakage. √√√√
21 Engine oil Change.
Check oil level and vehicle for oil
leakage. √√√√√√
22 Engine oil filter car-
tridge Replace.
√√√
23 *Cooling system Check coolant level and vehicle
for coolant leakage. √√√√√
Change coolant. Every 3 years
24 *Front and rear brake
switches Check operation.
√√√√√√
25 Moving parts and
cables
Lubricate.
√√√√√
26 *Throttle grip Check operation.
Check throttle grip free play, and
adjust if necessary.
Lubricate cable and grip housing. √√√√√
27 *Lights, signals and
switches Check operation.
Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)U36CE3E0.book Page 6 Wednesday, May 30, 2012 11:51 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
63. Disconnect the turn signal light
lead connectors.
To install a cowling
1. Connect the turn signal light lead connectors. 2. Place the cowling in the original
position, and then install the bolts
and the quick fastener.
3. Install panel B or C.
EAU19642
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
1. Cowling B
2. Bolt
3. Quick fastener
1. Turn signal light lead connector
3
1
21
Specified spark plug: NGK/CR9E
U36CE3E0.book Page 10 Wednesday, May 30, 2012 11:51 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
EAU47551
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on the center- stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles.
4. Remove the engine oil dipstick and wipe it clean, insert it back into the
hole (without screwing it in), and
then remove it again to check the
oil level.TIPThe engine oil should be between the
minimum and maximum level marks.

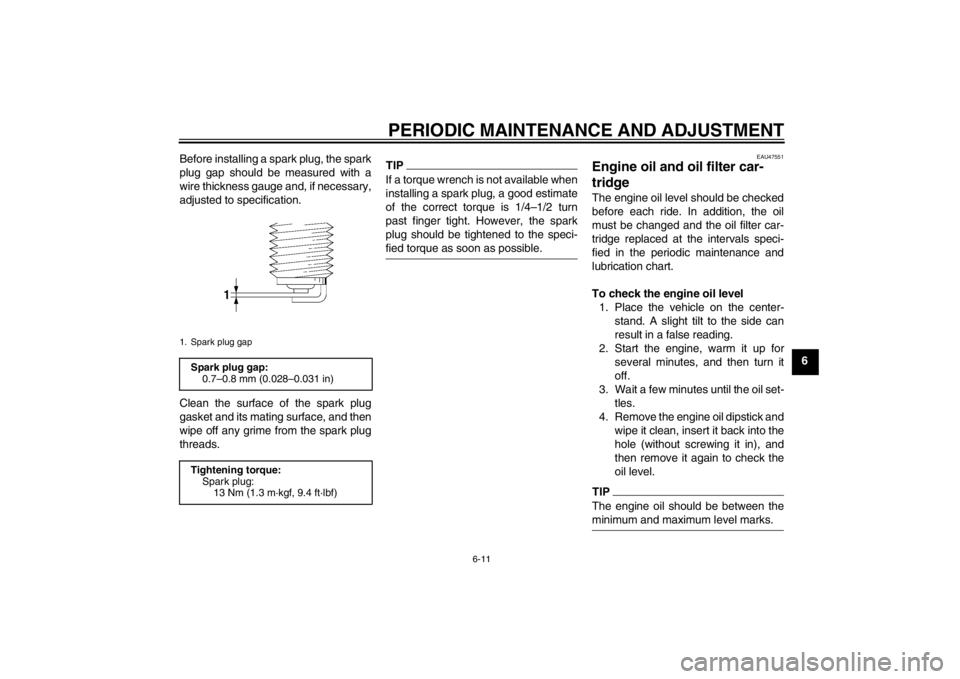

1. Spark plug gapSpark plug gap:0.7–0.8 mm (0.028–0.031 in)
Tightening torque: Spark plug:13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U36CE3E0.book Page 11 Wednesday, May 30, 2012 11:51 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
610. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
TIPAfter the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient.NOTICE
ECA10401
If the oil level warning light flickers
or remains on even if the oil level is
correct, immediately turn the engine
off and have a Yamaha dealer check
the vehicle.11. Turn the engine off, wait a few min-utes until the oil settles, and then
check the oil level and correct it if
necessary.
12. Install the cowling.
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU47560
To check the coolant level 1. Place the vehicle on the center- stand.TIP●
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
●
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the cool-ant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below theminimum level mark, remove the
coolant reservoir breather hose
from the guide, and then remove
the coolant reservoir cap.1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
1
2
3
U36CE3E0.book Page 14 Wednesday, May 30, 2012 11:51 AM

INDEXAAir filter element, replacing ................... 6-18
Auxiliary light bulb ................................. 6-39BBattery................................................... 6-34
Brake and clutch levers, checking and lubricating ........................................... 6-31
Brake and shift pedals, checking and lubricating ........................................... 6-30
Brake fluid, changing ............................ 6-27
Brake fluid level, checking .................... 6-26
Brake lever ............................................ 3-13
Brake lever free play, checking ............. 6-24
Brake light switches .............................. 6-25
Brake pedal ........................................... 3-13CCables, checking and lubricating .......... 6-30
Care ........................................................ 7-1
Catalytic converter ................................ 3-16
Centerstand and sidestand, checking and lubricating .................................... 6-32
Clutch lever ........................................... 3-12
Clutch lever free play, adjusting ............ 6-23
Coolant.................................................. 6-14
Coolant temperature warning light .......... 3-4
Cowlings and panels, removing and
installing................................................ 6-8DDimmer switch ...................................... 3-11
Drive chain, cleaning and lubricating .... 6-29
Drive chain slack ................................... 6-28EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-19 Engine oil and oil filter cartridge ........... 6-11
Engine stop switch................................ 3-12
Engine trouble warning light ................... 3-7
FFront and rear brake pads, checking .... 6-25
Front fork, checking .............................. 6-33
Fuel....................................................... 3-14
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose and overflow
hose ................................................... 3-15
Fuel tank cap ........................................ 3-14
Fuses, replacing ................................... 6-35HHandlebar position, adjusting ............... 3-18
Handlebar switches .............................. 3-11
Hazard switch ....................................... 3-12
Headlight bulb, replacing ...................... 6-36
Helmet holder ....................................... 3-17
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-12IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-21
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-7
Indicator lights and warning lights .......... 3-4LLicense plate light bulb, replacing ........ 6-39MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-4
Maintenance, emission control system... 6-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-1 Multi-function meter unit .......................... 3-7
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-11RRear view mirrors .................................. 3-19SSafety information ................................... 1-1
Seat ....................................................... 3-16
Shifting .................................................... 5-2
Shift pedal ............................................. 3-13
Shock absorber assembly, adjusting .... 3-19
Sidestand .............................................. 3-20
Spark plugs, checking ........................... 6-10
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-12
Steering, checking................................. 6-33
Storage.................................................... 7-3
Storage compartment............................ 3-18
Swingarm pivots, lubricating ................. 6-32TTail/brake light bulb, replacing .............. 6-37
Throttle grip and cable, checking and
lubricating ........................................... 6-30
Throttle grip free play, checking ............ 6-20
Tires ...................................................... 6-20
Tool kit..................................................... 6-2
Troubleshooting .................................... 6-42
