2013 YAMAHA XJ6-N stop start

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU11534
Engine trouble warning light “ ”
This warning light comes on or flashes
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-10
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU51780
ABS warning light “ ” (for ABS
models)
In normal operation, the ABS warning
light comes on when the key is turned
to “ON”, and goes off after traveling at a
speed of 10 km/h (6 mi/h) or higher.
If the ABS warning light:●
does not come on when the key is
turned to “ON”
●
comes on or flashes while riding
●
does not go off after traveling at a
speed of 10 km/h (6 mi/h) or higher
The ABS may not work correctly. If any
of the above occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-14 for an expla-
nation of the ABS.)WARNING
EWA16040
If the ABS warning light does not go
off after traveling at a speed of 10
km/h (6 mi/h) or higher, or if the
warning light comes on or flashes
while riding, the brake system re-
verts to conventional braking. If ei-
ther of the above occurs, or if the
warning light does not come on at
all, use extra caution to avoid possi-
ble wheel lock during emergency
braking. Have a Yamaha dealer
check the brake system and electri-
cal circuits as soon as possible.TIPIf the start switch is pushed while the
engine is running, the ABS warning
light will come on, but this is not a mal-
function.
EAU38624
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits. (See page 3-10 for an explana-
tion of the self-diagnosis device.)
ABS
U20SE3E0.book Page 7 Monday, April 23, 2012 10:47 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU46765
Multi-function meter unit
WARNING
EWA12422
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:●
a speedometer
●
a tachometer
●
an odometer
●
two tripmeters (which show the
distance traveled since they were
last set to zero)
●
a fuel reserve tripmeter (which
shows the distance traveled since
the left segment of the fuel meter
started flashing)
●
a clock
●
a fuel meter
●
a coolant temperature display
●
a self-diagnosis device
TIP●
Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.
●
For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT”
button for at least one second.
Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 11666 r/min and above
1. Fuel meter
2. Coolant temperature display
3. Speedometer
4. Tachometer
5. Odometer/tripmeter/fuel reserve tripmeter
6. “SELECT” button
7. “RESET” button
8. Clock
ABS
1
8
2
3
4
7
6
5
1. Tachometer
2. Tachometer red zone
ABS1 2
U20SE3E0.book Page 8 Monday, April 23, 2012 10:47 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
Right
EAU12350
Pass switch “ ”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12660
Engine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU44710
The engine trouble warning light and
ABS warning light (ABS model only) will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
1. Engine stop switch “ / ”
2. Start switch “ ”
U20SE3E0.book Page 12 Monday, April 23, 2012 10:47 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-23
3

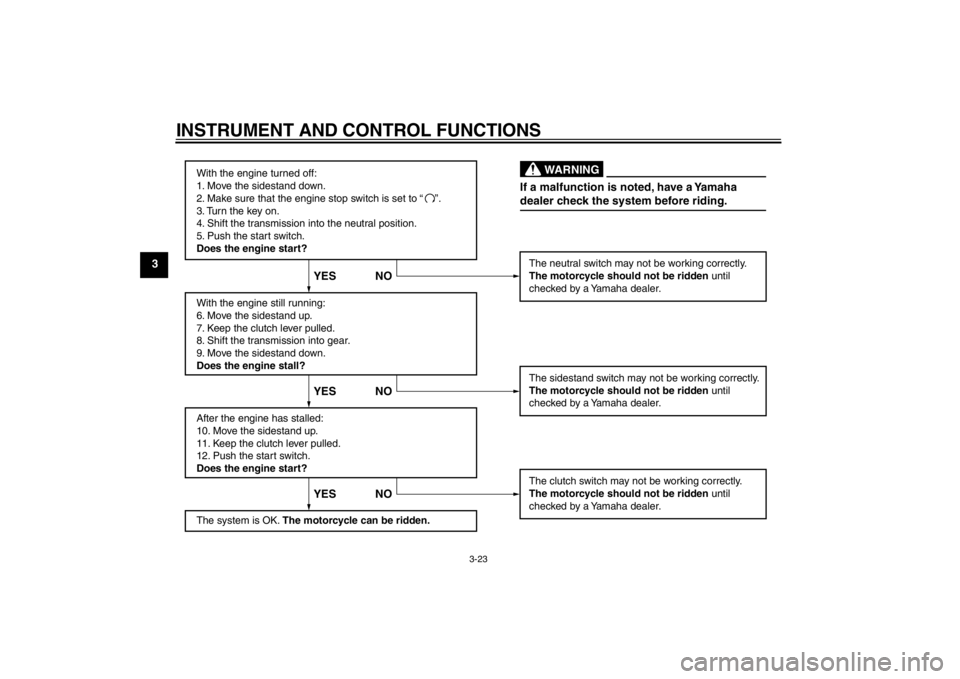

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden. The neutral switch may not be working correctly.
The motorcycle should not be ridden
until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U20SE3E0.book Page 23 Monday, April 23, 2012 10:47 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU47150
TIPThis model is equipped with:●
a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function meter unit
indicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.
●
an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the multi-function meter unit indi-
cates error code 70, but this is not
a malfunction. Push the start
switch to clear the error code and
to restart the engine.
EAU51790
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:●
The transmission is in the neutral
position.
●
The transmission is in gear with
the clutch lever pulled and the
sidestand up.
See page 3-22 for more informa-
tion.
1. Turn the key to “ON” and make sure that the engine stop switch is
set to “ ”.
The following warning lights and
indicator light should come on for a
few seconds, then go off.●
Oil level warning light
●
Coolant temperature warning
light
●
Engine trouble warning light
●
Immobilizer system indicator
light
NOTICE
ECA17670
If the above warning lights or indica-
tor light do not come on initially
when the key is turned to “ON”, or if
U20SE3E0.book Page 1 Monday, April 23, 2012 10:47 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-47
6Engine overheating
WARNING
EWA10400
●
Do not remove the radiator cap when the engine and
radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
●
After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissing
sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U20SE3E0.book Page 47 Monday, April 23, 2012 10:47 AM

INDEX
AABS (for ABS models) .......................... 3-14
ABS warning light (for ABS models) ....... 3-7
Air filter element, replacing ................... 6-17
Auxiliary light bulb, replacing ................ 6-40BBattery .................................................. 6-33
Brake and clutch levers, checking and lubricating ..................... 6-30
Brake and shift pedals, checking and lubricating ..................... 6-29
Brake fluid, changing ............................ 6-26
Brake fluid level, checking .................... 6-25
Brake lever ........................................... 3-13
Brake lever free play, checking ............ 6-23
Brake light switches (for ABS models) ................................ 6-24
Brake light switches
(for non-ABS models) ......................... 6-24
Brake pedal .......................................... 3-14CCables, checking and lubricating .......... 6-29
Care ........................................................ 7-1
Catalytic converter ................................ 3-17
Clutch lever........................................... 3-13
Clutch lever free play, adjusting ........... 6-22
Coolant ................................................. 6-13
Coolant temperature warning light.......... 3-4
Cowling and panels,
removing and installing......................... 6-8DDimmer switch ...................................... 3-12
Drive chain, cleaning and lubricating .... 6-28
Drive chain slack .................................. 6-27
EEngine break-in .......................................5-3
Engine idling speed ...............................6-18
Engine oil and oil filter cartridge ............ 6-10
Engine stop switch ................................ 3-12
Engine trouble warning light .................... 3-7FFront and rear brake pads, checking .... 6-24
Front fork, checking...............................6-31
Fuel ....................................................... 3-16
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather hose and overflow hose ...................................... 3-17
Fuel tank cap......................................... 3-15
Fuses, replacing .................................... 6-34HHandlebar position, adjusting ................ 3-20
Handlebar switches ............................... 3-11
Hazard switch........................................ 3-12
Headlight bulb, replacing....................... 6-36
Helmet holder ........................................ 3-18
High beam indicator light......................... 3-4
Horn switch ........................................... 3-12IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-22
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-7
Indicator lights and warning lights ........... 3-4LLicense plate light bulb, replacing ......... 6-40MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic..... 6-4 Maintenance, emission control system ... 6-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-1
Multi-function meter unit ......................... 3-8
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-12SSafety information ................................... 1-1
Seat ...................................................... 3-18
Shifting .................................................... 5-2
Shift pedal ............................................. 3-13
Shock absorber assembly, adjusting .... 3-20
Sidestand .............................................. 3-21
Sidestand, checking and lubricating ..... 6-31
Spark plugs, checking............................. 6-9
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-12
Steering, checking ................................ 6-32
Storage ................................................... 7-3
Storage compartment ........................... 3-19
Supporting the motorcycle .................... 6-41
Swingarm pivots, lubricating ................. 6-31TTail/brake light bulb, replacing .............. 6-38
Throttle grip and cable,
checking and lubricating ..................... 6-29
Throttle grip free play, checking............ 6-19
U20SE3E0.book Page 1 Monday, April 23, 2012 10:47 AM
