2013 YAMAHA FX HO roof

Table of contents
Transporting on a trailer ............... 63
First-time operation......................... 64 Engine break-in ............................ 64
Pre-operation checks ...................... 65
Pre-operation checklist .................... 65
Pre-operation check points .......... 67
Pre-launch checks ........................... 67
Post-launch checks ......................... 74
Operation ......................................... 75 Operating your watercraft ............. 75
Getting to know your watercraft ....... 75
Learning to operate your
watercraft ..................................... 75
Riding position ................................. 76
Launching the watercraft ................. 76
Starting the engine on water ........... 76
Stopping the engine ........................ 77
Leaving the watercraft ..................... 77
Operating the watercraft .................. 77
Turning the watercraft ..................... 78
Stopping the watercraft ................... 79
Operating the watercraft in reverse or neutral ...................................... 80
Boarding the watercraft ................... 81
Starting off ....................................... 84
Capsized watercraft ......................... 85
Beaching and docking the
watercraft ..................................... 86
Operating in weeded areas ............. 86
After removing the watercraft from the water ...................................... 87
Care and storage ............................. 88Post-operation care ...................... 88
Flushing the cooling water
passages ...................................... 88
Cleaning the watercraft ................... 89
Battery care ..................................... 89
Long-term storage ........................ 92
Cleaning .......................................... 92
Lubrication ....................................... 92 Rustproofing .................................... 93
Maintenance .................................... 94
Maintenance ................................ 94
Tool kit ............................................. 94
Removing and installing the engine
cover ............................................ 94
Periodic maintenance chart ............. 96
Engine oil and oil filter ..................... 97
Specifications.................................. 98 Specifications ................................ 98
Trouble recovery ............................. 99 Troubleshooting ........................... 99
Troubleshooting chart ...................... 99
Emergency procedures .............. 102
Cleaning the jet intake and
impeller ...................................... 102
Jumping the battery ....................... 103
Replacing the fuses ....................... 103
Replacing the bilge pump fuse ...... 105
Towing the watercraft .................... 106
Submerged watercraft ................... 107
UF2S71E0.book Page 2 Tuesday, August 21, 2012 2:33 PM

Safety information
15
tercraft to avoid accidental starting or unau-
thorized use by children or others.
●Scan carefully for swimmers and stay away
from swimming areas. Swimmers are hard
to see and you could accidentally hit some-
one in the water.
●Avoid being hit by another boat. You should
always take the responsibility to watch for
traffic; other boaters may not be watching
for you. If they do not see you, or if you ma-
neuver more quickly than other boaters ex-
pect, you risk a collision.
●Maintain a safe distance from other boats
and watercraft, and also watch for ski ropes
or fishing lines. Obey the “Safe boating
rules” and be sure to check behind you be-
fore making a turn. (See “Safe boating
rules” on page 19.)
EJU30840
Recommended equipment
The following items should be carried on
board your watercraft:
●Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to signal
other boats.
●Visual distress signals
It is recommended that a pyrotechnic de-
vice, which is approved by the appropriate
authorities, be stored in a waterproof con-
tainer on your watercraft. A mirror can also
be used as an emergency signal. Contact a
Yamaha dealer for more information.
●Watch
A watch is helpful so you will know how long
you have been operating the watercraft.
●Towline
A towline can be used to tow a disabled wa-
tercraft in an emergency.
UF2S71E0.book Page 15 Tuesday, August 21, 2012 2:33 PM

Control function operation
26
EJU31024
Watercraft control functions EJU42550Remote control transmitter
The Yamaha Security System and Low RPM
Mode settings can be selected by operating
the remote control transmitter. (See page 27
for Yamaha Security System setting proce-
dures and page 35 for Low RPM Mode activa-
tion procedures.)
Since the watercraft is programmed to recog-
nize the internal code from this transmitter
only, the settings can only be selected with
this transmitter.
If you accidentally lose your remote control
transmitter or if it is not operating properly,
contact a Yamaha dealer.
When operating the watercraft, always keep
the transmitter with you, such as by storing it
in the transmitter holder in the built-in water- tight storage compartment, so that it is not
lost.
NOTICE
ECJ00752
●The remote control transmitter is not
completely waterproof. Do not sub-
merge the transmitter or operate it un-
derwater. If the transmitter is
submerged, dry it with a soft, dry cloth,
and then check that it is operating prop-
erly. If the transmitter is not operating
properly, contact a Yamaha dealer.
●Keep the remote control transmitter
away from high temperatures and do not
place it in direct sunlight.
●Do not drop the remote control transmit-
ter, subject it to strong shocks, or place
any heavy items on it.
●Use a soft, dry cloth to clean the remote
control transmitter. Do not use deter-
gent, alcohol, or other chemicals.
●Do not attempt to disassemble the re-
mote control transmitter yourself. Other-
wise, the transmitter may not operate
properly. If the transmitter needs a new
battery, contact a Yamaha dealer. Refer
to local hazardous waste regulations
when disposing of transmitter batteries.
1
Remote control transmitter
1Transmitter holder
1
UF2S71E0.book Page 26 Tuesday, August 21, 2012 2:33 PM

Equipment operation
52
breaks, the watercraft could fall, which
could result in severe injury.
[EWJ01510]
EJU34892
Pull-up cleats (FX Cruiser SHO)
The pull-up cleats are used to attach a rope to
the watercraft when mooring it.
To use a pull-up cleat, pull it up. The pull-up
cleat returns automatically to its original posi-
tion when released. WARNING! Do not use
the pull-up cleats to lift the watercraft. The
pull-up cleats are not designed to support
the watercraft’s weight. If the pull-up
cleats break, the watercraft could fall,
which could result in severe injury.
[EWJ00821]
EJU42290
Storage compartments
This watercraft is equipped with the following
storage compartments.
Only the securely closed watertight storage
compartments are waterproof. If you carry ob- jects that must be kept dry, put them in a wa-
terproof bag.
Make sure that the storage compartments are
closed securely before operating the water-
craft.
EJU42210Bow storage compartment
The bow storage compartment is located un-
der the hood.
To open the bow storage compartment:
Pull the hood latch rearward, and then lift up
the rear of the hood.
1
Cleat
1 Pull-up cleat
1
1
1Hood latch
1 Bow storage compartment
Bow storage compartment:
Capacity: 90.0 L (23.8 US gal, 19.8 Imp.gal)
Load limit:
5.0 kg (11 lb)
1
1
UF2S71E0.book Page 52 Tuesday, August 21, 2012 2:33 PM

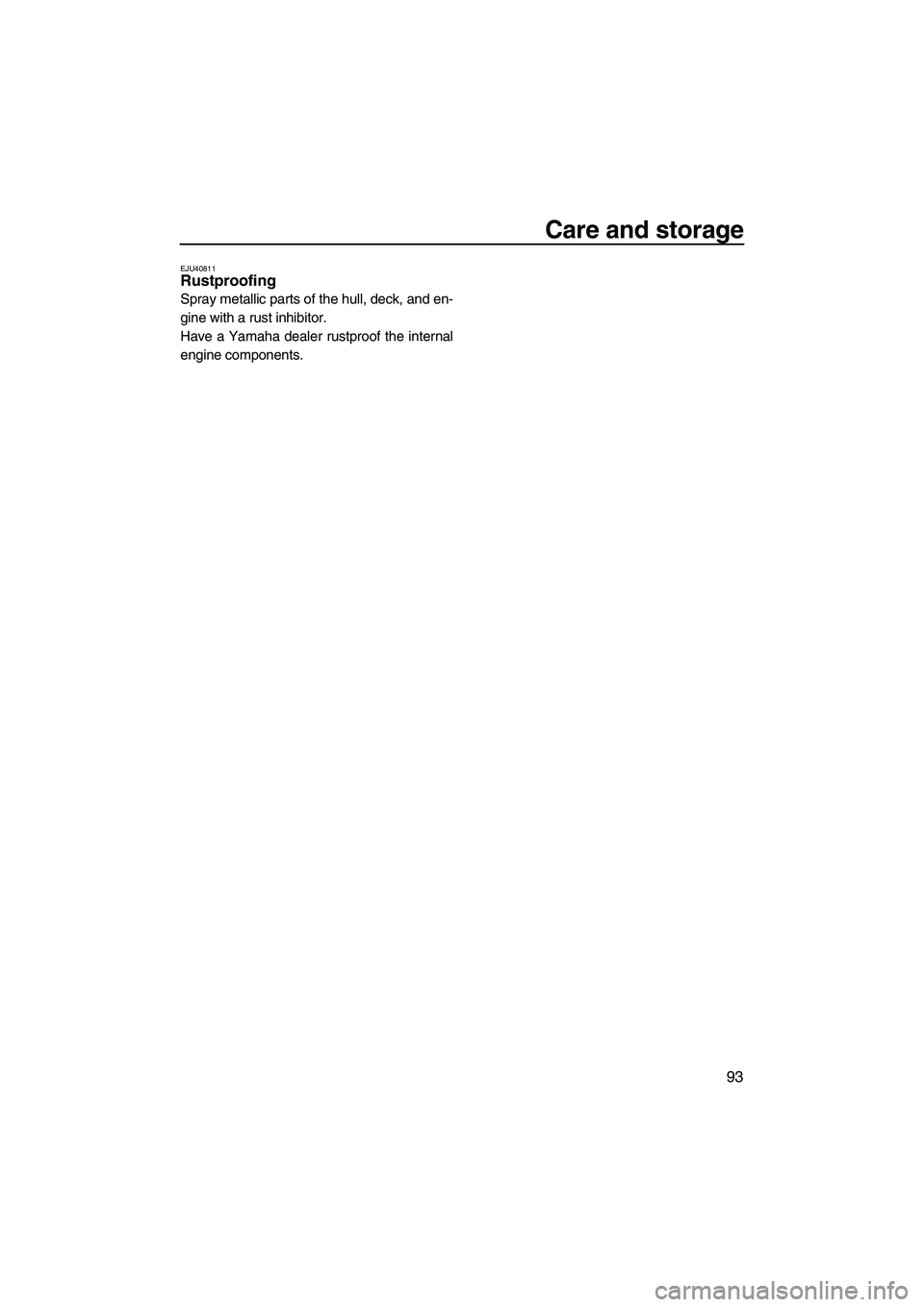

Care and storage
93
EJU40811Rustproofing
Spray metallic parts of the hull, deck, and en-
gine with a rust inhibitor.
Have a Yamaha dealer rustproof the internal
engine components.
UF2S71E0.book Page 93 Tuesday, August 21, 2012 2:33 PM

Maintenance
94
EJU33768
Maintenance
Periodic checks and lubrication will keep your
watercraft in the safest and most efficient con-
dition possible. Therefore, make sure to carry
out the periodic maintenance. Safety is an ob-
ligation of the watercraft owner. Proper main-
tenance must be carried out to keep the
exhaust emission and sound levels within the
regulated limits. The most important points of
watercraft inspection and lubrication are ex-
plained on the following pages.
See a Yamaha dealer for genuine Yamaha re-
placement parts and optional accessories de-
signed for your watercraft.
Remember, failures that are the result of the
installation of parts or accessories which are
not qualitatively equivalent to genuine
Yamaha parts are not covered by the limited warranty.
Maintenance, replacement, or repair of the
emission control devices and system may
be performed by any marine SI engine re-
pair establishment or individual. Warranty
repair, however, must be performed at an
authorized Yamaha marine dealership.
WARNING
EWJ00311
Be sure to turn off the engine when you
perform maintenance unless otherwise
specified. If you are not familiar with ma-
chine servicing, this work should be done
by a Yamaha dealer or other qualified me-
chanic.
EJU33802Tool kit
A tool kit is included with this watercraft. Place
the tool kit in a waterproof bag and always carry it with you whenever you use the water-
craft.
EJU42020Removing and installing the engine
cover
The engine cover is removable.
To remove the engine cover:
(1) Remove the seats. (See page 49 for seat
removal and installation procedures.)
(2) Remove the engine cover screws.
1 Tool bag
2 Screwdriver
3 Garden hose adapter
4 10/12 mm box wrench
5 Pliers
6 Open-end wrench
1 Engine cover screw
1
UF2S71E0.book Page 94 Tuesday, August 21, 2012 2:33 PM

Index
Learning to operate your watercraft ......... 75
Leaving the watercraft .............................. 77
Limitations on who may operate the watercraft ........................................ 11
Long-term storage .................................... 92
Low RPM Mode........................................ 35
Lubrication................................................ 92
M
Main components, location of .................. 22
Maintenance............................................. 94
Manufactured date label............................. 2
Model information....................................... 2
Multifunction display (FX Cruiser SHO) ... 45
Multifunction information center ............... 40
Multifunction information center check ..... 74
N
No-wake mode ......................................... 36
O
Oil pressure warning ................................ 44
Operating in weeded areas ...................... 86
Operating the watercraft........................... 77
Operating the watercraft in reverse or neutral ................................................... 80
Operating your watercraft......................... 75
Operation requirements ........................... 13
P
Periodic maintenance chart...................... 96
Post-launch checks .................................. 74
Post-operation care .................................. 88
Pre-launch checks.................................... 67
Pre-operation check points ...................... 67
Pre-operation checklist............................. 65
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats (FX Cruiser SHO) .............. 52
Q
Quick Shift Trim System (Q.S.T.S.) ......... 33
Quick Shift Trim System (Q.S.T.S.) checks................................................... 70
R
Reboarding grip........................................ 50
Reboarding step ....................................... 50
Recommended equipment ....................... 15
Remote control transmitter ....................... 26
Remote control transmitter check ............ 72
Riding position.......................................... 76 Rustproofing ............................................. 93
S
Safe boating rules .................................... 19
Safety equipment check ........................... 73
Seats ........................................................ 49
Shift system.............................................. 32
Shift system checks ................................. 71
Start switch............................................... 28
Starting off ................................................ 84
Starting off from a trailer ........................... 85
Starting the engine on water .................... 76
Steering system ....................................... 29
Steering system checks ........................... 69
Stern drain plug checks ............................ 73
Stern eyes ................................................ 51
Stern storage compartment ...................... 54
Stopping the engine ................................. 77
Stopping the watercraft ............................ 79
Storage compartment checks .................. 72
Storage compartments ............................. 52
Submerged watercraft ............................ 107
Switch checks .......................................... 72
T
Throttle lever ............................................ 29
Throttle lever checks ................................ 71
Tool kit...................................................... 94
Towing the watercraft ............................. 106
Transporting on a trailer ........................... 63
Troubleshooting ....................................... 99
Troubleshooting chart .............................. 99
Turning the watercraft .............................. 78
W
Water separator ....................................... 31
Water separator check ............................. 67
Watercraft characteristics ......................... 16
Watercraft control functions ..................... 26
Watercraft operation functions ................. 32
Watercraft operation modes ..................... 35
Water-skiing ............................................. 18
Watertight storage compartments ............ 55
Y
Yamaha Security System ......................... 27
Yamaha Security System settings ........... 27
UF2S71E0.book Page 2 Tuesday, August 21, 2012 2:33 PM
