Instrument operation
43
TIP:
The hour meter is selected at the Yamaha
factory.
Hour meter
The hour meter shows the total number of
hours that the engine has been running since
the watercraft was new.
TIP:
The elapsed time will be kept even if the bat-
tery terminals have been disconnected.
To switch to the hour meter from the voltme-
ter:
Push the “VOLT/HOUR” button for at least 1
second after the multifunction information
center is activated for more than 10 seconds.
The display switches to the hour meter from
the voltmeter.Voltmeter
The voltmeter shows the battery voltage.
When the battery voltage is normal, the volt-
meter displays approximately 12 volts.
If the battery voltage has dropped significant-
ly, “LO” is displayed on the voltmeter. If the
battery voltage has risen significantly, “HI” is
displayed. If “LO” or “HI” is displayed, immedi-
ately return to shore and have a Yamaha
dealer service the watercraft.
To switch to the voltmeter from the hour
meter:
Push the “VOLT/HOUR” button for at least 1
second after the multifunction information
center is activated for more than 10 seconds.
The display switches to the voltmeter from the
hour meter.
EJU31514Fuel level meter
The fuel level meter shows the amount of fuel
remaining in the fuel tank. The amount of re-
maining fuel is shown using eight display seg-
ments, which disappear two at a time as the
fuel level decreases.
1
Hour meter/voltmeter
1 “VOLT/HOUR” button
2 Hour meter
1
21
1“VOLT/HOUR” button
2 Vo l t m e t e r
21
UF2S71E0.book Page 43 Tuesday, August 21, 2012 2:33 PM

Instrument operation
45
ously. At the same time, the engine speed is
limited.
If the engine overheat warning is activated,
immediately reduce the engine speed, return
to shore, and then make sure that water is be-
ing discharged from the port (left) cooling wa-
ter pilot outlet while the engine is running. If
there is no discharge of water, stop the en-
gine, and then check the jet intake for clog-
ging. (See page 102 for information on the jet
intake.) NOTICE: If you cannot locate and
correct the cause of the overheating, con-
sult a Yamaha dealer. Continuing to oper-
ate at higher speeds could result in severe
engine damage.
[ECJ00041]
TIP:
Push any of the operation buttons for the mul-
tifunction information center to stop the buzz-
er.
EJU42280Check engine warning
If a sensor malfunction or a short circuit is de-
tected, the check engine warning indicator
and the “WARNING” indicator light blink, and
the buzzer sounds intermittently.
If the check engine warning is activated, im-
mediately reduce the engine speed, return to
shore, and have a Yamaha dealer check the
engine.
TIP:
Push any of the operation buttons for the mul-
tifunction information center to stop the buzz-
er.
EJU42251Multifunction display (FX Cruiser
SHO)
The multifunction display shows the following
information.
The display units of the multifunction display
are selected according to the display units of
the digital speedometer. (To change the dis-
play units, see page 41 for digital speedome-
ter display selection procedures.)
When “km/h” are selected as the display units
of the digital speedometer, values are shown
in kilometers/liters/degrees Celsius.
UF2S71E0.book Page 45 Tuesday, August 21, 2012 2:33 PM

Instrument operation
46
When “mph” are selected as the display units
of the digital speedometer, values are shown
in miles/gallons/degrees Fahrenheit.
To switch the display mode, push the
“MODE/RESET” button for less than 1 sec-
ond. The display mode changes in the follow-
ing order.
Compass
This display shows the current direction of the
watercraft using the 8 major compass points.
TIP:
●The current heading of the watercraft can
be shown in degrees together with the com-
pass points.
●The accuracy of the compass and heading
varies depending on the operating condi-
tions. Use this function as a reference only.To display the heading:
(1) While pushing the “START/STOP” but-
ton, start the engine.
(2) Release the “START/STOP” button brief- ly, and then push the “START/STOP”
button again for 2 seconds or more.
TIP:
Push the “START/STOP” button within 10
seconds after the multifunction information
center is activated.
Average speed
This display shows the average speed in kilo-
meters per hour “AV KMH” or miles per hour
“AV MPH” since the measurement was start-
ed.
1Multifunction display
1 “MODE/RESET” button
1
1
UF2S71E0.book Page 46 Tuesday, August 21, 2012 2:33 PM

Instrument operation
47

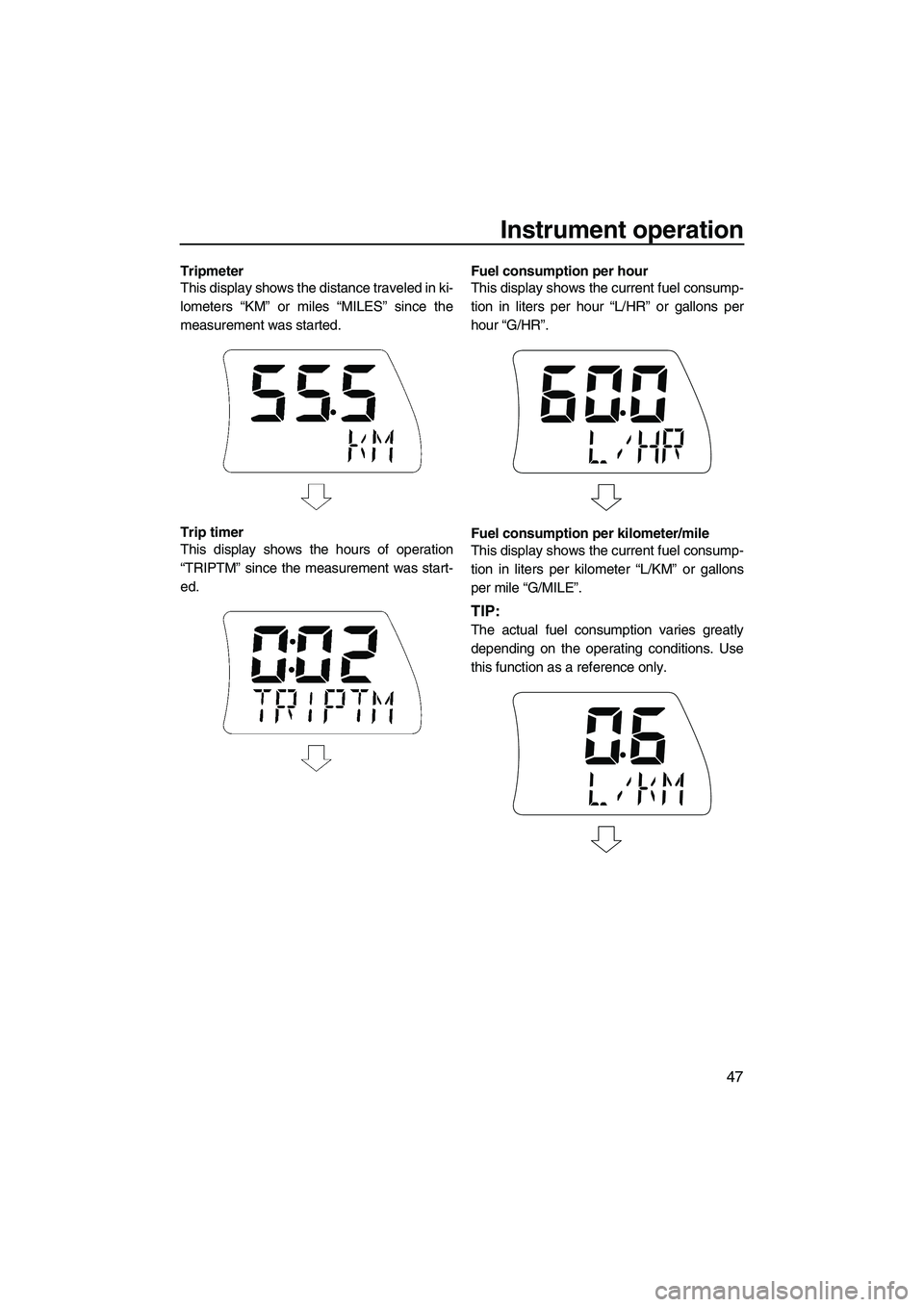

Tripmeter
This display shows the distance traveled in ki-
lometers “KM” or miles “MILES” since the
measurement was started.
Trip timer
This display shows the hours of operation
“TRIPTM” since the measurement was start-
ed.Fuel consumption per hour
This display shows the current fuel consump-
tion in liters per hour “L/HR” or gallons per
hour “G/HR”.
Fuel consumption per kilometer/mile
This display shows the current fuel consump-
tion in liters per kilometer “L/KM” or gallons
per mile “G/MILE”.
TIP:
The actual fuel consumption varies greatly
depending on the operating conditions. Use
this function as a reference only.
UF2S71E0.book Page 47 Tuesday, August 21, 2012 2:33 PM

Instrument operation
48
Water temperature
This display shows the ambient water temper-
ature “L TEMP” (lake temperature).
Air temperature
This display shows the ambient air tempera-
ture “E TEMP” (environmental temperature).
Average speed/Tripmeter/Trip timer
modes
Average speed, distance traveled, and trip
time are recorded once the “START/STOP”
button is pushed to start the measurements,
regardless of the current display.
TIP:
The measurements are performed only while
the engine is running.
The measurements are not saved if the en-
gine is stopped. The measurements are resetautomatically when the displays go off 25 sec-
onds after the engine stops.
To start the measurements:
Push the “START/STOP” button for less than
1 second. The beeper sounds once and the
measurements start.
To stop the measurements:
Push the “START/STOP” button for less than
1 second while the measurements are being
recorded. The beeper sounds once and the
measurements stop.
To restart the measurements:
Push the “START/STOP” button for less than
1 second while the measurements are
stopped. The beeper sounds once and the
measurements restart.
To reset the measurements:
Push the “MODE/RESET” button for at least 2
seconds while the measurements are
stopped. The beeper sounds twice and the
measurements are reset.
1
“START/STOP” button
2 “MODE/RESET” button
1
2
UF2S71E0.book Page 48 Tuesday, August 21, 2012 2:33 PM
