06 Infotainment
Rear Seat Entertainment (RSE)*
06

* Option/accessory, for more information, see Introduction.257
to select the desired source (Disc or USB),
release the button and wait several sec-
onds for your selection to be accepted.
3. Insert a DVD in the infotainment system's
media player, or connect an external
device to the vehicle's USB socket.
Playback and navigation
Play a video track/video file by pressing
on the remote control and change tracks/video
files by pressing
/. Stop playback
by pressing
. See page231 for more infor-
mation about playback and navigation on
video DVDs and page 232 for information
about playing video files.
Fast forward/reverse
Press and hold the / buttons to fast
forward/reverse. Fast forward/reverse can be
done at several speeds for video files by briefly
pressing these buttons to increase the speed.
Fast forward/reverse is done at one speed for
audio files. Stop fast forward/reverse by press-
ing
, or the / buttons.
Listening to the radioYou can also listen to the infotainment sys-
tem's radio through the RSE system.1. Switch on the cordless headphones, select
CH.A for the left screen or CH.B for the
right screen.
2. Point the remote control toward a screen's
IR transceiver and press
one or more
times to come to the desired source (
AM,FM1, SAT1*, etc.), release the button and
wait several seconds for your selection to
be accepted.
3. Select a station using one of the preset
buttons (0 - 9) on the remote control or
press
/ to search for the next/
previous available station.
See page 221 for more information about the
radio.
RSE menus
IntroductionSettings in the RSE menus can be made from
the front center console control panel or by
using the remote control in the rear seat. A
source for one of the rear screens can be acti-
vated from the front center control panel and
certain settings for the rear screens can also be
made from this panel.
RSE front screen menus
To access this menu, begin by selecting RSEunder MEDIA by pressing this button on the
front center console (or by using the remote
control or the steering wheel keypad). Continue
by pressing OK/MENU to access the menu.
Turn TUNE to the desired selection and con-
firm by pressing OK/MENU.
Settings can be made for the left or right rear
screen separately or for both screens (
Left
RSE screen menu, Right RSE screen
menu and Both RSE screen menus):
Power off/Power on
RADIO
MEDIA
RSE settings
Mute
Display off
Disable remote control (front)
Reset all RSE settings

06 Infotainment
Remote control*
06
260* Option/accessory, for more information, see Introduction.
Remote control1
The remote control included with the Rear Seat
Entertainment system (RSE)* can be used to
control all of the infotainment system's func-
tions.
To use the remote, begin by pressing its
button to select a screen (L: left rear
screen, F: front screen, or R: right rear screen).
Continue by pointing the remote toward the
selected rear screen's IR transceiver (see the
illustration on page 251) or to the front screen's
IR transceiver located to the right of the INFO
button on the center console.
To control one of the rear RSE screens, select
L (left)/R (right) using the remote's
but-
ton. Continue by pointing the remote at the
selected screen's IR transceiver (see the illus-
tration on page 251 for its location).
WARNING
To help avoid the risk of injuries in the event
of sudden braking or a collision, always
stow loose objects such as the remote con-
trol, cell phones, cameras, etc. in the glove
compartment or other storage compart-
ments when not in use.
The scroll wheel has the same function as
TUNE in the center console control panel.
NOTE
Avoid exposing the remote control to strong
sunlight, for instance by leaving it on the
dashboard. This could cause problems with
its batteries.
ButtonFunction
Select a screen (L: left rear), (F:
front) or (R: right rear)
Switch to the optional Volvo Nav-
igation system
Select one of the infotainment
system's radio wavebands (AM,FM1, etc.)
Select one of the infotainment
system's sources (Disc, USB,
etc.)
Select the BluetoothŸ hands-free
feature
Fast reverse, change tracks/
songs
Play/pause
1Vehicles with the optional Rear Seat Entertainment system only.

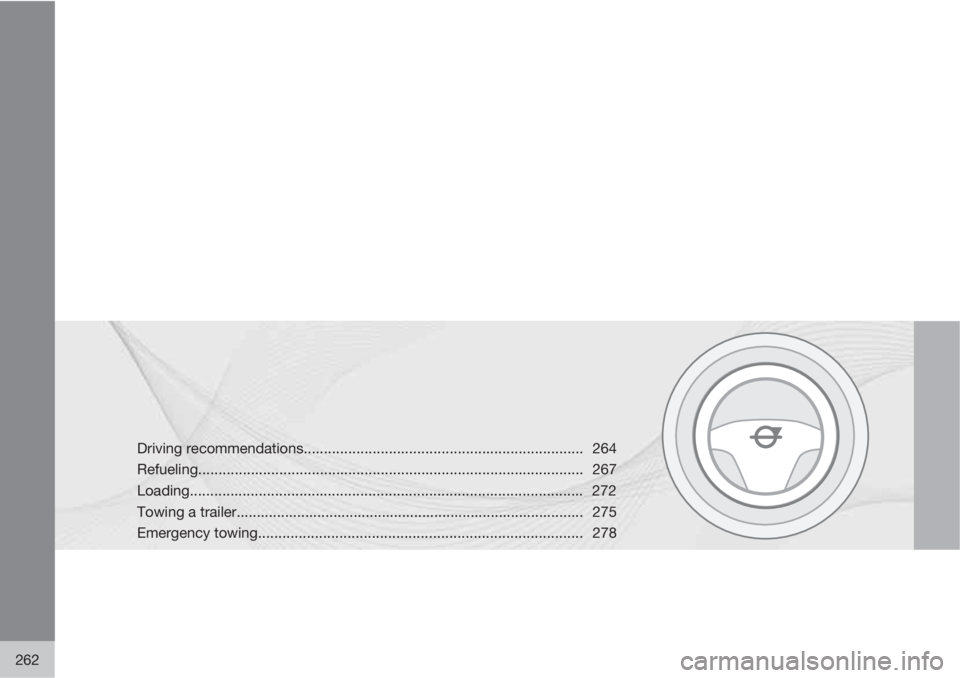

262
Driving recommendations..................................................................... 264
Refueling............................................................................................... 267
Loading................................................................................................. 272
Towing a trailer...................................................................................... 275
Emergency towing................................................................................ 278

07 During your trip
Driving recommendations
07
265
Driving through water
•The vehicle can be driven through water up
to a depth of approximately 10 in. (25 cm),
at a maximum speed of 6 mph (10 km/h).
•Take particular care when driving through
flowing water.
•Clean the electrical connections for trailer
wiring after driving in mud or water.
•When driving through water, maintain low
speed and do not stop in the water.
WARNING
After driving through water, press lightly on
the brake pedal to ensure that the brakes
are functioning normally. Water or mud can
make the brake linings slippery, resulting in
delayed braking effect.
CAUTION
•Engine damage will occur if water is
drawn into the air cleaner.
•If the vehicle is driven through water
deeper than 10 in (25 cm), water may
enter the differential and the transmis-
sion. This reduces the oil's lubricating
capacity and may shorten the service
life of these components.
•Do not allow the vehicle to stand in
water up to the door sills longer than
absolutely necessary. This could result
in electrical malfunctions.
•If the engine has been stopped while the
vehicle is in water, do not attempt to
restart it. Have the vehicle towed out of
the water.
Engine and cooling systemUnder special conditions, for example when
driving in hilly terrain, extreme heat or with
heavy loads, there is a risk that the engine and
cooling system will overheat. Proceed as fol-
lows to avoid overheating the engine.
•Maintain a low speed when driving with a
trailer up long, steep hills.
•Do not turn the engine off immediately
when stopping after a hard drive.
WARNING
The cooling fan may start or continue to
operate (for up to 6 minutes) after the engine
has been switched off.
•Remove any auxiliary lights from in front of
the grille when driving in hot weather con-
ditions.
•Do not exceed engine speeds of 4500 rpm
if driving with a trailer in hilly terrain. The oil
temperature could become too high.
Conserving electrical currentKeep the following in mind to help minimize
battery drain:
•When the engine is not running, avoid
using ignition mode II. Many electrical sys-
tems (the audio system, the optional navi-
gation system, power windows, etc) will
function in ignition modes 0 and I. These
modes reduce drain on the battery.
•Please keep in mind that using systems,
accessories, etc., that consume a great
deal of current when the engine is not run-
ning could result in the battery being com-
pletely drained. Driving or having the
engine running for approximately
15 minutes will help keep the battery
charged.

07 During your trip
Refueling
07
268
Octane rating
Minimum octane
G028920
Typical pump octane label
Volvo recommends premium fuel for best per-
formance, but using 87 octane1 or above will
not affect engine reliability.
Demanding drivingIn demanding driving conditions, such as oper-
ating the vehicle in hot weather, towing a trailer,
or driving for extended periods at higher alti-
tudes than normal, it may be advisable to
switch to higher octane fuel (91 or higher) or to
change gasoline brands to fully utilize your
engine's capacity, and for the smoothest pos-
sible operation.
NOTE
When switching to higher octane fuel or
changing gasoline brands, it may be neces-
sary to fill the tank more than once before a
difference in engine operation is noticeable.
Fuel FormulationsDo not use gasoline that contains lead as a
knock inhibitor, and do not use lead additives.
Besides damaging the exhaust emission con-
trol systems on your vehicle, lead has been
strongly linked to certain forms of cancer.
Many fuels contain benzene as a solvent.
Unburned benzene has been strongly linked to
certain forms of cancer. If you live in an area
where you must fill your own gas tank, take
precautions. These may include:
•standing upwind away from the filler nozzle
while refueling
•refueling only at gas stations with vapor
recovery systems that fully seal the mouth
of the filler neck during refueling
•wearing neoprene gloves while handling a
fuel filler nozzle.
Use of AdditivesWith the exception of gas line antifreeze during
winter months, do not add solvents, thicken-ers, or other store-bought additives to your
vehicle's fuel, cooling, or lubricating systems.
Overuse may damage your engine, and some
of these additives contain organically volatile
chemicals. Do not needlessly expose yourself
to these chemicals.
WARNING
Never carry a cell phone that is switched
on while refueling your vehicle. If the phone
rings, this may cause a spark that could
ignite gasoline fumes, resulting in fire and
injury.
WARNING
Carbon monoxide is a poisonous, colorless,
and odorless gas. It is present in all exhaust
gases. If you ever smell exhaust fumes
inside the vehicle, make sure the passenger
compartment is ventilated, and immediately
return the vehicle to a trained and qualified
Volvo service technician for correction.
1AKI (ANTI KNOCK INDEX) is an average of the Research Octane Number (RON) and the Motor Octane Number (MON), MON+RON/2.

07 During your trip
Towing a trailer
07
275 Introduction
Volvo recommends the use of Volvo trailer
hitches that are specially designed for the vehi-
cle.
NOTE
See page 351 for the maximum trailer and
tongue weights recommended by Volvo.
•Observe the legal requirements of the
state/province in which the vehicles are
•All Volvo models are equipped with
energy-absorbing shock-mounted bump-
ers. Trailer hitch installation should not
interfere with the proper operation of this
bumper system.
Trailer towing does not normally present any
particular problems, but take into considera-
tion:
•Increase tire pressure to recommended full
pressure. See the tire inflation table on
page 289.
•When your vehicle is new, avoid towing
heavy trailers during the first 620 miles
(1,000 km).
•Maximum speed when towing a trailer:
50 mph (80 km/h).
•Engine and transmission are subject to
increased loads. Therefore, engine coolant
temperature should be closely watchedwhen driving in hot climates or hilly terrain.
Use a lower gear and turn off the air con-
ditioner if the temperature gauge needle
enters the red range.
•If the automatic transmission begins to
overheat, a message will be displayed in
the text window.
•Avoid overload and other abusive opera-
tion.
•Hauling a trailer affects handling, durabil-
ity, and economy.
•It is necessary to balance trailer brakes
with the towing vehicle brakes to provide a
safe stop (check and observe state/local
regulations).
•Do not connect the trailer's brake system
directly to the vehicle's brake system.
•More frequent vehicle maintenance is
required.
•Remove the ball holder when the hitch is
not being used.
•Volvo recommends the use of synthetic
engine oil when towing a trailer over long
distances or in mountainous areas.
WARNING
•Bumper-attached trailer hitches must
not be used on Volvos, nor should
safety chains be attached to the
bumper.
•Trailer hitches attaching to the vehicle
rear axle must not be used.
•Never connect a trailer's hydraulic
brake system directly to the vehicle
brake system, nor a trailer's lighting
system directly to the vehicle lighting
system. Consult your nearest author-
ized Volvo retailer for correct installa-
tion.
•When towing a trailer, the trailer's safety
wire must be correctly fastened to the
hole or hook provided in the trailer hitch
on the vehicle. The safety wire should
never be fastened to or wound around
the drawbar ball.

07 During your trip
Towing a trailer
07
276
NOTE
•When parking the vehicle with a trailer
on a hill, apply the parking brake before
putting the gear selector in P. Always
follow the trailer manufacturer's recom-
mendations for wheel chocking.
•When starting on a hill, put the gear
selector in D before releasing the park-
ing brake. See also page 123 for more
detailed information about starting off
on a hill while towing a trailer.
•If you use the manual (Geartronic) shift
positions while towing a trailer, make
sure the gear you select does not put
too much strain on the engine (using too
high a gear).
•The drawbar assembly/trailer hitch may
be rated for trailers heavier than the
vehicle is designed to tow. Please
adhere to Volvo's recommended trailer
weights.
•Avoid driving with a trailer on inclines of
more than 15%.
Trailer cableAn adapter is required if the vehicle's trailer
hitch has a 13-pin connector and the trailer has
7 pins. Use an adapter cable approved by
Volvo. Make sure the cable does not drag on
the ground.
Detachable trailer hitch (accessory)
A
C
EDBG010496
Ball holder
Locking bolt
Cotter pin
Hitch assembly
Safety wire attachment
Installing the ball holder1. If necessary, remove the cotter pin from
the locking bolt and slide the locking bolt
out of the hitch assembly.
2. Slide the ball holder into the hitch assem-
bly.
3. Align the hole in the ball holder with the one
in the hitch assembly.4. Slide the locking bolt through the hitch
assembly/ball holder.
5. Insert the cotter pin in the hole at the end
of the locking bolt.
Removing the ball holder1. Remove the cotter pin from the locking bolt
and slide the locking bolt out of the ball
holder/hitch assembly.
2. Pull the ball holder out of the hitch assem-
bly.
NOTE
A cover for the hitch assembly is also
included in the kit.
Trailer Stability Assist (TSA)
Trailer Stability Assist is a system designed to
help stabilize a vehicle that is towing a trailer
when the vehicle and trailer have begun to
sway and is part of the Dynamic Stability and
Traction Control system (DSTC). See page
128 for information on DSTC.
FunctionA vehicle towing a trailer may begin to sway for
various reasons. Normally this only occurs at
high speeds but, for example, if the trailer is
overloaded or if the load is unevenly distributed
in the trailer, there is risk of swaying at speeds

07 During your trip
Towing a trailer
07
277
between approximately 45-55 mph (70-90 km/
h).
Swaying may be caused by factors such as:
•The vehicle and trailer are hit by a sudden,
strong crosswind
•The vehicle and trailer are traveling on an
uneven road surface or drive over a bump
•Sudden movements of the steering wheel
Facts about TSA
•TSA intervenes at speeds above approxi-
mately 40 mph (60 km/h)
•The DSTC symbol () in the instru-
ment panel will flash when TSA is working
•If the driver switches off the DSTC sys-
tem's Spin Control function, TSA will also
be switched off (but will be on again the
next time the engine is started)
•TSA may not intervene when the vehicle
and trailer begin to sway if the driver tries
to compensate for the swaying motion by
moving the steering wheel rapidly
How TSA worksOnce swaying has begun, it can be very diffi-
cult to stop, which makes it difficult to control
the vehicle and trailer.
The TSA system continuously monitors the
vehicle's movements, particularly lateralmovement. If the system detects a tendency to
sway, the brakes are applied individually on the
front wheels, which has a stabilizing effect on
the vehicle and trailer. This is often enough to
enable the driver to regain control of the vehi-
cle.
If this is not adequate to stop the swaying
motion, the brakes are applied to all of the
wheels on the vehicle and on the trailer if it is
equipped with brakes, and engine power is
temporarily reduced. As the swaying motion
begins to decrease and the vehicle-trailer have
once again become stable, TSA will no stop
regulating the brakes/engine power and the
driver regains control of the vehicle.
