2013 VOLVO S80 ESP

06 Infotainment
Cell phone voice control
06

249
Voice output volume
Press MY CAR and go to SettingsVoice
settings
Voice output volume. Press OK/
MENU and turn TUNE to raise or lower the
volume. Press EXIT to save the change and
exit the menu.
Using voice commands
The driver initiates a voice command dialogue
by pressing the voice control button (see the
illustration on page 248).
When a dialogue has been initiated, commonly
used commands will be shown in the display.
Grayed-out texts or texts in parentheses are
not part of the spoken command.
Once you become familiar with the system, you
can speed up the command dialogue by briefly
pressing the voice control button to skip
prompts from the system.
Commands can be given in several ways.
For example, the command "Phone call con-
tact" can be spoken as:
•"Phone > Call contact"—say "Phone," wait
for a system response, and then continue
by saying "Call contact."
•"Phone call contact"—give the entire com-
mand at one timeThe following is a list of features that can be
voice-controlled with a Bluetooth
Ÿ-connected
cell phone.
ShortcutsShortcut commands for using the phone can
be found in the MY CAR menu system, under
Settings
Voice settingsVoice
command list
Phone commands and
General commands. See page 185 for more
information on the menu system.
Dialing a numberThe system understands the digits zero to nine.
These numbers can be spoken individually, in
groups of several digits at a time, or the entire
number can be given at once. Numbers above
nine will not be recognized.
The following is an example of a voice com-
mand dialogue. The system's response may
vary depending on the situation.
The user initiates the dialogue by saying:Phone > dial number
or
Phone dial number
System responseNumber please
User actionBegin saying the digits in the phone number. If
you say several digits and pause, the system
will repeat them and prompt you by saying
"Continue."
Continue saying the digits. When you have fin-
ished, complete the command by saying
"Dial."
•You can also change the number by using
the commands "Correction" (which dele-
tes the last group of digits spoken) or
"Delete" (which will erase the entire phone
number).
Dialing from a call listThe dialogue below enables you make a call
from one of your cell phone's call lists.
The user initiates the dialogue by saying:Phone > dial from call list
or
Phone dial from call list
Continue by responding to the system's
prompts.
Calling a contactThe dialogue below enables you to call the pre-
defined contacts in your cell phone. See the
phone's user's guide if necessary.

06 Infotainment
Cell phone voice control
06
250
The user initiates the dialogue by saying:Phone > call contact
or
Phone call contact
Continue by responding to the system's
prompts.
When calling contacts, keep the following in
mind:
•If there are several contacts with similar
names, they will be presented in the dis-
play in numbered lines and the system will
prompt you to pick a line number
•If there are more lines in the list than can
be displayed at one time, saying "Down"
will enable you to scroll downward in the
list (and saying "up" will take you back up
through the list).
Dialing voice mailThe dialogue below enables you to call your
voice mail to check any messages that you
may have received. Your voice mail phone
number must be registered in the Bluetooth
Ÿ
function, see page 243.
The user initiates the dialogue by saying:Phone > dial voice mail
or
Phone dial voice mailContinue by responding to the system's
prompts.

06 Infotainment
Rear Seat Entertainment (RSE)*
06

* Option/accessory, for more information, see Introduction.251 Overview
Screen: channel A (left), channel B (right)
Headphone socket
On/Off button
A/V-AUX socket
Remote control
Headphones
IR transceiver
Introduction
The RSE system1 provides entertainment for
the rear seat passengers by making it possible
to e.g., watch a film, play music, listen to the
radio or connect an external device such as a
game console.
RSE is fully integrated into the vehicle's info-
tainment system and can be used at the same
time as other infotainment features.
For example, if a rear seat passenger is using
A/V-AUX and headphones, the driver and front
seat passenger can still use the vehicle's radioor media player. However, only one disc can be
played in the media player at a time. You can
listen to music from e.g., an iPodŸ or from
streaming audio files using the BluetoothŸ
function.
The RSE system can be controlled from the
front screen (parental control).
Different media can be played or viewed from
different sources on the various screens (front
center console and/or the respective screens
in the rear seat). It is also possible to play or
view media from the same source on one or
1This system may not be available as an option on all markets.

06 Infotainment
Rear Seat Entertainment (RSE)*
06
* Option/accessory, for more information, see Introduction.253
NOTE
The headphones will switch off automati-
cally after approx. 3 minutes if they are not
used.
Replacing batteries in the headphonesThe headphones use two AAA batteries.
It is advisable to have extra batteries on hand
during long trips.
Battery cover and retaining screw
1. Unscrew the retaining screw and remove
the battery cover.
2. Remove the old batteries and insert new
ones in the directions indicated by the
symbols in the battery holder.
3. Put the cover back in place and tighten the
retaining screw.
Disposing of old batteriesWorn out batteries should be disposed of in an
environmentally responsible manner.
Headphone socket
External headphones can be connected to the
3.5 mm headphone socket on the side of the
head restraint (see the illustration on page
251 for the location of this socket). Adjust the
volume with the remote control.
A/V-AUX socket, 12-volt socket
This A/V-AUX socket is used to connect exter-
nal devices to the RSE system. When connect-
ing an external device, always follow the
instructions provided with the device. Devices
connected through the A/V-AUX socket can
use the screens, cordless headphones, the
3.5 mm headphone socket and the infotain-
ment system's speakers.
CAUTION
Please be aware that external devices con-
nected through the A/V-AUX socket may
cause interference in the RSE system.
Connecting a device to the A/V-AUX
socket
The A/V-AUX socket is located under the center
armrest in the tunnel console
1. Connect the device's video cable to the
yellow connector.
2. Connect the left audio cable to the white
connector and the right audio cable to the
red one.
3. If the device is designed to use 12-volt cur-
rent, connect its power cable to the 12-volt
socket (see page 205 for the location of this
socket).
Always follow the device's instructions when
connecting it to the RSE system.

06 Infotainment
Rear Seat Entertainment (RSE)*
06
254* Option/accessory, for more information, see Introduction.
Audio/video playback through the A/V-
AUX socket
1. Switch on one of the rear screens by press-
ing its On/Off button.
2.
Use the remote control's
button to
select a screen (L: left rear screen, F: front
screen, or R: right rear screen). Point the
remote control toward the selected
screen's IR transceiver and press the
button several times to come to A/V
AUX
. Release the button and wait several
seconds to confirm your choice.
3. Switch on the connected device and press
PLAY (or the device's equivalent button).
Input volumeAdjust the input volume in the RSE menu,
under A/V AUX input volume.
Activating RSE
The RSE system can be activated using con-
trols on the front or rear screens.
From the front seat, press MEDIA (see the fol-
lowing illustration) and select
RSE.
From the rear seat, press the screen's On/Off
button. Use the remote control's
button
to select a screen (L: left rear screen or R: right
rear screen). Point the remote control toward
the selected screen's IR transceiver and con-tinue by pressing the
or button on
the remote control to select a source such as
Disc, etc.
Settings made from the front center
control panel
MEDIA
TUNE
OK/MENU
EXIT
Selecting a source for the rear screens
from the front center control panel
An audio/video source for the rear screen(s)
can be selected from the front center control
panel. The same source can be selected forboth rear screens or different sources can be
selected for the respective screens.
1.
Press MEDIA several times to come to
RSE on the front screen. Wait several sec-
onds for your selection to be confirmed.
2.
Turn TUNE to select one or both of the rear
screens and confirm by pressing OK/
MENU.
3.
Turn TUNE to select
RADIO, MEDIA (orRSE settings). Press OK/MENU to con-
firm.
4.
Turn TUNE to the desired source (for
example,
Disc) and confirm by pressing
OK/MENU. The selected source will begin
playing automatically (if there is a disc in
the media player).
Cancel and return by pressing EXIT.
Settings can also be made with the remote
control. See page 260 for more detailed infor-
mation.
MutingAudio for the rear screens can be muted from
the front center control panel. This function can
be activated under RSE settings
Mute as
explained in points 2-4 in the section "Select-
ing a source for the rear screens from the front
center control panel."

06 Infotainment
Remote control*
06
* Option/accessory, for more information, see Introduction.261
ButtonFunction
Stop
Fast forward, change tracks/
songs
DVD menu
Go back one step in a menu, can-
cel a function or delete entered
characters
Navigate up/down
Navigate right/left
Confirm a selection or go to the
current source's main menu
Reduce volume
Increase volume
0-9Use to select preset channels or
enter characters
ButtonFunction
One-button access to frequently
used functions (which must be
programmed into the button, see
page 216
Information about the current
film, song, etc., or to display
information not currently shown
on the screen
Select language for audio tracks
Subtitles, select subtitle lan-
guage
Not in use
Replacing batteriesThe remote control runs on four AA/LR6 bat-
teries.
NOTE
The batteries' normal service life ranges
from 1-4 years, depending on how often the
remote is used. If the remote is not working
properly, try replacing the four AA/LR6 bat-
teries.
It is advisable to have extra batteries on long
trips.
1. Press down on the battery cover and slide
it in the direction indicated in the illustra-
tion.
2. Remove the old batteries and insert new
ones in the directions indicated by the
symbols in the battery holder.
3. Slide the cover back into place.
Worn out batteries should be disposed of in an
environmentally responsible manner.

07 During your trip
Loading
07
274
WARNING
•Always secure the load to help prevent
it from moving in the event of sudden
braking.
•Switch off the engine, apply the parking
brake and put the gear selector in P
when loading and unloading the vehicle.
The cover on the rear seat armrest/child seat
has no hinge. The cover must be removed
before the ski hatch is used.
Removal:
–Open the cover 30 degrees and lift straight
up.
Installation:
–Insert the cover in the grooves behind the
upholstery and close the cover.
Roof loads
Using load carriersLoad carriers are available as Volvo accesso-
ries. Observe the following points when in use:
•To avoid damaging your vehicle and to
achieve maximum safety when driving, we
recommend using the load carriers thatVolvo has developed especially for your
vehicle.
•Volvo-approved removable roof racks are
designed to carry the maximum allowable
roof load for this vehicle: 220 lbs (100 kg).
For non-Volvo roof racks, check the man-
ufacturer's weight limits for the rack.
•Never exceed the rack manufacturer's
weigh limits and never exceed the maxi-
mum rated roof load of 220 lbs (100 kg).
•Avoid single-point loads. Distribute loads
evenly.
•Place heavier cargo at the bottom of the
load.
•Secure the cargo correctly with appropri-
ate tie-down equipment.
•Check periodically that the load carriers
and load are properly secured.
•Remember that the vehicle's center of
gravity and handling change when you
carry a load on the roof.
•The vehicle's wind resistance and fuel con-
sumption will increase with the size of the
load.
•Drive smoothly. Avoid rapid starts, fast
cornering and hard braking.

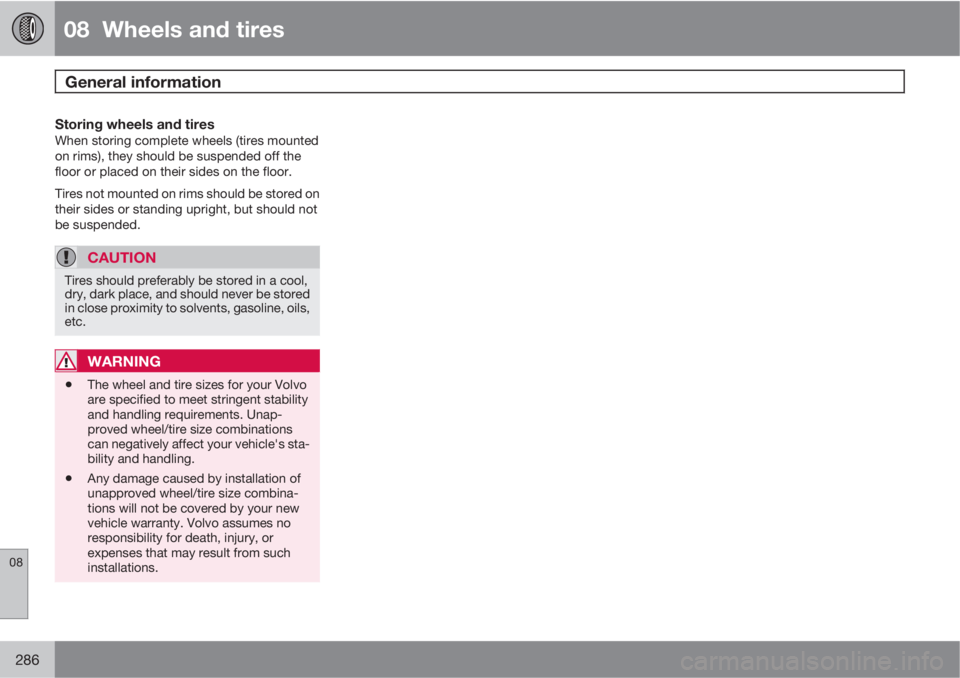

08 Wheels and tires
General information
08
286
Storing wheels and tiresWhen storing complete wheels (tires mounted
on rims), they should be suspended off the
floor or placed on their sides on the floor.
Tires not mounted on rims should be stored on
their sides or standing upright, but should not
be suspended.
CAUTION
Tires should preferably be stored in a cool,
dry, dark place, and should never be stored
in close proximity to solvents, gasoline, oils,
etc.
WARNING
•The wheel and tire sizes for your Volvo
are specified to meet stringent stability
and handling requirements. Unap-
proved wheel/tire size combinations
can negatively affect your vehicle's sta-
bility and handling.
•Any damage caused by installation of
unapproved wheel/tire size combina-
tions will not be covered by your new
vehicle warranty. Volvo assumes no
responsibility for death, injury, or
expenses that may result from such
installations.
