09 Maintenance and specifications
Replacing bulbs 09
312* Option/accessory, for more information, see Introduction.
Introduction
All bulb specifications are listed on page 317.
The following bulbs should only be replaced by
a trained and qualified Volvo service techni-
cian:
•Dome lighting
•Reading lights
•Glove compartment lighting
•Footwell lighting
•Turn signals in the door mirrors
•Approach lighting in the door mirrors
•Active Bending Lights and LED bulbs
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.
WARNING
•The engine should not be running when
changing bulbs.
•If the engine has been running just prior
to replacing bulbs in the headlight hous-
ing, please keep in mind that compo-
nents in the engine compartment will be
hot.
WARNING
•Active Bending Lights* – due to the high
voltage used by these headlights, these
bulbs should only be replaced by a
trained and qualified Volvo service tech-
nician.
•Turn off the lights and remove the
remote key from the ignition before
changing any bulbs.
Headlight housingThe entire headlight housing must be lifted out
when replacing all front bulbs.
CAUTION
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.
NOTE
•Always switch off the ignition before
starting to replace a bulb.
•The optional Active Bending Light bulbs
contain trace amounts of mercury.
These bulbs should always be disposed
of by a trained and qualified Volvo serv-
ice technician.

09 Maintenance and specifications
Replacing bulbs09
313
Removing the headlight housing1. Switch off the ignition by briefly pressing
the START/STOP ENGINE button.
2. Remove the remote key from the ignition
slot
1.
3. (Upper illustration under "Headlight hous-
ing")
Withdraw the headlight housing's lock-
ing pins.
Remove the headlight housing by alter-
natively pulling the front and rear edges
until it can be lifted out.
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
4. (Lower illustration under "Headlight hous-
ing")
Unplug the wiring connector by holding
down the clip with your thumb.
Pull out the connector with the other
hand.
5. Lift out the housing and place it on a soft
surface to avoid scratching the lens.6. Replace the defective bulb(s).
Reinserting the headlight housing
1. Plug in the connector until it clicks into
place.
2. Reinstall the headlight housing and locking
pins. The short locking pin should be clos-
est to the grille. Check that they are cor-
rectly inserted. The headlight housing must
be properly inserted and secured in place
before the lighting is switched on or the
remote key is inserted into the ignition slot.
3. Check that the lights function properly.
Removing the cover to access the
bulbs
NOTE
Before starting to replace a bulb, see
page 312.
1. Loosen the cover's four retaining screws
with the tool (1) provided in the vehicle's
tool kit (see page 294). The screws should
not be removed completely.
1Does not apply to vehicles with the optional keyless drive.

09 Maintenance and specifications
Replacing bulbs 09

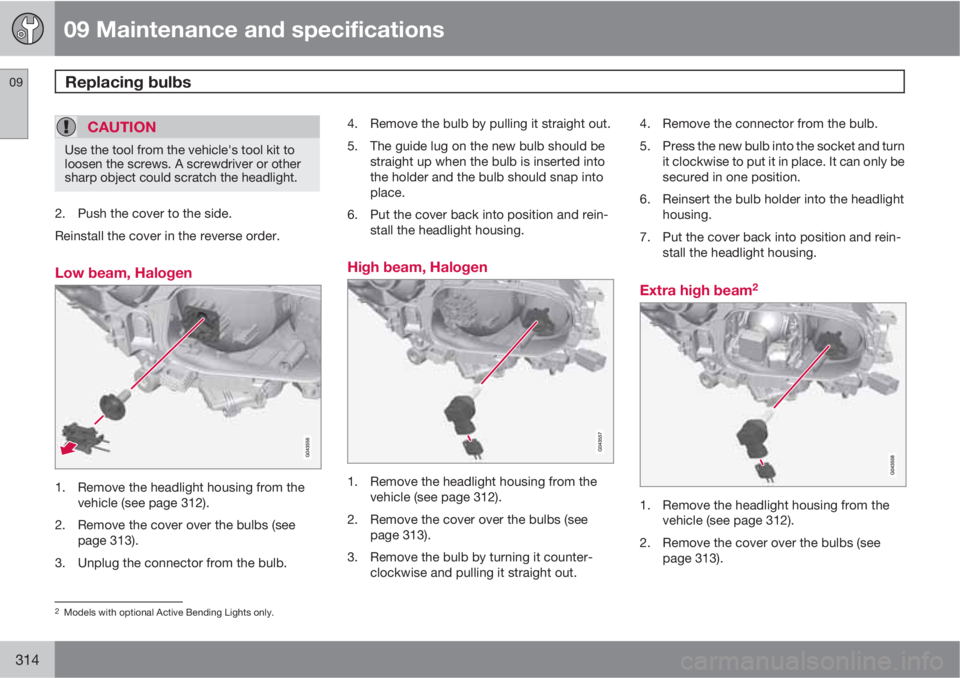

314
CAUTION
Use the tool from the vehicle's tool kit to
loosen the screws. A screwdriver or other
sharp object could scratch the headlight.
2. Push the cover to the side.
Reinstall the cover in the reverse order.
Low beam, Halogen
1. Remove the headlight housing from the
vehicle (see page 312).
2. Remove the cover over the bulbs (see
page 313).
3. Unplug the connector from the bulb.4. Remove the bulb by pulling it straight out.
5. The guide lug on the new bulb should be
straight up when the bulb is inserted into
the holder and the bulb should snap into
place.
6. Put the cover back into position and rein-
stall the headlight housing.
High beam, Halogen
1. Remove the headlight housing from the
vehicle (see page 312).
2. Remove the cover over the bulbs (see
page 313).
3. Remove the bulb by turning it counter-
clockwise and pulling it straight out.4. Remove the connector from the bulb.
5. Press the new bulb into the socket and turn
it clockwise to put it in place. It can only be
secured in one position.
6. Reinsert the bulb holder into the headlight
housing.
7. Put the cover back into position and rein-
stall the headlight housing.
Extra high beam2
1. Remove the headlight housing from the
vehicle (see page 312).
2. Remove the cover over the bulbs (see
page 313).
2Models with optional Active Bending Lights only.

09 Maintenance and specifications
Replacing bulbs09
315
3. Remove the bulb by turning it counter-
clockwise and pulling it straight out.
4. Remove the connector from the bulb.
5. Press the new bulb into the socket and turn
it clockwise to put it in place. It can only be
secured in one position.
6. Put the cover back into position and rein-
stall the headlight housing.
Turn signals
1. Remove the headlight housing from the
vehicle (see page 312).
2. Remove the cover by pulling it straight out.
3. Pull the holder to access the bulb.
4. Press in the bulb and turn it to remove it
from the holder.5. Press and turn the new bulb into place.
6. Reinsert the bulb holder into the headlight
housing.
7. Put the cover back into position and rein-
stall the headlight housing.
Taillight housing
The bulbs in the taillight cluster are replaced
from inside the trunk (not the LED functions).
NOTE
Before starting to replace a bulb, see
page 312.
1. Remove the covers in the left/right panel to
access the bulb holder.2. Press the catches together and pull out the
bulb holder.
3. Remove the defective bulb by pressing it in
slightly and it turning counterclockwise
before pulling it out.
4. Insert a new bulb, press it in slightly and
turn it clockwise.
5. Press the bulb holder until it clicks into
place and reinstall the cover.
Location of taillight bulbs
Taillight lens, right side
Brake lights (LEDs)
Brake light
Backup light
