2013 VOLVO S60 navigation system

06 Infotainment
Introduction
06

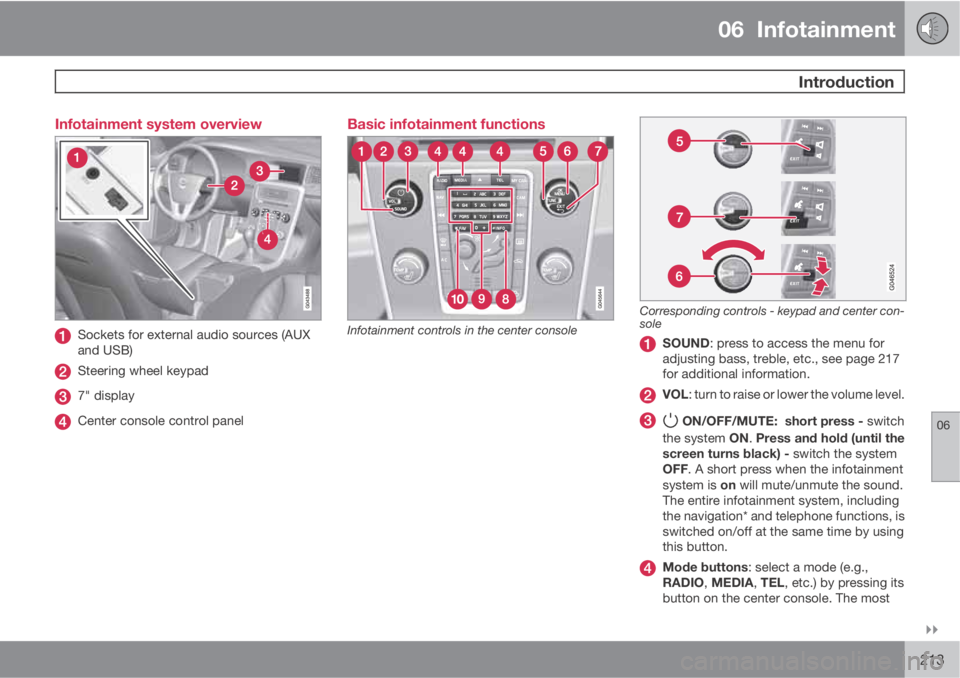

213 Infotainment system overview
Sockets for external audio sources (AUX
and USB)
Steering wheel keypad
7" display
Center console control panel
Basic infotainment functions
Infotainment controls in the center console
Corresponding controls - keypad and center con-
sole
SOUND: press to access the menu for
adjusting bass, treble, etc., see page 217
for additional information.
VOL: turn to raise or lower the volume level.
ON/OFF/MUTE: short press - switch
the system ON. Press and hold (until the
screen turns black) - switch the system
OFF. A short press when the infotainment
system is on will mute/unmute the sound.
The entire infotainment system, including
the navigation* and telephone functions, is
switched on/off at the same time by using
this button.
Mode buttons: select a mode (e.g.,
RADIO, MEDIA, TEL, etc.) by pressing its
button on the center console. The most

06 Infotainment
Introduction
06
214* Option/accessory, for more information, see Introduction.
recent source in the selected mode (e.g.,
FM1) will be displayed. The location of
these buttons on the center console may
vary slightly from model to model.
OK/MENU: confirm a menu selection. This
leads to the selected mode’s (RADIO,
MEDIA) menu view. Arrows at the right of
the screen indicate submenus.
TUNE: turn to scroll among tracks/folders,
radio stations, phone contacts or to navi-
gate among the alternatives shown on the
screen.
EXIT: short press - go upward in the menu
system, cancel a current function, reject an
incoming phone call or erase characters
that have been entered on the screen.
Press and hold - from a mode’s main view
to come to the infotainment system's main
view, see page 216.
# INFO: if more information is available
than is currently displayed on the screen,
press # INFO to display the remaining
information.
Keypad (for preset stations, entering let-
ters or numbers, etc).
* FAV: this button can be used to store a
shortcut to a commonly used function in
AM/FM/SIRIUS/DISC, etc. See the section"* FAV—storing a shortcut" on page 217
for information on using this button.
Steering wheel keypad
The buttons on the right-hand steering wheel
keypad can be used in the same way as some
of the controls on the center console. There are
two versions of the keypad, depending on your
vehicle's specifications.
Left/right arrow keys: a short press moves
between preset radio stations or tracks on
a disc. Press and hold to search within
tracks or to tune to the next/previous
strong radio station.
Volume
EXIT: a short press takes you upward in
the menu system, cancels a current func-
tion, rejects an incoming phone call or era-
ses characters that have been entered on
the screen. Press and hold from a mode’s
main view to come to the infotainment sys-
tem's main view.
Thumb wheel: pressing functions in the
same way OK/MENU on the center con-
sole. Turning the thumb wheel functions in
the same way as TUNE on the center con-
sole.
Voice button: 2 press to voice-activate cer-
tain functions on a BluetoothŸ-connected
cell phone and the navigation system.
Main view
From a mode’s normal view, pressing and
holding EXIT will display the infotainment sys-
tem's main view, which enables you to select
a mode.
NAV: Navigation system*
RADIO
2Models with the optional navigation system only. On models without navigation, this button mutes/unmutes the infotainment system.

06 Infotainment
Introduction
06
220
Advanced SIRIUS settings
Skip options
Channel skip list
Lock options
Channel lock list
Unlock all channels
Temporarily unlock all chan-
nels
Change code
Audio settings7
MEDIA menus
Main CD Audio menuDisc menu
Random
Scan
Audio settings7
Main CD/DVD10 Data menuDisc menu
Play/Pause
Stop
Random
Repeat folder
Change subtitles
Change audio track
Scan
Audio settings7
Main DVD10 Video menuDVD Video Menu
DVD disc menu
Play/Pause/Continue
Stop
Subtitles
Audio tracks
Advanced settings
Angle
DivX® VOD code
Audio settings7
Main iPod menuiPod menu
Random
Scan
Audio settings7
Main USB menuUSB menu
Play/Pause
Stop
Random
Repeat folder
Select USB device
Change subtitles
Change audio track
Scan
Audio settings7
Main AUX menuAUX menu
AUX input volume
Audio settings7
7The audio settings are the same for all infotainment system modes10The media player can only play DVDs in models equipped with the optional navigation system.

06 Infotainment
Media player
06

231 CD/DVD
1 functions
Center console control panel
Disc slot
MEDIA button, the most recently used
active source will start when MEDIA is
pressed. Pressing this key from Media
mode's main view will display a shortcut
menu.
Eject
Keypad
TUNE:Turn to navigate among menu
selections/folders/tracks (or turn the
thumb wheel on the steering wheel key-
pad).
OK/MENU: Press to confirm your selec-
tion or access the menus for the currently
selected source (e.g.,
Disc) or press the
thumb wheel on the steering wheel key-
pad.
Left/right arrow keys: Fast back/forward
and change track or chapter2.
The media player supports and can play the
following main types of discs and files:
•Purchased CDs (CD Audio)
•Home-burned CDs with audio and /or
video files
•Home-burned DVDs with audio and /or
video files
•Purchased DVDs
For a list of compatible formats, see
page 234.
Media menu selections can be made from the
center console or the steering wheel keypad.
For more information about the infotainment
menu system, see page 214.
For general information regarding menu navi-
gation, see page 216 and menu overview see
page 219.
Playing a disc
Press MEDIA ans scroll to Disc. Press OK/
MENU or the thumb wheel on the steering
wheel keypad. If there is a disc in the player, it
will begin playing automatically. Otherwise,
Insert disc will be displayed. Insert the disc
into the slot with the text side upward and it will
begin playing automatically.
If a disc with audio/video files is inserted, its
folder structure will be read by the system. It
may take several seconds until the disc begins
playing, depending on its quality and the
amount of information it contains.
Disc ejectFor reasons of traffic safety, an ejected disc
must be removed within 12 seconds or it will
be automatically drawn back into the slot.
PauseWhen the infotainment system volume is
turned off completely or the sound is muted,
the player will pause. It will resume playing
when the volume is turned up again or if the
sound is unmuted. Pause is also available via
the menu system, select
Play/Pause.
1The media player can only play DVDs in models equipped with the optional navigation system.2DVDs only

06 Infotainment
BluetoothŸŸ media
06
238
Introduction
The vehicle's media player is equipped with
BluetoothŸ and can play streaming audio files
from a BluetoothŸ device such as a cell phone
or mp3 player. Navigation and control of the
device can be done through the vehicle's cen-
ter console control panel or the steering wheel
keypad. On certain external devices, it is also
possible to change tracks from the device.
NOTE
Any Bluetooth cell phones used must sup-
port Audio/Video Remote Control Profile
(AVRCP) and Advanced Audio Distribution
Profile (A2DP). The phone must use AVRCP
version 1.3 and A2DP 1.2. If older versions
of these standards are used, certain fea-
tures (e.g., scan or random) may not func-
tion.
Not all cell phones are fully compatible with
the vehicle's Bluetooth system. A list of
compatible phones is available at you Volvo
retailer or at www.volvocars.us.
Menu navigation
Choices can be made in the Bluetooth menus
from the center console control panel or the
steering wheel keypad. For additional informa-
tion about navigating the various menus, see
page 214.The vehicle's media player can only play audio
files through the Bluetooth
Ÿ function.
Overview
Center console control panel
VOL: Volume control
MEDIA button, the most recently used
active source will start when MEDIA is
pressed. Pressing this key from Media
mode's main view will display a shortcut
menu.
TUNE: Turn to navigate among menu alter-
natives and folders shown in the display.
OK/MENU: Press to confirm your selec-
tion or access the menus.
EXIT: Press to go back in the menu struc-
ture or cancel a function.
Left/right arrow keys: Short press: change
tracks. Long press: fast forward/reverse
within a track. The arrow keys on the steer-
ing wheel keypad can be used in the same
way.
Pairing and connecting an external
device
Before an external device can be connected, it
must be paired to the infotainment system. The
procedure for connecting an external device
varies, depending whether or not the device
has previously been paired to the infotainment
system. A maximum of 10 external devices can
be paired and each device only needs to be
paired once. To pair a device, see page 241.
Automatic connection
When the BluetoothŸ function is active and the
most recently used device is within range, it is
automatically connected. When the infotain-
ment system searches for the most recently
used device, its name is shown in the display.
To connect another paired device, press EXIT.
See the following section for information about
switching to another device.

06 Infotainment
Bluetooth® hands-free connection
06
240
Introduction
This feature makes it possible to set up a wire-
less connection between a BluetoothŸ-ena-
bled cell phone or other device and the vehi-
cle’s infotainment system. This enables the
infotainment system to function as a hands-
free connection and allows you to remote-con-
trol a number of the phone’s functions. The
microphone used by this system is located
near the driver's side sun visor (2). The buttons
and other controls on the cell phone can
always be used regardless of whether or not
the phone is connected to the hands-free sys-
tem.
NOTE
Not all cell phones are fully compatible with
the hands-free system. A list of compatible
phones is available at your Volvo retailer or
at www.volvocars.us
WARNING
Never use the hands-free feature or any
other device in your vehicle in a way that
distracts you from the task of driving safely.
Distraction can lead to a serious accident.
Compliance
FCC/IC common sentence
This device complies with Part 15 of FCC Rules
and RSS-Gen of IC Rules. Operation is subject
to the following two conditions: (1) this device
may not cause interference, and (2) this device
must accept any interference, including inter-
ference that may cause undesired operation of
this device.
USA: FCC ID A269ZUA130
FCC WARNING
Changes or modifications not expressly
approved by the party responsible for compli-
ance could void the user’s authority to operate
the equipment.
IC RSS-GenThis equipment complies with FCC/IC radia-
tion exposure limits set forth for uncontrolled
equipment and meets the FCC radio frequency
(RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency
(RF) Exposure rules. This equipment has very
low levels of RF energy that it deemed to com-
ply without maximum permissive exposure
evaluation (MPE). But it is desirable that it
should be installed and operated with at least
8 in. (20 cm) and more between the radiator
and person’s body (excluding extremities:
hands, wrists, feet and ankles).Canada: IC 700BIAM2101
Menu navigationTEL menu selections can be made from the
center console or the steering wheel keypad.
For additional information about navigating the
various menus, see page 214.
System overview
Cell phone
Location of the microphone
Steering wheel keypad
Center console control panel and display

06 Infotainment
Cell phone voice control
06
248
Introduction
The infotainment system's voice control fea-
ture1 enables the driver to voice-activate cer-
tain functions in a BluetoothŸ-connected cell
phone or the navigation system.
NOTE
•The information in this section applies
to using voice commands to operate a
Bluetooth
Ÿ-connected cell phone.
See also the section "BluetoothŸ
hands-free connection" beginning on
page 240 for detailed information about
using a cell phone with the vehicle's
infotainment system.
•The navigation system has a separate
user's guide containing information
about voice commands for operating
that system.
Voice commands offer convenience and help
avoid distractions so that you can concentrate
on driving and focus your attention on road and
traffic conditions.
WARNING
As the driver, you have full responsibility for
operating the vehicle safely and adhering to
all applicable traffic regulations.
The voice control feature provides access to a
number of functions in the BluetoothŸ hands-
free and navigation systems while allowing you
to keep your hands on the steering wheel. Input
is in dialogue form using spoken commands
from the user and verbal prompts from the sys-
tem. Voice control uses the same microphone
as the Bluetooth
Ÿ hands-free system (see the
illustration on page 240) and system prompts
are provided through the infotainment sys-
tem's front speakers.
Languages
List of languages.
Voice control is not available for all languages.
The available languages are indicated by the
icon. The language can be changed in the
MY CAR menu system under MY CAR
SettingsSystem optionsLanguage.
1Available in vehicles equipped with the optional Volvo Navigation System only

11 Index
11
357
changing bulbs...........................313, 314
high/low beams.................................... 93
high beam flash.................................... 94
tunnel detection.................................... 96
Headlight washers................................... 102
Head restraints, rear seat.......................... 89
Heated oxygen sensors........................... 261
Heated rear seats.................................... 199
High beams................................................ 93
active.................................................... 95
indicator light........................................ 79
Hoisting the vehicle.................................305
HomeLink
® Wireless Control System...... 110
Home safe lighting............................. 99, 100
Hood, opening/closing............................307
Horn........................................................... 92
I
Ignition modes........................................... 84
Immobilizer................................................ 54
Important information.................................. 6
Indicator lights.........................77, 78, 79, 80Infant seats................................................ 42
Inflatable Curtain........................................ 33
Inflation pressure..................................... 277
Inflation pressure table............................279
Information and warning symbols, table
of.............................................................. 349
Information lights.....................77, 78, 79, 80
Information symbol.................................... 79
Infotainment
Menu navigation................................. 216
Infotainment system................................ 212
AUX/USB sockets............................... 235
Bluetooth
Ÿ devices............................. 238
Bluetooth® hands-free system........... 240
getting started.................................... 213
media player....................................... 231
menus.........................................213, 216
radio functions.................................... 222
sound settings.................................... 217
voice control....................................... 248
Inspection readiness................................ 305
Instrument lighting..................................... 93
Instrument overview............................76, 77
Instrument panel...................................... 187
Interior Air Quality System....................... 196Interior lighting........................................... 99
iPodŸ connector (audio system)............. 235
ISOFIX/LATCH anchors............................. 47
J
Jack
attaching.............................................295
location of........................................... 294
Jump starting........................................... 116
K
Key blade.................................52, 57, 60, 61
private locking...................................... 60
valet locking.......................................... 60
Keyless drive
general description............................... 61
starting the vehicle.............................113
