09 Maintenance and specifications
Replacing bulbs 09
312* Option/accessory, for more information, see Introduction.
Introduction
All bulb specifications are listed on page 317.
The following bulbs should only be replaced by
a trained and qualified Volvo service techni-
cian:
•Dome lighting
•Reading lights
•Glove compartment lighting
•Footwell lighting
•Turn signals in the door mirrors
•Approach lighting in the door mirrors
•Active Bending Lights and LED bulbs
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.
WARNING
•The engine should not be running when
changing bulbs.
•If the engine has been running just prior
to replacing bulbs in the headlight hous-
ing, please keep in mind that compo-
nents in the engine compartment will be
hot.
WARNING
•Active Bending Lights* – due to the high
voltage used by these headlights, these
bulbs should only be replaced by a
trained and qualified Volvo service tech-
nician.
•Turn off the lights and remove the
remote key from the ignition before
changing any bulbs.
Headlight housingThe entire headlight housing must be lifted out
when replacing all front bulbs.
CAUTION
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.
NOTE
•Always switch off the ignition before
starting to replace a bulb.
•The optional Active Bending Light bulbs
contain trace amounts of mercury.
These bulbs should always be disposed
of by a trained and qualified Volvo serv-
ice technician.
09 Maintenance and specifications
Replacing bulbs09
313
Removing the headlight housing1. Switch off the ignition by briefly pressing
the START/STOP ENGINE button.
2. Remove the remote key from the ignition
slot
1.
3. (Upper illustration under "Headlight hous-
ing")
Withdraw the headlight housing's lock-
ing pins.
Remove the headlight housing by alter-
natively pulling the front and rear edges
until it can be lifted out.
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
4. (Lower illustration under "Headlight hous-
ing")
Unplug the wiring connector by holding
down the clip with your thumb.
Pull out the connector with the other
hand.
5. Lift out the housing and place it on a soft
surface to avoid scratching the lens.6. Replace the defective bulb(s).
Reinserting the headlight housing
1. Plug in the connector until it clicks into
place.
2. Reinstall the headlight housing and locking
pins. The short locking pin should be clos-
est to the grille. Check that they are cor-
rectly inserted. The headlight housing must
be properly inserted and secured in place
before the lighting is switched on or the
remote key is inserted into the ignition slot.
3. Check that the lights function properly.
Removing the cover to access the
bulbs
NOTE
Before starting to replace a bulb, see
page 312.
1. Loosen the cover's four retaining screws
with the tool (1) provided in the vehicle's
tool kit (see page 294). The screws should
not be removed completely.
1Does not apply to vehicles with the optional keyless drive.
09 Maintenance and specifications
Wiper blades and washer fluid 09
318
Wiper blades
The windshield wiper blades are different
lengths. The blade on the driver’s side is longer
than the one on the passenger side.
Service position
Wiper blades in service position
The wiper blades must be in the vertical (serv-
ice) position for replacement, washing or to lift
them away from the windshield when e.g.,
removing ice or snow. To put them in this posi-
tion:
CAUTION
Be sure the wiper blades are not frozen in
position before attempting to move them to
the service position.
1. Insert the remote key into the ignition
slot1 and press the START/STOP
ENGINE button briefly to put the ignition in
mode I (see page 85 for detailed informa-
tion about the ignition modes).
2.
Press the START/STOP ENGINE button
again briefly to switch the ignition off.
3. Within 3 seconds, move the right steering
wheel lever up and hold it for at least 1 sec-
ond.
> The wipers will then move to the vertical
(service) position on the windshield.
NOTE
After the wiper arms have been in the serv-
ice position, the wipers must be switched on
and off at least once before the service posi-
tion can be used again.
The wipers can be returned to the normal posi-
tion by pressing the START/STOP ENGINEbutton briefly to put the ignition in mode I (or
by starting the engine).
CAUTION
If the wiper arms have been folded out from
the windshield while in the service position,
fold them back against the windshield
before returning the wipers to the normal
position to help avoid scratching the paint
on the hood.
Replacing the windshield wiper blades
1Not necessary on vehicles with the optional keyless drive.
09 Maintenance and specifications
Battery09
321
WARNING
•Never expose the battery to open flame
or electric spark.
•Do not smoke near the battery.
•Battery fluid contains sulfuric acid. Do
not allow battery fluid to contact eyes,
skin, fabrics or painted surfaces. If con-
tact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.
NOTE
The life of the battery is shortened if it
becomes discharged repeatedly.
Maintenance
•Use a screw driver to open the caps or
cover and a flashlight to inspect the level.
•If necessary, add distilled water. The level
should never be above the indicator.
•The fluid level should be checked if the
battery has been recharged.
•After inspection, be sure the cap over each
battery cell or the cover is securely in
place.
•Check that the battery cables are correctly
connected and properly tightened.
•Never disconnect the battery when the
engine is running, or when the key is in the
ignition. This could damage the vehicle's
electrical system.
•The battery should be disconnected from
the vehicle when a battery charger is used
directly on the battery.
•To help keep the battery in good condition,
the vehicle should be driven for at least 15
minutes a week or connected to a charger
with an automatic charging function.
•If the battery is fully discharged a number
of times, this may shorten its service life.
Keeping the battery fully charged helps
prolong its service life.
•The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.
•Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.
CAUTION
•Always use distilled or deionized water
(battery water).
•Never fill above the level mark in the cell.
Changing

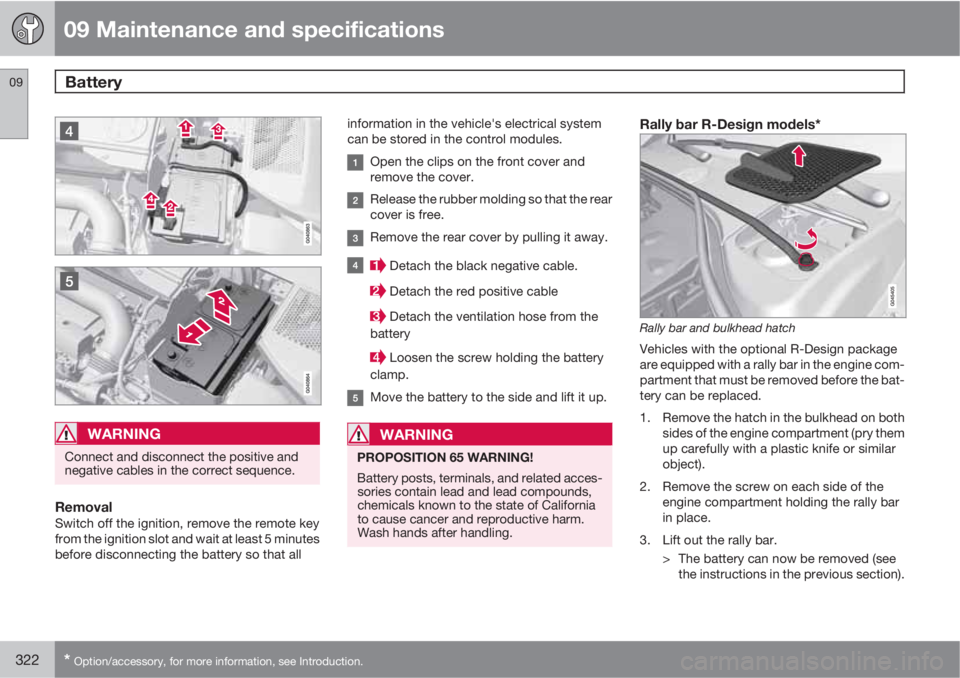

09 Maintenance and specifications
Battery 09
322* Option/accessory, for more information, see Introduction.
WARNING
Connect and disconnect the positive and
negative cables in the correct sequence.
RemovalSwitch off the ignition, remove the remote key
from the ignition slot and wait at least 5 minutes
before disconnecting the battery so that allinformation in the vehicle's electrical system
can be stored in the control modules.
Open the clips on the front cover and
remove the cover.
Release the rubber molding so that the rear
cover is free.
Remove the rear cover by pulling it away.
Detach the black negative cable.
Detach the red positive cable
Detach the ventilation hose from the
battery
Loosen the screw holding the battery
clamp.
Move the battery to the side and lift it up.
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
Rally bar R-Design models*
Rally bar and bulkhead hatch
Vehicles with the optional R-Design package
are equipped with a rally bar in the engine com-
partment that must be removed before the bat-
tery can be replaced.
1. Remove the hatch in the bulkhead on both
sides of the engine compartment (pry them
up carefully with a plastic knife or similar
object).
2. Remove the screw on each side of the
engine compartment holding the rally bar
in place.
3. Lift out the rally bar.
> The battery can now be removed (see
the instructions in the previous section).
09 Maintenance and specifications
Fuses 09
328* Option/accessory, for more information, see Introduction.
Under the glove compartment
Fold aside the upholstery covering the fuse
boxes.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.
Positions-fuse box A
PosFunctionA
Circuit breaker - infotain-
ment system40
-
-
PosFunctionA
-
-
Keyless drive* (door han-
dles)5
-
Controls in driver's door20
Controls in front passeng-
er's door20
PosFunctionA
Controls in right rear pas-
senger's door20
Controls in left rear pas-
senger's door20
Keyless drive*7.5
Power driver's seat*20
Power front passenger's
seat*20
11 Index
11
354
1, 2, 3 ...
12-volt sockets........................................ 208
A
ABS (anti-lock brake system).................. 122
Accessory installation warning.................. 13
Active chassis system.............................205
Active high beams..................................... 95
Active yaw control................................... 130
Adaptive brake lights............................... 121
Adaptive cruise control.................... 137, 139
Airbags
disconnecting the front passenger’s
side.................................................27, 28
front...................................................... 23
inflatable curtain................................... 33
side impact........................................... 31
Air conditioning........................................ 200
Air distribution.......................................... 196
Air distribution table................................. 202
Air vents................................................... 197
All Wheel Drive......................................... 120Anti-freeze.......................................256, 310
Anti-lock brake system
warning light......................................... 78
Anti-lock Brake System (ABS)................. 122
Approach lighting..............................55, 100
Audio system
AUX/USB sockets............................... 235
Bluetooth Ÿ devices............................. 238
Bluetooth Ÿ hands-free system........... 240
Bluetooth streaming audio................. 238
getting started.................................... 213
HD digital radio................................... 224
introduction......................................... 212
media player....................................... 231
overview.............................................. 212
radio functions.................................... 222
SiriusXM
E satellite radio.................... 226
sound settings.................................... 217
steering wheel keypad........................ 214
voice control....................................... 248
Auto-dim rearview mirror......................... 106
Automatic locking retractor....................... 38
Automatic transmission
Geartronic........................................... 119
general description.....................118, 119oil........................................................ 347
shiftlock override................................ 120
Axle weight.............................................. 283
B
Battery
changing..................................... 321, 322
maintenance....................................... 321
remote key, replacing........................... 58
specifications...................................... 348
warning symbols................................. 320
Blind Spot Information System
(BLIS)....................................... 179, 180, 181
Bluetooth cell phone connection............. 240
Booster cushions....................................... 46
Brake lights.............................................. 121
Brake system
ABS..................................................... 122
Brake pad inspection.......................... 121
checking fluid level............................. 310
emergency brake assistance.............. 122
fluid..................................................... 347
general information............................. 121
warning light......................................... 80
11 Index
11
355
Bulbs
headlights...........................312, 313, 314
introduction......................................... 312
license plate lights.............................. 316
specifications...................................... 317
trunk lighting....................................... 316
C
Camera, Park Assist................................ 175
Capacity weight....................................... 283
Catalytic converter................................... 260
Cell phone, hands-free connection......... 240
Cell phone voice control.......................... 248
Central locking system, introduction......... 52
Chains...................................................... 286
Check engine light..................................... 78
Check Engine warning light....................... 79
Child restraints
recalls and registration......................... 39
Child restraint systems.............................. 40
booster cushions.................................. 46
convertible seats.................................. 44
infant seats........................................... 42ISOFIX/LATCH anchors........................ 47
top tether anchors................................ 48
Child safety................................................ 37
booster cushions.................................. 46
child restraint systems.......................... 40
convertible seats.................................. 44
infant seats........................................... 42
Child safety locks...................................... 49
City Safety™............................................ 151
Climate system........................................ 200
air distribution............................. 196, 202
air vents.............................................. 197
Interior Air Quality System.................. 196
introduction......................................... 195
passenger compartment filter............ 196
refrigerant........................................... 195
Clock, setting............................................. 82
Cold weather driving................................ 256
Collision warning system.................157, 158
Compass in rearview mirror..................... 107
Conserving electrical current................... 255
Controls, center console.......................... 213
Convertible seats....................................... 44
Coolant............................................310, 347
Cooling system, general information....... 255Corner Traction Control........................... 130
Courtesy lighting........................................ 99
Crash event data......................................... 9
Crash mode............................................... 36
Cruise control..................................135, 136
adaptive.............................................. 137
Curb weight............................................. 283
Current, conserving................................. 255
D
Defroster.................................................. 200
Detachable key blade..........................57, 60
Disconnecting the front passenger’s air-
bag....................................................... 27, 28
Dome lighting............................................. 99
Door mirrors............................................. 105
Driver alert............................................... 165
Driver distraction warning.......................... 13
Driving economically................................ 254
Driving in cold weather............................ 256
Driving through water..............................255
