2013 VOLKSWAGEN TIGUAN dimensions

Maximum power
output (SAE net)
Injection
technology
Engine
ID code
Maximum torque (SAE net) No. of cylinders
Displacement
kW at 0 – 0 rpm 2.0T Nm at 0 – 0 rpm .1 CID
( 4 ccm)

Dimensions

Ball mount

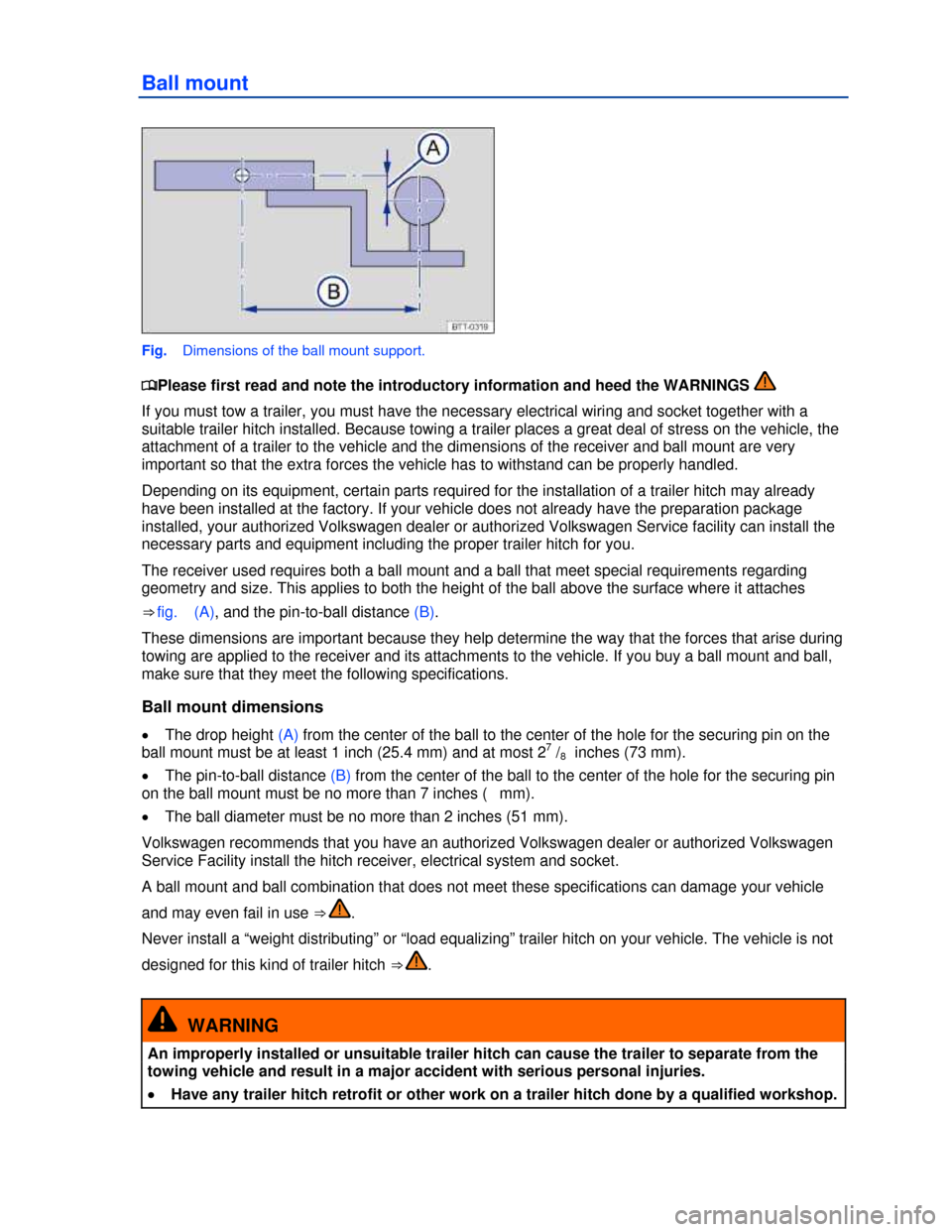

Fig. Dimensions of the ball mount support.

Retrofitting a trailer hitch

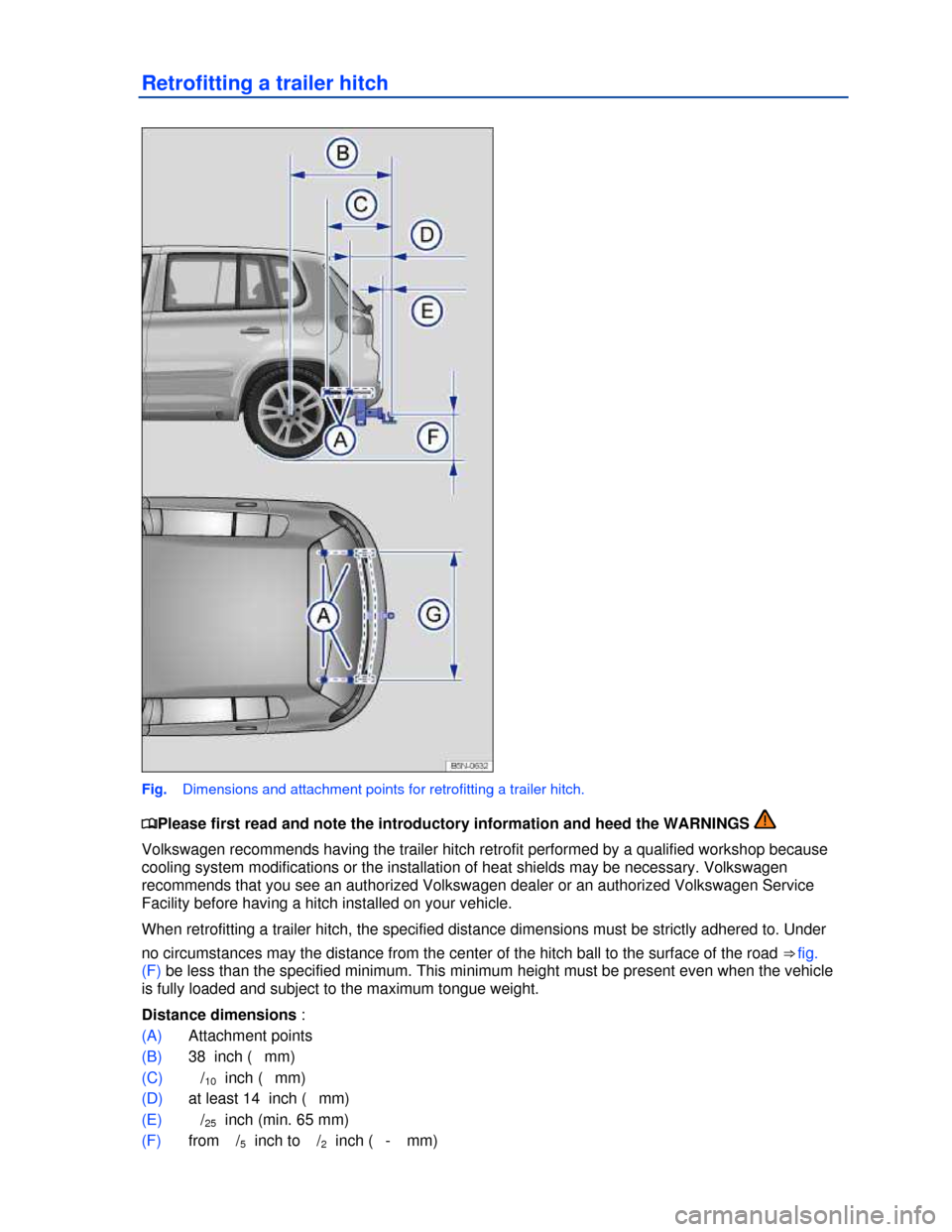

Fig. Dimensions and attachment points for retrofitting a trailer hitch.

WARNING
New tires or tires that are old, worn or damaged cannot provide maximum control and
braking performance.
x Improper care and handling of tires and wheels can reduce driving safety and cause
accidents and severe injuries.
x Install only radial tires of the same make, the same dimensions (tread circumference), and
similar tread profile on all 4 wheels.
x New tires tend to be slippery and must be broken in. Always drive with special care for the
first miles ( km) to help reduce the risk of losing control, a collision, and serious personal
injuries.
x Check tire inflation pressure regularly when the tires are cold and always maintain the
prescribed tire pressure. Low tire pressure can cause tires to get too hot, resulting in tread
separation, sudden loss of pressure, and blowouts. Tires with excessively low pressure flex
(bend) more, which can cause the tire to overheat and fail suddenly without warning.
x Check tires regularly for wear and damage.
x Never drive with worn or damaged tires (for example, tires with punctures, cuts, cracks,
blisters, or bumps). Driving with worn or damaged tires can lead to loss of vehicle control,
sudden tire failure including blowouts and sudden deflation, crashes, and serious personal
injuries.
x Have worn or damaged tires replaced immediately.
x Never exceed the maximum speed rating or the maximum load rating of the tires on your
vehicle.
x The effectiveness of the driver assistance systems and the braking support systems
depends on the tire traction.
x If you notice unusual vibration or if the vehicle pulls to one side when driving, always stop
as soon as it is safe to do so and check the wheels and tires for damage.
x To reduce the risk of losing control, crashes, and serious personal injuries, never loosen
the bolts on wheels with bolted rim rings.
x Never mount used tires on your vehicle if you are not sure of their past use. Old, used
tires and wheels may have damage that cannot be seen that can lead to sudden tire failure
and loss of vehicle control.
x Tires age even if they are not being used and can fail suddenly, especially at high speeds,
causing loss of vehicle control, accidents, and severe personal injuries. Tires that are more
than 6 years old can be used only in an emergency and even then only with special care and
at low speed.
For technical reasons it is usually not possible to use wheel rims from other vehicles. Even wheel
rims from the same model may not fit properly. Check with an authorized Volkswagen dealer or
authorized Volkswagen Service Facility if necessary.

Drive train Tire dimensions Tire pressures
psi kPa bar
/50 R18 38 2.6
/40 R19 41 2.8
T /80 R185 61 4.1
xl = reinforced sidewall.
The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation
pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation
pressure is listed on the tire inflation pressure label on the driver door jamb 289. The tire inflation
pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as
specified on the tire pressure label or on a separate label for the compact spare, if there is one. In
the event of a discrepancy between the above figures and the tire pressures listed on the tire
inflation pressure label, the pressures listed on the label are the ones you should use.

Tread depth and tread wear indicators

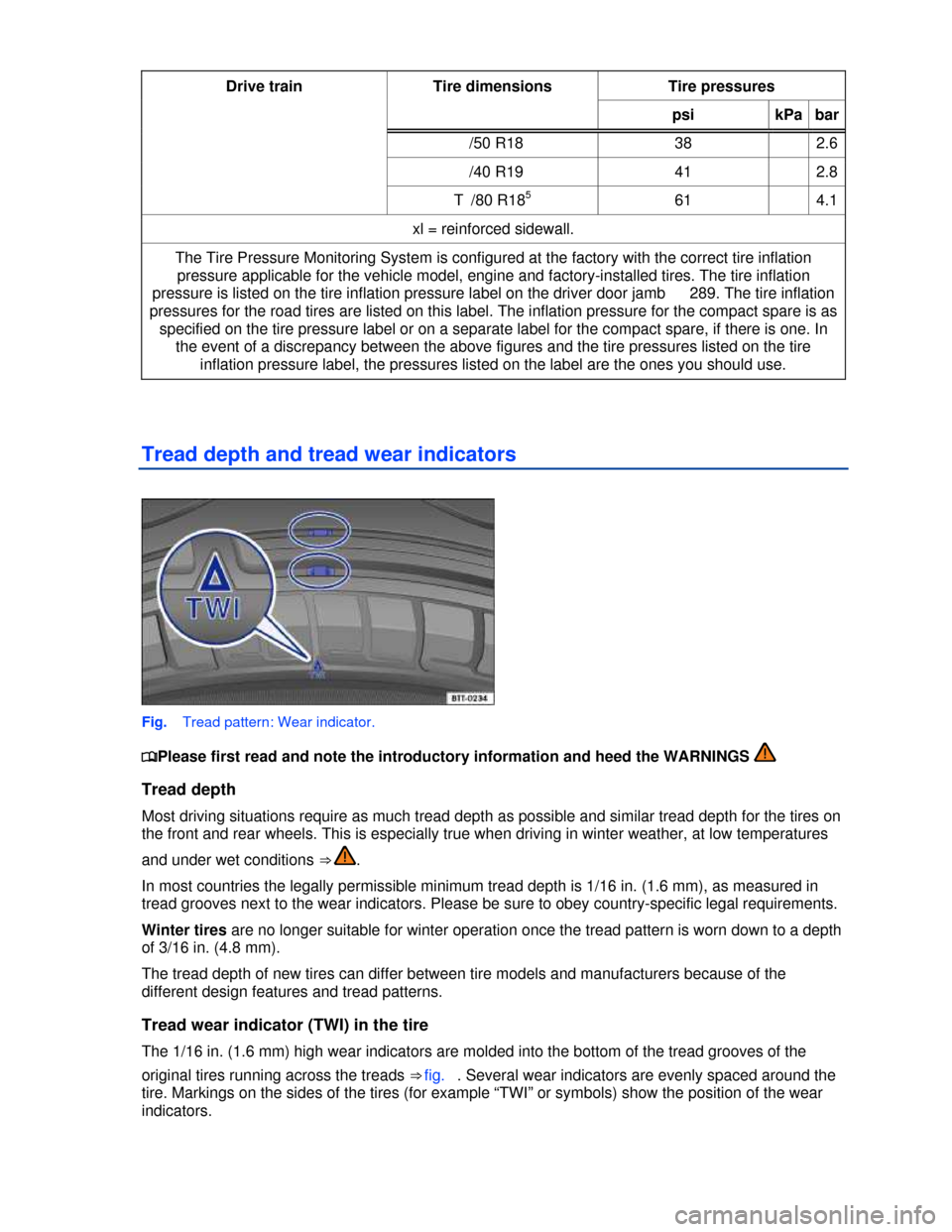

Fig. Tread pattern: Wear indicator.

Tire labeling (example) Meaning
E4 ... Labeling according to international regulations (E) including
number of the approving country. The multi-digit approval number
is listed next.
DOT BT RA TY5 9 Tire identification number (TIN6 – in some cases only on one side
of the tire – and the manufacturing date:
DOT The tire complies with the requirements of the United
States Department of Transportation, responsible for
issuing safety standards.
BT Identification letter of the manufacturing site.
RA Manufacturer information regarding tire dimensions.
TY5 Tire characteristics provided by the manufacturer.
9 Manufacturing date: 17th week in 9.
TWI Marks the position of the tread wear indicator
Made in Germany Country of manufacture.
MAX LOAD KG ( 6 LBS) United States maximum load rating per wheel.
MAX INFLATION KPA (51 PSI) United States maximum permissible inflation pressure.
SIDEWALL 1 PLY RAYON Tire ply composition and materials used:
1 layer of rayon.
TREAD 4 PLIES
1 RAYON + 2 STEEL +
1 NYLON
Tire tread composition and materials used:
In this example there are 4 layers under the tread: 1 layer of
rayon, 2 layers of steel belt and 1 layer of nylon.
Consumer information regarding comparison to specified base tires (standardized test
procedure) 313:
TREADWEAR Relative service life expectancy of the tire referenced to a US-
specific standard test.
TRACTION AA Traction rating under wet conditions (AA, A, B or C).
TEMPERATURE A Temperature stability of the tire at increased test bench speeds
(A, B or C).
Additional numbers found on the tire could either be tire manufacturer internal labels or
country-specific labels (e.g. for Brazil and China).

Unidirectional tires
Unidirectional tires are designed to rotate only in one direction. Unidirectional tires have arrows on the
sidewalls that show the direction of rotation. Make sure you mount the tire so that it rotates in the
proper direction. The tire's performance with regard to hydroplaning, traction, noise, and wear is worse
if it is not mounted in the proper direction of rotation.
If you have to mount a tire opposite to its proper direction of rotation, you must drive more carefully,
since the tire is no longer being used as designed. This is particularly important on wet roads. You
must replace or remount the tire as soon as possible in order to restore the correct direction of
rotation.
Load rating code
The load index indicates the maximum permissible load per individual tire in pounds (kilograms).

6 TIN represents the serial number of the tire.

Install summer tires promptly in the spring. Summer tires offer better handling characteristics for
temperatures above +45 °F (+7 °C). They are quieter, do not wear as quickly, and reduce fuel
consumption.
The Tire Pressure Monitoring System must be recalibrated using the appropriate menu in the MFI
whenever you remove and remount or change any wheel or tire on the vehicle, even if the reinstalled
or replacement wheels and tires are identical to those that were removed and even if the tire pressure
does not change
If necessary, ask your authorized Volkswagen dealer or authorized Volkswagen Service Facility
about permissible winter tire dimensions.
Snow chains
