WARNING
Unsecured or incorrectly stowed items can fly through the vehicle, causing serious personal
injury during hard braking or sharp steering or in an accident. Loose items can also be struck
and thrown through the passenger compartment by the front airbags if they inflate. To help
reduce the risk of serious personal injury:
x Always stow all objects securely in the vehicle. Always put luggage and heavy items in the
luggage compartment.
x Always secure objects in the passenger compartment properly with suitable straps so that
they cannot move into the deployment zone of a side or front airbag during a sudden braking,
in a sudden maneuver, or in a collision.
x Always keep storage compartments closed while driving.
x Never stow hard, heavy, or sharp objects in the vehicle's open storage compartments, on
the shelf behind the rear seat bench, or on the top of the instrument panel.
x Always remove hard, heavy, or sharp objects from clothing and bags in the vehicle
interior and stow them securely in the luggage compartment.
WARNING
Transporting heavy objects causes the handling characteristics of the vehicle to change and
increases braking distances. Heavy loads which are not properly stowed or secured in the
vehicle can lead to a loss of vehicle control and cause serious person injury.
x Transporting heavy items causes the handling characteristics of the vehicle to change by
shifting the vehicle's center of gravity.
x Always distribute luggage evenly and as low as possible within the vehicle. The vehicle
capacity weight figures apply when the load is distributed evenly in the vehicle (passengers
and luggage).
x Always stow luggage and heavy items in the luggage compartment as far forward of the
rear axle as possible and secure them with appropriate straps to the tie-downs provided.
x Never exceed the vehicle's Gross Vehicle Weight Rating or Gross Axle Weight Ratings,
which are printed on the Safety Compliance Certification Label located on the door jamb of
the driver door. Exceeding the permissible weight can cause the vehicle to skid and behave
differently.
x Always adapt your speed and driving style to accommodate your payload and its weight
distribution within your vehicle.
x Be especially cautious and gentle when stepping on the accelerator pedal and avoid
sudden braking and other maneuvers.
x Brake earlier than you would if you were not driving a loaded vehicle.
NOTICE
x The defroster heating wires or antenna in the rear window can be damaged by objects that
rub against them.
The ventilation slots between the rear window and the luggage compartment cover must not be
blocked so that stale air can escape from the vehicle.

WARNING
Improper folding and improper latching of the rear seat backrest can cause serious personal
injury.
x Always make sure there are no people or animals in the area around the rear seat backrest
when folding it forward.
x Never fold the rear seat backrest up or down while the vehicle is moving.
x When folding the rear seat backrest back up, make sure that the safety belt does not get
caught or damaged.
x Keep hands, fingers, feet and other body parts out of the away when folding the rear seat
backrest up and down.
x Each rear seat backrest must be securely latched into place in the upright position so that
the safety belts on the rear seats can provide protection. This is particularly the case for the
middle seat on the rear bench.
x If a seat is used with an unsecured backrest, the passenger will move forward together
with the rear seat backrest during sudden braking, driving maneuvers, or a collision.
x No one, including children, may ride on the rear seats if the rear seat backrest is folded
down or not correctly latched.
NOTICE
Before folding the rear seat backrest forward, adjust the front seats so that the rear seat's head
restraint or backrest cushion will not touch the front seats.
NOTICE
Items in the luggage compartment could be damaged or cause damage when the rear seat is
adjusted in the fore and aft direction.
Removing and installing the rear seat

Fig. 97 Front attachment of the rear seat.

7. Secure both seat rails of the rear seat in front and back with 2 hexagonal nuts each, tightening the
nuts by hand - do not tighten them with the lug wrench yet.
8. To align the seat rails, press the left rear seat all the way to the left in the vehicle.
9. To align the seat rails, press the right rear seat all the way to the right in the vehicle.
10. Tighten the hexagonal nuts in the luggage compartment (arrows) to 44 ft-lbs (60 Nm) using a
torque wrench. If no torque wrench is available, tighten the hexagonal nuts using the lug wrench
and have the torque checked at a qualified workshop as soon as possible.
11. Push the rear seats as far back as possible
12. Remove the hexagonal nuts in the rear of the footwell again, set the 3 plastic covers ⇒ fig. 97 on
the studs and screw on with the hexagonal nuts.
13. Tighten the hexagonal nuts (arrows) to 44 ft-lbs (60 Nm) using a torque wrench. If no torque
wrench is available, tighten the hexagonal nuts using the lug wrench and have the torque checked
at a qualified workshop as soon as possible.
14. Clip on the small covers (not pictured) on the hexagonal nuts (arrows).
15. Install the foam insert and spare wheel in the vehicle
16. Install the luggage compartment floor
17. Install the luggage compartment cover
18. Install all rear head restraints
WARNING
No one may ride in the back of the vehicle when the rear seat has been removed.
WARNING
An improperly installed rear seat can separate from its mountings during an accident.
x All securing bolts must be tightened to the specified torque after the rear seat has been
installed.
CAUTION
Sharp-edged parts are located on the underside of the rear seat.
x Protect your hands when you lift the rear seat in or out.
NOTICE
x Have at least one person help to lift the rear seat in or out. One person should be in the
vehicle and one outside.
x The lever ⇒ fig. 43 for the fore and aft adjustment of the rear seat must not be operated
while the seat is removed. If the position of the fore and aft adjustment is changed, the rear
seat can only be installed by a qualified workshop.

Loading the trailer
The weight distribution in the vehicle and trailer must be balanced. Use the maximum permissible
tongue weight and make sure that the load in the trailer is evenly distributed and that it is not front-
heavy or tail-heavy:
x Distribute the load in the trailer so that heavy objects are directly above the axle or as close as
possible to the axle.
x Secure loads properly on the trailer.
Tire pressure
Always follow the trailer manufacturer's tire pressure recommendations for the trailer tires.
When towing, inflate the towing vehicle's tires to the maximum permissible pressure listed on the tire
pressure label
WARNING
Exceeding the gross weight ratings for axle, tongue, vehicle, trailer or combined weight can
cause accidents and serious personal injury.
x Never exceed the specified values.
x Never let the actual weights at the front and rear axles exceed the Gross Axle Weight
Rating. Never let the combined front and rear weights exceed the Gross Vehicle Weight
Rating.
WARNING
Trailer loads that are not properly secured can shift when the vehicle is moving or braking
and suddenly change the way the vehicle handles, causing accidents and severe injuries.
x Always load the trailer properly.
x Always secure the load properly with suitable, undamaged straps that can be tightened so
that the load cannot shift.
Driving with a trailer

WARNING
Never let a passenger, especially a child, ride on the center armrest.
There may be a factory-installed (MEDIA IN), Apple iPod® adapter, AUX-IN or 12 Volt socket
located in the storage compartment in the front center armrest ⇒ Booklet Radio or
⇒ Booklet Navigation system.
Card holder

Fig. In the lower part of the center console: Card holder.

Fig. In the upper part of the center console: Card holder.

The cup holder has inserts that can be removed for cleaning.
Cup holders in the front center console

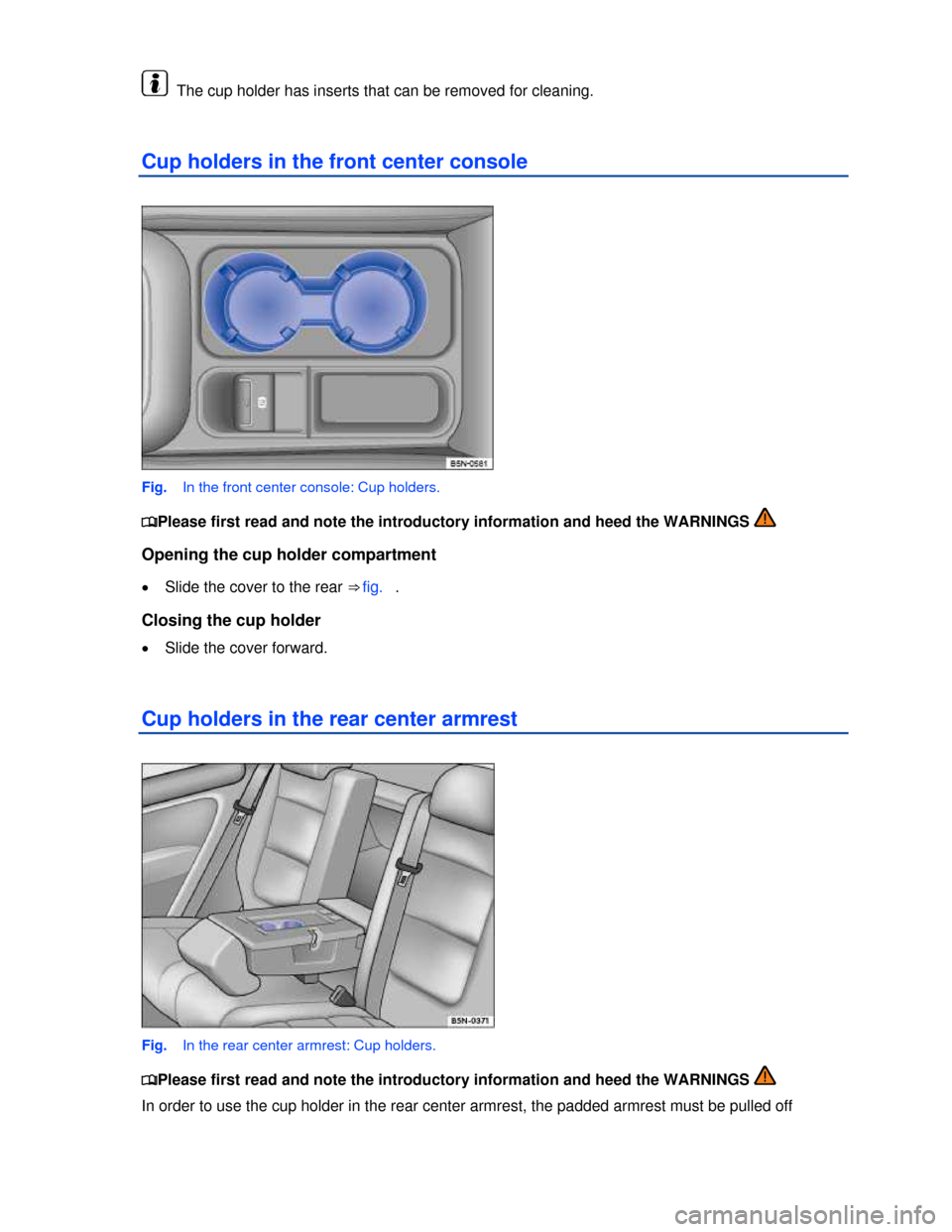

Fig. In the front center console: Cup holders.

If the ignition is on but the engine is not running, the vehicle battery will be drained by any device that
is plugged in and turned on. For this reason, never use the electrical sockets unless the engine is
running.
To help prevent damage from voltage fluctuations, switch off all electrical devices connected to a 12
Volt socket before switching the ignition on or off or starting the engine.
The vehicle may have 12 Volt sockets at the following places:
x In the storage compartment or in the front center console.
x In the storage compartment in the front center armrest.
x In the rear center console.
x In the luggage compartment.
Volt socket
The socket can only be used if the engine is running ⇒ .
Connecting an electrical device: Insert the plug as far as it goes into the socket in order to unlock the
integrated child-proof lock. There is electricity in the socket only after the child-proof lock is unlocked.

LED display on the socket
Green continuous light: The child-proof lock is unlocked. The
socket is operational.
Red flashing light: Malfunction such as over-current or
overheating cutoff

Temperature shutoff
The inverter in the Volt socket shuts off automatically above a certain temperature. The shutoff
prevents overheating in case of excessive power consumption of connected devices or at high
ambient air temperatures. The inverter switches back on automatically after a cool-down period.
Connected devices which were left switched on come back on again. For this reason, switch off
connected electrical devices if the inverter switches off due to overheating.
DANGER
High voltage in the electrical system!
x Never spill liquids on the socket. Improper use of a volt socket can cause electrical shock,
burns, and other serious personal injuries.
x Do not connect adapters or extension cords to the Volt socket. Otherwise, the integrated
child-proof lock is switched off and the socket is live.
x Do not stick objects, such as knitting needles, into the contacts of the Volt socket.
NOTICE
x Follow the manufacturer's instructions for connected devices!
x Never exceed the maximum power consumption, or the entire vehicle electrical system may
be damaged.
x 12 Volt socket:
– Only use equipment that has been tested for electromagnetic compatibility and complies
with applicable guidelines.
– Never feed current into the socket, with a solar panel, for example.

To help prevent damage from voltage fluctuations, switch off all electrical devices connected to a 12
Volt socket before switching the ignition on or off or starting the engine.
The vehicle may have 12 Volt sockets at the following places:
x In the storage compartment or in the front center console.
x In the storage compartment in the front center armrest.
x In the rear center console.
x In the luggage compartment.
NOTICE
x Follow the manufacturer's instructions for connected devices!
x Never exceed the maximum power consumption, or the entire vehicle electrical system may
be damaged.
x 12 Volt socket:
– Only use equipment that has been tested for electromagnetic compatibility and complies
with applicable guidelines.
– Never feed current into the socket, with a solar panel, for example.
x Volt socket:
– Do not connect devices or plugs which are too heavy, such as a grid power supply adapter or
cord, directly onto the socket.
– Do not connect lamps containing neon tubes.
– Only connect devices to the socket whose voltage is consistent with the voltage of the socket.
– For devices with a high starting current, the integrated over-current shutoff will prevent them
from being switched on.
Unshielded devices may interfere with radio reception or the vehicle's electrical system.
