2013 TOYOTA xB radiator

15,000 miles or 18 months
Check installation of driver’s floor mat Inspect and adjust all fluid levels Replace engine oil and oil filter1
Rotate tires Visually inspect brake linings/drums and brake pads/discs
Inspect the following:
__ Ball joints and dust covers __ Brake lines and hoses__ Drive shaft boots__ Engine coolant3
__ Exhaust pipes and mountings__ Radiator and condenser__ Steering gear box__ Steering linkage and boots
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if younotice reduced air flow from the air conditioner and heater or if the windows fogeasily when you use theFreshmode. Consult your dealer if any of theseconditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads: Inspect engine air filter Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading4: Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
DAT E:
MILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.2Perform these service items only if you drive primarily under the conditions indicated.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide formore information.4Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log37Enfocus Software - Customer Support

30,000 miles or 36 months
Check installation of driver’s floor mat Inspect and adjust all fluid levels Replace cabin air filter Replace engine air filter Replace engine oil and oil filter1
Rotate tires
Inspect the following:
__ Ball joints and dust covers __ Brake lines and hoses__ Brake linings/drums and brakepads/discs3
__ Drive shaft boots__ Engine coolant4
__ Exhaust pipes and mountings__ Front differential oil
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent systemhoses__ Fuel tank cap gasket__ Radiator and condenser__ Steering gear box__ Steering linkage and boots__ Transmission fluid or oil
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads: Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5: Replace front differential oil (manual transmission only) Replace manual transmission oil Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
DAT E:
MILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.2Perform these service items only if you drive primarily under the conditions indicated.3Inspect thickness measurement and disc runout.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide formore information.5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log39Enfocus Software - Customer Support

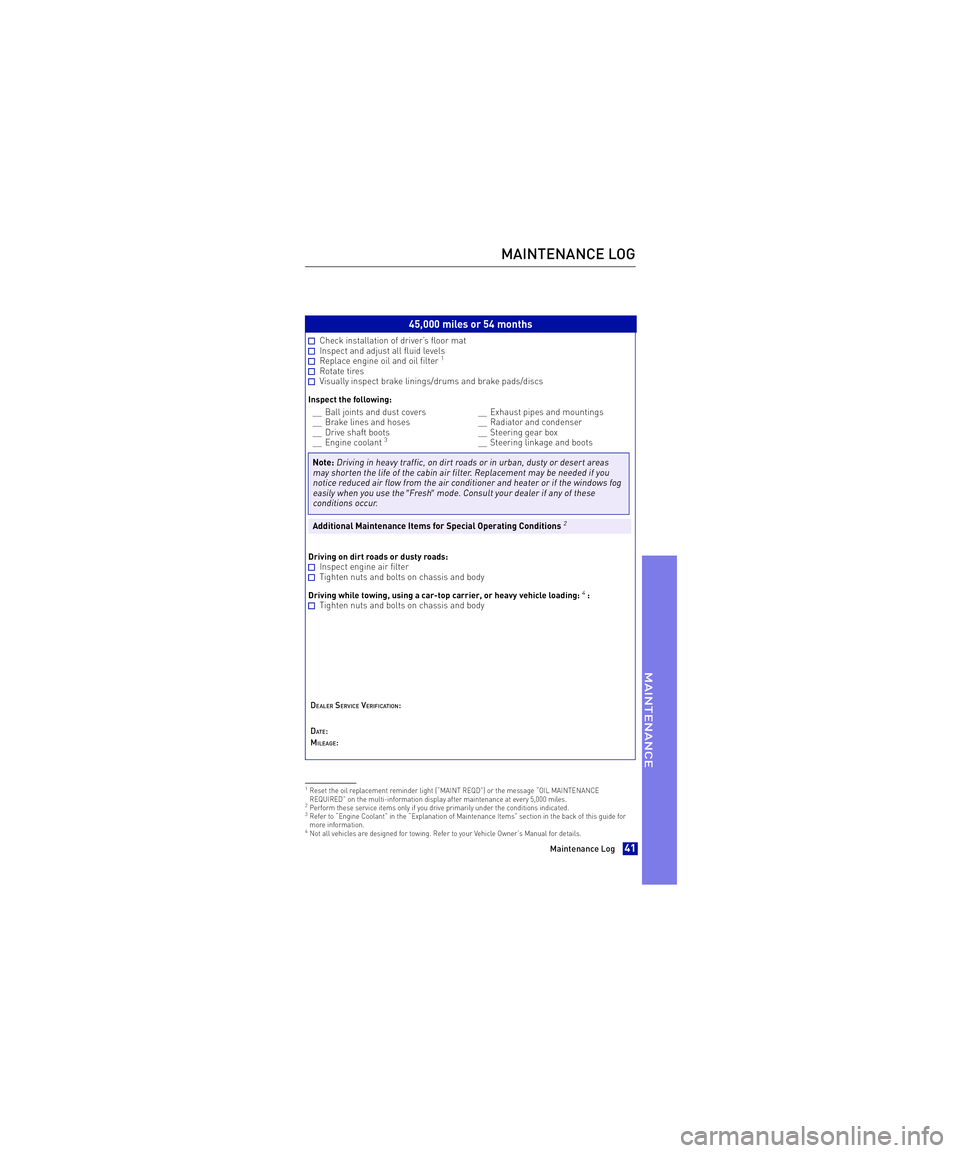

45,000 miles or 54 months
Check installation of driver’s floor mat Inspect and adjust all fluid levels Replace engine oil and oil filter1
Rotate tires Visually inspect brake linings/drums and brake pads/discs
Inspect the following:
__ Ball joints and dust covers __ Brake lines and hoses__ Drive shaft boots__ Engine coolant3
__ Exhaust pipes and mountings__ Radiator and condenser__ Steering gear box__ Steering linkage and boots
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if younotice reduced air flow from the air conditioner and heater or if the windows fogeasily when you use theFreshmode. Consult your dealer if any of theseconditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads: Inspect engine air filter Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:4: Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
DAT E:
MILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.2Perform these service items only if you drive primarily under the conditions indicated.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide formore information.4Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log41Enfocus Software - Customer Support

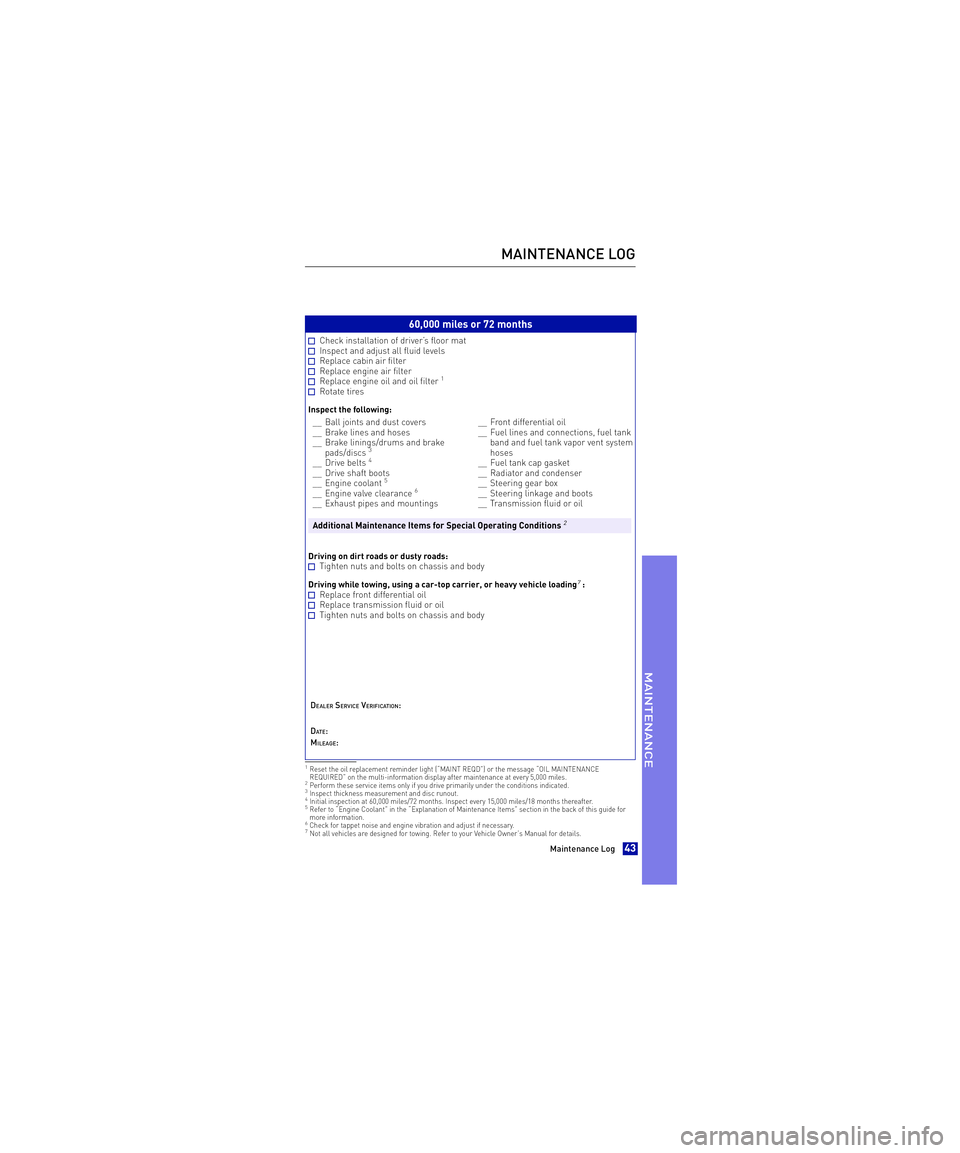

60,000 miles or 72 months
Check installation of driver’s floor mat Inspect and adjust all fluid levels Replace cabin air filter Replace engine air filter Replace engine oil and oil filter1
Rotate tires
Inspect the following:
__ Ball joints and dust covers __ Brake lines and hoses__ Brake linings/drums and brakepads/discs3
__ Drive belts4
__ Drive shaft boots__ Engine coolant5
__ Engine valve clearance6
__ Exhaust pipes and mountings
__ Front differential oil __ Fuel lines and connections, fuel tankband and fuel tank vapor vent systemhoses__ Fuel tank cap gasket__ Radiator and condenser__ Steering gear box__ Steering linkage and boots__ Transmission fluid or oil
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads: Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading7: Replace front differential oil Replace transmission fluid or oil Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
DAT E:
MILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.2Perform these service items only if you drive primarily under the conditions indicated.3Inspect thickness measurement and disc runout.4Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide formore information.6Check for tappet noise and engine vibration and adjust if necessary.7Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log43Enfocus Software - Customer Support

75,000 miles or 90 months
Check installation of driver’s floor mat Inspect and adjust all fluid levels Replace engine oil and oil filter1
Rotate tires Visually inspect brake linings/drums and brake pads/discs
Inspect the following:
__ Ball joints and dust covers __ Brake lines and hoses__ Drive belts__ Drive shaft boots__ Engine coolant3
__ Exhaust pipes and mountings__ Radiator and condenser__ Steering gear box__ Steering linkage and boots
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if younotice reduced air flow from the air conditioner and heater or if the windows fogeasily when you use theFreshmode. Consult your dealer if any of theseconditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads: Inspect engine air filter Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading4: Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
DAT E:
MILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.2Perform these service items only if you drive primarily under the conditions indicated.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide formore information.4Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log45Enfocus Software - Customer Support

90,000 miles or 108 months
Check installation of driver’s floor mat Inspect and adjust all fluid levels Replace cabin air filter Replace engine air filter Replace engine oil and oil filter1
Rotate tires
Inspect the following:
__ Ball joints and dust covers __ Brake lines and hoses__ Brake linings/drums and brakepads/discs3
__ Drive belts__ Drive shaft boots__ Engine coolant4
__ Exhaust pipes and mountings__ Front differential oil
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent systemhoses__ Fuel tank cap gasket__ Radiator and condenser__ Steering gear box__ Steering linkage and boots__ Transmission fluid or oil
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads: Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5: Replace front differential oil (manual transmission only) Replace manual transmission oil Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
DAT E:
MILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.2Perform these service items only if you drive primarily under the conditions indicated.3Inspect thickness measurement and disc runout.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide formore information.5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log47Enfocus Software - Customer Support

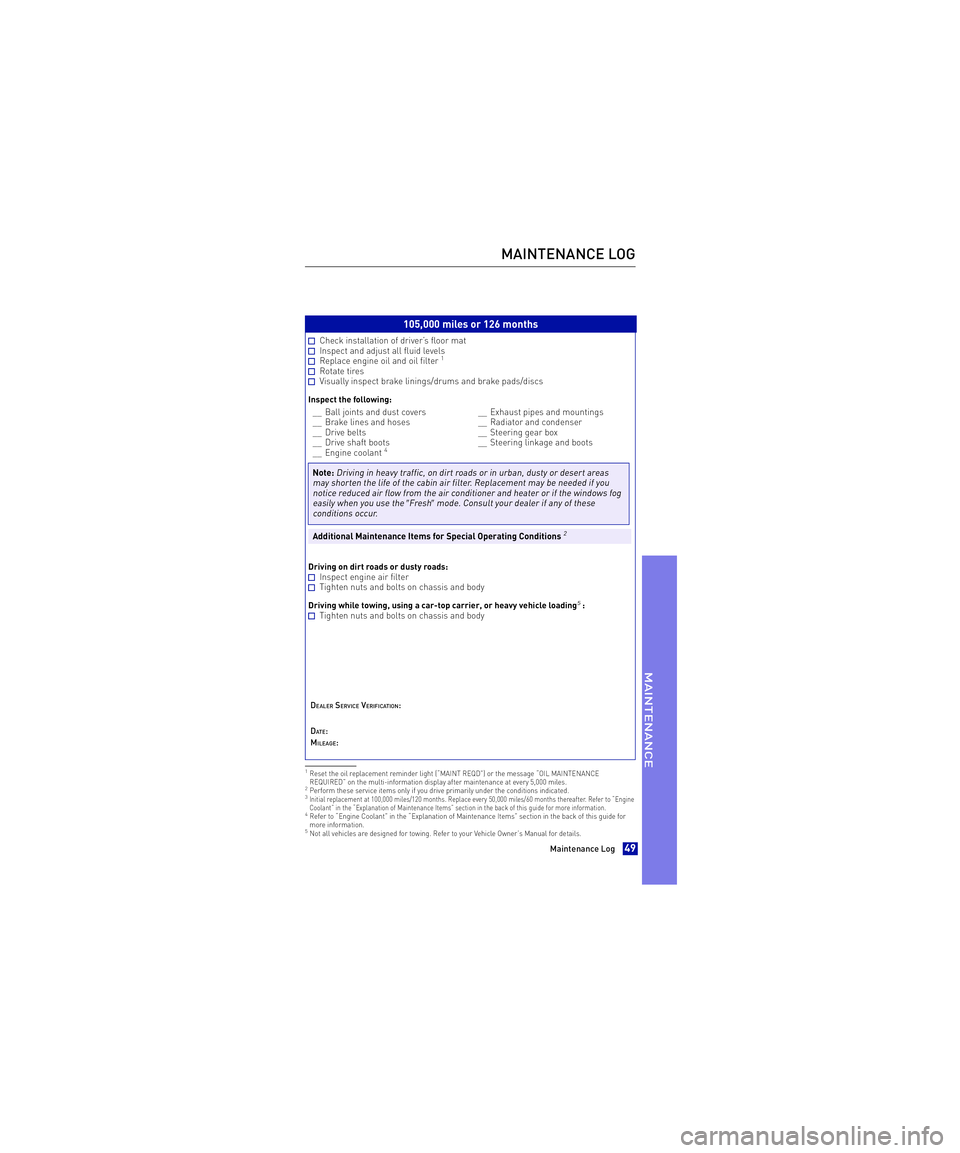

105,000 miles or 126 months
Check installation of driver’s floor mat Inspect and adjust all fluid levels Replace engine oil and oil filter1
Rotate tires Visually inspect brake linings/drums and brake pads/discs
Inspect the following:
__ Ball joints and dust covers __ Brake lines and hoses__ Drive belts__ Drive shaft boots__ Engine coolant4
__ Exhaust pipes and mountings__ Radiator and condenser__ Steering gear box__ Steering linkage and boots
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if younotice reduced air flow from the air conditioner and heater or if the windows fogeasily when you use theFreshmode. Consult your dealer if any of theseconditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads: Inspect engine air filter Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5: Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
DAT E:
MILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.2Perform these service items only if you drive primarily under the conditions indicated.3Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. Refer to “EngineCoolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide formore information.5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log49Enfocus Software - Customer Support

120,000 miles or 144 months
Check installation of driver’s floor mat Inspect and adjust all fluid levels Replace cabin air filter Replace engine air filter Replace engine oil and oil filter1
Replace spark plugs3
Rotate tires
Inspect the following:
__ Ball joints and dust covers __ Brake lines and hoses__ Brake linings/drums and brakepads/discs4
__ Drive belts__ Drive shaft boots__ Engine coolant5
__ Engine valve clearance6
__ Exhaust pipes and mountings
__ Front differential oil __ Fuel lines and connections, fuel tankband and fuel tank vapor vent systemhoses__ Fuel tank cap gasket__ Radiator and condenser__ Steering gear box__ Steering linkage and boots__ Transmission fluid or oil
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads: Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading7: Replace front differential oil Replace transmission fluid or oil Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
DAT E:
MILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.2Perform these service items only if you drive primarily under the conditions indicated.3Maintenance services of spark plugs are required under the terms of the Emission Control Warranty.4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6Check for tappet noise and engine vibration and adjust if necessary.7Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log51Enfocus Software - Customer Support
