186
2-1. Driving procedures
Tur n signal lever
■Turn signals can be operated when
The engine switch is in the ON position.
■ If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Left turn
Right turn
Move and hold the lever
partway to signal a lane
change.
The left hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change.
The right hand signal will flash
until you release the lever.

590
4-3. Do-it-yourself maintenance

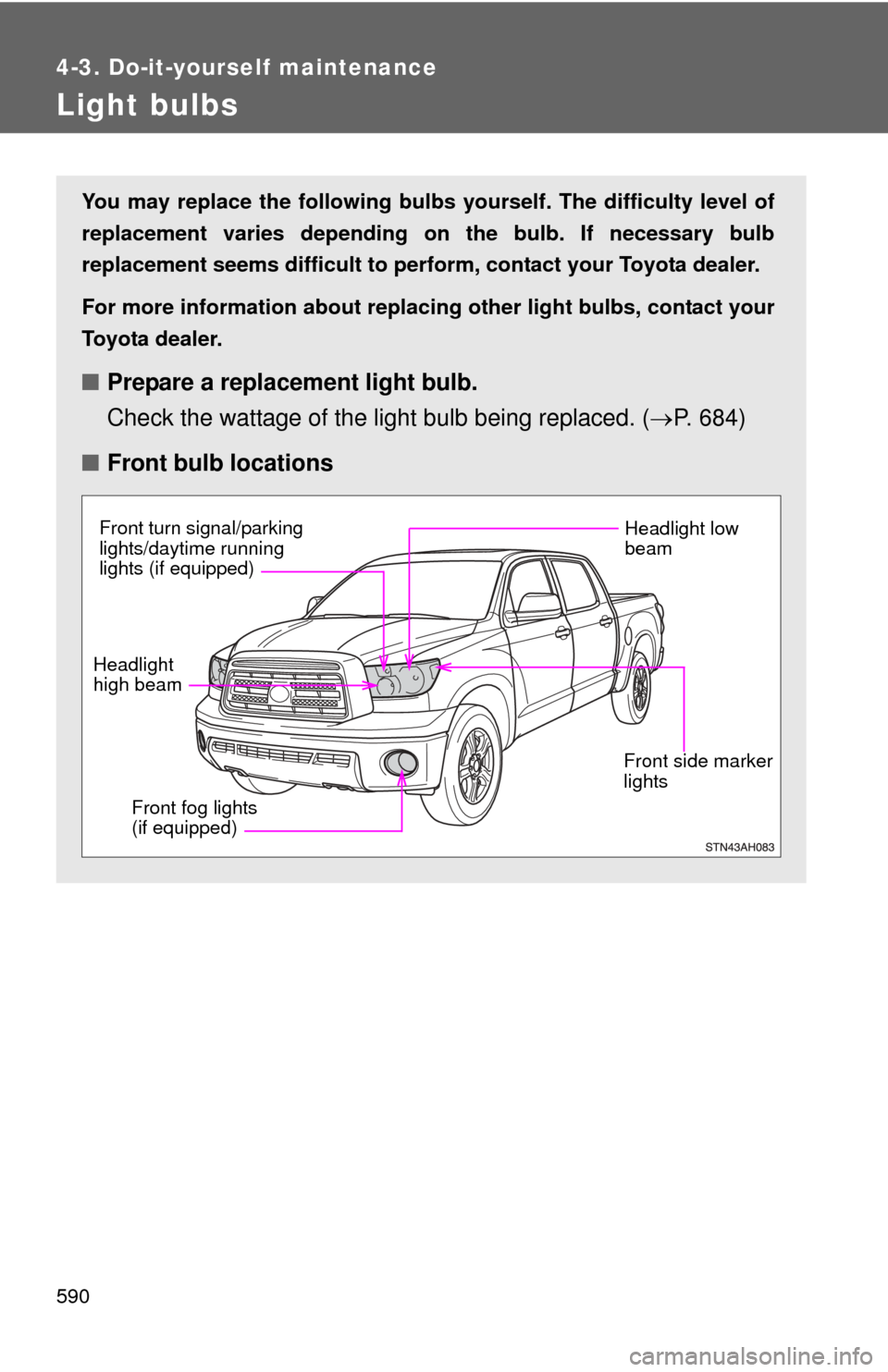

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 684)
■ Front bulb locations
Headlight low
beam
Front side marker
lights
Headlight
high beam Front fog lights
(if equipped)
Front turn signal/parking
lights/daytime running
lights (if equipped)

591
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■ Headlight high beam
Unplug the connector while
depressing the lock release.
■Rear bulb locations
High mounted stoplight
and cargo lamps
License plate lights
Back-up lights
Rear turn
signal lights Stop/tail and rear
side marker lights

593
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Front turn signal/parking lig hts/daytime running lights (if
equipped)
Turn the bulb base counterclock-
wise.
Remove the light bulb.

596 4-3. Do-it-yourself maintenance
Unplug the connector while
depressing the lock release.
■ Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Remove the bolts and rear com-
bination assembly.
Turn the bulb bases counter-
clockwise.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light

597
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the light bulb.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light
■ High mounted stoplight and cargo lamps
Remove the screws and cover.
Remove the light bulb.
High mounted stoplight
Cargo lamps

684 6-1. Specifications
Light bulbs
*: If equipped
A: HB3 halogen bulbs
B: H11 halogen bulbs
C: H10 halogen bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights
(high beam)
9005 65 A
Headlights
(low beam) H11 55 B
Front fog lights
*9145 45 C
Front side marker lights 168 5 D
Front turn signal/parking
lights/daytime running lights
*4157NAK 28/8 E
Rear turn signal lights 3157A 27/8 E
Stop/tail and rear side
marker lights 3157 27/8 D
Back-up lights 921 18 D
License plate lights 168 4.9 D
High mounted stoplight and
cargo lamp 921 18 D
Outer foot light — 5 D
InteriorVanity lights
7065 1.4 F
Personal/interior lights
Front — 5 D
Rear — 5 D
Foot well lighting — 1.4 D

738 Alphabetical index
FFV .................................... 110, 685
Flex-fuel ............................ 110, 685
Flexible fuel vehicle ......... 110, 685
Floor mat................................... 509
FluidBrake ..................................... 552
Washer .................................. 557
Fog lights
Replacing light bulbs ............. 595
Switch.................................... 215
Wattage ................................. 684
Four-wheel drive system ......... 242
Front fog lights Replacing light bulbs ............. 595
Switch.................................... 215
Wattage ................................. 684
Front passenger occupant
classification system ............ 135
Front passenger’s seat belt reminder light......................... 613
Front passenger’s seat belt warning buzzer .............. 613, 616
Front seats
Adjustment ..............................60
Front side marker lights Replacing light bulbs ............. 594
Switch.................................... 210
Wattage ................................. 684 Front turn signal lights
Replacing light bulbs ............. 593
Switch ................................... 186
Wattage................................. 684
Fuel
Capacity ................................ 675
Fuel gauge ............................ 189
Fuel pump shut off system .... 610
Gas station information ......... 752
Information ............................ 685
Refueling ............................... 110
Type ...................................... 675
Warning light ......................... 613
Warning message ................. 623
Fuel door .................................. 110
Fuel filler door .......................... 110
Fuel pump shut off system ..... 610
Fuses ........................................ 579
Garage door opener ................ 514
Gas station information .......... 752
Gauges...................................... 189
Glove box ................................. 463F
G
