374
3-1. Using the air conditioning system and defogger
PRIUS PHV_OM_OM47787U_(U)
CAUTION
■Precautions for the Remote Air Conditioning System
●Do not use the system if people are in the vehicle.
•Even when the system is in use, the internal temperature may still
reach a high level due to features such as the automatic shut-off. Chil-
dren and pets left inside the vehicle may suffer heatstroke or dehydra-
tion, or could result in death or serious injury.
•The wipers can be operated during system operation. Children or pets
left inside the vehicle may mistakenly operate these and cause an acci-
dent.
●Depending on the surrounding environment, signals from the wireless
switch may transmit further than expected. Pay appropriate attention to
the vehicle’s surroundings and use the switch only when necessary.
●Turn the wipers off. If the Remote Air Conditioning System operates while
the wiper switch is in the on position, the wipers may operate and objects
may get caught in the wiper blades.
●Do not operate the if the hood is open. The air conditioning may
operate unintentionally and objects may be drawn into the electrical cool-
ing fan.
NOTICE
■To p r e v e n t t h e h y b r i d b a t t e r y ( t r a c t i on battery) from being discharged
through incorrect operation
Use the only when necessary.

499
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
4
Maintenance and care
FUSEAmpereCircuit
11 I G C T 3 0 A P C U , I G C T N O . 2 , I G C T N O . 3
12 DC/DC-S 5A Inverter and converter
13 P CON MAIN 7.5AP position control system, P posi-
tion switch
14 AM2 7.5A Power management system
15 ECU-B2 7.5A Smart key system, hybrid system
16 MAYDAY/DCM 10A MAYDAY/DCM
17 PIMR 10A Charge system
18 TURN & HAZ 10A Turn signal lights
19 ETCS 10A
Multiport fuel injection system/
sequential multiport fuel injection
system
20ABS MAIN
NO.120A Anti-lock brake system
21 H-LP LH LO 15A Left-hand headlight (low beam)
22 P/I 2 40A
P position control system, horn,
headlight low beams, back-up
lights
23 ABS MTR 1 30A Anti-lock brake system
24 ABS MTR 2 30A Anti-lock brake system
25 H-LP HI MAIN 20AHeadlight high beams, daytime
running lights
26 DRL 7.5A Daytime running lights
27 AMP NO.2 30A Audio system, navigation system
28 P/I 1 60A IG2, EFI MAIN, BATT FAN
29 EPS 60A Electric power steering

503
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
4
Maintenance and care
FUSEAmpereCircuit
14 STOP 10A
Stop lights, high mounted stop-
light, brake system, driver support
system, vehicle proximity notifica-
tion system
15 P FR DOOR 25A Power windows
16 D FR DOOR 25A Power windows
17 DOOR RR 25A Power windows
18 DOOR RL 25A Power windows
19 S/ROOF 30A No circuit
20 ECU-IG NO.1 10A
Electric cooling fans, multiplex
communication system, vehicle
proximity notification system
21 ECU-IG NO.2 10A
Driver support system, Pre-Colli-
sion System, inside rear view mir-
ror, garage door opener, yaw rate
& G sensor, brake system, naviga-
tion system, tire pressure warning
system, seat belt pretensioners,
audio system, emergency flash-
ers, turn signal lights, windshield
wipers, headlight cleaner
22 GAUGE 10AHeadlight leveling system, gauges
and meters
23 A/C 10AAir conditioning system, Remote
Air Conditioning System
24 WASHER 15A Windshield washer

507
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
4
Maintenance and care
Light bulbs
Yo u m a y r e p l a c e t h e f o l l o w i n g b u l b s b y y o u r s e l f . T h e d i f f i c u l t y l e v e l
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by your Toyota dealer.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (→P. 6 2 0 )
■Front bulb locations
Front side
marker light
Headlight low beam (halogen headlights)
Headlight high beam
(including daytime running
lights for Canada)
Fog light
Front turn
signal light
Parking light
(halogen headlights)

508
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
Replacing light bulbs
■Headlight low beams (halogen headlights)
Turn the bulb base counterclock-
wise.
■Rear bulb locations
Rear turn signal light
Back-up lightLicense plate lights
STEP 1

516
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
■Front turn signal lights
Remove the fender liner bolt and clip and pull down the fender
liner. (→P. 5 1 4 )
For the U.S.A.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3

518
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
■Rear turn signal lights and back-up lights
Open the back door and remove
the cover.
To p r e v e n t d a m a g e , c o v e r t h e t i p
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Remove the light bulb.
Rear turn signal light
Back-up light
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P147
STEP 3
STEP 4

524
PRIUS PHV_OM_OM47787U_(U)
5-1. Essential information

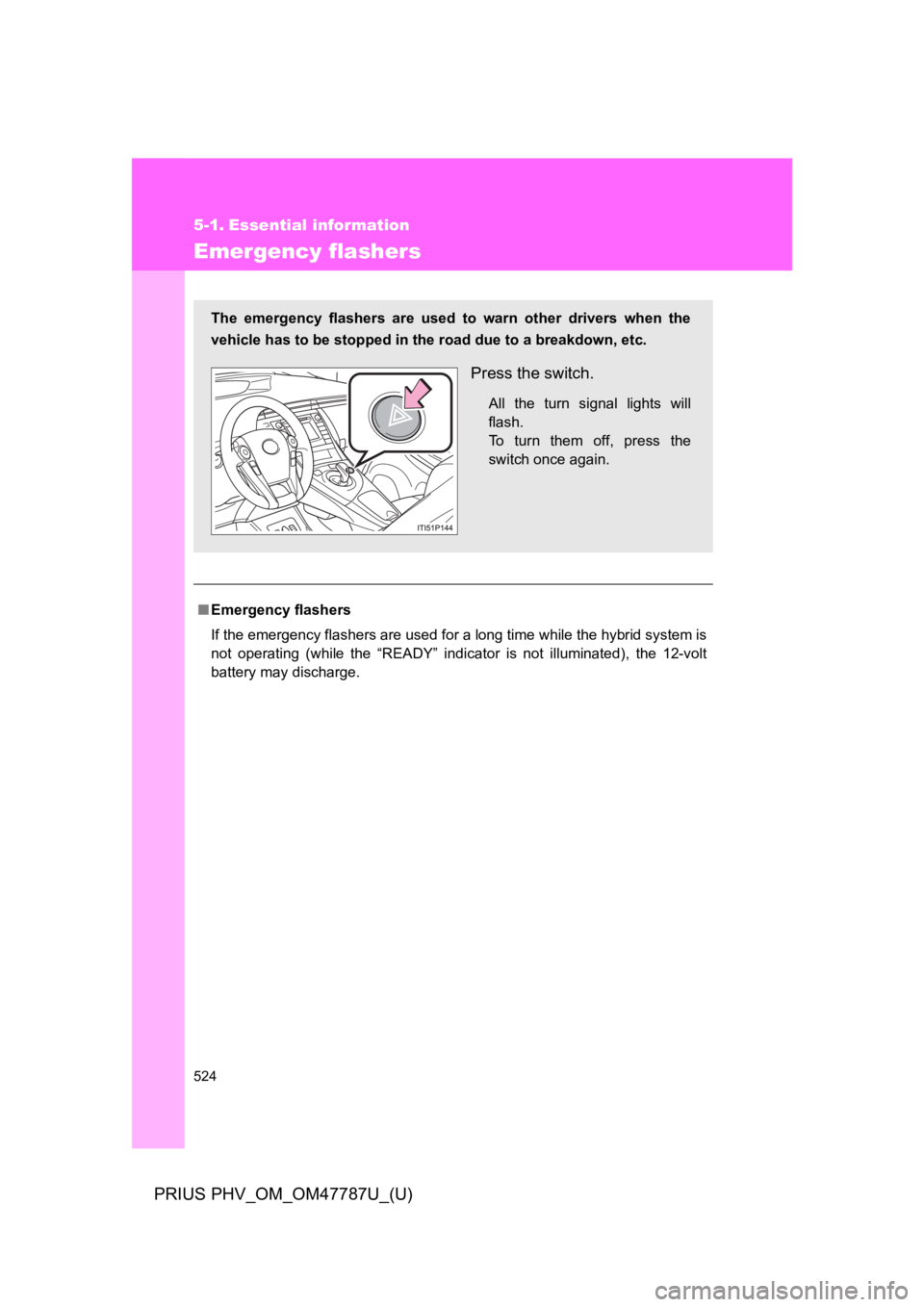

Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt
battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash.
To t u r n t h e m o f f , p r e s s t h e
switch once again.
