Replacing light bulbs
■Headlight low beams (halogen headlights)
Turn the bulb base counterclock-
wise.
■Rear bulb locations
Rear turn signal light
Back-up lightLicense plate lights
STEP 1

510
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
■Headlight high beams (including daytime running lights for
Canada)
Turn the bulb base counterclockwise.
Ve h i c l e s w i t h h a l o g e n h e a d l i g h ts
Ve h i c l e s w i t h L E D h e a d l i g h ts
Unplug the connector while
pressing the lock release.
STEP 1
ITO43P165
STEP 2

512
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
■Parking lights (halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P167
STEP 2
STEP 3

513
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
4
Maintenance and care

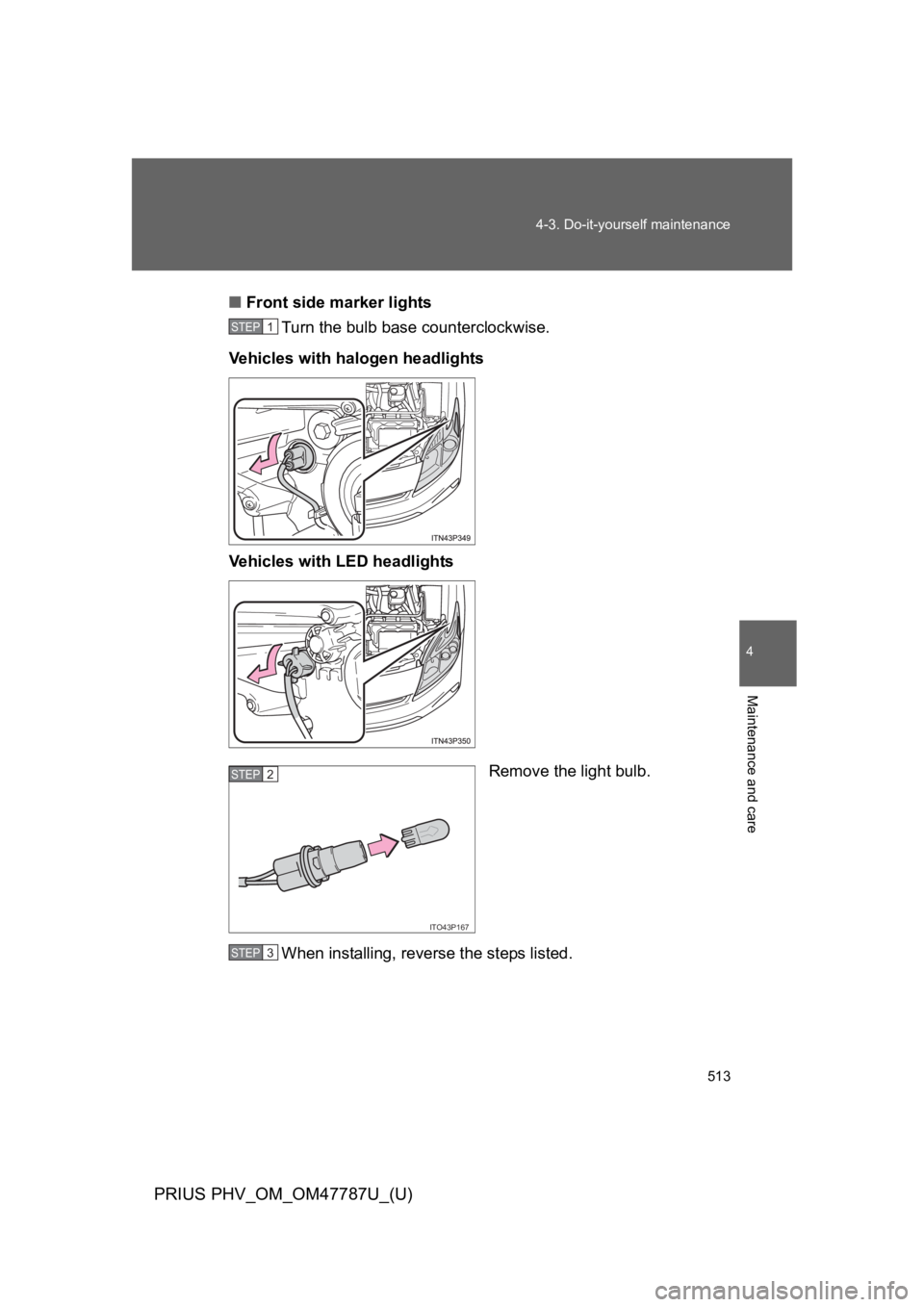

■Front side marker lights
Turn the bulb base counterclockwise.
Ve h i c l e s w i t h h a l o g e n h e a d l i g h ts
Ve h i c l e s w i t h L E D h e a d l i g h ts
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P167
STEP 2
STEP 3

514
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
■Fog lights (if equipped)

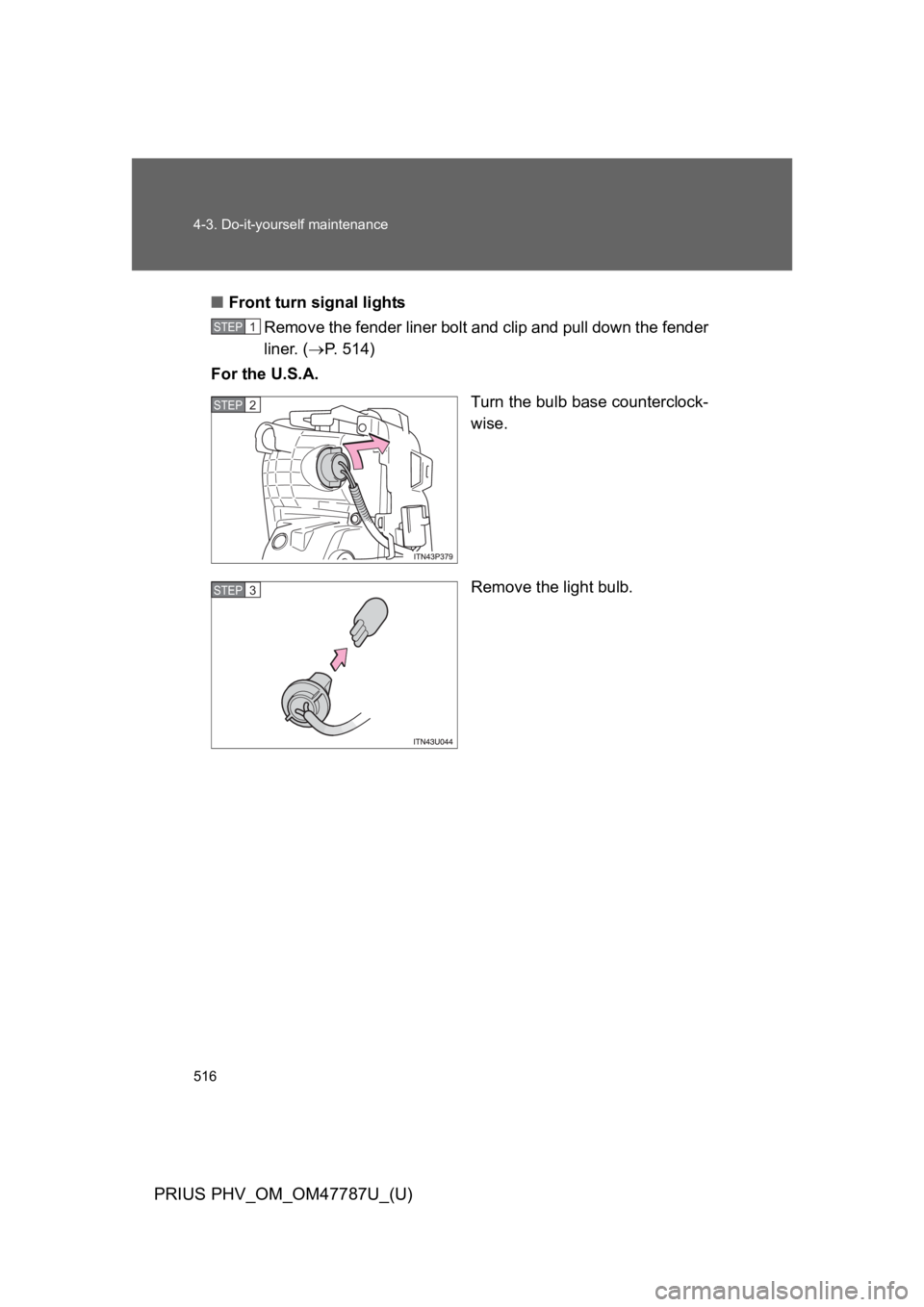

Remove the fender liner bolt and
clip and pull down the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counterclock-
wise.
STEP 1
STEP 2
STEP 3

516
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
■Front turn signal lights
Remove the fender liner bolt and clip and pull down the fender
liner. (→P. 5 1 4 )
For the U.S.A.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3

517
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
4
Maintenance and care

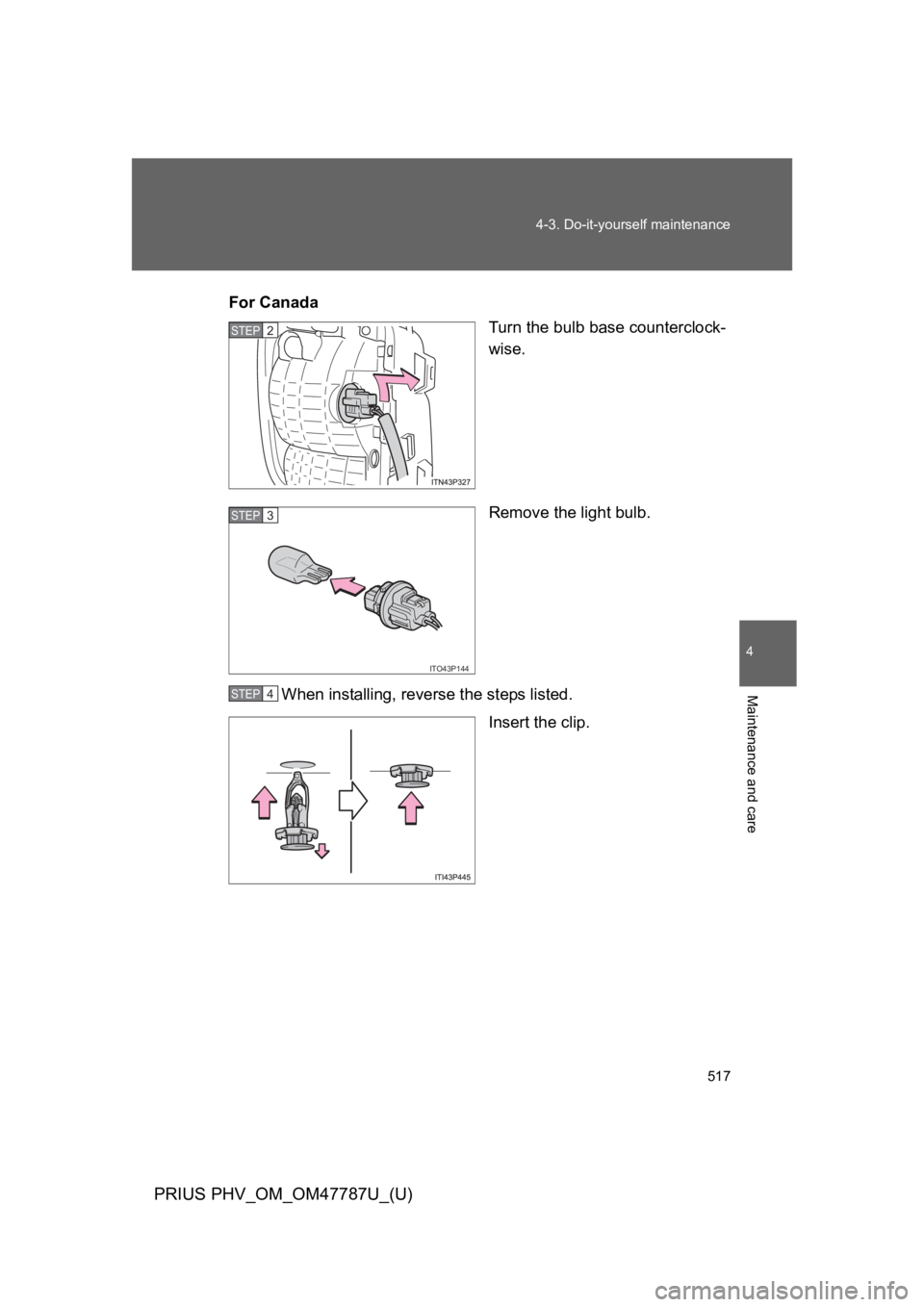

For CanadasTurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
Insert the clip.
STEP 2
ITO43P144
STEP 3
STEP 4

518
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)

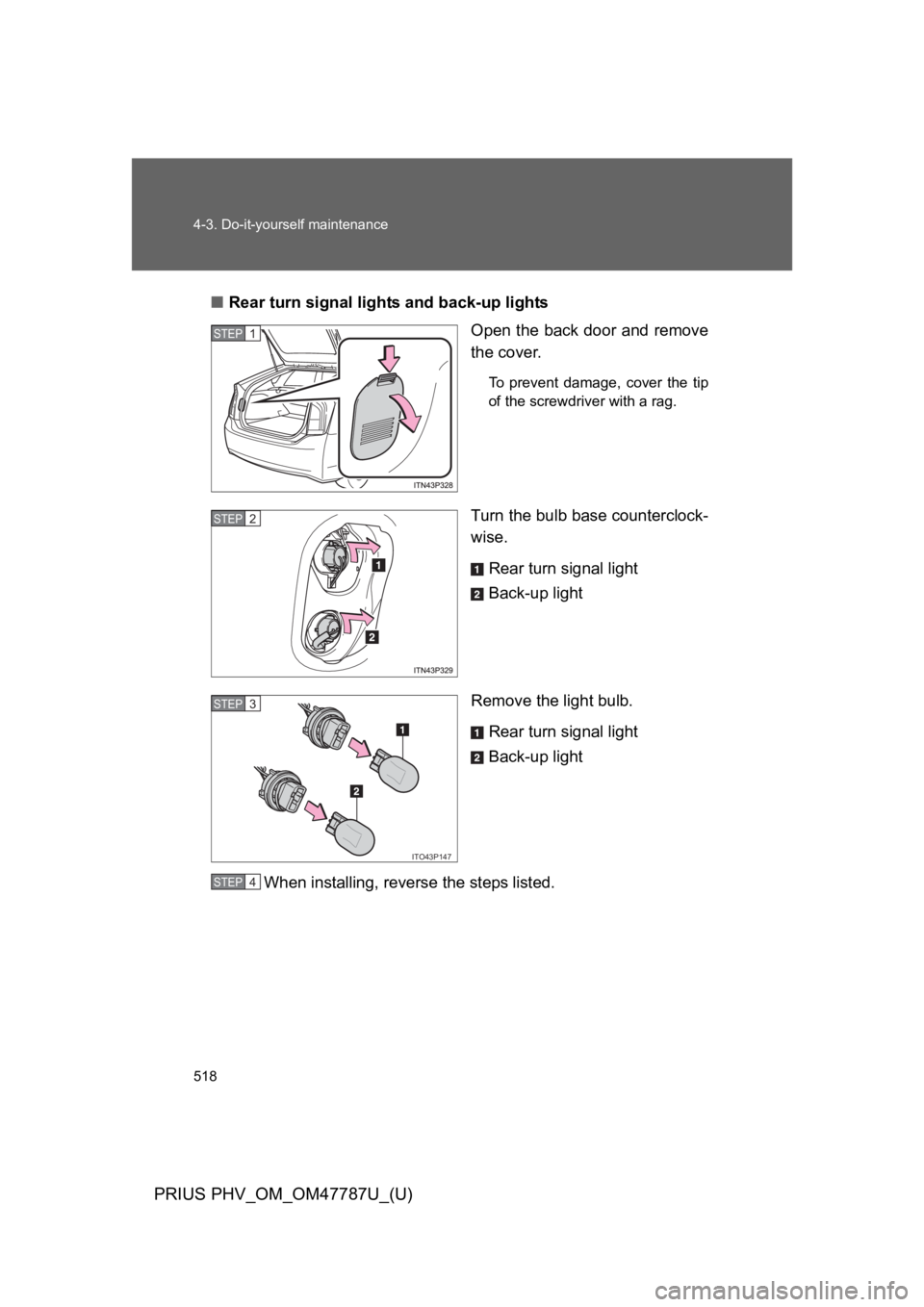

■Rear turn signal lights and back-up lights
Open the back door and remove
the cover.
To p r e v e n t d a m a g e , c o v e r t h e t i p
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Remove the light bulb.
Rear turn signal light
Back-up light
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P147
STEP 3
STEP 4
