2013 TOYOTA PRIUS spare tire location

443
4-3. Do-it-yourself maintenance
PRIUS_OM_OM47791U_(U)
4
Maintenance and care

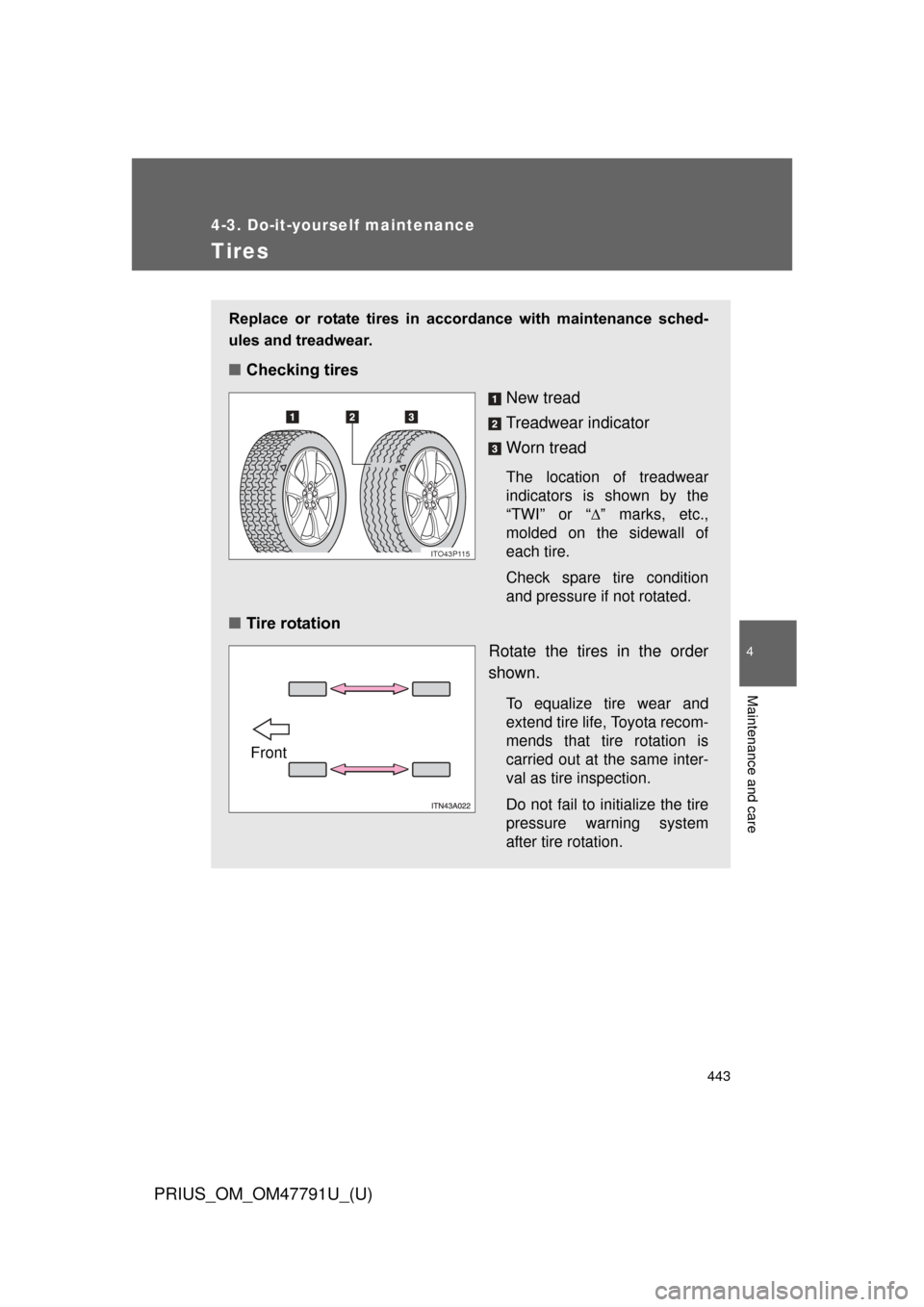

Tires
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
■Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear
indicators is shown by the
“TWI” or “” marks, etc.,
molded on the sidewall of
each tire.
Check spare tire condition
and pressure if not rotated.
■ Tire rotation
Rotate the tires in the order
shown.
To equalize tire wear and
extend tire life, Toyota recom-
mends that tire rotation is
carried out at the same inter-
val as tire inspection.
Do not fail to initialize the tire
pressure warning system
after tire rotation.
ITO43P115
Front

530
5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)
If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
*: The shape may differ depending on the grade, etc.
Center deck board*
Wheel nut wrench
Jack handle
Spare tire Towing
eyelet
Jack
Center
auxiliary box
*

581
6-1. Specifications
6
Vehicle specifications
PRIUS_OM_OM47791U_(U)
Tire infor mation
Typical tire symbols
Full-size tire
Compact spare tireTire size ( P. 584)
DOT and Tire Identification Number (TIN) ( P. 583)
Location of treadwear indicators ( P. 443)
ITO61P105

631
Alphabetical index
PRIUS_OM_OM47791U_(U)
Replacing
Electronic key battery ........... 460
Fuses.................................... 462
Light bulbs ............................ 473
Tires ..................................... 530
Reporting safety defects for
U.S. owners ........................... 606
Safety Connect ........................ 393
Seat belt reminder light .......... 504
Seat belts Adjusting the seat belt .......... 112
Automatic Locking Retractor (ALR).................................. 113
Child restraint system installation .......................... 167
Cleaning and maintaining
the seat belt ....................... 406
Emergency Locking Retractor (ELR) ................................. 113
How to wear your
seat belt ............................. 111
How your child should wear the seat belt ....................... 113
Pre-collision seat belts ......... 307
Pregnant women, proper seat belt use ........... 115
Reminder light ...................... 504
Seat belt extenders .............. 114
Seat belt instructions for Canadian owners .......... 607
Seat belt pretensioners ........ 112
Seat heaters ............................. 373
Seating capacity ...................... 320 Seats
Adjustment ...................101, 104
Adjustment precautions .................103, 106
Child seats/child restraint system installation ..............167
Cleaning ................................405
Folding down the seatbacks............................105
Head restraint........................107
Properly sitting in the seat .....140
Seat heaters ..........................373
Service reminder indicators ..............................221
Shift lever
Transmission .........................204
Side airbags..............................142
Side marker lights Replacing light bulbs .............473
Switch....................................252
Wattage .................................576
Side mirrors
Adjusting and folding .............124
Smart key system Antenna location .....................66
Entry functions ........................63
Starting the hybr id system.....194
Solar Ventilation System .........343
SOS button ...............................393
Spare tire Inflation pressure...................575
Storage location ....................530
Spark plug ................................572
Specifications...........................566
Speedometer ............................216
S
*: Refer to “Display Audio System Owner’s Manual” or “Navigation System Owner’s Manual”.
