2013 TOYOTA LAND CRUISER stop start

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
“ENGINE START STOP” switch
Four-wheel drive control switch
VIEW switch (multi-terrain monitor)*
Dynamic radar cruise control
Tire Pressure Monitoring (warning) System reset
Headlight leveling dial
Power outside rearview mirror controls
Instrument panel light control
Tilt and telescopic steering control
Intuitive parking assist switch
Center differential lock/unlock switch
Roll Sensing of Curtain shield Airbag OFF switch
Heated steering wheel switch
VSC/TRAC OFF switch
Headlight cleaner
* Refer to the “Navigation System Owner’s Manual” for details.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will
change the operation mode in succession from:
Back door lock/unlock
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push Lock
Push Unlock
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Push
Front door lockFront door unlock*
Grasp
Carry remote
to lock/unlock

10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP” switch must be in “IGNITION ON” mode and the brake
pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode

Park*
Reverse
Neutral
Drive
“S” mode
“S”“D”
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 45 seconds after turning the
“ENGINE START STOP” switch OFF.
Refer to the Owner’s Manualfor more details.
R W Pd n 2
ECT
PWR
R
W Pd n 2
2nd
STRT
R W Pd n
2R W Pd n 2
Power modeSecond start mode
For powerful acceleration and driving in
mountainous regions.For starting on slippery surfaces, such as
snowy roads. Press “2nd” to return to
normal mode. PushPush

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
27
Parking brake
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull
Power outlets-12V DC
The “ENGINE START STOP” switch must be in “ACCESSORY” or “IGNITION ON”
mode to be used.
Power outlet-120V AC
The “ENGINE START STOP” switch must be in “IGNITION ON” mode to be used.
FrontRear

28
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Seat belts-Shoulder belt anchor
After adjusting tire pressures, or after tires have been rotated or replaced, turn the
“ENGINE START STOP” switch to ON and press and hold the “ SET” button until
indicator blinks three times. Let the vehicle sit for a few minutes to allow
initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
NOTE:The warning light may come on due to temperature changes or changes in
tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the light.
Tire Pressure Monitoring (warning)
System

Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Smart Stop Technology (SST)

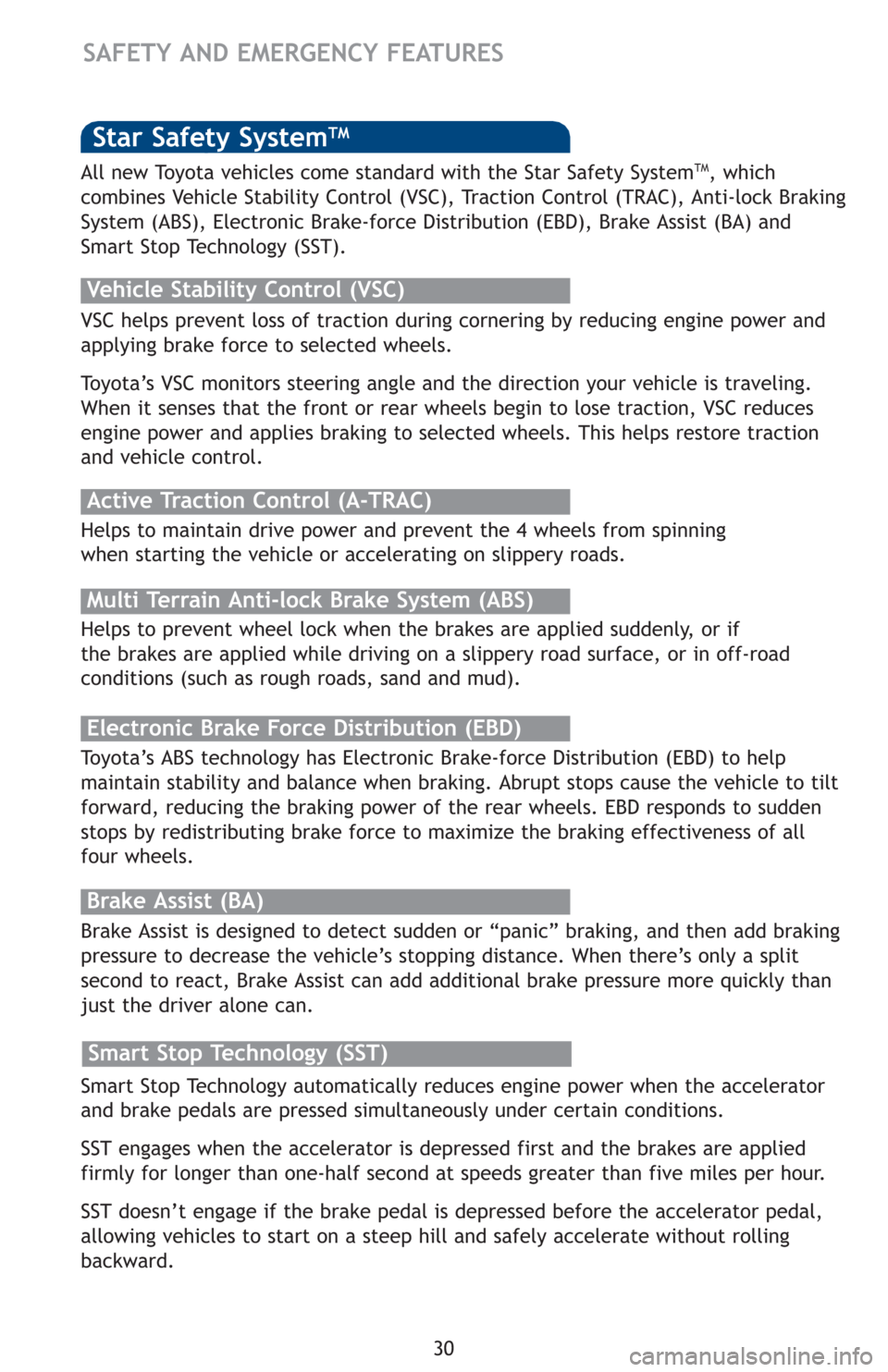

SAFETY AND EMERGENCY FEATURES
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Multi Terrain Anti-lock Brake System (ABS)
Brake Assist (BA)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface, or in off-road
conditions (such as rough roads, sand and mud).
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can. Helps to maintain drive power and prevent the 4 wheels from spinning
when starting the vehicle or accelerating on slippery roads.
Active Traction Control (A-TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain stability and balance when braking. Abrupt stops cause the vehicle to tilt
forward, reducing the braking power of the rear wheels. EBD responds to sudden
stops by redistributing brake force to maximize the braking effectiveness of all
four wheels. All new Toyota vehicles come standard with the Star Safety System
TM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Braking
System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and
Smart Stop Technology (SST).
30
