644 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
■After completing the tire change
The tire pressure warning system must be reset. (P. 545)
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to
the vehicle suddenly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.
■Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screw-
driver, to prevent the extension parts from coming apart unexpectedly.

648 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Emergency start function
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally.
Set the parking brake.
Put the shift lever in “P”.
Set the “ENGINE START STOP” switch to ACCESSORY
mode.
Press and hold the “ENGINE START STOP” switch about 15
seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by your Toyota
dealer.
■The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound
One of the following may be the cause of the problem.
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (P. 654)
●There may be a malfunction in the steering lock system.
Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.
STEP1
STEP2
STEP3
STEP4

5
When trouble arises
655 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Open and close any of the doors with the “ENGINE START
STOP” switch off.
Maintain the engine speed of the second vehicle and start
your vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.STEP3
STEP4
STEP5

5
When trouble arises
659 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
The coolant level is satisfac-
tory if it is between the “F” and
“L” lines on the reservoir.
Reservoir
“F”
“L”
Radiator cap
Add coolant if necessary.
(P. 529)
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning system on to
check that the radiator cooling fan operates and to check
for coolant leaks from the radiator or hoses.
The fan operates when the air conditioning system is turned on
immediately after a cold start. Confirm that the fan is operating by
checking the fan sound and air flow. If it is difficult to check these,
turn the air conditioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the engine immediately and contact your Toyota
dealer.
If the fan is operating:
Have the vehicle inspected at the nearest Toyota dealer.
STEP4
STEP5
STEP6
STEP7

669 6-1. Specifications
6
Vehicle specifications
LC200_OM_OM60F57U_(U)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Oil capacity
(Drain and refill —
reference
*)
With filter
Without filter7.9 qt. (7.5 L, 6.6 Imp.qt.)
7.5 qt. (7.1 L, 6.2 Imp.qt.)
Outside temperature

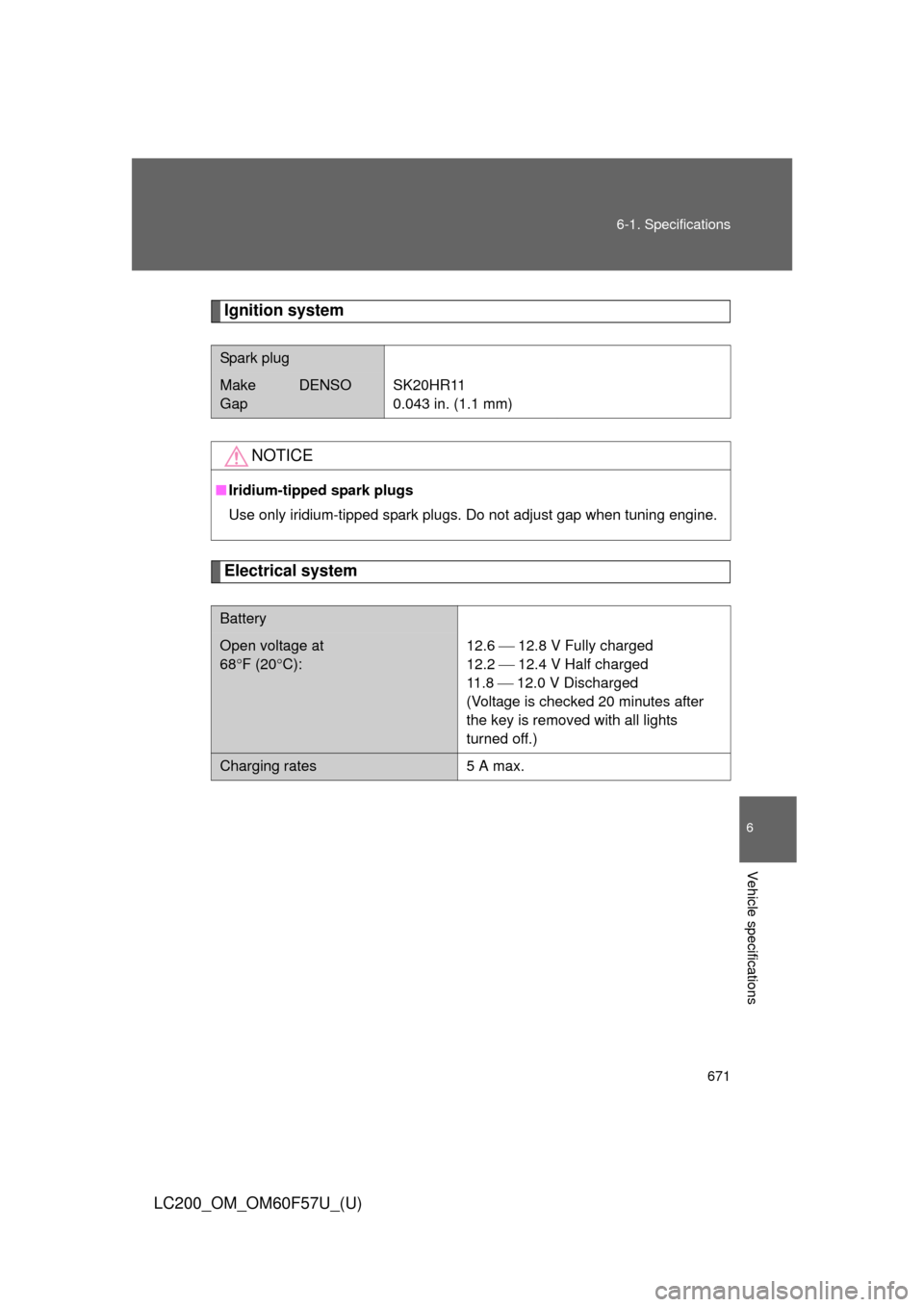

671 6-1. Specifications
6
Vehicle specifications
LC200_OM_OM60F57U_(U)
Ignition system
Electrical system
Spark plug
Make DENSO
GapSK20HR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68F (20C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after
the key is removed with all lights
turned off.)
Charging rates5 A max.

711 Alphabetical index
LC200_OM_OM60F57U_(U)
Eco driving............................... 156
Electronic key
If your electronic key
battery is discharged .. 563, 651
Emergency flashers
Switch ................................... 598
Emergency, in case of
If a warning message is
displayed ............................ 617
If the electronic key does
not operate properly ........... 651
If the engine will not start...... 647
If the shift lever cannot be
shifted from “P” .................. 649
If the vehicle has discharged
battery ............................... 654
If the warning buzzer
sounds ............................... 606
If the warning light turns on .. 606
If you have a flat tire ............ 633
If you lose your keys............. 650
If you think something is
wrong ................................. 604
If your vehicle becomes
stuck................................... 661
If your vehicle has to be
stopped in an emergency... 663
If your vehicle needs to be
towed ................................. 599
If your vehicle overheats ...... 658
Engine
Compartment........................ 528
Engine switch ....................... 166
Hood ..................................... 527
How to start the engine ........ 166
Identification number ............ 667
If the engine will not start...... 647
Ignition switch ....................... 166
Overheating .......................... 658Engine coolant
Capacity ................................670
Checking ...............................534
Preparing and checking
before winter .......................310
Engine coolant temperature
gauge ......................................179
Engine immobilizer system.....105
Engine oil
Capacity ................................669
Checking ...............................530
Preparing and checking
before winter .......................310
Engine switch ...........................166
Event data recorder ...................25
First-aid kit holder....................495
Floor mats.................................493
Fluid
Brake .....................................536
Power steering ......................538
Washer ..................................542
Fog lights
Replacing light bulbs .............581
Switch....................................201
Wattage .................................675
Four-wheel drive system .........240
Front fog lights
Replacing light bulbs .............581
Switch....................................201
Wattage .................................675
Front passenger’s seat belt
reminder light.........................609
Front seats
Adjustment ..............................57
Driving position memory..........68
Front side marker light
Replacing light bulbs .............581
Wattage .................................675E
F
*: For vehicles with a navigation system,
refer to the “Navigation System Owner’s Manual”.
