2013 TOYOTA HIGHLANDER odometer

186
2-2. Instrument cluster
Gauges and meters
Vehicles without smart key system
The following gauges and meters illuminate when the engine
switch is in the “ON” position.
Vehicles with smart key system
The following gauges and meters illuminate when the “ENGINE
START STOP” switch is in IGNITION ON mode.
Tachometer
Displays the engine speed in revolutions per minute.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Speedometer
Displays the vehicle speed.
Odometer/trip meter switching and trip meter resetting button
Switches between odometer and trip meter displays. Pushing and hold-
ing the button will reset the trip meter when the trip meter is being dis-
played.

187
2-2. Instrument cluster
2
When drivingInstrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
When the headlight switch is
turned on, the brightness will
be reduced slightly unless the
control dial is turned fully up.
Odometer/Trip meterOdometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehi cle has been driven since the
meter was last reset. Trip meters A and B can be used to
record and display different distances independently.
NOTICE
■ To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and
check the engine after it has cooled completely. (
P. 610)

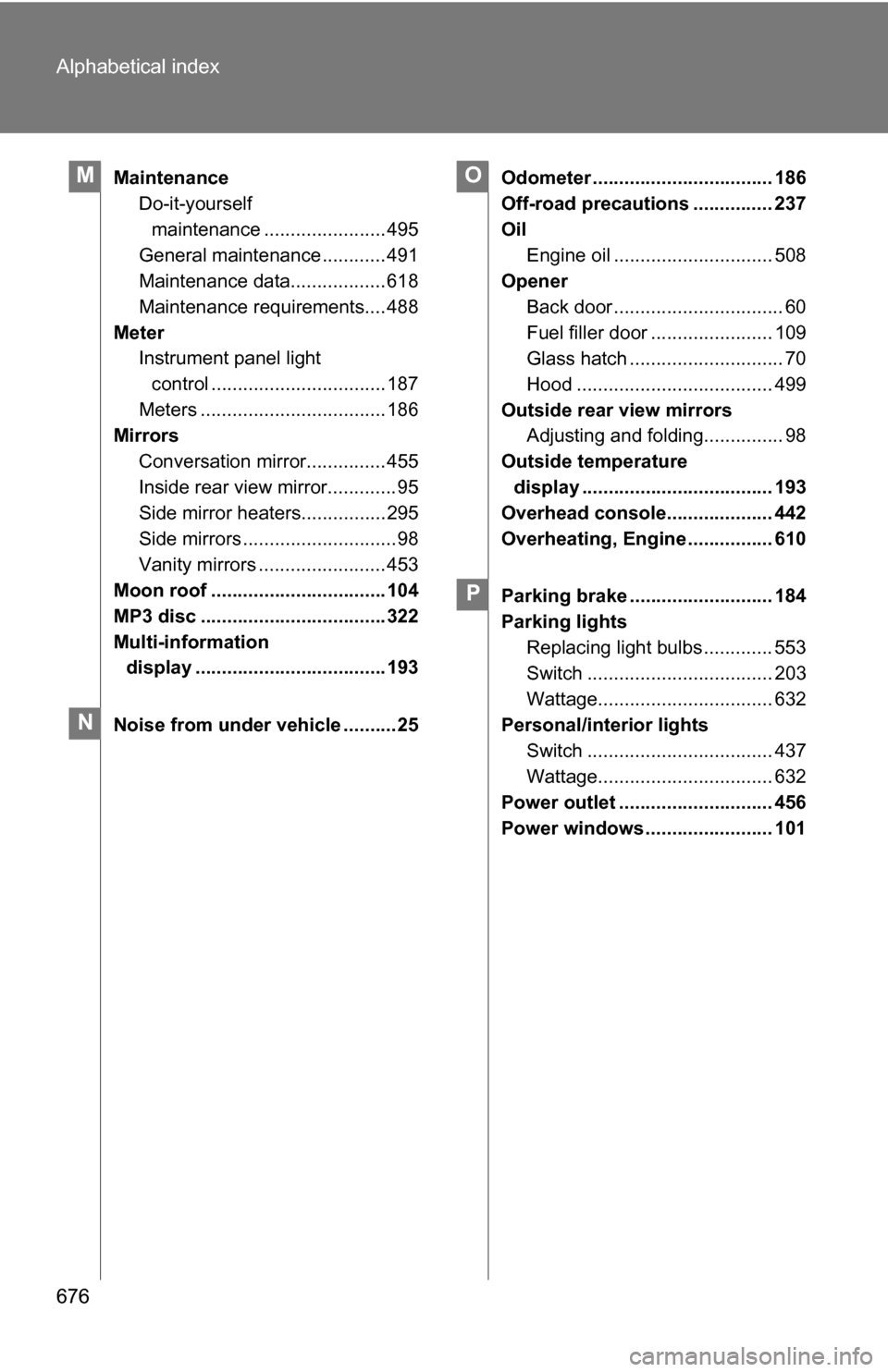

676 Alphabetical index
MaintenanceDo-it-yourself
maintenance ....................... 495
General maintenance ............ 491
Maintenance data.................. 618
Maintenance requirements.... 488
Meter Instrument panel light
control ................................. 187
Meters ................................... 186
Mirrors
Conversation mirror............... 455
Inside rear view mirror.............95
Side mirror heaters................295
Side mirrors .............................98
Vanity mirrors ........................ 453
Moon roof ................................. 104
MP3 disc ................................... 322
Multi-information display .................................... 193
Noise from under vehicle ..........25 Odometer .................................. 186
Off-road precautions ............... 237
Oil
Engine oil .............................. 508
Opener
Back door ................................ 60
Fuel filler door ....................... 109
Glass hatch ............................. 70
Hood ..................................... 499
Outside rear view mirrors Adjusting and folding............... 98
Outside temperature display .................................... 193
Overhead console.................... 442
Overheating, Engine ................ 610
Parking brake ........................... 184
Parking lights Replacing light bulbs ............. 553
Switch ................................... 203
Wattage................................. 632
Personal/interior lights
Switch ................................... 437
Wattage................................. 632
Power outlet ............................. 456
Power windows ........................ 101M
N
O
P
