2013 TOYOTA CAMRY window

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2013
Camry
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 9
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument panel 8
Smart Key system
1,2 7
Air Conditioning/Heating 18-19
Audio 20
Auto lock/unlock
2 10
Automatic Transmission 10
Bottle holders 22
BSM (Blind Spot Monitor) 17
Clock 17
Cruise control 16
Cup holders 22
Garage door opener (HomeLink
®)3 16
iPod®/USB/AUX port 21
Lights1 & turn signals 15
Moonroof 12
Parking brake 11
Power outlets-12V DC 14
Seat adjustments-Front 13
Seat adjustments-Rear 13
Seat heaters 19
Seats-Head restraints 12
Steering lock release 11
Steering wheel switches 21
Tilt and telescopic steering wheel 11
Windows-Power 12
Windshield wipers & washers 14

Door locks 23
Doors-Child safety locks 23
Floor mat installation 27
Seat belts 24
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety System
TM 26-27
Trunk-Internal release 25
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
127601_2013Camry.indd 111/19/12 10:28 PM

2
OVERVIEW
Instrument panel
Steering wheel audio controls1,2,3
Telephone controls1,2
Voice command button1,2,3
Ignition switch (standard key)1
Cruise control
Paddle shift switches1
Headlight and turn signal controls/Headlight, turn signal and front fog
light1 controls
Wiper and washer controls
Clock
Audio system
1/Navigation system1,2/Display audio system1,3
“ENGINE START STOP” button (Smart Key)1
Tilt and telescopic steering lock release
Air Conditioning controls
Emergency flasher button
Outside rearview mirror
1/Rear window defogger button
12V DC power outlet
AUX or USB/AUX port
Seat heater controls
1
BSM (Blind Spot Monitor) main switch1
VSC OFF switch
Headlight leveling dial1
Coin holder
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “Display Audio System Owner’s Manual .”
NOTE: For vehicles equipped with Entune
TM, please consult the “Navigation
System With Entune Quick Reference Guide” or www.toyota.com/entune.
Steering wheel controlsAutomatic Air Conditioning
Type A
Type B
127601_2013Camry.indd 211/19/12 10:28 PM

12
FEATURES/OPERATIONS
Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltCloseClose
Recommended driving position
to minimize wind noise.
Seat adjustments-Front
Manual seat
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle (driver side only) and height (driver side only)
Lumbar support (driver side only)
Seat adjustments-Rear
Refer to the Owner’s Manual for more details.
Seats-Head restraints
Lock release button
Windows-Power
Power windows
Up
Down
Driver sideWindow lock switch
Automatic operation (driver’s window only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
Push once to open partway;
again to open completely.
127601_2013Camry.indd 1211/19/12 10:29 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Tilting operation

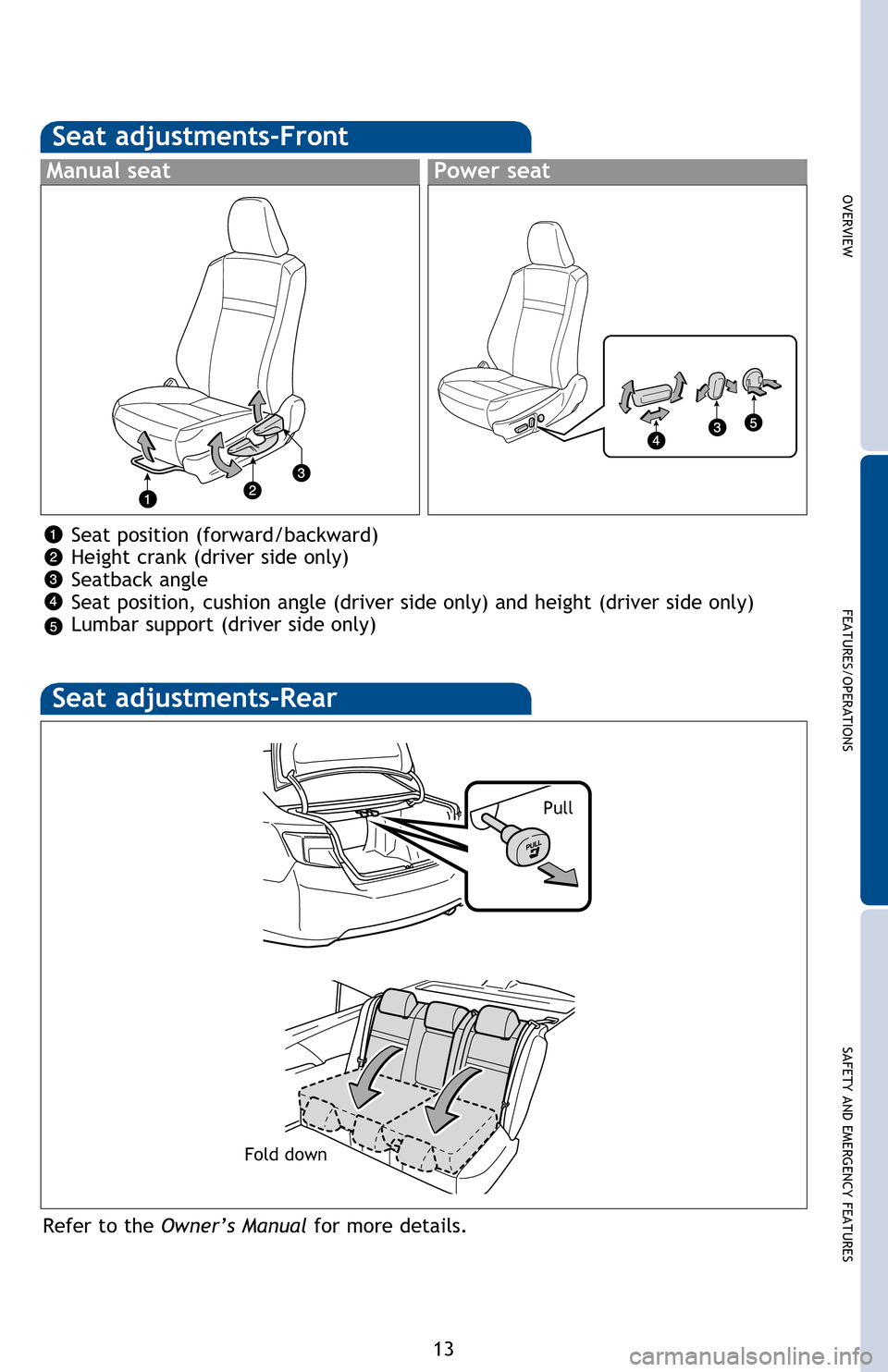

Seat adjustments-Front
Manual seatPower seat
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle (driver side only) and height (driver side only)
Lumbar support (driver side only)
Seat adjustments-Rear
Pull
Fold down
Refer to the Owner’s Manual for more details.
Automatic operation (driver’s window only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
127601_2013Camry_TEXT.indd 1311/21/12 4:10 PM

18
Automatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Temperature selector (driver side)
Temperature selector (passenger side)
“DUAL” button
Indicator ON: Separate temperature settings for driver and passengers.
Indicator OFF: Synchronized temperature settings for driver and passengers.
Air Conditioning ON/OFF
Outside rearview mirror/Rear defogger
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Windshield airflow/defogger
Fan speed
Recirculate cabin air (fresh air when OFF)
Climate control OFF
FEATURES/OPERATIONS
Air Conditioning/HeatingManual Air Conditioning
Fan speed
Recirculate cabin air (fresh air when OFF)
Windshield airflow/defogger
Outside rearview mirror*/Rear defogger
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for cooler air.
Select for maximum cooling. Air intake will automatically be set to recirculate.
It is not possible to change intake to fresh, or to turn A/C OFF in this mode.\
Temperature selector
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging.
“
” mode uses fresh air only.
* If equipped
Seat heaters (if equipped)
127601_2013Camry.indd 1811/19/12 10:30 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Temperature selector (driver side)
Temperature selector (passenger side)
“DUAL” button
Indicator ON: Separate temperature settings for driver and passengers.
Indicator OFF: Synchronized temperature settings for driver and passengers.
Air Conditioning ON/OFF
Outside rearview mirror/Rear defogger
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Windshield airflow/defogger
Fan speed
Recirculate cabin air (fresh air when OFF)
Climate control OFF
Manual Air Conditioning
Fan speed
Recirculate cabin air (fresh air when OFF)
Windshield airflow/defogger
Outside rearview mirror*/Rear defogger
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for cooler air.
Select for maximum cooling. Air intake will automatically be set to recirculate.
It is not possible to change intake to fresh, or to turn A/C OFF in this mode.\
Temperature selector
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging.
“
” mode uses fresh air only.
* If equipped
Seat heaters (if equipped)
3- 5. Other interior features
Sea t hea ters
Driver seatFront passenger seat
127601_2013Camry_TEXT.indd 1911/21/12 4:14 PM
