2013 TOYOTA AYGO bluetooth

214 3-3. Using the audio system (Type B)
AYGO_WE_99G80E
Managing connections
Press the “MENU” button.
Press (Bluetooth).
Press (BT management) and confirm. The list of paired
telephones is displayed.
: Indicates connection of the audio profile.
: Indicates connection of the hands-free profile.
Press ( or ) to select a telephone and press
(OK).
Select one of to select.
“Tel.”: Hands-free connection
“Audio”: Play audio files
“Delete”: Delete the pairing
Making a call – recently called numbers*
Press and hold the “SRC/ ” button to display the call list.
For access to the calls list, it is also possible in the following way:
“MENU”“Telephone”“Call”“Calls list”
Press ( or ) to select “Missed calls”, “Dialed calls” or
“Answered calls”.
Press ( or ) to select the desired number.
Press “ ” or “ ” on the “SEEK” button to select the next or pre-
vious page in the call list.
Press (OK) to start the call.
The call list includes the calls sent from and received by the vehicle
via the connected telephone. It is possible to make a call directly
from the telephone; however stop the vehicle in a safe area as a
safety measure.
*: Depending on the compatibility of the telephone

216 3-3. Using the audio system (Type B)
AYGO_WE_99G80E
Managing calls
Hang up
In the contextual menu:
Press ( ) to end the call.
Press and hold the “SRC/ ” button also ends the call.
Secret – mute (so that the caller cannot hear)
In the contextual menu:
Press ( ) to switch off the microphone.
Press ( ) to switch on the microphone.
Combined mode (to leave the vehicle without ending the call)
In the contextual menu:
Press ( ) to transfer the call to the telephone.
Press ( ) to transfer the call to the vehicle.
In certain cases, the combined mode has to activated from the tele-
phone.
The Bluetooth
® connection will be restored automatically if the ignition
has been switched off, then on again (depending on the compatibility of
the telephone).

217 3-3. Using the audio system (Type B)
3
Interior features
AYGO_WE_99G80E

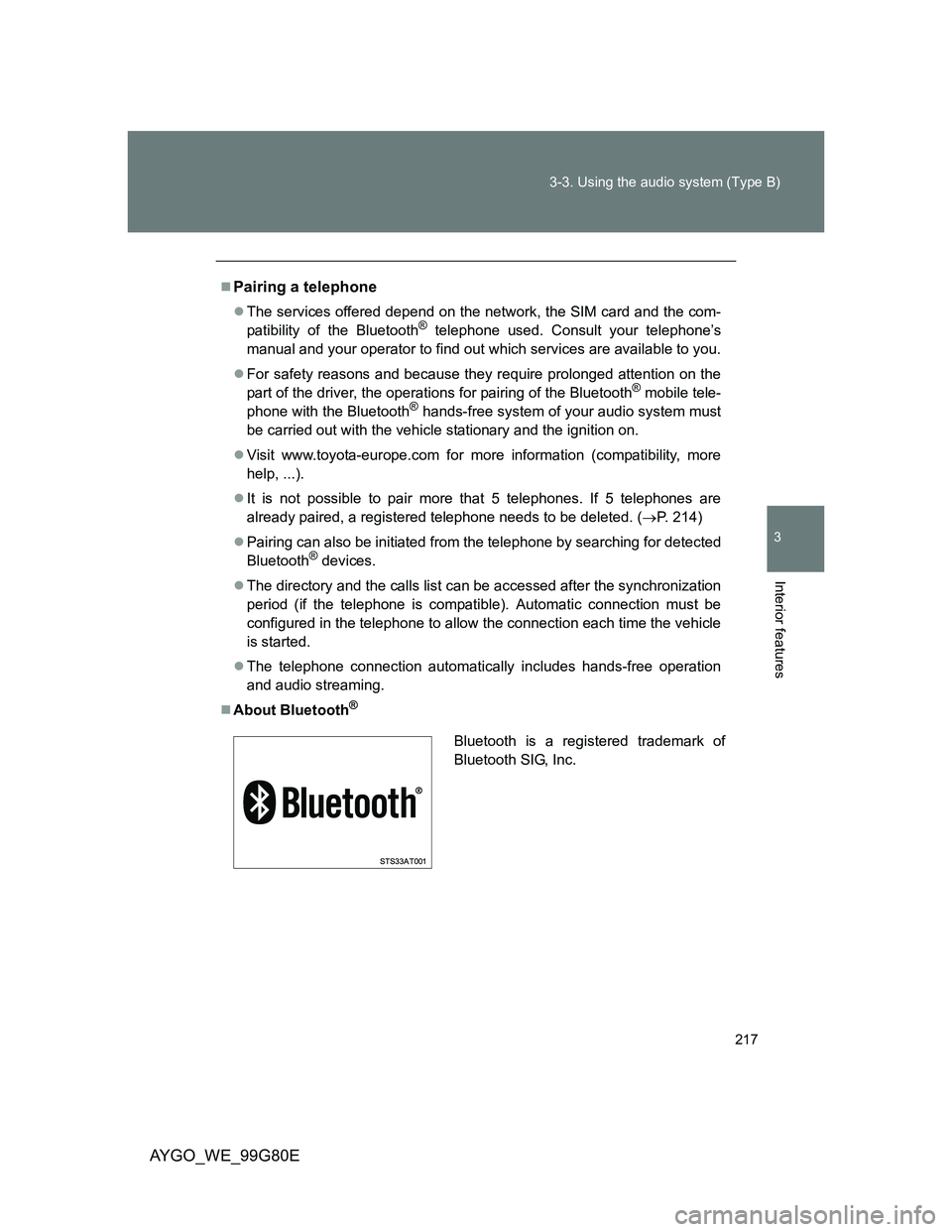

Pairing a telephone
The services offered depend on the network, the SIM card and the com-
patibility of the Bluetooth® telephone used. Consult your telephone’s
manual and your operator to find out which services are available to you.
For safety reasons and because they require prolonged attention on the
part of the driver, the operations for pairing of the Bluetooth
® mobile tele-
phone with the Bluetooth® hands-free system of your audio system must
be carried out with the vehicle stationary and the ignition on.
Visit www.toyota-europe.com for more information (compatibility, more
help, ...).
It is not possible to pair more that 5 telephones. If 5 telephones are
already paired, a registered telephone needs to be deleted. (P. 214)
Pairing can also be initiated from the telephone by searching for detected
Bluetooth
® devices.
The directory and the calls list can be accessed after the synchronization
period (if the telephone is compatible). Automatic connection must be
configured in the telephone to allow the connection each time the vehicle
is started.
The telephone connection automatically includes hands-free operation
and audio streaming.
About Bluetooth
®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.

219 3-3. Using the audio system (Type B)
3
Interior features
AYGO_WE_99G80E
CAUTION
Caution while driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
Caution regarding interference with electronic devices
Your audio unit is fitted with Bluetooth
® antennas. People with implanted
pacemakers or cardiac defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas. The radio waves
may affect the operation of such devices.
Before using Bluetooth
® devices, users of any electrical medical device
other than implanted pacemakers and implanted cardiac defibrillators
should consult the manufacturer of the device for information about its
operation under the influence of radio waves. Radio waves could have
unexpected effects on the operation of such medical devices.
NOTICE
To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.

226 3-3. Using the audio system (Type B)
AYGO_WE_99G80E
The CD player
sound is poor.The CD used is scratched or
of poor quality.Insert good quality CDs and
store them in suitable condi-
tions.
The audio settings (bass,
treble) are unsuitable.Set the treble or bass level
to 0.
The Bluetooth®
connection is
cut.The battery of the peripheral
device may not be suffi-
ciently charged.Recharge the battery of the
peripheral device.
The message
“USB device
error” is dis-
played on the
screen.The USB memory stick is not
recognized. The memory
stick may be corrupt.Reformat the memory stick.
A telephone
connects auto-
matically, dis-
connecting
another tele-
phone.Automatic connection over-
rides manual connection.Modify the telephone set-
tings to remove automatic
connection.
An iPod is not
recognized
when connect-
ing to the USB
port.The iPod is of a generation
that is not compatible with
the USB.
The hard disk
or device is not
recognized
when connect-
ing to the USB
port.Some hard disks and
devices need a power sup-
ply greater than is provided
by the audio system.Connect the device to the
230 V socket, the 12 V
socket or an external power
supply.
Caution: ensure that the
device does not transmit a
voltage greater than 5 V (risk
of destruction of the system).
When stream-
ing, the sound
cuts momen-
tarily.Some telephones prioritize
connection of the hands-free
profile.Delete the hands-free con-
nection profile to improve
streaming.
QuestionAnswerSolution

361
AYGO_WE_99G80E
Alphabetical index
Alphabetical index
A/C............................................. 166
ABS ........................................... 154
Air conditioning filter .............. 279
Air conditioning system
Air conditioning filter.............. 279
Manual air conditioning
system ................................ 166
Airbags
Airbag manual on-off
system .................................. 90
Airbag operating
conditions ............................. 81
Airbag precautions for
your child .............................. 85
Airbag warning light .............. 315
Curtain shield airbag
operating conditions ............. 82
Curtain shield airbag
precautions ........................... 85
General airbag precautions..... 85
Locations of airbags ................ 79
Modification and disposal of
airbags .................................. 89
Proper driving posture....... 77, 85
Side airbag operating
conditions ............................. 82
Side airbag precautions .......... 85
SRS airbags ............................ 79
Antenna ............ 180, 195, 242, 244
Anti-lock brake system ........... 154
Audio input ............... 189, 202, 208Audio system
Antenna ........ 180, 195, 242, 244
Audio input ............ 189, 202, 208
AUX port ............................... 189
Bluetooth
® audio................... 209
CD player ...................... 181, 196
Configuration ........................ 222
Frequently asked
questions ............................ 224
iPod....................................... 202
MP3/WMA disc ..................... 196
Optimal use........................... 187
Portable music
player.................. 189, 202, 208
Radio ............................ 177, 192
Setting................................... 220
Type .............................. 175, 190
USB memory ........................ 202
AUX port ........................... 189, 208
A

362 Alphabetical index
AYGO_WE_99G80E
Back door ................................... 48
Back-up lights
Replacing light bulbs ............. 292
Wattage................................. 356
Battery
Checking ............................... 266
If the vehicle battery is
discharged .......................... 332
Preparing and checking
before winter ....................... 159
Bluetooth
® audio ..................... 209
Bluetooth® phone .................... 212
Brake
Parking brake ........................ 137
Brake assist.............................. 154
Break-in tips ............................. 117
Care
Exterior.................................. 242
Interior ................................... 245
Seat belts .............................. 246
CD player .......................... 181, 196
Chains ....................................... 159
Child-protectors ......................... 46
Child restraint system
Baby seats, definition .............. 92
Baby seats, installation ......... 103
Child seats, definition .............. 92
Child seats, installation ......... 103
Installing CRS with ISOFIX
rigid anchor ......................... 107
Installing CRS with seat
belts .................................... 104
Installing CRS with top
straps .................................. 107
Junior seats, definition ............ 92
Junior seats, installation........ 103Child safety
Airbag precautions .................. 85
Battery precautions ....... 268, 334
Child-protectors ...................... 46
Child restraint system ............. 92
How your child should wear
the seat belt .......................... 60
Installing child restraints ....... 103
Power window precautions ..... 66
Removed key battery
precautions ......................... 281
Seat belt precautions .............. 61
Cleaning
Exterior ................................. 242
Interior................................... 245
Seat belts .............................. 246
Clock ......................................... 233
Condenser ................................ 266
Cooling system
Engine overheating ............... 336
Cup holders.............................. 230
Curtain shield airbags ............... 79
B
C
