Driver air bag
The air bag is installed at the center of the
steering wheel. The inflator of this air bag is
ignited momentarily in the event of a collision
and deploys the air bag cushion.
Air bag unit (SDM)
The air bag unit is installed in
the front side of the front
console, and it monitors the
air bag system and
determines the air bag
deployment in the event of a
collision.Front impact sensor
The front impact sensors are fitted
at the bottom of both LH and RH
headlamp inside the front
bumper, and output signals that
activates the front air bag system.
Air bag warning lamp
This lamp notifies the driver about the result of the
diagnosis and faults.
Passenger air bag
This air bag is installed in the upper side
of the instrument panel on the
passenger side. It activates in the same
way of the driver air bag.
2. AIR BAG SYSTEM LAYOUT
Passenger Air Bag ON/OFF Switch
The front passenger air bag is disabled (not
inflatable) when placing the passenger air bag
switch is located on the right side of the
instrument panel, and you can see it when
opening the front passenger door. Press and
turn this switch to operate.

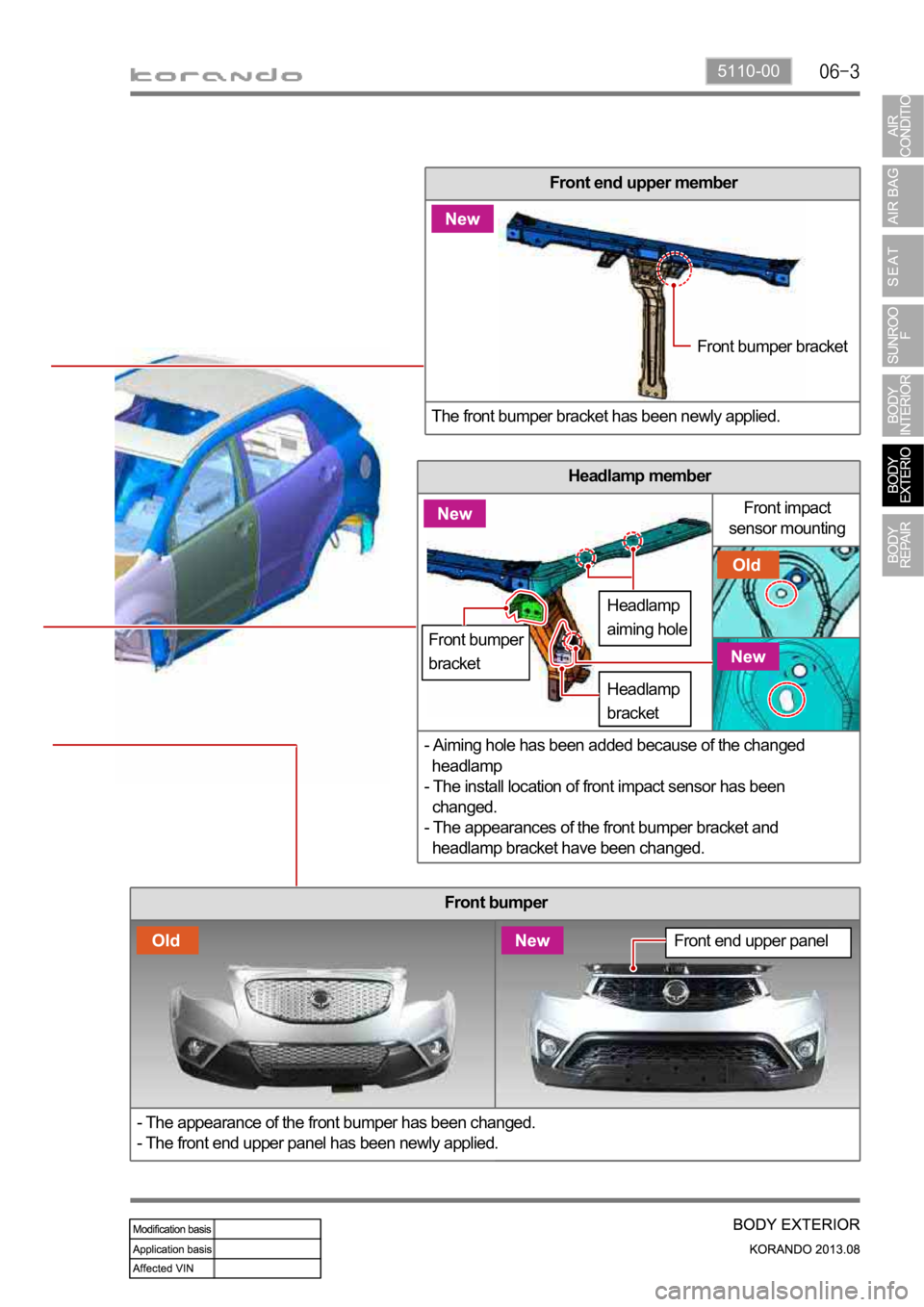

5110-00
Front impact
sensor mounting
Front end upper panel
Headlamp
aiming holeFront bumper bracket
Front bumper
bracket
Headlamp
bracket
Front bumper
- The appearance of the front bumper has been changed.
- The front end upper panel has been newly applied.
Front end upper member
The front bumper bracket has been newly applied.
Headlamp member
- Aiming hole has been added because of the changed
headlamp
- The install location of front impact sensor has been
changed.
- The appearances of the front bumper bracket and
headlamp bracket have been changed.
